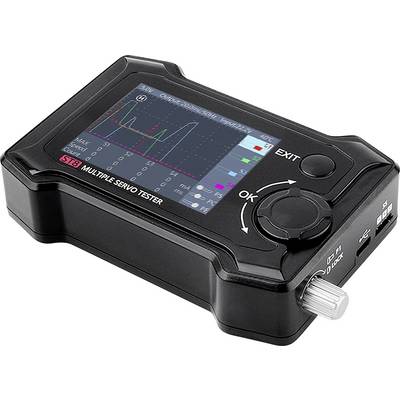

Toolkit RC ST8 Servo tester (L x W x H) 99 x 68 x 26 mm 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 58.82 / piece)
€
Only 9 Piece(s) available
Highlights & Details

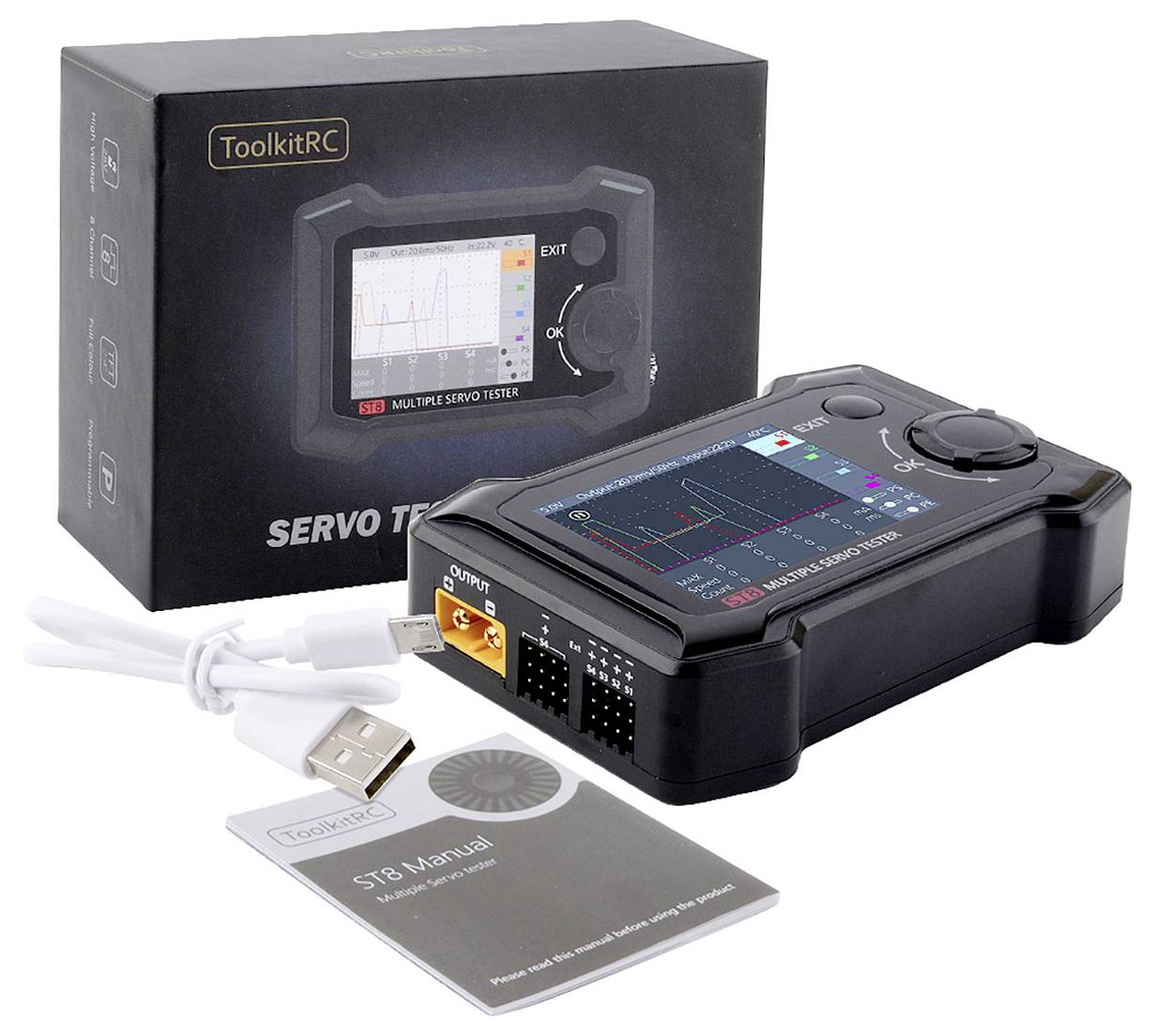

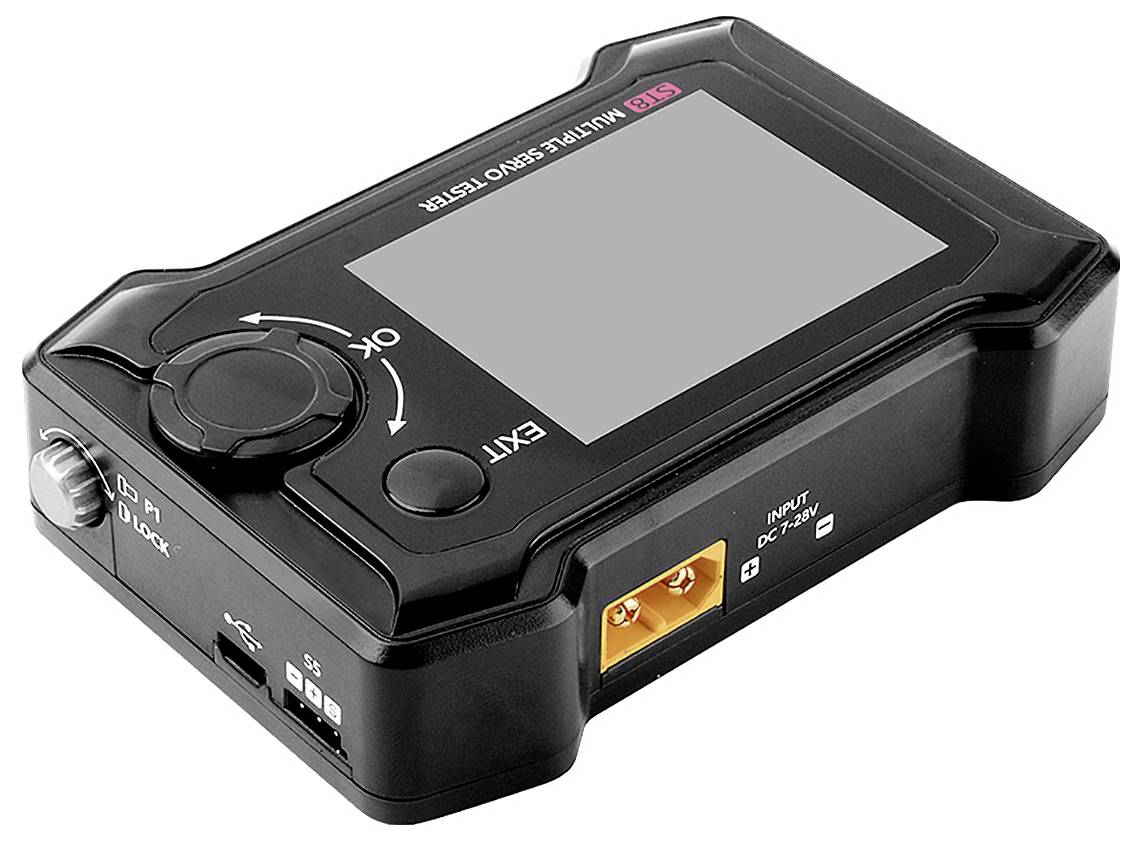

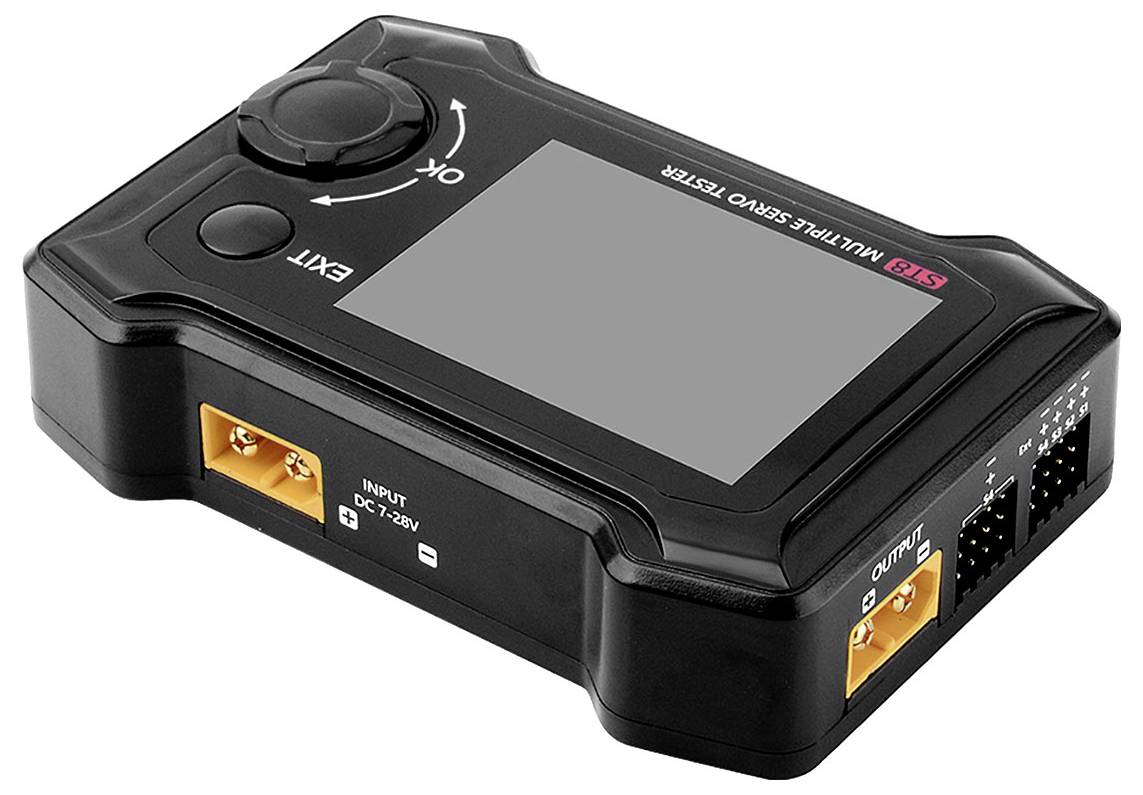

ToolkitRC ST8 servo tester
- 4 Channels for programmable independent signals,
- 8 Channels as signal outputs
- Variety of measurement modes (speed, count, steps, linear)
- The external input signal supports PWM, PPM and SBUS signals
- Measurement accuracy to the millisecond
Technical specifications
- Input voltage 7.0-28V, max. 10A
- Main output connection: 5.0-28V, max. 10A
- Signal connection 5.0V-8.4V, max. 4A/S1-S4
- Output voltage 5.0V-8.4V, max. 4A/S4 ext.
- Output signal 100us-2900us, 33-1000Hz, S1-S4
- PWM 500us-2500us, S5
- PPM 8CH, S5
- SBUS 16CH, S5
- P1 rotation range: 1000US-2000US, P1
- Micro USB upgrade, USB3.0
- LCD, 2.4' TFT RGB 320x240px
- Dim
(L x W x H) 99 x 68 x 26 mm
- Product type
Servo tester
- Content
1 pc(s)
- Operating voltage
7 -28 V DC
- Width
68 mm
- Height
26 mm
- Length
99 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3400281 Toolkit RC ST8 Servo tester (L x W x H) 99 x 68 x 26 mm 1 pc(s)
Description
With the ST8 servo tester, the performance data of servos are displayed visually. A true multifunction device with up to 28V output voltage, 8-channel signal output, integrated current measurement, data display as curve diagram and many other functions.
This text is machine translated.
This text is machine translated.
