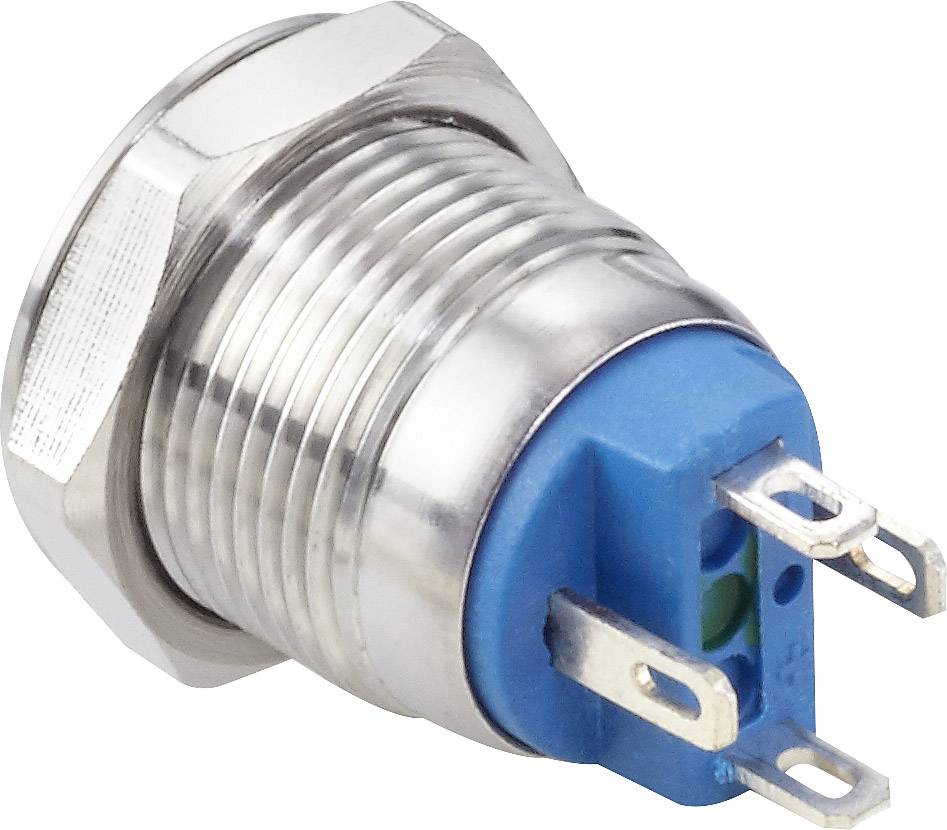

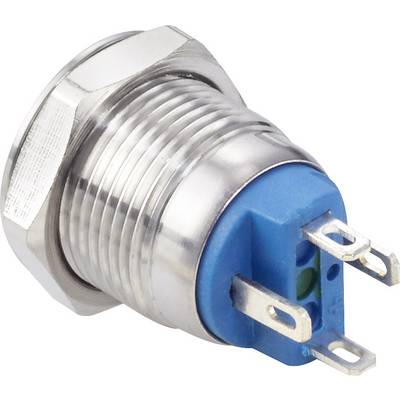

Buy TRU COMPONENTS TC-7494656 TC-GQ12-AF-10E/J/G/12V/S Tamper-proof pushbutton 48 V DC 2 A 1 x Off/(On) momentary Green IP65

Technical specifications

Product type: Tamper-proof pushbutton

Switch/button features: tamperproof
for pushbutton

Casing/button colour: Stainless steel

Functions: momentary

Lighting type: Circular lighting

Colour: Green

Bulb type: LED (monochrome)

Switch position: 1 x Off/(On)

Contact type: 1 maker

Material: Stainless steel

Contact material: Silver alloy

Connection: Soldering

Contact resistance: ≤ 50 mΩ

Switching voltage: 48 V DC

Switching current (max.): 2 A

Dielectric strength: 1500 V

Min. temperature: -25 °C

Max. temperature: +55 °C

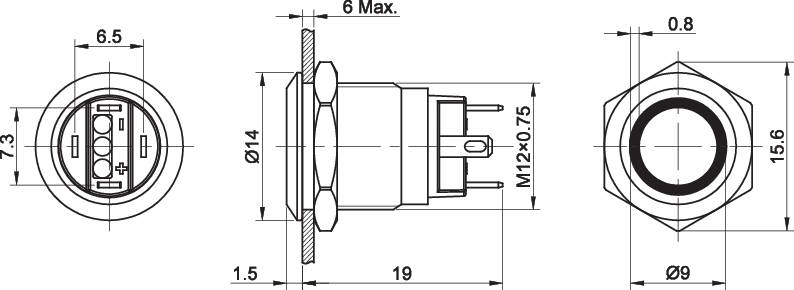

Button diameter: 9 mm

Durability: 500000

Recess diameter: 12 mm

Recess depth: 19 mm

Electrical lifespan: 200000

: IP65

Actuating force: 4 N

Content: 1 pc(s)

Insulation resistance: ≥ 1000 MΩ

RoHS-compliant: Yes

Board thickness (max.): 6 mm

Type: TC-GQ12-AF-10E/J/G/12V/S
