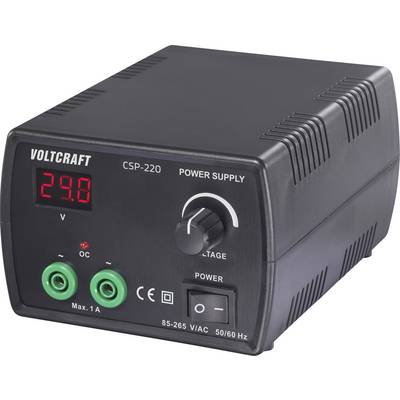

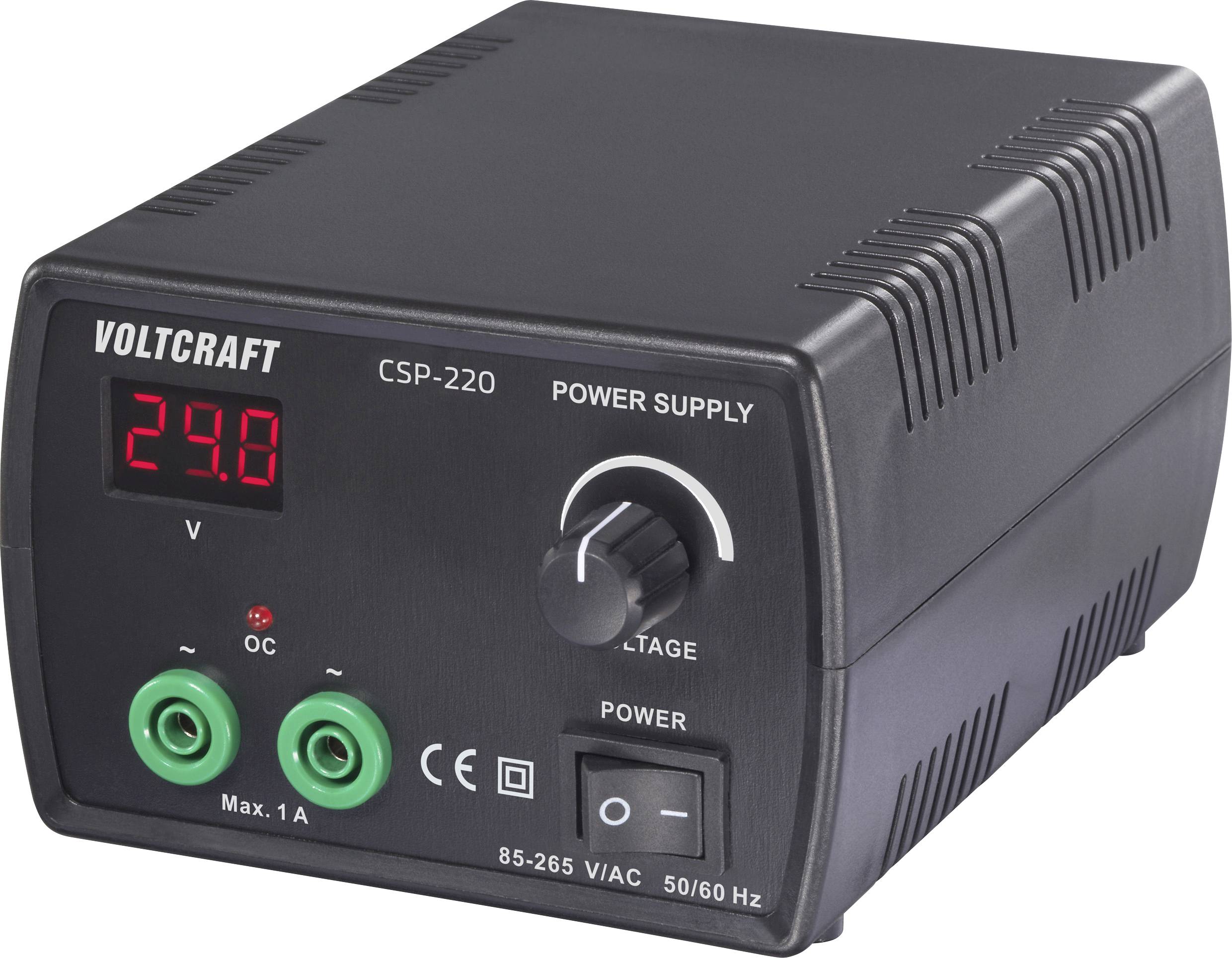

'Voltcraft CSP-220 power supply' with red LED display showing '29.8 V', dial for voltage adjustment, green sockets, power switch, CE marking.

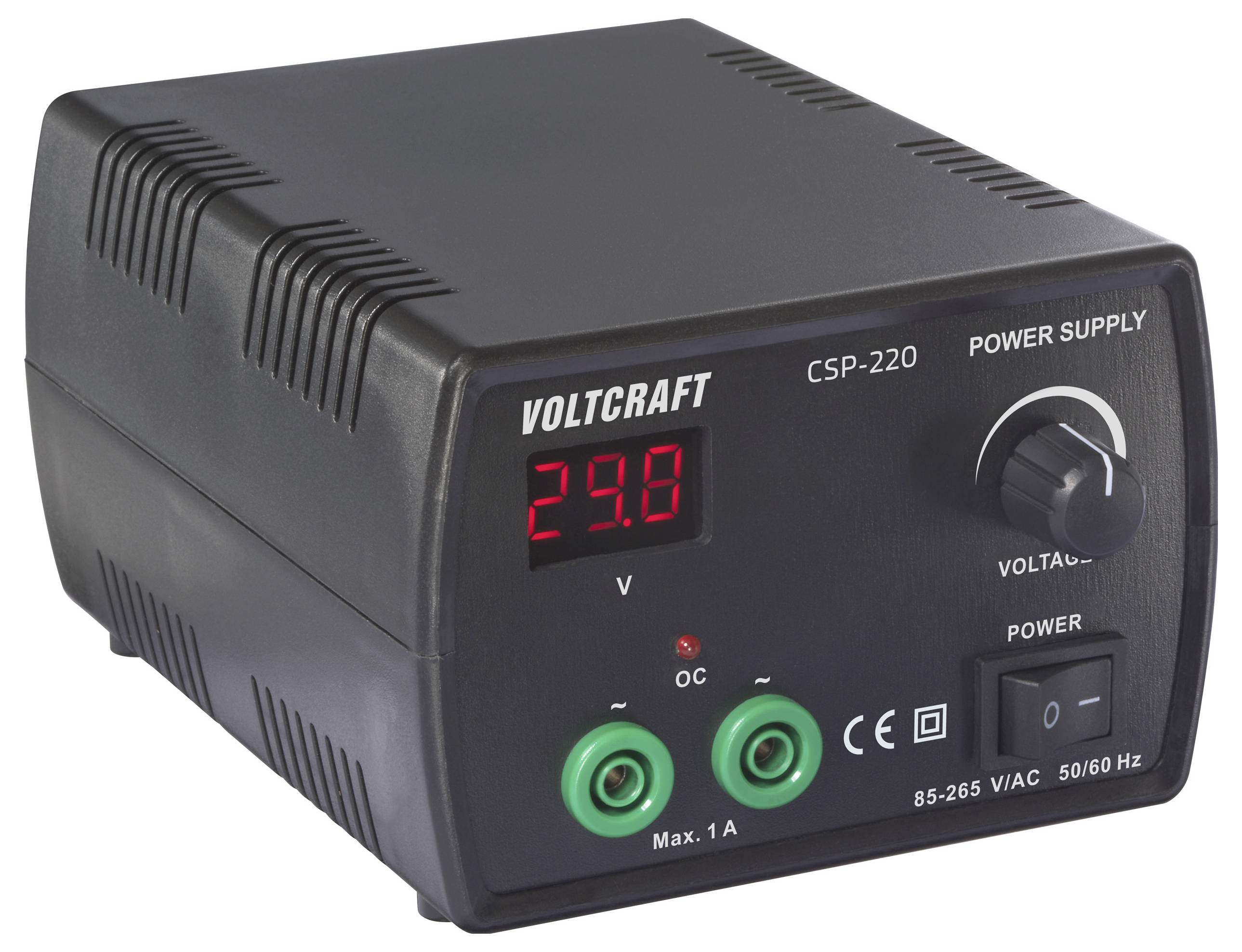

A black Voltcraft CSP-220 power supply with a digital display showing '29.8 V'. It features a voltage adjustment knob and dual connectors.

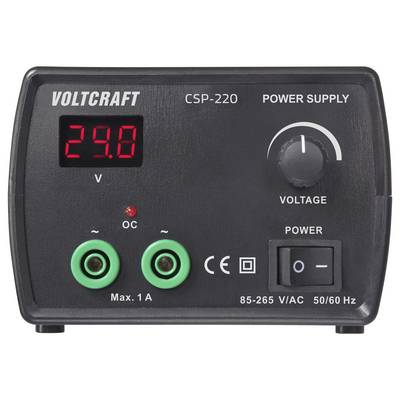

A black power supply unit displaying '29.8 V' on LED, with a voltage adjustment knob and green output terminals labeled 'Max. 1 A'.

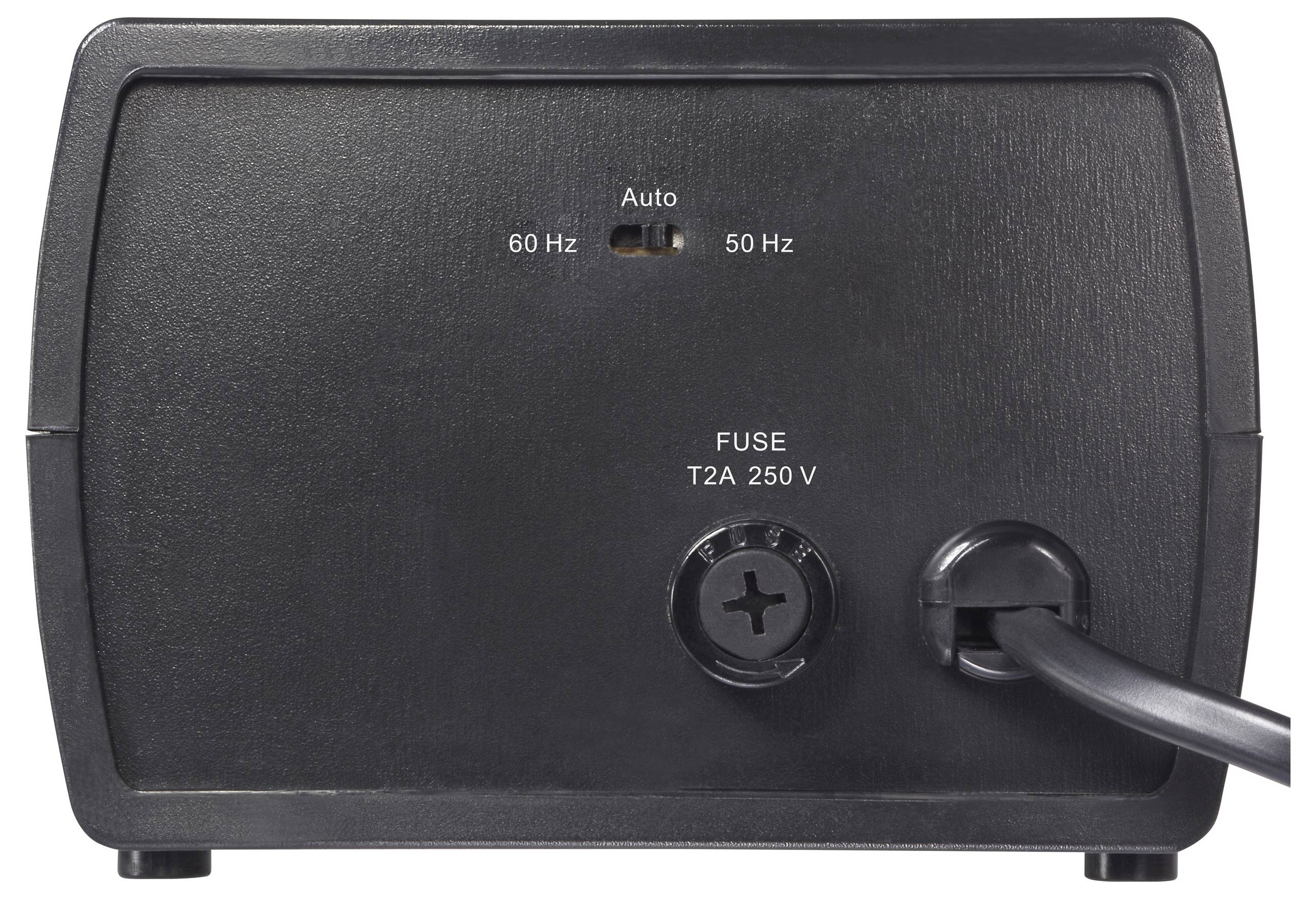

The image shows the back panel of an electronic device with a switch labeled 'Auto' for 60 Hz and 50 Hz, alongside a fuse port marked 'FUSE T2A 250V' and a power cord.

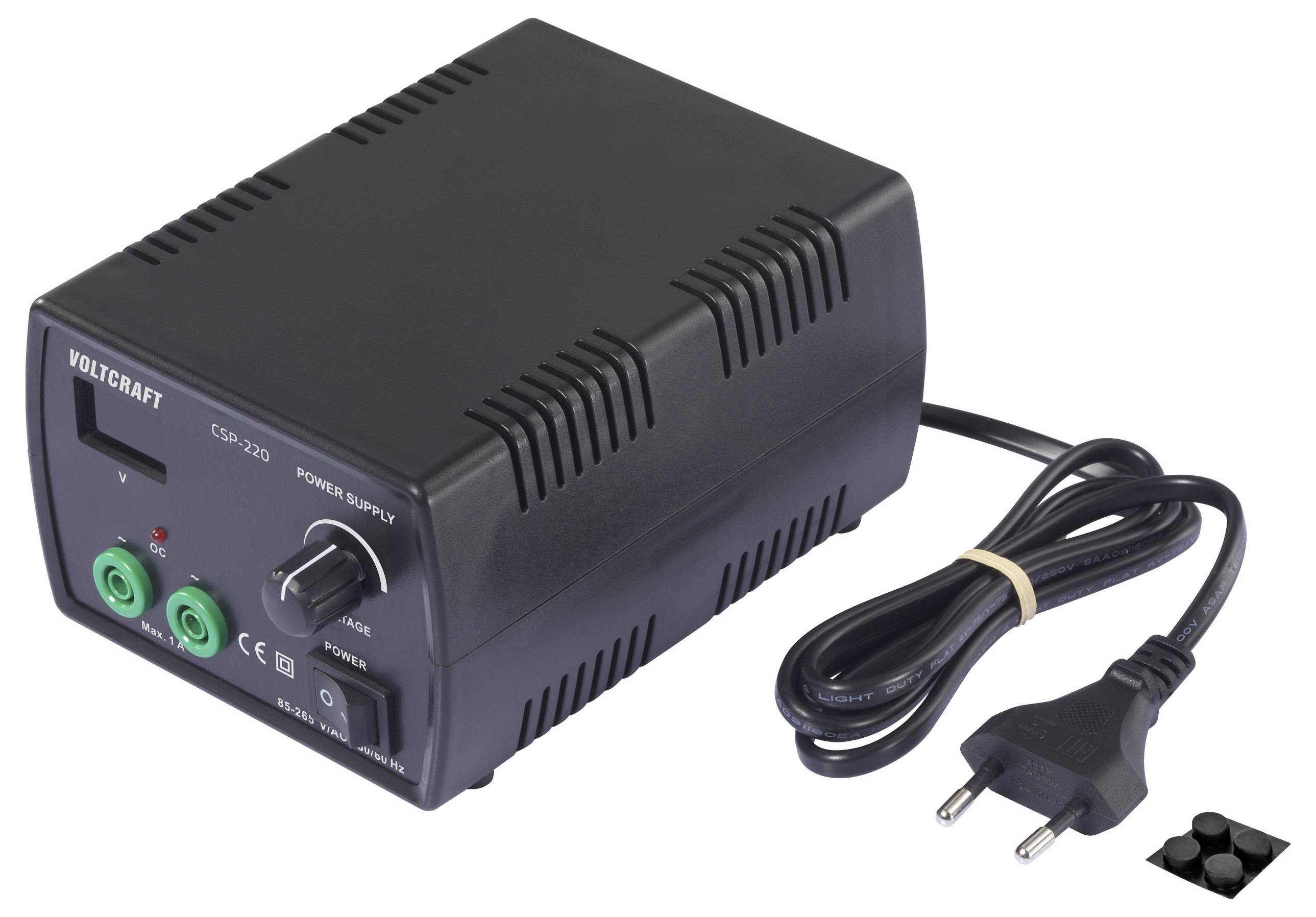

'Voltcraft C-50 220 power supply unit with two green output terminals, a knob for voltage adjustment, power switch, and an attached power cord.'

1/5

Our service for you

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 109.24 / piece)

€ 109.24

plus VAT.

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

VOLTCRAFT CSP-220 Power supply

No. of outputs 1 x
0 - 24 / 1 A (max.)
24 W
Alternating voltage output

Technical specifications

50/60 Hz output frequency selectable
Fuse: T1 A / 250 V
Efficiency: >70 %

Type: CSP-220

Product type: Bench PSU (adjustable voltage)

No. of outputs: 1 x

: 24 W

Technology: SMPSU

Dim: (L x W x H) 140 x 110 x 74 mm

: Manufacturer's standards (no certificate)

Input voltage: 100 V AC
240 V AC

Weight: 350 g

Connections: 4 mm safety sockets

Type: Switching AC

Output voltage (max.): 24 V AC

Output voltage (min.): 0 V AC

Max. output current: 1 A

Inputs: EU plug

MTBF: 2000 h

Mains control: Fuse

Type: Bench PSU (Adjustable voltage)

Width: 110 mm

Height: 74 mm

Length: 140 mm

Max. temperature: 40 °C

Min. temperature: 0 °C

Plastic free packaging: Plastic-free packaging

Documents & Downloads

Datasheet

Datasheet 3438791 VOLTCRAFT CSP-220 Bench PSU (adjustable voltage) Alternating voltage 0 - 24 ;1 A (max.);24 W;No. of outputs 1 x

User & Safety Instructions

User & Safety Instructions 3438791 VOLTCRAFT CSP-220 Bench PSU (adjustable voltage) Alternating voltage 0 - 24 ;1 A (max.);24 W;No. of outputs 1 x

Warranty Terms

Warranty Terms 3438791 VOLTCRAFT CSP-220 Bench PSU (adjustable voltage) Alternating voltage 0 - 24 ;1 A (max.);24 W;No. of outputs 1 x

Description

AC alternating voltage adjustable
The VOLTCRAFT CSP-220 is a compact laboratory power supply unit designed for use in professional environments, such as development laboratories and workshops. It serves as a reliable AC voltage source for electronic applications in the low power range. Its easy handling and solid performance values make it a practical tool for training purposes and daily measurement and test tasks.

Variable voltage range
The mains adapter provides an adjustable output voltage in the range from 0 to 24 V. This flexibility allows the supply of various electronic circuits and components that require variable alternating voltages.

Defined performance parameters
With a current of 1 A and a maximum power of 24 W, the CSP-220 ensures a stable power supply for small consumers. The performance data are Ideal-tuned to applications that do not require high currents but require a constant supply.

Clear structure
The device is equipped with an output (1 x). This concentration on the essentials provides a clear operation and simplifies the quick connection of the test sample at the workplace.
