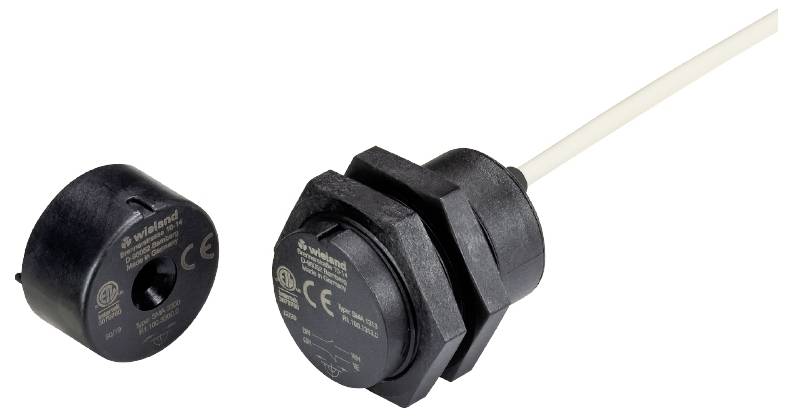

Wieland Electric Magnetic switch Magnetic SMA 0323 R1.100.0323.0 (Ø x H) 30 mm x 30 mm
EAN:
Part number:
Item no:
Product type
Magnetic switch
Max. operating voltage
48 V AC
Contact type
2 makers
Model
Magnetic
Connector
Cable
Number
Total (€ 75.62 / piece)
€ 75.62
plus VAT.
Technical specifications
- Product type
Magnetic switch
- Type
SMA 0323
- Min. operating voltage
5 V AC
- Max. operating voltage
48 V AC
- Operating voltage
5 - 48 V AC
- Contact type
2 makers
- Enclosure material
Plastic
- Model
Magnetic
- Connector
Cable
- Cable length
3 m
IP67
- Length
32 mm
- Width
30 mm
- Height
30 mm
- (Ø)
30 mm
- Dim
(Ø x H) 30 mm x 30 mm
- Content
1 pc(s)
- Technology
Magnetic
- Switching current (max.)
200 mA
DC
Plastic
TRUE
Uncoated
0
0
0
2
Other
Cable
Other
Cuboid
20 mm
200 mA
5 mA
FALSE
TRUE
IP67
Magnet
5-48 V
30 mm
32 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3272563 Wieland Electric Magnetic switch Magnetic SMA 0323 R1.100.0323.0 (Ø x H) 30 mm x 30 mm
Description
Safety sensor and magnet
tamper-proof
Round design
Dimensions Diameter x Length: M30x32mm
Contact configuration: Closer/S closer
Protection class IP67
Cable connection 3M
This text is machine translated.
tamper-proof
Round design
Dimensions Diameter x Length: M30x32mm
Contact configuration: Closer/S closer
Protection class IP67
Cable connection 3M
