Brennenstuhl 1153690600 Distribution box Black
EAN:
Part number:
Item no:

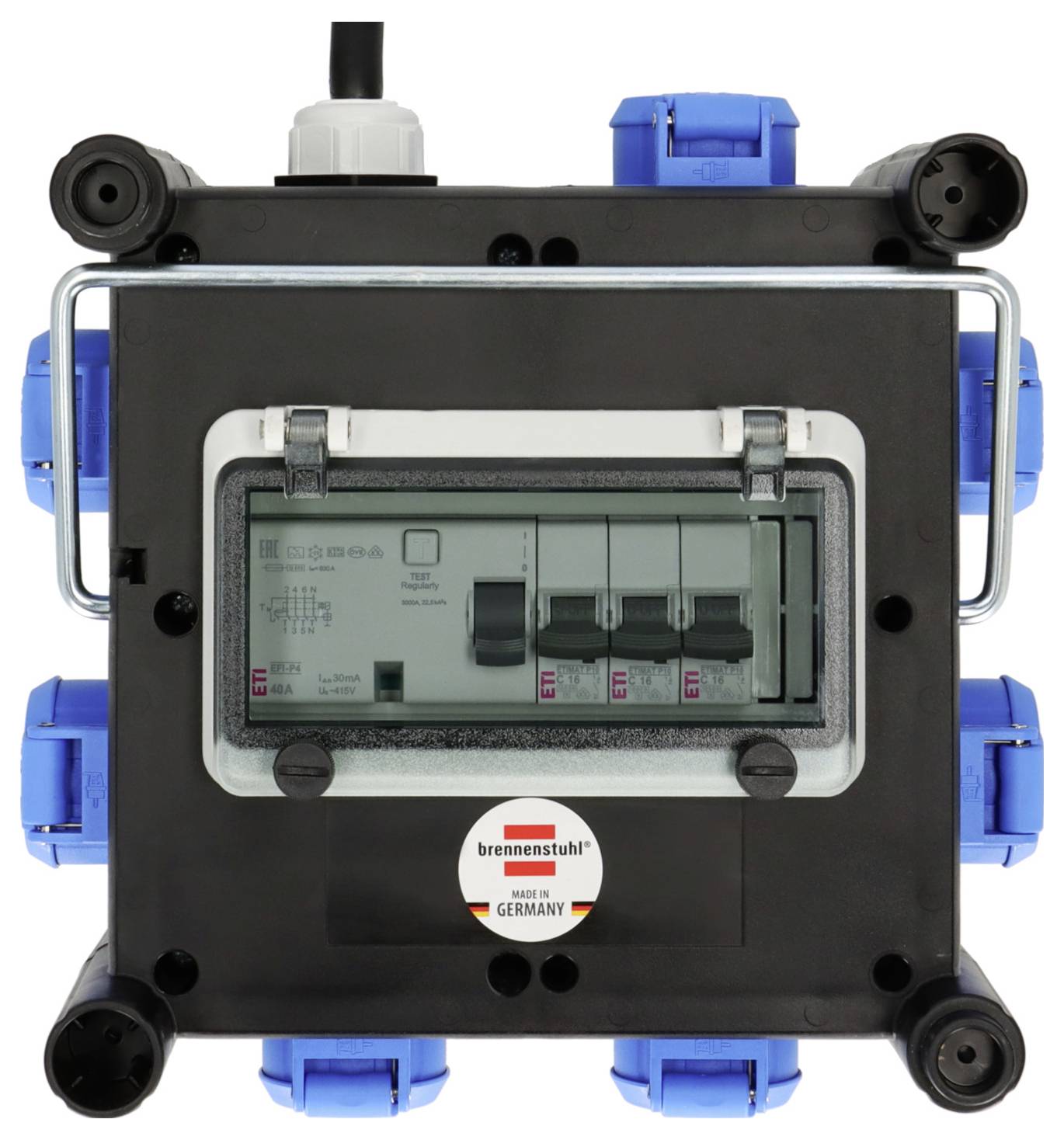

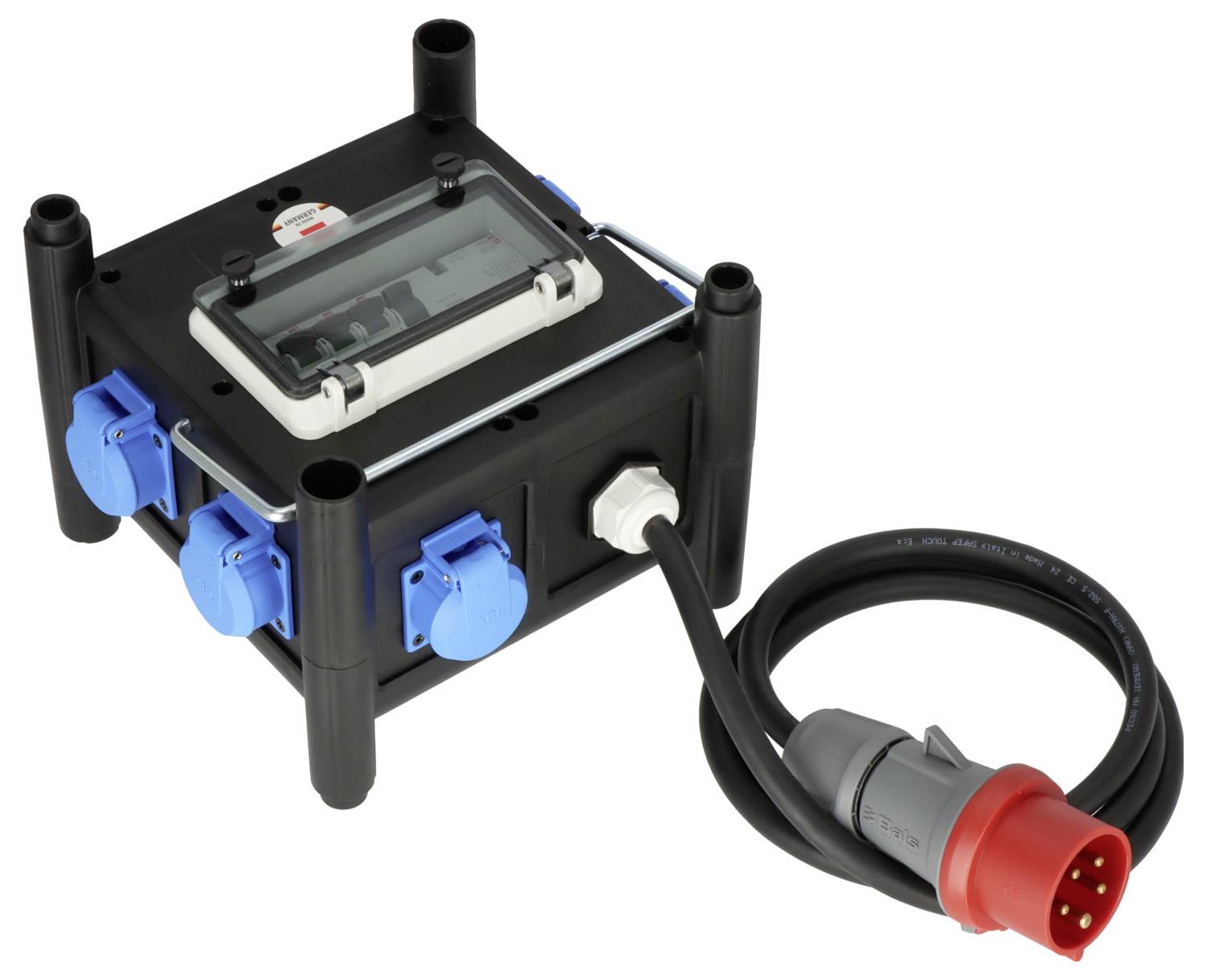

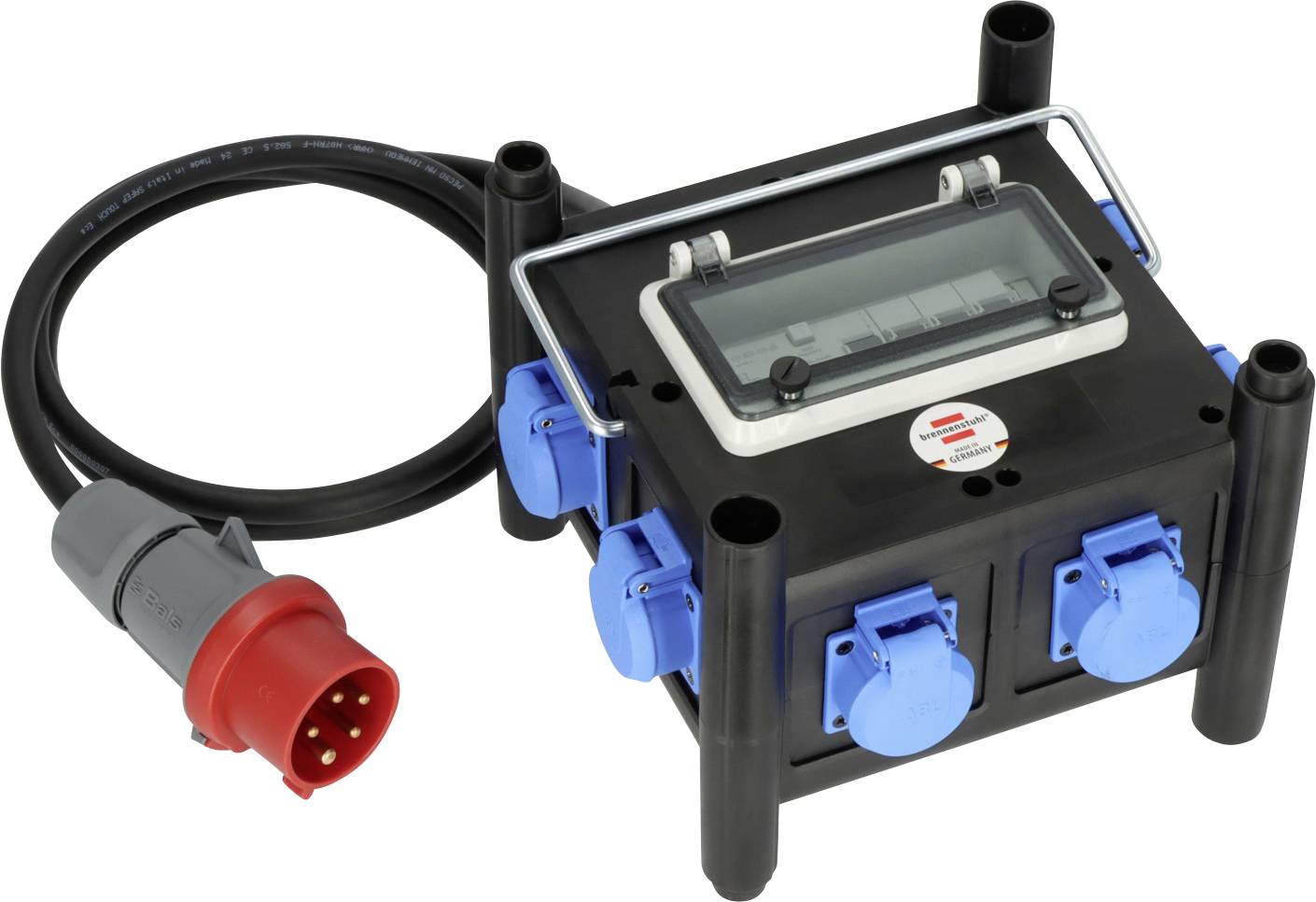

Brennenstuhl compact rubber power distributor with certified circuit breaker
Highlights & Details
- Protection: 3x LS 230 V/16 A 1-pin/pin, 1 x FI 40 A 4-pin 30mA/polishing
- For outdoor use - IP44
- Stable metal carrying handle
Technical specifications
- 3 x LS 230 V/16 A 1-pin/pin
- Product type
Distribution box
- No. of PG sockets
7
- Nominal voltage (details)
400 V
- Nominal current (details)
16 A
- Cable length
2 m
- Cable standard
H07RN-F 5G 2,5 mm²
- Cable features
incl. RCCB
IP44
- Factory colour
Black
- Weight
3.48 kg
- Dim
(L x W x H) 265 x 305 x 230 mm
- Length
265 mm
- Width
305 mm
- Height
230 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2194396 Brennenstuhl 1153690600 Distribution box Black
Description
The compact rubber current distributor from Brennenstuhl in the color black and 2m cable impresses through its quality and safety in all areas. The practical and extremely robust power distributor is suitable for Ideal on-site use or for constant outdoor use. In addition, it convinces by the following features:
* CABLE NAME: H07RN-F 5G2.5
* Plug: CEE 400V/16A 5-pin/-pin
* Sockets: 7x 230V/16A
* Protection: 3x LS 230V/16A 1-pole/-pin, 1x FI 40A 4-pole/-pin 30mA
* For continuous outdoor use - IP44
* Temperature resistance of the housing: -30°C to +80°C.
* Quality sockets according to VDE 0620-1
* Stable metal carrying handle
* Earthing contact sockets divided into 3 separate phases
This text is machine translated.
* CABLE NAME: H07RN-F 5G2.5
* Plug: CEE 400V/16A 5-pin/-pin
* Sockets: 7x 230V/16A
* Protection: 3x LS 230V/16A 1-pole/-pin, 1x FI 40A 4-pole/-pin 30mA
* For continuous outdoor use - IP44
* Temperature resistance of the housing: -30°C to +80°C.
* Quality sockets according to VDE 0620-1
* Stable metal carrying handle
* Earthing contact sockets divided into 3 separate phases
This text is machine translated.
Scope of delivery
- Rubber power distributor with quality sockets, sturdy metal handle, certified circuit-breaker and olbestandigem cable
