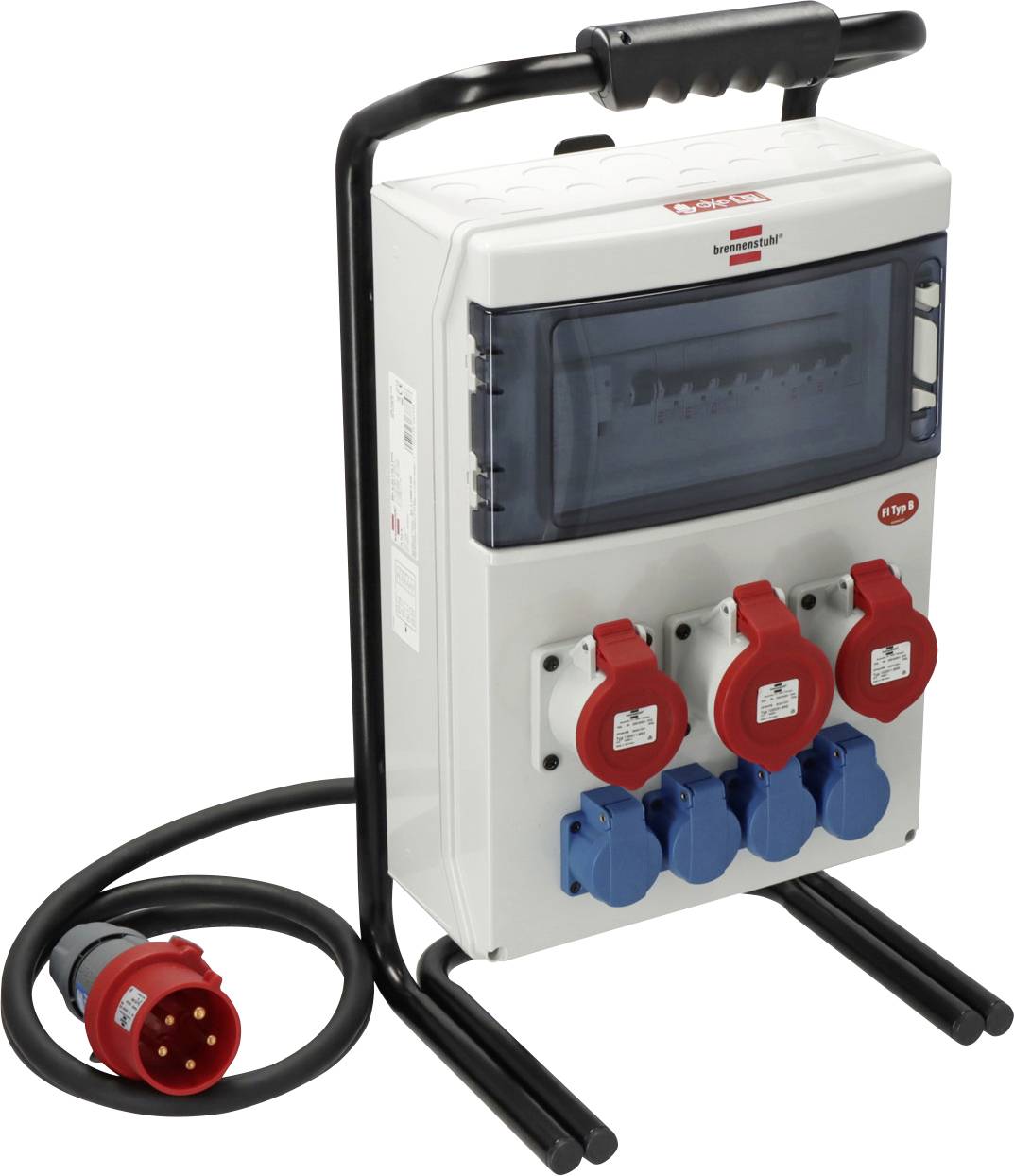

Portable electrical distribution box with transparent cover, carrying handle, and multiple red and blue power outlets on a stand with attached cable and plug.

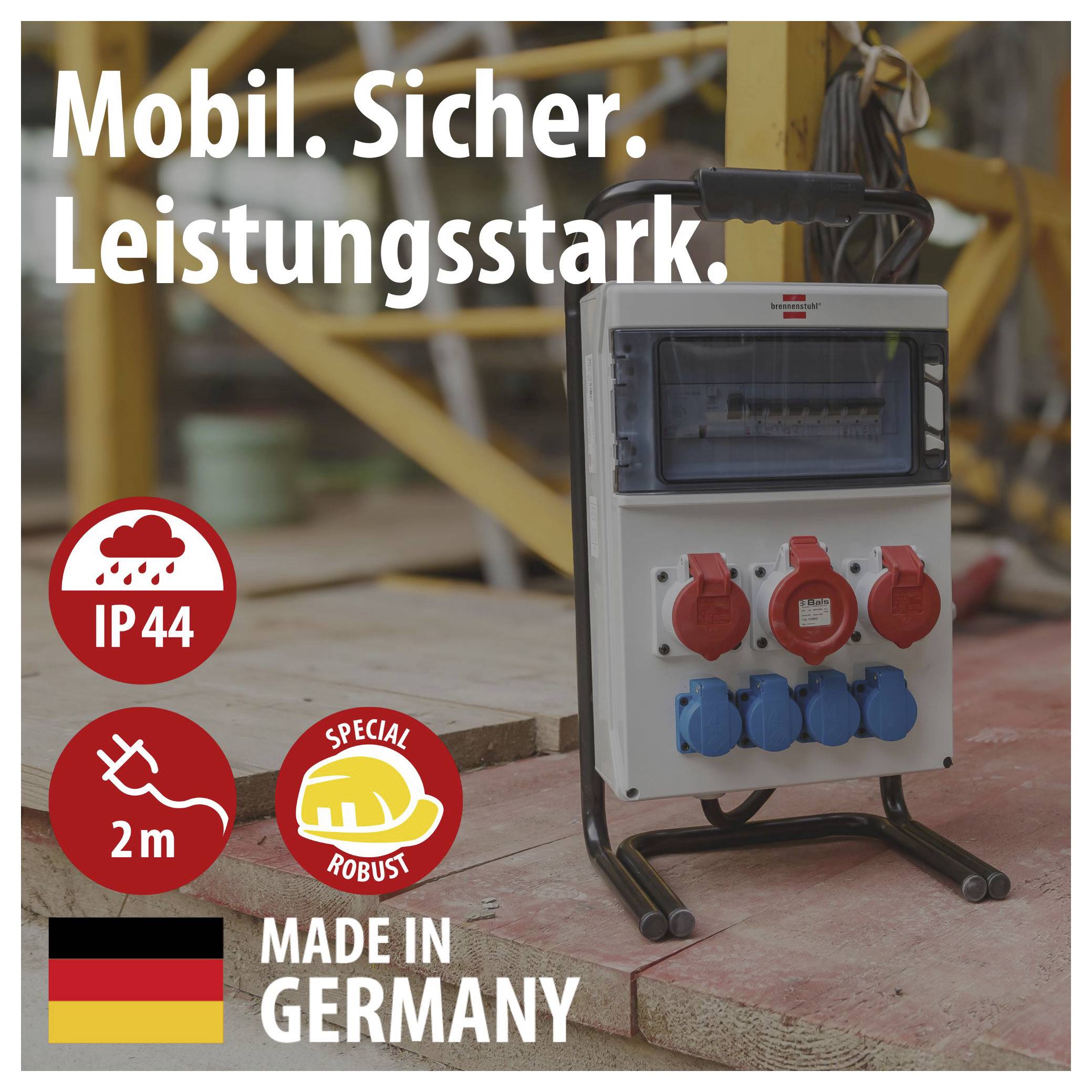

Mobile, robust site power distribution unit with IP44 rating, 2 m cable length and 'Made in Germany' designation.

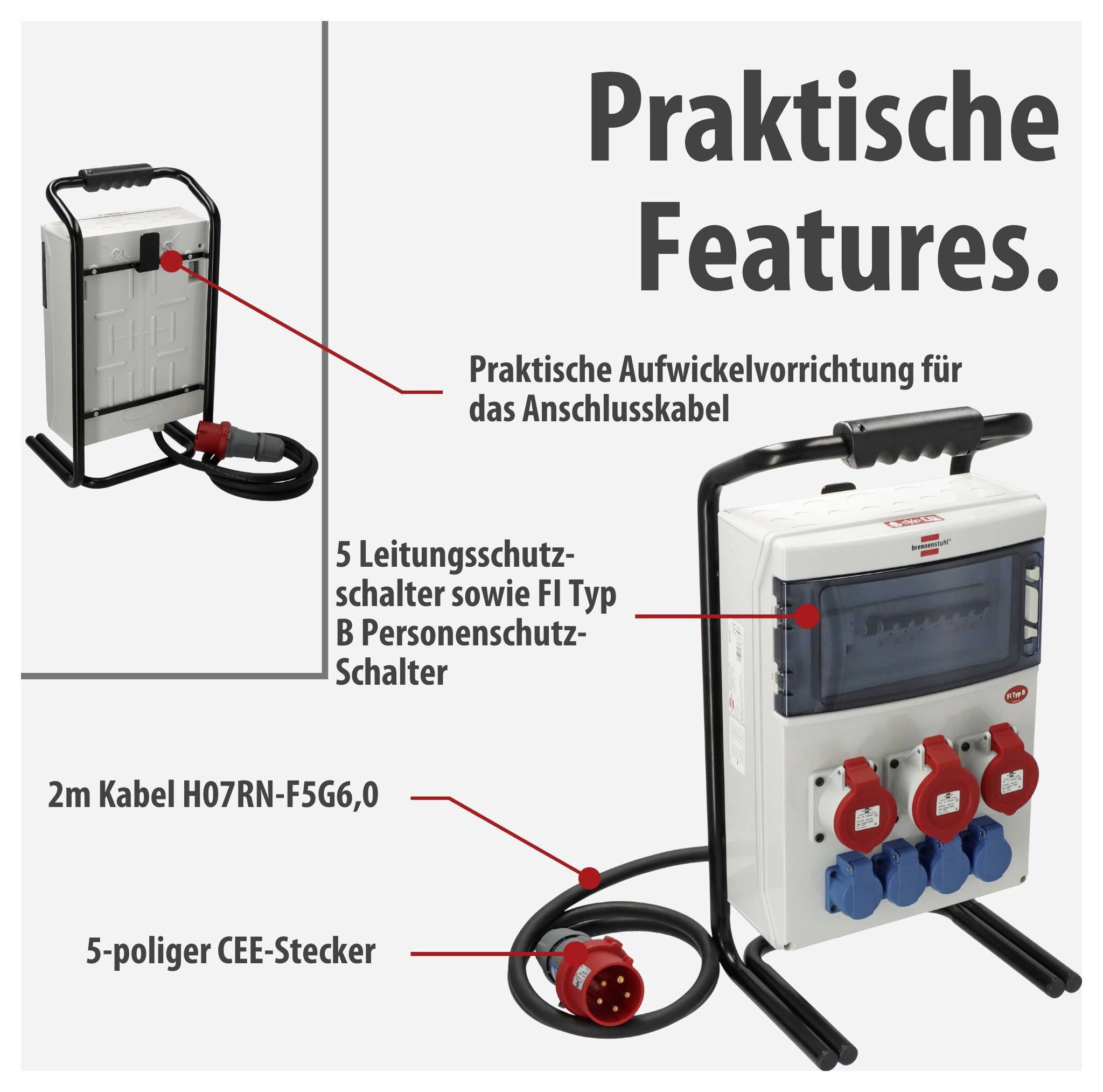

Product photograph of a mobile electrical distribution box with cable reel; marked are 5 RCD/MCB switches, 2 m H07RN-F5G6.0 cable and 5-pin CEE plug.

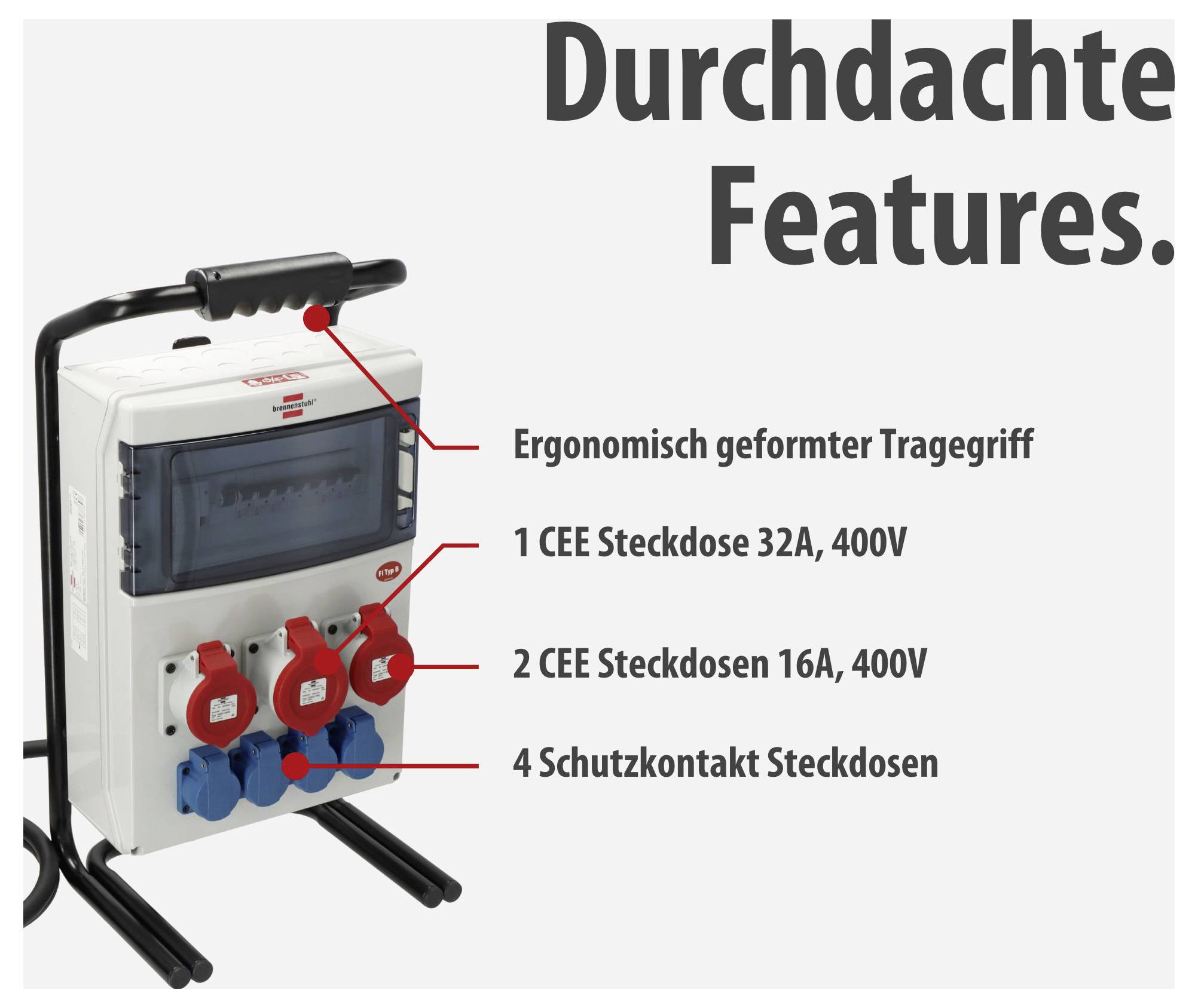

Advertisement image of a mobile power distribution unit with handle and sockets; labelled: 'Ergonomically designed carrying handle', '1 CEE socket 32A, 400V', '2 CEE sockets 16A, 400V', '4 earthed sockets'.

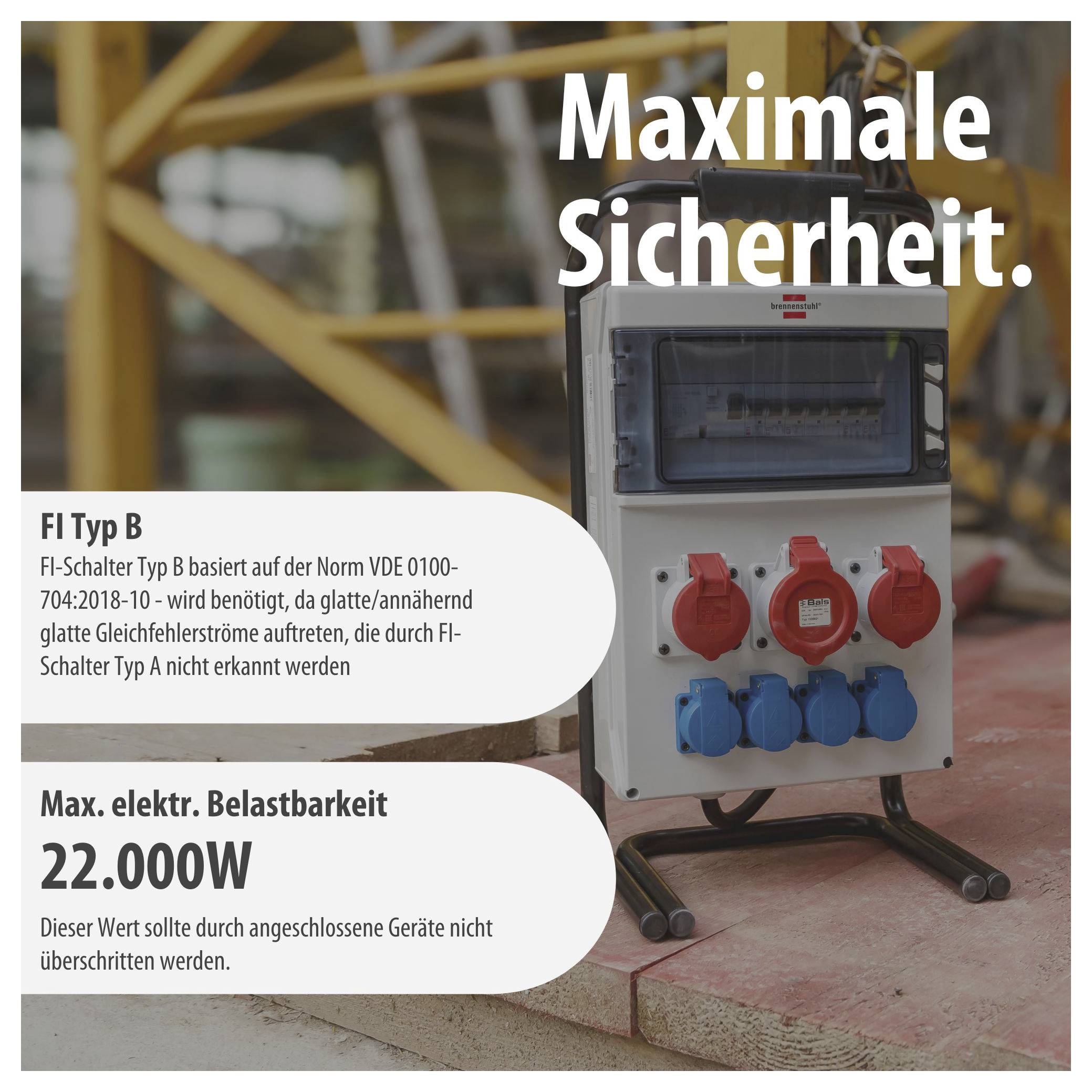

RCD switch type B for maximum safety; maximum electrical load capacity 22,000 W, with red and blue sockets on a site distribution board.

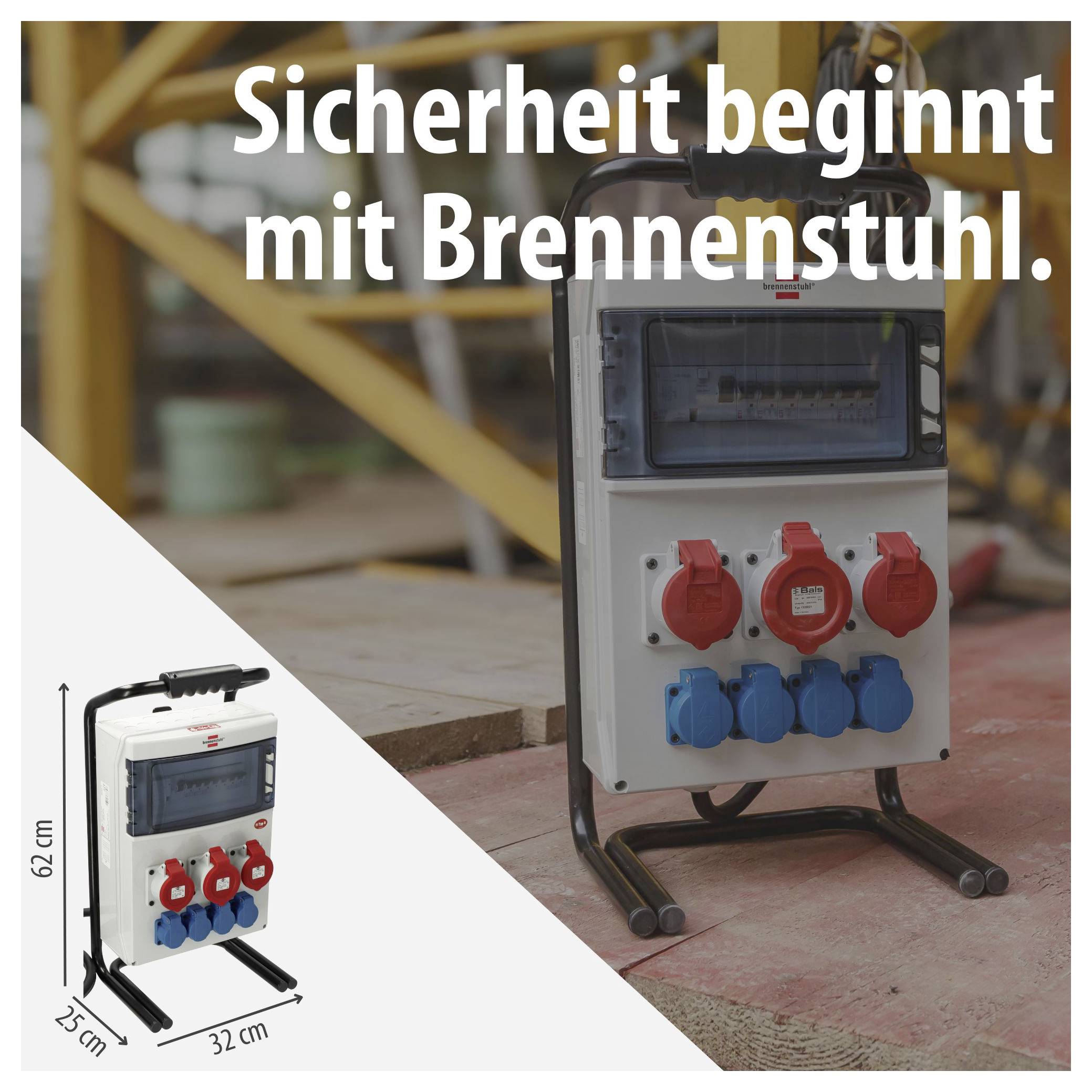

Mobile site power distribution unit on stand with protective flaps; Text: 'Safety starts with Brennenstuhl.' and dimensions 62 cm, 32 cm, 25 cm.

1/7

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Portable building current distributor with all-current-sensitive FI-Safety switch Type B.

Installation current distributor with residual current circuit breaker type B (all-current sensitive): Residual-current protection device of the type B provides for an increase in safety for people and environment and is also needed at construction sites
FI-switch Type B is based on the standard VDE 0100-704:2018-10 - is needed, because smooth/almost smooth direct fault currents occur which are not detected by FI-switch Type A.
IP44 portable power distributor for continuous outdoor use with 2m oil-resistant rubber cable (H07RN-F 5G6.0) and robust steel-pipe frame for a secure stand and additional housing protection
Robust construction current distributor with residual current circuit breaker type B with a total of four earthing contact sockets - each earthing contact socket 230V is separately secured and can be loaded with 16A
Industrial power distributor with residual current circuit breaker type B, ergonomically shaped carrying handle and practical winding device for the cable (at rear)

Technical specifications

Product width (excluding packaging): 32 cm
Product weight (excluding packaging): 8.37 kg
Product height (excluding packaging): 25 cm
Product length (without packaging): 62 cm
Max. electronic. Load capacity 22000 W
Nominal input voltage 400 V
With carry handle: Yes
Material housing: Plastic
Total number of CEE sockets: 3
Total number of sockets: 7
Protection type (IP) IP44
Suitable for outdoor use: Yes
CABLE NAME: H07RN-F 5G6.0
Cable length: 2 m
Cable quality: Rubber neoprene
FI-switch: FI with IFN 0.03 A (standard)
Number of safety sockets: 4

Product type: Industrial power distributor

No. of CEE connectors: 3

No. of PG sockets: 4

Cable length: 2 m

Cable standard: H07RN-F 5G 6 mm²

: IP44

Factory colour: White

Dim: (W x H x D) 32 x 62 x 25 cm

Width: 32 cm

Height: 62 cm

Depth: 25 cm

Weight: 8.37 kg

Keyboard layout: German, QWERTZ

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3439037 Brennenstuhl 1154900629 Industrial power distributor 1154900629

User & Safety Instructions

User & Safety Instructions 3439037 Brennenstuhl 1154900629 Industrial power distributor 1154900629

Description

The portable power distributor by Brennenstuhl with 2m RN-cable is suitable Ideal for the safe power supply at construction sites and also convinces by the following properties:

* Robust plastic coated steel tube frame
* Ergonomically shaped carry handle for convenient transport
* Rear-side convenient wrap-up device for the connecting cable
* With protective cover for fuses
* Oil resistant rubber cable for continuous outdoor use
* CABLE DESIGNATION: H07RN-F 5G6.0
* Cable length: 2m
* Protection class: IP44
* Number of poles (FI): 4
* With FI (type B all-current sensitive) Personal protection switch 30 mA for more safety
* Number of circuit breakers: 5 (1x LS 400V/16A 3-pole/-pin; 4x LS 230V/16A 1-pole/-pin)
* PLUG: CEE 32A 3P+N+PE (5P) 400V
* CEE socket - 16 A: CEE 2x 16A 3P+N+PE (5p) 400V
* CEE socket - 32 A: CEE 1x 32A 3P+N+PE (5p) 400V
* Earthing contact sockets: 4

This text is machine translated.

Scope of delivery

Brennenstuhl portable power distributor IP44 with FI-protection switch type B (with 32A CEE-plug, 2m RN-cable, sockets: 1xCEE 400V/32A, 2xCEE 400V/16A, 4x protective contact 230V, Made in Germany)
