Brennenstuhl 1156057984 Main-Follow Black PG connector 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 172.26 / piece)
€ 172.26
plus VAT.
14-day return policy included

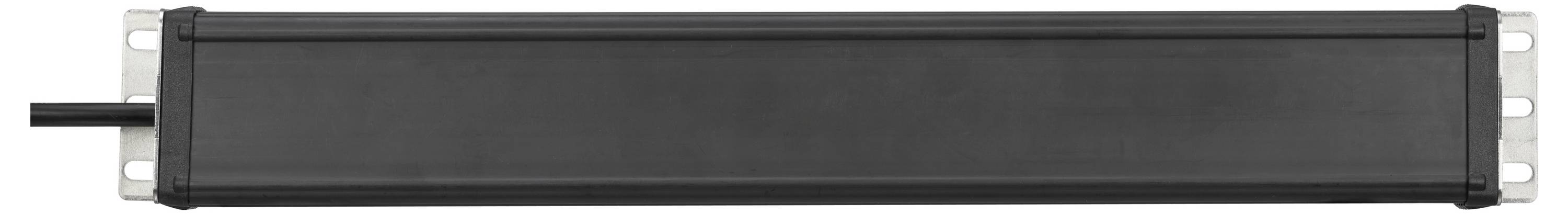

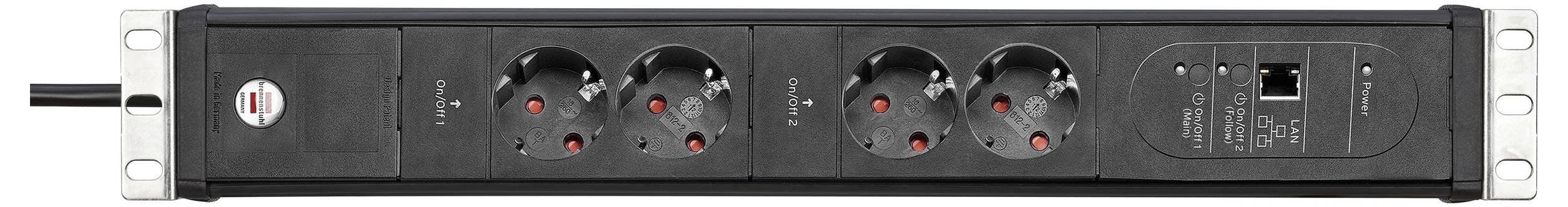

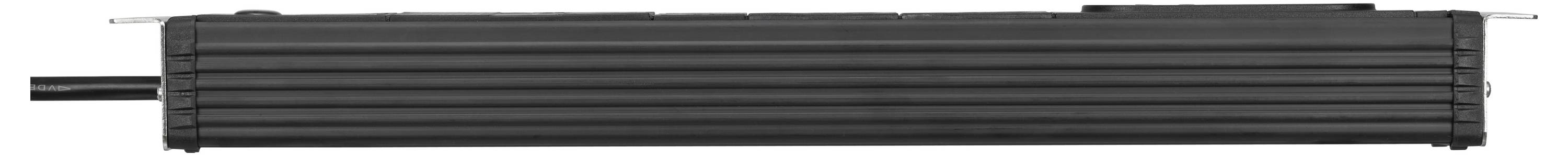

Brennenstuhl 1156057984 Main-Follow
Highlights & Details
- For installation in 19" network or server cabinets
- 4-way black
- 3 m cable length H05VV-F3G1.5
Technical specifications
- Main sockets: 2
- Max. power rating 16 A
- Product type
Main-Follow
- Light bulb features
Child safety
- Outlets
4
- Cable length
3.00 m
- Plug type
PG connector
- Cable standard
H05VV-F 3G 1,5 mm²
- Factory colour
Black
- Length
70 mm
- Width
100 mm
- Height
490 mm
- Continuous power sockets
4
- Switchable sockets
4
- Weight
1.09
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2205129 Brennenstuhl 1156057984 Main-Follow Black PG connector 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2205129 Brennenstuhl 1156057984 Main-Follow Black PG connector 1 pc(s)
Conformity certificate
Conformity certificate 2205129 Brennenstuhl 1156057984 Main-Follow Black PG connector 1 pc(s)
Description
Professional Internet power strip for worldwide control, measurement and monitoring of electrical devices via Ethernet (LAN).
This text is machine translated.
This text is machine translated.
Features
- Integrated web server for operating system-independant operation with web browser (PC, notebook, tablet, smartphone)
- Access protection by means of user name and password
- 2 independantly switchable circuits with 16 A load capacity
- Switch with intelligent control electronics, optimized for high inrush currents, protecting the device
- Switching status can be changed and displayed individually directly on the device
- Adjustable default switching state: Off, on, last state
- Integrated time control by means of flexibly programmable, time-dependant rules: Channel 1 and/or 2, on or off, any weekdays or exact date, time to the minute
- Automatic time synchronization (NTP) as well as conversion of summer/winter time
- Professional power measurement on Channel On/Off 1 (Main): Measurement of active power and energy consumption with history display
- Programmable automatic function (main follow)
- IP address possible using DHCP (default) or static IP address
- Monitoring of connected LAN devices (watchdog) with automatic power-off or reboot function
- Wake On LAN (WOL)
- Permanent backup of configuration settings in flash memory
- SW update in the browser without interrupting the switching outputs
- Save and load configurations on the PC
- Multi-user system with restricted access
- Very low power consumption < of 0.9 W (sleep mode, relay switched off)
- Supported protocols HTTP, DHCP, UPNP, SNMP, TFTP, SMTP, SYSLOG
- Sockets with increased protection against contact.
