Brennenstuhl CEE power distributor 1151480010 400 V 16 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 84.03
plus VAT.
14-day return policy included
Highlights & Details
Portable power distributor BSV P 6x 230V/16A sockets, CEE 400V/16A plug, 2m H07RN-F5G2.5
- Cable length: 2m
- CABLE NAME: H07RN-F 5G2.5

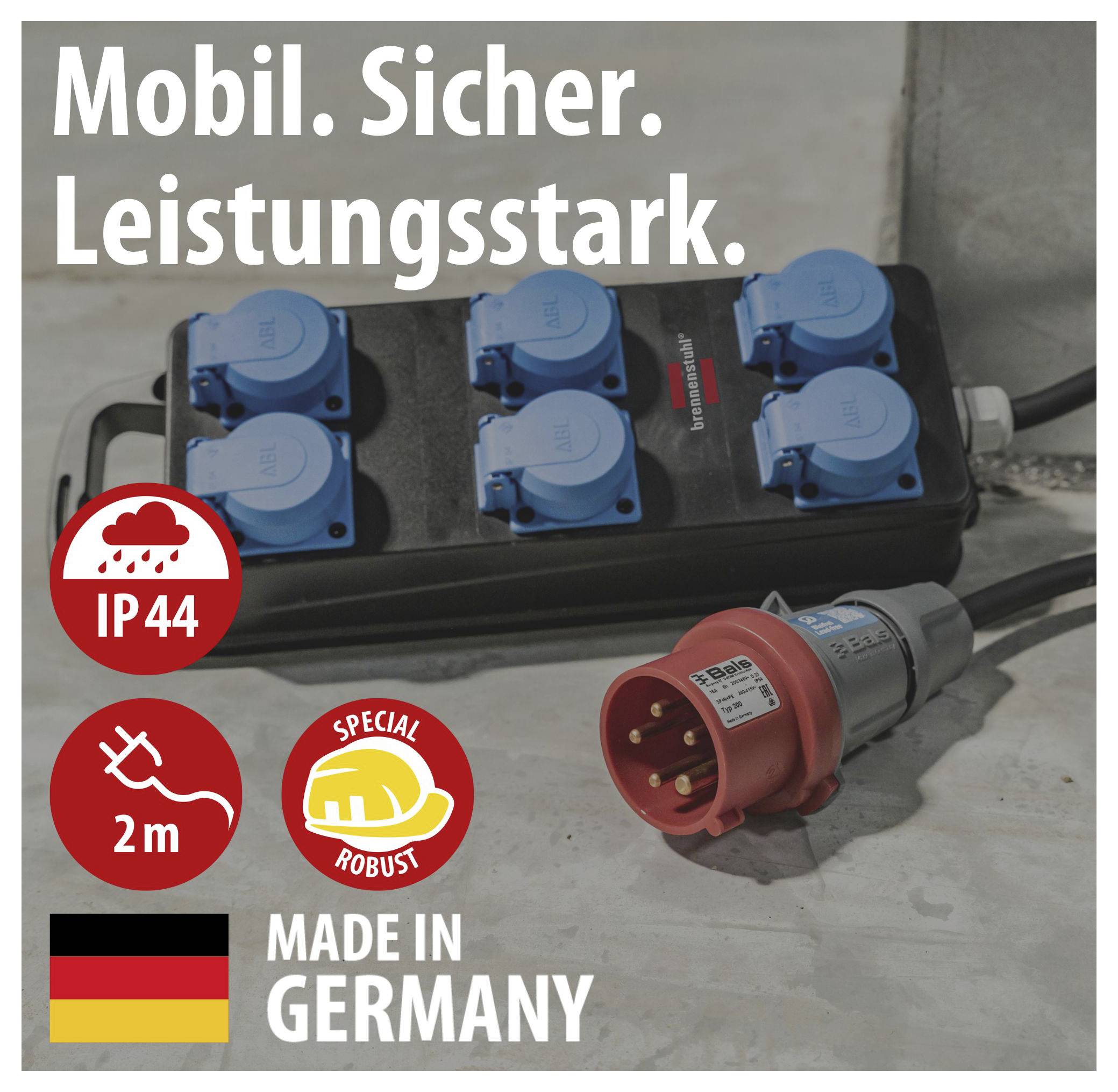

- Protection class: IP44
- Plug:CEE 400V/16A 5-pin/-pin
- 6x protective contact sockets (230V/16A, connected to three phases)
- Case temperature resistance -30°C to +80°C.

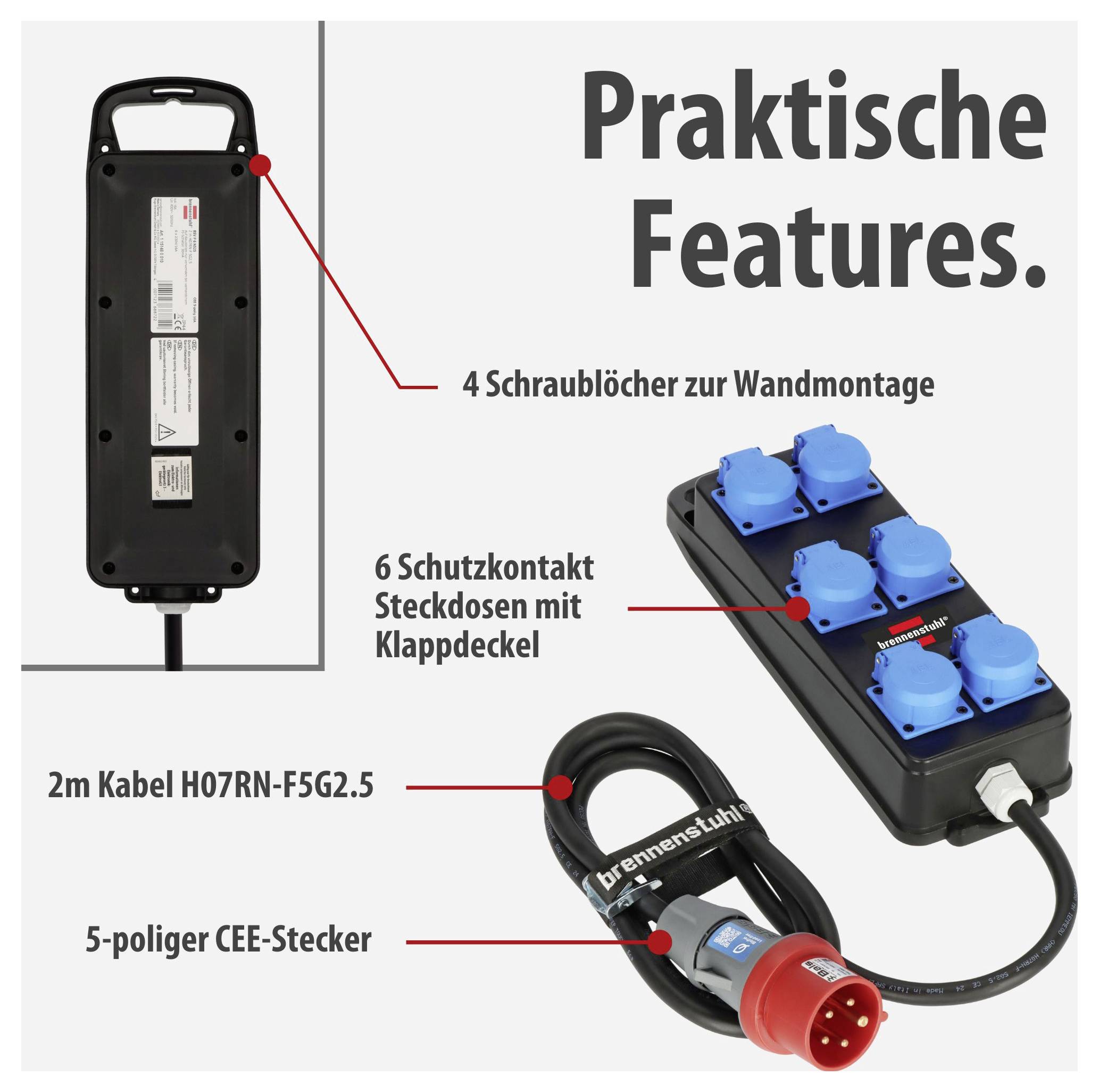

- Attachment strap and four screw holes for wall mounting
- Max. electronic. Power handling capacity 11.000W
Technical specifications
- Connection type A (or inputs): CEE plug 16 A 3P+N+PE (5p) 400 V
- Connection type B (or outputs): Socket type F (protective contact)
- Inputs (CEE power distributor)
- Plug system CEE 16 A 3P+N+PE (5p) 400 V
- Pole number: 5-pole (3P+N+PE) on CEE plug
- Housing from a special rubber mixture
- Resistant to various oils, greases, petrol and acids, UV and ozone radiation
- 11 kW power with symmetrical division possible
- Cable quality rubber neoprene
- Product type
CEE power distributor
- No. of PG sockets
6
- Inputs
16 A
- Outputs

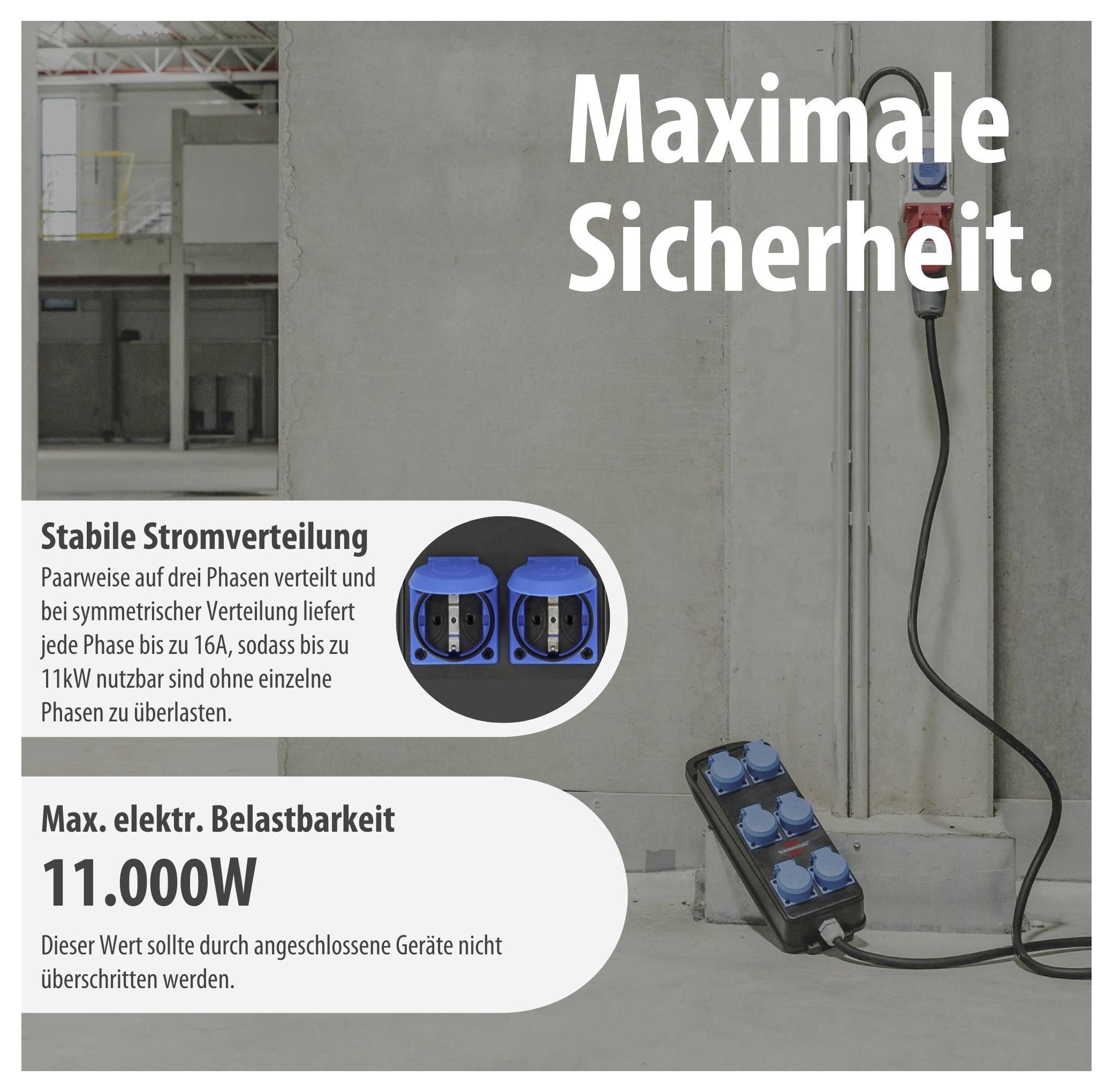

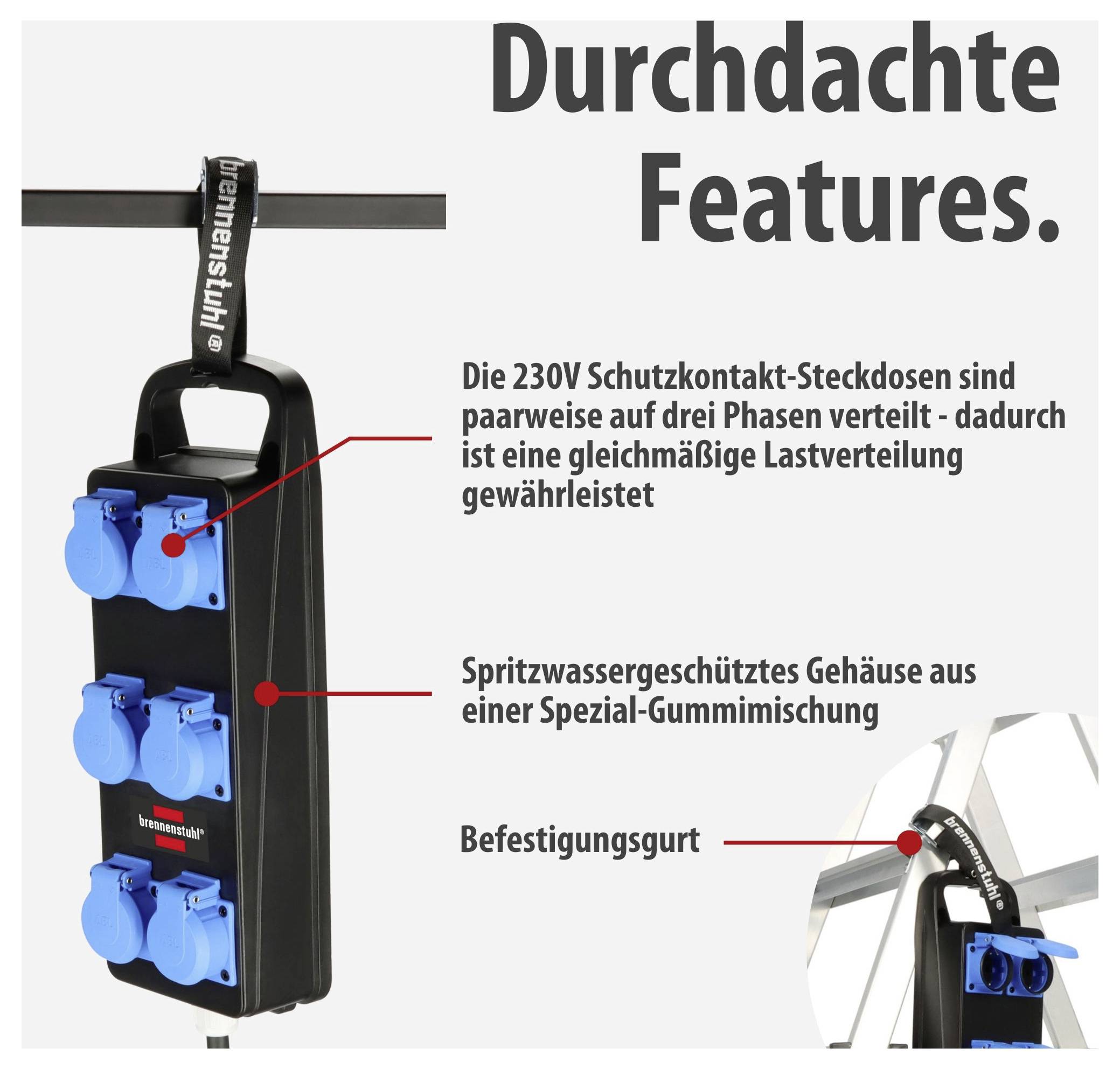

6x earth contact sockets 230 V. These are distributed in pairs on all 3 phases to enable a uniform load distribution
- Nominal input voltage
400 V
- Nominal output voltage
230 V
- Nominal input current
16 A
IP44
- Cable length
2 m
- Cable standard
H07RN-F 5G 2,5 mm²
- Protection
FI-Switch Without and safeguard Without
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Standards
Quality sockets according to VDE 0620-1
- Factory colour
Black
- Weight
1680 g
- Dim

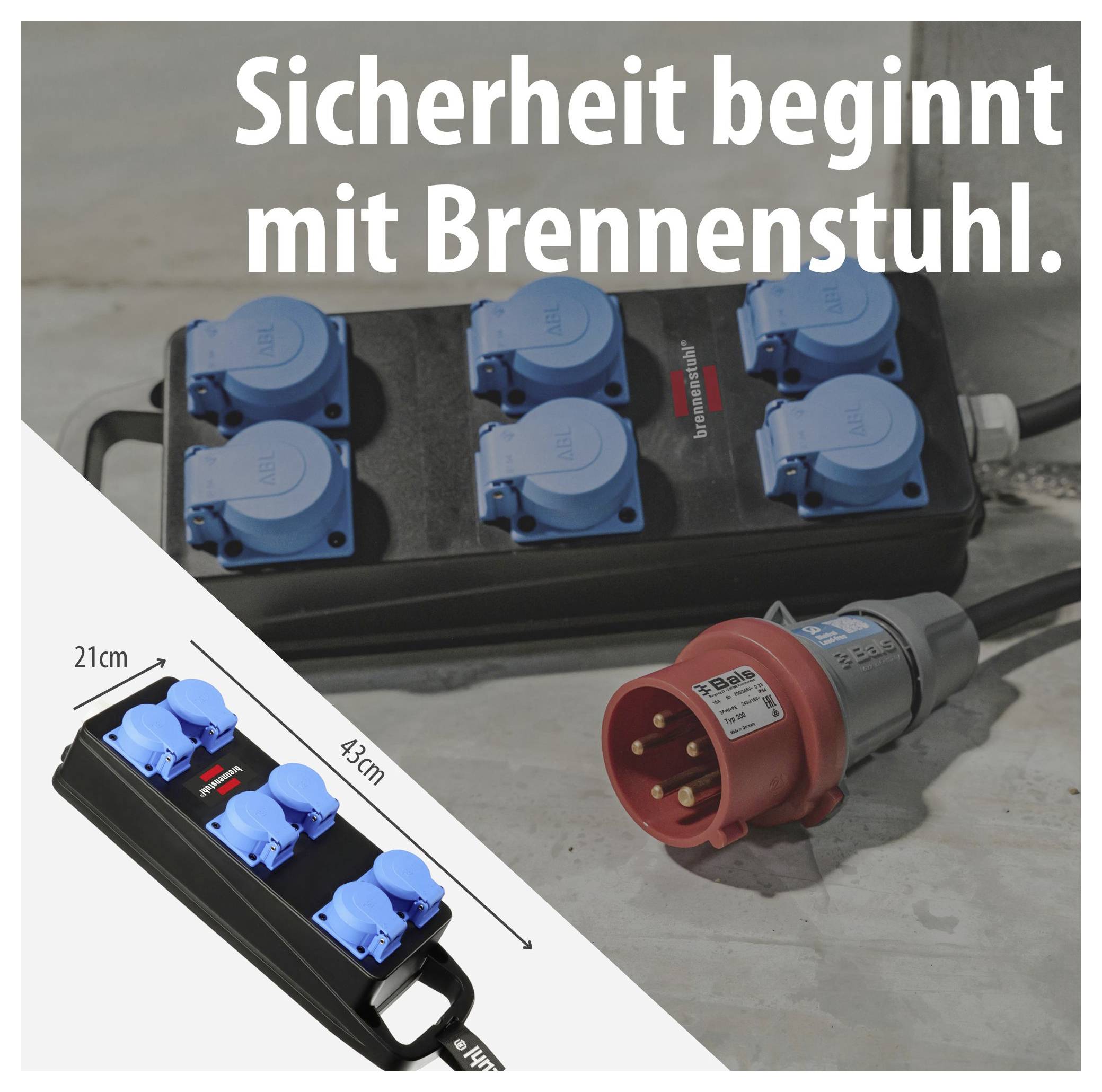

(L x W x H) 43 x 21 x 9.7 cm
- Length
43 cm
- Width
21 cm
- Height
9.7 cm
- Inputs (CEE power distributor)
CEE CARA plug (3-pin, 16 A)
- Content
1 pc(s)
- Version
Mains cable
- Cable use
Current
- Connection type
PG connector
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3531656 Brennenstuhl CEE power distributor 1151480010 400 V 16 A
User & Safety Instructions
User & Safety Instructions 3531656 Brennenstuhl CEE power distributor 1151480010 400 V 16 A
Description
The portable power distributor BSV P from Brennenstuhl with 6 safety power sockets 230V/16A is the ideal solution for the application in the outdoor area - be it on construction sites, city festivals or events. The sockets are distributed in pairs on three phases and with symmetrical distribution, each phase supplies up to 16A, so that up to 11kW can be used without overloading individual phases. With its water-proof casing made of a special rubber mixture and quality sockets according to VDE 0620-1 the robust multi-distributor is resistant to various oils, greases, petrol and acids, UV and ozone radiation. It also impresses with the following features:
Cable length: 2m
CABLE NAME: H07RN-F 5G2.5
Protection class: IP44
Plug:CEE 400V/16A 5-pin/-pin
6x protective contact sockets (230V/16A, connected to three phases)
Case temperature resistance -30°C to +80°C.
Attachment strap and four screw holes for wall mounting
Max. electronic. Power handling capacity 11.000W
This text is machine translated.
Cable length: 2m
CABLE NAME: H07RN-F 5G2.5
Protection class: IP44
Plug:CEE 400V/16A 5-pin/-pin
6x protective contact sockets (230V/16A, connected to three phases)
Case temperature resistance -30°C to +80°C.
Attachment strap and four screw holes for wall mounting
Max. electronic. Power handling capacity 11.000W
This text is machine translated.
Scope of delivery
- Portable power distributor BSV P 6x 230V/16A sockets, CEE 400V/16A plug, 2m H07RN-F5G2.5
