Buy Brennenstuhl CEE power distributor 1151600010 1151600010 400 V 16 A

Portable power distribution unit with three blue sockets and a red industrial plug and outlet on a black case.

Portable electrical adapter with multiple covered outlets and a white power socket on a black panel with attached cable.

Close-up of a portable power distribution box with blue hinged covers over multiple outlets, including a red-trimmed socket, and thick black cables attached.

Close-up of a black spring-loaded plastic clip or clamp with a hinged arm on a white background.

1/4

Datasheet (PDF)

Fast track dispatch on Tue, 6 Oct

102 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 47.05 / piece)

€ 47.05

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Power station CEE1 IP44

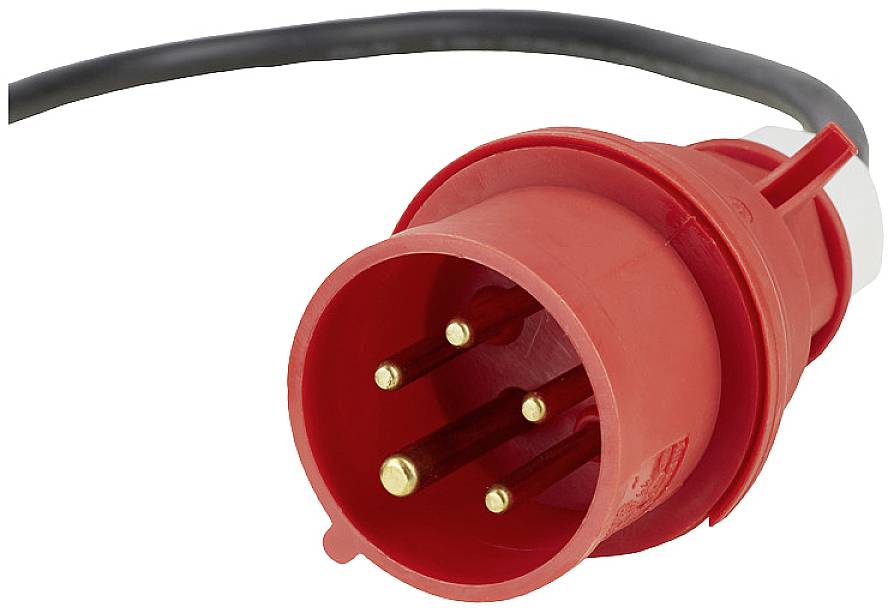

Plug CEE400V/16A and socket CEE400V/16A

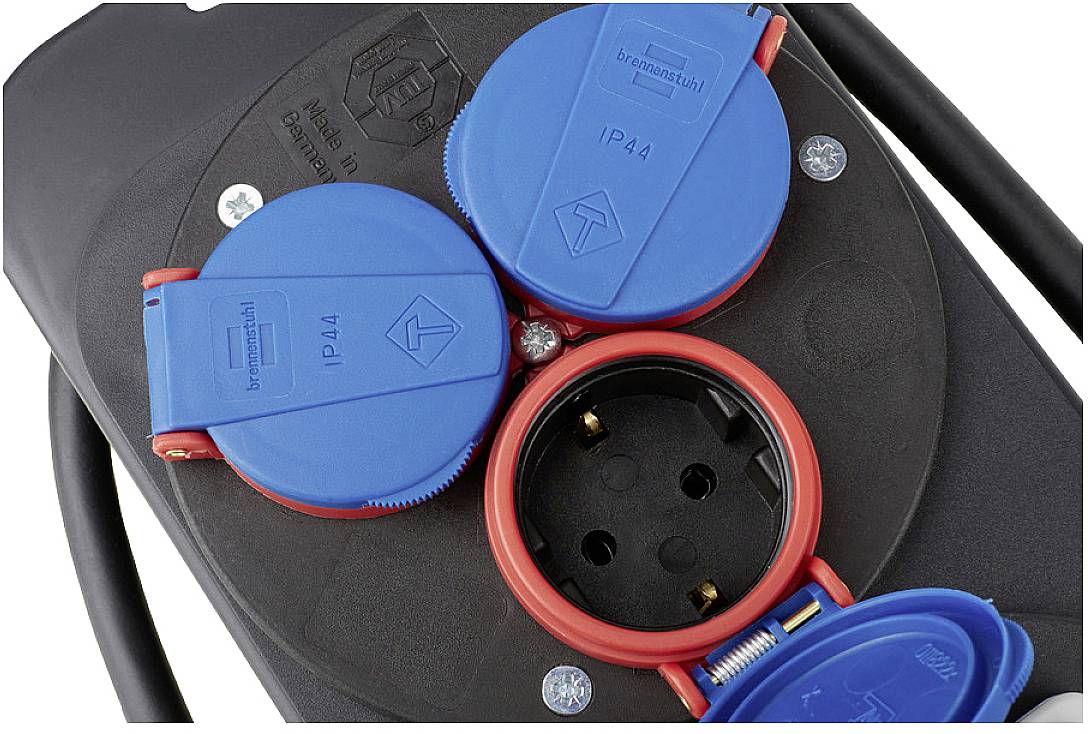

3 protective contact sockets 3x230V/16A
2 m cable H07RN-F5G1.5, IP44

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 1

Type A: CEE plug (3-pin, 16 A)

Type B: CEE connector (3-pin, 16 A)
PG socket

No. of PG sockets: 3

Inputs: 1

Outputs: 4

Nominal input voltage: 400 V

Nominal input current: 16 A

: IP44

Cable length: 2.00 m

Cable standard: H07RN-F 3G 1,5 mm²

Factory colour: Black

Weight: 1.38 kg

Dim: (L x W x H) 350 x 135 x 110 mm

Length: 350 mm

Width: 135 mm

Height: 110 mm

Content: 1 pc(s)

Number of pins: 3

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2303761 Brennenstuhl CEE power distributor 1151600010 1151600010 400 V 16 A

User & Safety Instructions

User & Safety Instructions 2303761 Brennenstuhl CEE power distributor 1151600010 1151600010 400 V 16 A

Description

The power station of Brennenstuhl captivates by its quality and safety in all areas. The current distributor is extremely robust and is suitable for Ideal for the construction site application or generally for the industrial and handicraft area. The power distribution with its housing made of highly break plastic can be easily attached to a wall. In addition, the construction current distributor impresses by its following features:

* Ideal for tough use

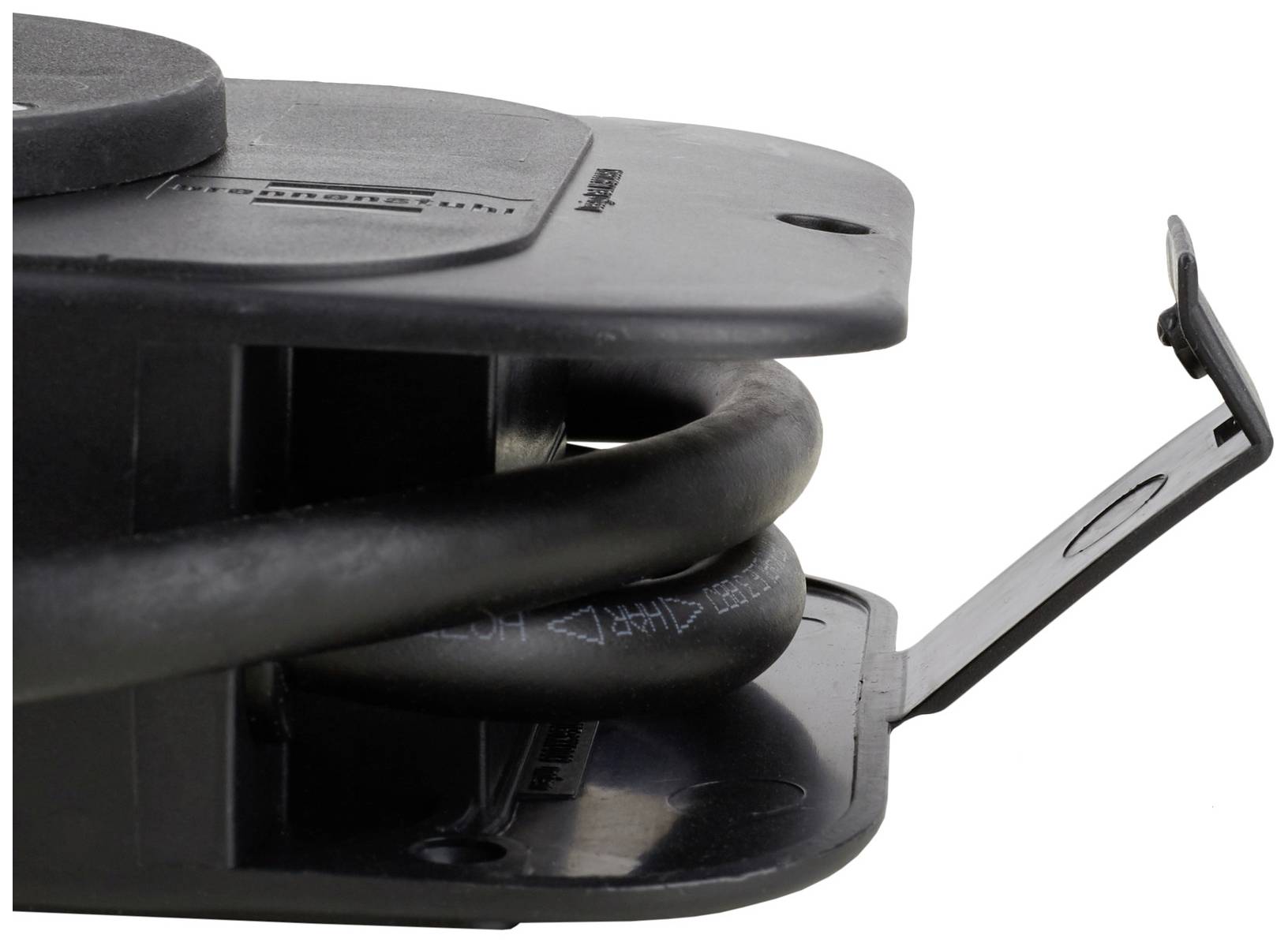

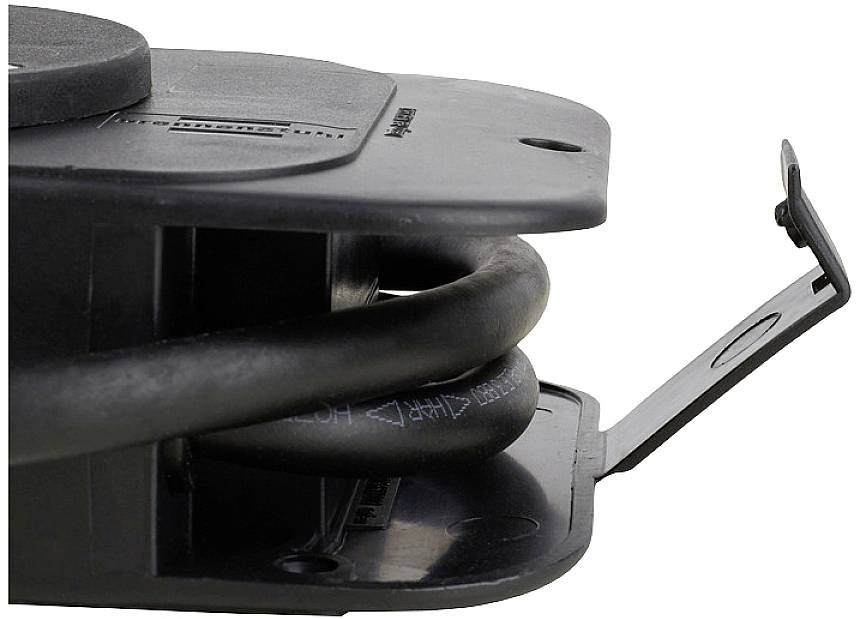

* Practical wrapping device for storing the cable
* Protection class: IP44

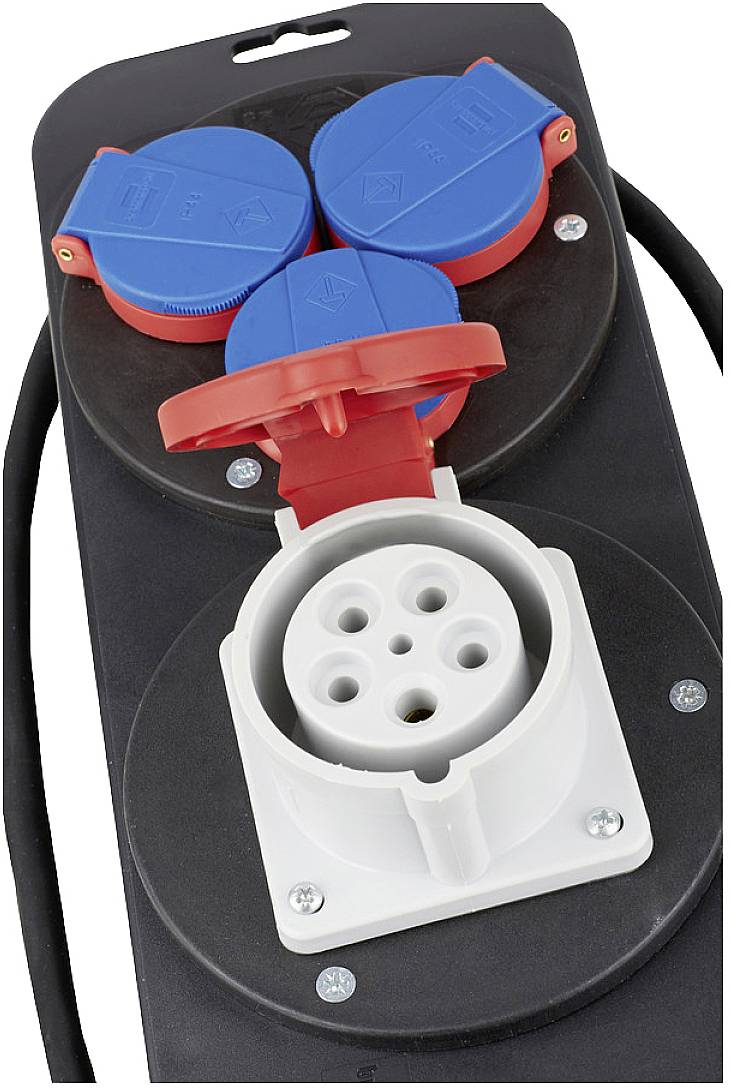

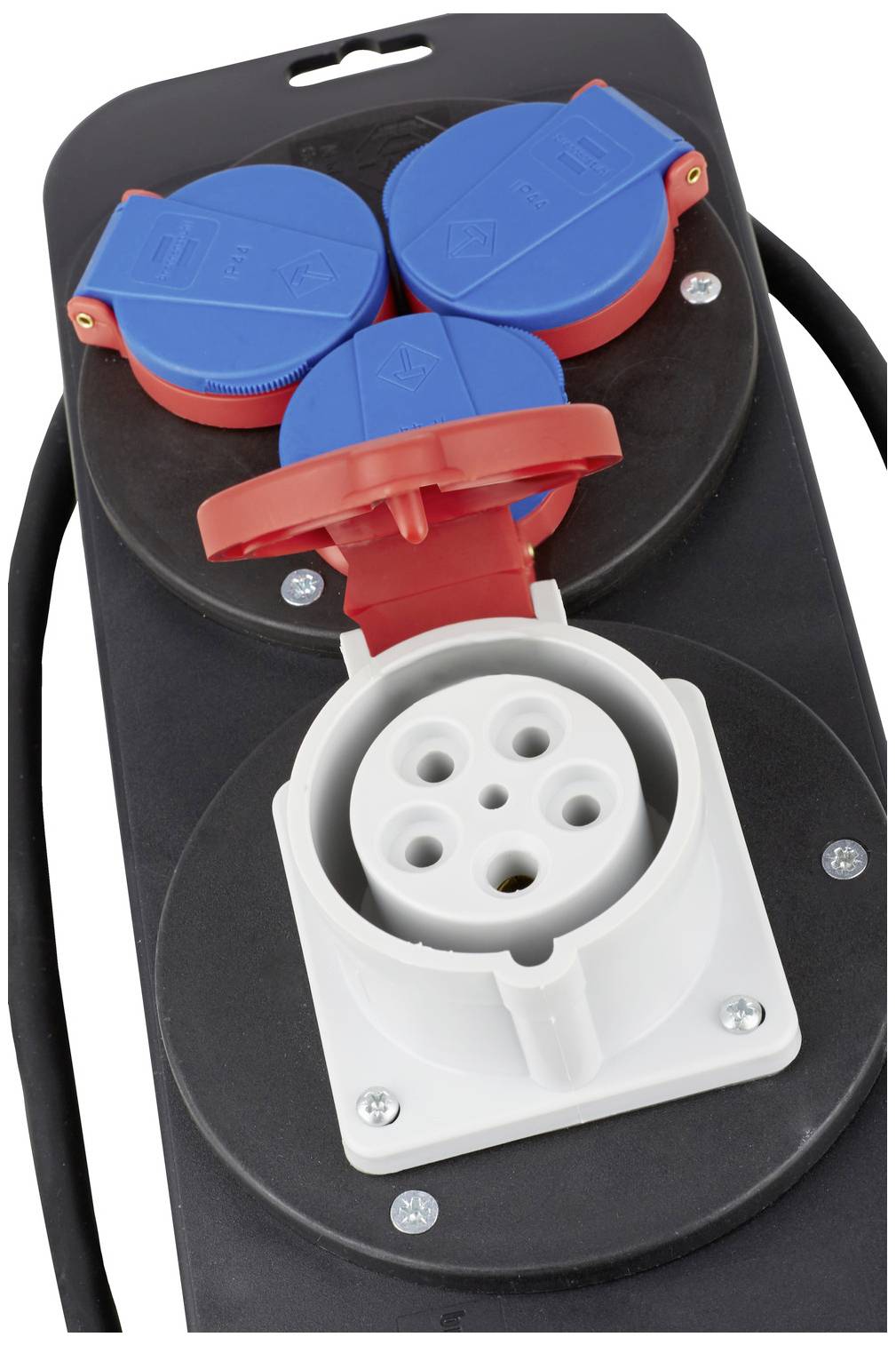

* Sockets: 1x CEE 400V/16A, 3x 230V protective contact sockets (the three safety outlets are connected to three phases)
* Cable length: 2m
* Cable quality: Rubber neoprene
* CABLE DESIGNATION: H07RN-F 5G1.5
* Maximum current carrying capacity: 16 A.

This text is machine translated.
