Brennenstuhl CEE power distributor 1153680100 1153680100 400 V 16 A
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 62.18 / piece)
€ 62.18
plus VAT.
Only 10 Piece(s) available
Highlights & Details

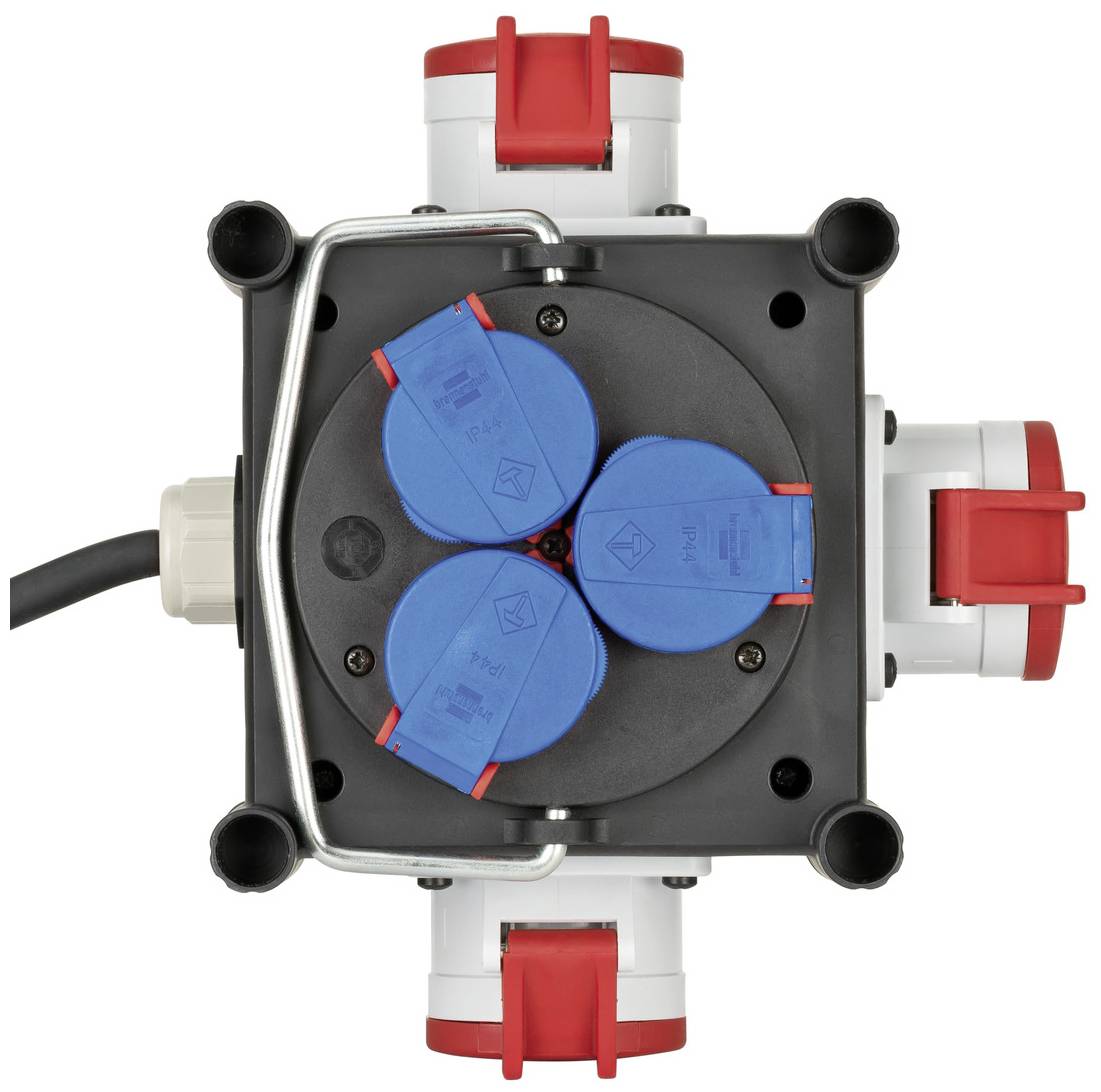

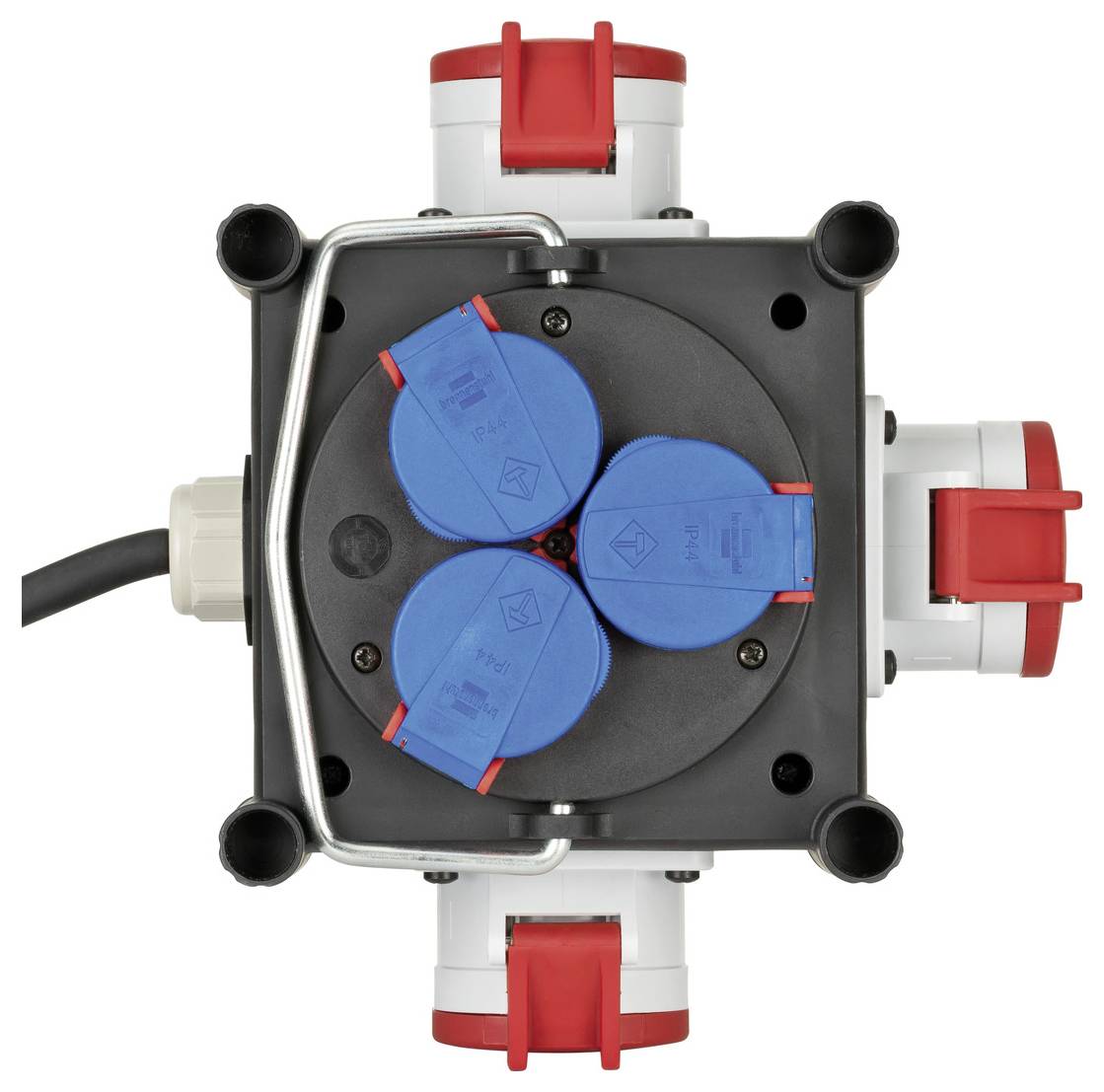

Brennenstuhl Compact rubber power distribution / rubber distributor (1m cable, 3x CEE 400V/16A, 3x 230V/16A, construction site employment and continuous outdoor use, Made in Germany)
- Multiple distributor made of rubber for continuous use in the open with 1m oil-resistant rubber cable H07RN-F 5G1.5
- Rubber construction distributor with quality outlets according to VDE 0620-1 is resistant to various oils, greases, petrol and acids, UV and ozone radiation
- Rubber power distributor with splash-protection housing from a special rubber mixture for continuous load
- Extremely robust current distributor - impact-resistant, aging and weather-proof with a temperature resistance of the casing -30°C to +80°C.
- Rubber power distributor with quality sockets, sturdy metal carrying handle and oil-resistant cable
Technical specifications
- Product type
CEE power distributor
- No. of CEE connectors
3
- Type A
CEE plug (5-pin, 16 A)
- Type B
CEE connector (5-pin, 16 A)
PG connector
- No. of PG sockets
3
- Inputs
CEE-plug 400V/16 A 5-pin
- Outputs
3 x CEE-coupling 5-pin 400V/16A · 4x protective contact coupling 230V/16A
- Nominal input voltage
400 V
- Nominal output voltage
400 V
- Nominal input current
16 A
IP44
- Cable length
1.00 m
- Cable standard
H07RN-F 5G 1,5 mm²
- Min. temperature
-30 °C
- Max. temperature
80 °C
- Standards
VDE 0620-1
- Factory colour
Black
Grey
Red
Blue
- Weight
1.62 kg
- Dim
(L x W x H) 1 m x 250 mm x 170 mm
- Length
1 m
- Width
250 mm
- Height
170 mm
- Inputs (CEE power distributor)
CEE plug (5-pin, 16 A)
- Outputs (CEE power distributors)
CEE connector (5-pin, 16 A)
PG connector
- Content
1 pc(s)
- Number of pins
5
- Depth
250 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 1763493 Brennenstuhl CEE power distributor 1153680100 1153680100 400 V 16 A
User & Safety Instructions
User & Safety Instructions 1763493 Brennenstuhl CEE power distributor 1153680100 1153680100 400 V 16 A
Description
The compact rubber current distributor from Brennenstuhl in the color black and 1m cable impresses through its quality and safety in all areas. The practical and extremely robust power distributor is suitable for Ideal on-site use or for constant outdoor use. In addition, it convinces by the following features:
* CABLE DESIGNATION: H07RN-F 5G1.5
* Plug: CEE 400 V/16 A 5-pin/-pin
* Sockets: 3x CEE 400 V/16 A 5-pin/-pin, 3x 230 V/16 A
* For continuous outdoor use - IP44
* Case temperature resistance: -30°C to + 80°C.
* Quality sockets according to VDE 0620-1
* Stable metal carrying handle
This text is machine translated.
* CABLE DESIGNATION: H07RN-F 5G1.5
* Plug: CEE 400 V/16 A 5-pin/-pin
* Sockets: 3x CEE 400 V/16 A 5-pin/-pin, 3x 230 V/16 A
* For continuous outdoor use - IP44
* Case temperature resistance: -30°C to + 80°C.
* Quality sockets according to VDE 0620-1
* Stable metal carrying handle
This text is machine translated.
Features
- Stackable, splash-proof housing made from a special rubber compound for continuous load
- Quality sockets according to VDE 620-1
- Stable metal carrying handle
- Olbestandiges rubber cable.
