Buy Brennenstuhl CEE power distributor 1153690200 1153690200 400 V 16 A

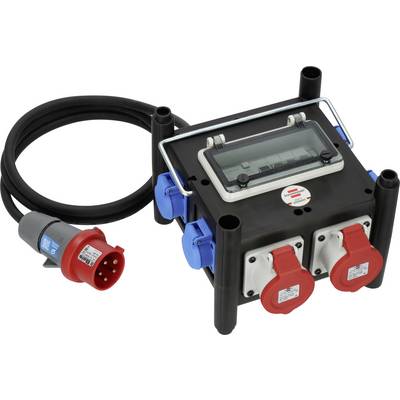

Portable electrical distribution box with cable and industrial plug, featuring a digital display and multiple red and blue outlets.

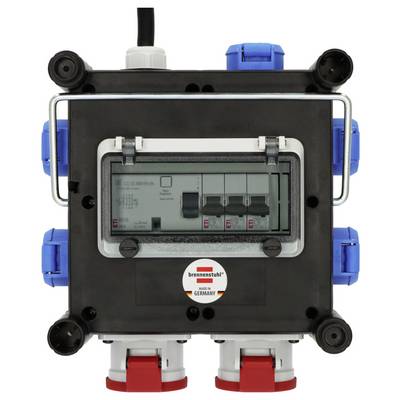

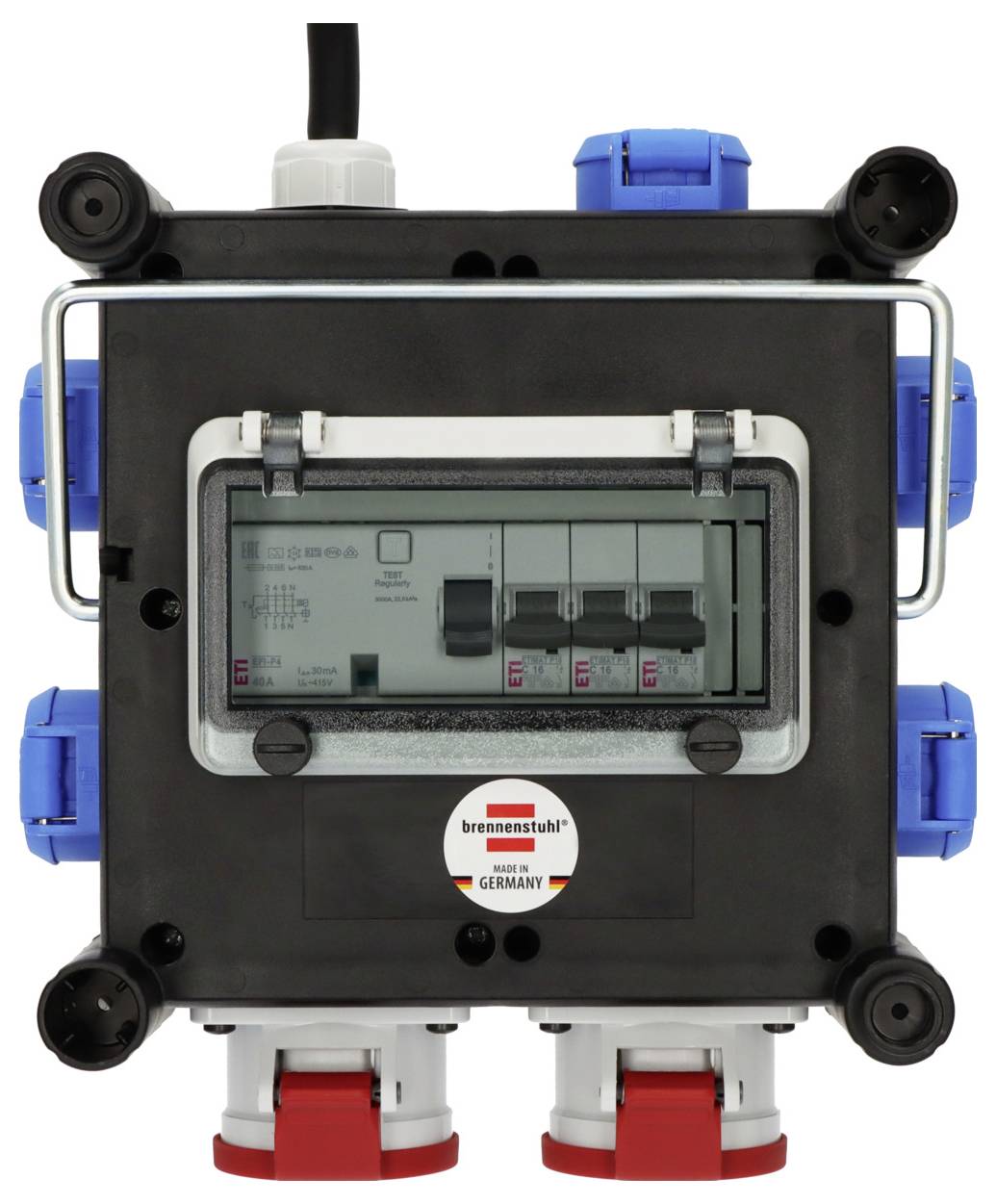

Portable electrical distribution box with circuit breaker panel and multiple blue and red connectors on a white background.

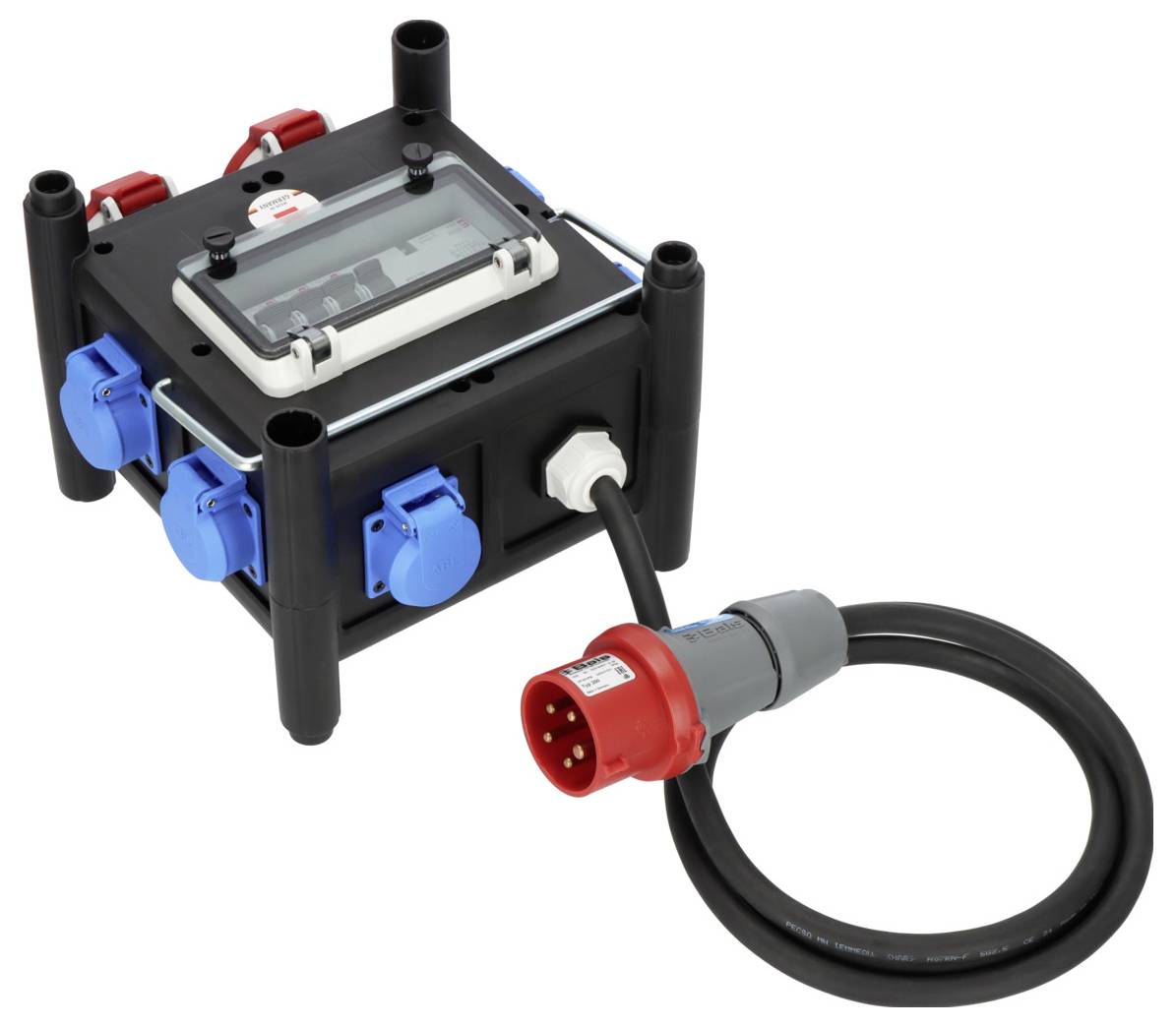

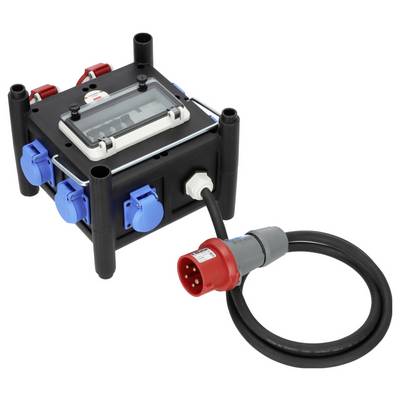

Portable electrical power distribution box with blue and red industrial outlets and a connected red plug and cable.

Diagram of a square with numbered blocks 1 to 4 inside; blue labels 2, 3, and 4 on the sides and red labels 1 at the bottom indicate surrounding positions.

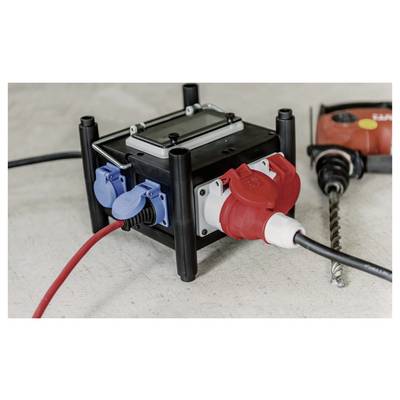

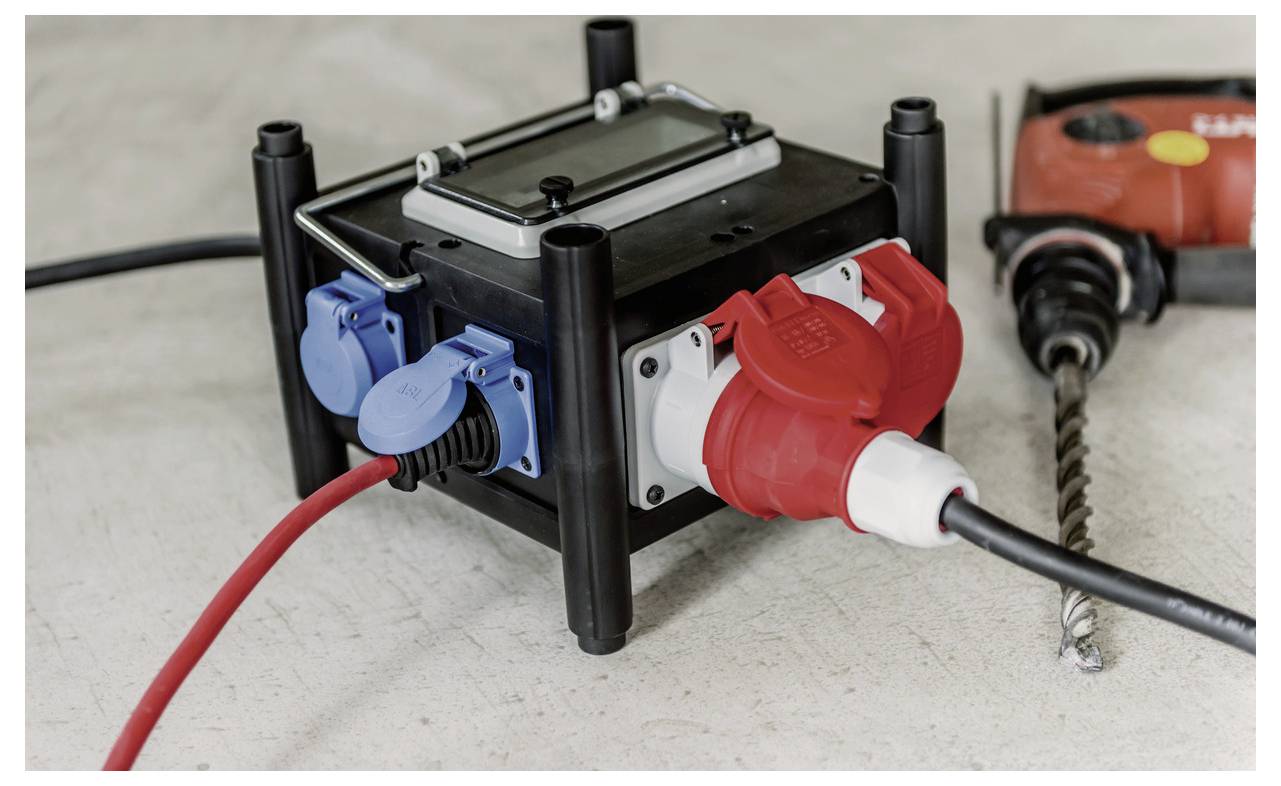

Portable electrical power distribution box with blue and red outlets and plugged-in cords on a workbench.

1/5

Datasheet (PDF)

Fast track dispatch on Wed, 30 Sep

68 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 176.46 / piece)

€ 176.46

plus VAT.

14-day return policy included

Report legal concerns

Compact power distributor TPE-housing 2 m H07RN-F 5G2.5-2xCEE 16 A, 5 x 230 V

Highlights & Details

Multiple distributor made of rubber for outdoor use with 2 m olbestandigem Rubber cable H07RN-F 5G2.5
Rubber Bauverteiler with quality sockets according to VDE 0620-1 is resistant to diverse oils, fats, petrol and acids, UVund ozone radiation with certified circuit-breaker for your safety
Rubber-Power distributor with stackable, splash-proof casing made of a special rubber compound for continuous load
Extremely robust power distributor with FI switch impact resistant, aging and weather-resistant with a temperature resistance of case -30°C to +80°C

Technical specifications

Product type: CEE power distributor

No. of CEE connectors: 2

Type A: CEE plug (5-pin, 16 A)

Type B: CEE connector (5-pin, 16 A)
PG connector

No. of PG sockets: 5

Inputs: CEE-plug 400V/16 A 5-pin

Outputs: 2 x CEE-coupling 5-pin 400V/16A · 5x protective contact coupling 230V/16A

Nominal input voltage: 400 V

Nominal output voltage: 400 V

Nominal input current: 16 A

: IP44

Cable length: 2.00 m

Cable standard: H07RN-F 5G 4 mm²

Protection: 3x line safety switch 230 V/16 A 1-pin · 1x FI 40 A 4-pin/pin, 30 mA

Min. temperature: -30 °C

Max. temperature: 80 °C

Standards: VDE 0620-1

Factory colour: Black
Grey
Red
Blue

Weight: 3.63 kg

Dim: (L x W x H) 2 m x 320 mm x 230 mm

Length: 2 m

Width: 320 mm

Height: 230 mm

Inputs (CEE power distributor): CEE plug (5-pin, 16 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)
PG connector

Content: 1 pc(s)

Number of pins: 5

Depth: 250 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1763472 Brennenstuhl CEE power distributor 1153690200 1153690200 400 V 16 A

User & Safety Instructions

User & Safety Instructions 1763472 Brennenstuhl CEE power distributor 1153690200 1153690200 400 V 16 A

Conformity certificate

Conformity certificate 1763472 Brennenstuhl CEE power distributor 1153690200 1153690200 400 V 16 A

Description

The compact rubber current distributor from Brennenstuhl in the color black and 2m cable impresses through its quality and safety in all areas. The practical and extremely robust power distributor is suitable for Ideal on-site use or for constant outdoor use. In addition, it convinces by the following features:

* CABLE NAME: H07RN-F 5G2.5
* Plug: CEE 400 V/16 A 5-pin/-pin
* Sockets: 2x CEE 400 V/16 A 5-pin/-pin, 5x 230 V/16 A
* Protection: 3x LS 230 V/16 A 1-pin/pin, 1x FI 40 A 4-pin/pin, 30 mA
* For continuous outdoor use - IP44
* Case temperature resistance: -30°C to + 80°C.
* Quality sockets according to VDE 0620-1
* Stable metal carrying handle
* Earthing contact sockets distributed over 3 separate phases

This text is machine translated.

Features

Stackable, splash-proof housing made from a special rubber compound for continuous load
Quality sockets according to VDE 620-1
Stable metal carrying handle
Olbestandiges rubber cable.
