Brennenstuhl Industrial power distributor 1153690209 400 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Compact rubber construction current distributor with certified circuit breakers and all-current sensitive FI-Safety switch type B.
- Installation current distributor with residual current circuit breaker type B (all-current sensitive): Residual-current protection device of the type B provides for an increase in safety for people and environment and is also needed at construction sites
- FI-switch Type B is based on the standard VDE 0100-704:2018-10 - is needed, because smooth/almost smooth direct fault currents occur which are not detected by FI-switch Type A.
- Power distributor for continuous use in the open with 2m oil-resistant rubber cable (H07RN-F 5G2.5) with stackable, splash-proof casing made from a special rubber mixture for permanent load
- Extremely robust construction current distributor with FI-switch Type B impact-resistant, resistant to aging and weather with quality sockets according to VDE 0620-1
- Construction current distributor with FI-Switch type B with stable metal carrying handle and certified circuit breaker for your safety
Technical specifications

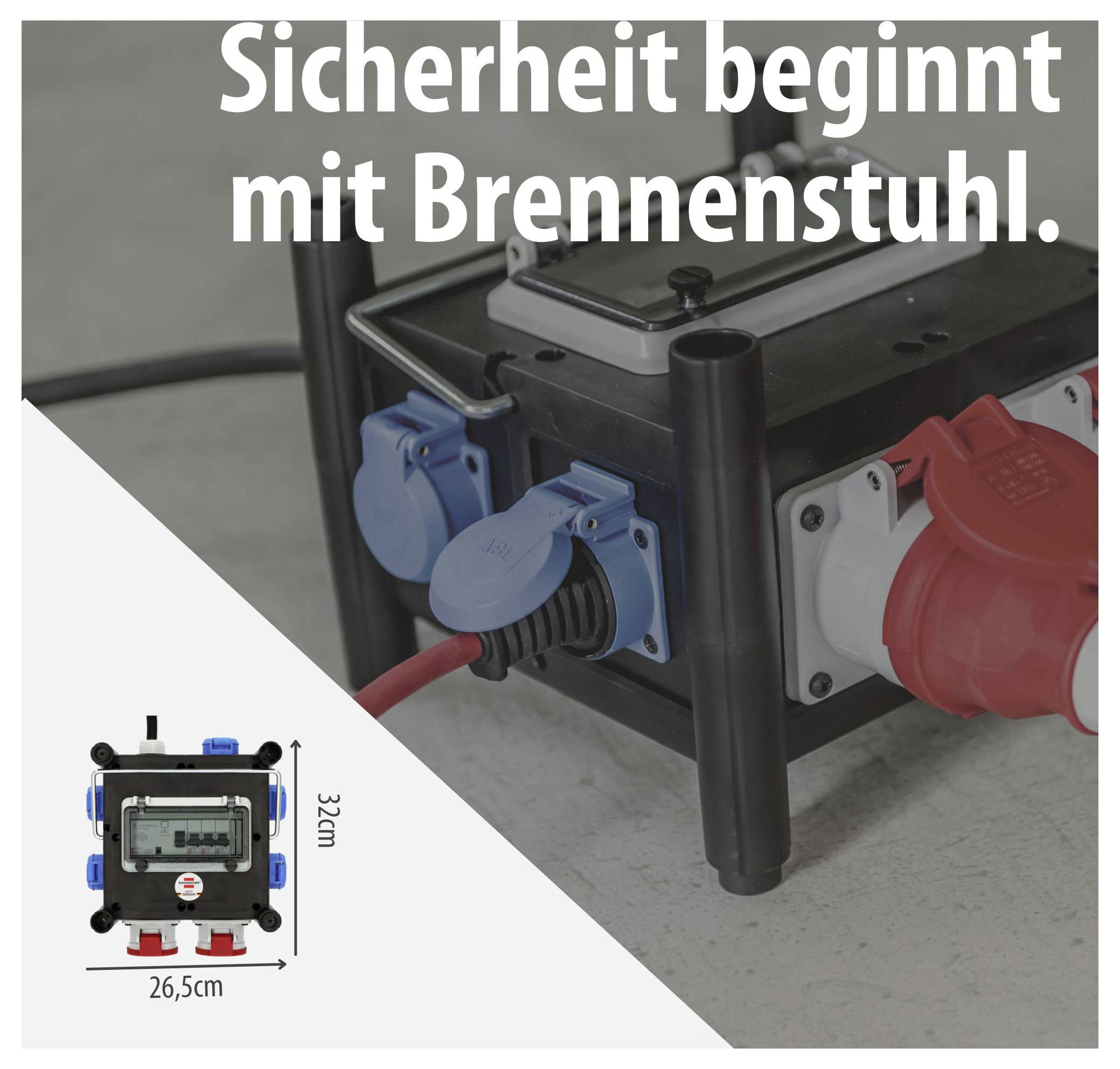

- Product width (excluding packaging): 32 cm
- Product weight (excluding packaging): 3.73 kg
- Product height (excluding packaging): 23 cm
- Product length (without packaging): 26.50 cm
- Max. electronic. Load capacity 11000 W
- Nominal input voltage 400 V
- With carry handle: Yes
- Material housing: Plastic / rubber
- Total number of CEE sockets: 2
- Total number of sockets: 7
- Protection type (IP) IP44
- Suitable for outdoor use: Yes
- CABLE NAME: H07RN-F 5G2.5
- Cable length: 2 m
- Cable quality: Rubber neoprene
- FI-switch: FI with IFN 0.03 A (standard)
- Number of safety sockets: 5
- Product type
Industrial power distributor
- Nominal input voltage
400 V
- No. of CEE connectors
2
- No. of PG sockets
5
- Cable length
2 m
- Cable standard
H07RN-F 5G 2,5 mm²
IP44
- Factory colour
Black
- Weight
3.73 kg
Documents & Downloads
Datasheet
Datasheet 3439033 Brennenstuhl Industrial power distributor 1153690209 400 V
User & Safety Instructions
User & Safety Instructions 3439033 Brennenstuhl Industrial power distributor 1153690209 400 V
Description
The compact rubber current distributor from Brennenstuhl with 2m RN-cable impresses through its quality and safety in all areas. The practical and extremely robust power distributor is suitable for Ideal for the safe power supply on construction sites and also convinces by the following features:
* Stackable, splash-proof casing made from a special rubber mixture for continuous load
* Extremely robust, impact resistant, aging and weather resistant
* Resistant to various oils, fats, petrol and acids, UV and ozone radiation
* Case temperature resistance from --30°C to +80°C.
* Oil resistant rubber cable for continuous outdoor use

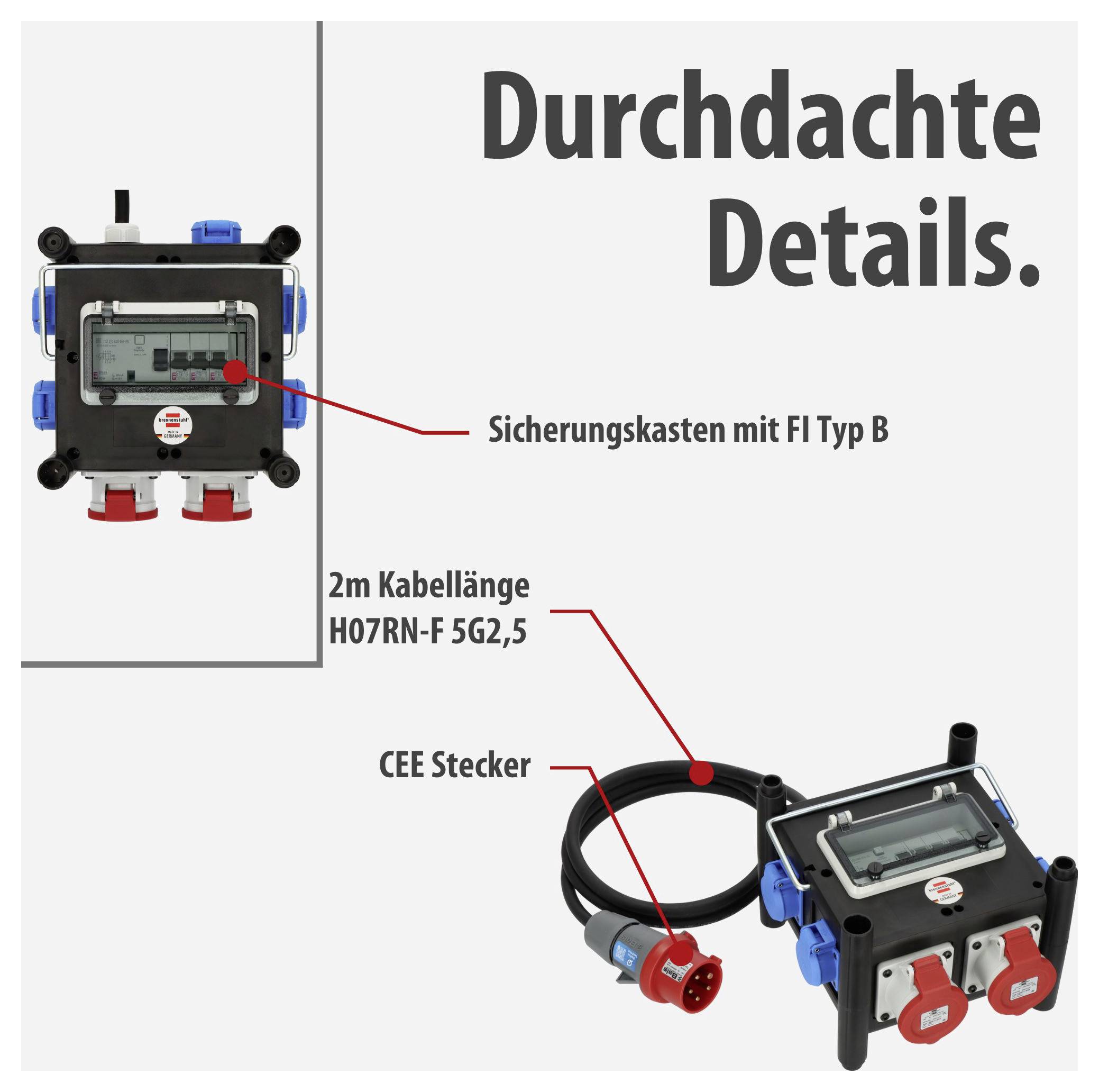

* CABLE NAME: H07RN-F 5G2.5

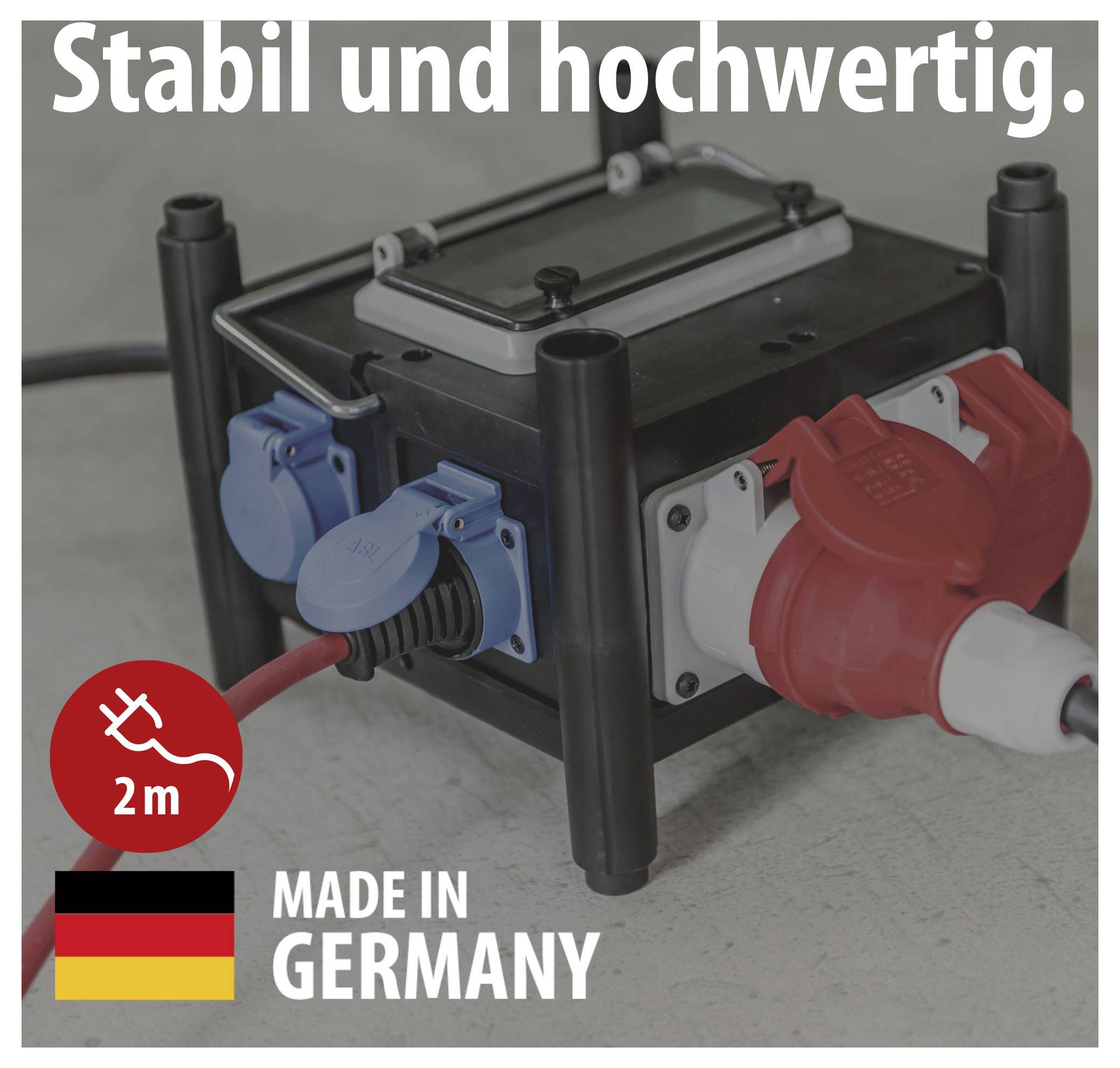

* Cable length: 2m
* Protection class: IP44
* Number of poles (FI): 4
* With FI (type B all-current sensitive) Personal protection switch 30 mA for more safety

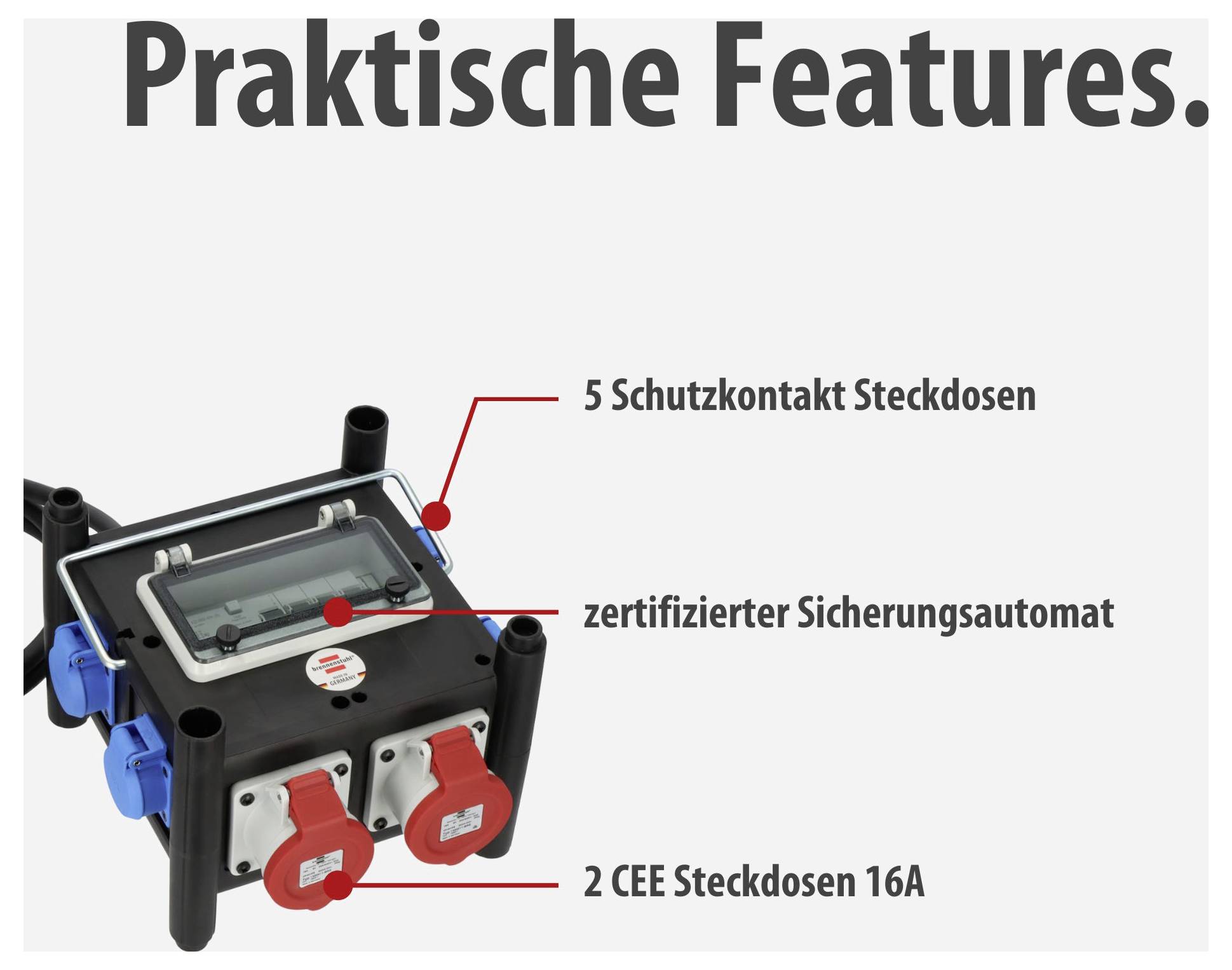

* Number of circuit breakers: 3x LS 230V/16A 1-pole
* Plug-in system: CEE 16A 3P+N+PE (5p) 400V
* CEE socket - 16 A: CEE 2x 16A 3P+N+PE (5p) 400V
* Earthing contact sockets: 5
This text is machine translated.
* Stackable, splash-proof casing made from a special rubber mixture for continuous load
* Extremely robust, impact resistant, aging and weather resistant
* Resistant to various oils, fats, petrol and acids, UV and ozone radiation
* Case temperature resistance from --30°C to +80°C.
* Oil resistant rubber cable for continuous outdoor use
* CABLE NAME: H07RN-F 5G2.5
* Cable length: 2m
* Protection class: IP44
* Number of poles (FI): 4
* With FI (type B all-current sensitive) Personal protection switch 30 mA for more safety
* Number of circuit breakers: 3x LS 230V/16A 1-pole
* Plug-in system: CEE 16A 3P+N+PE (5p) 400V
* CEE socket - 16 A: CEE 2x 16A 3P+N+PE (5p) 400V
* Earthing contact sockets: 5
This text is machine translated.
Scope of delivery

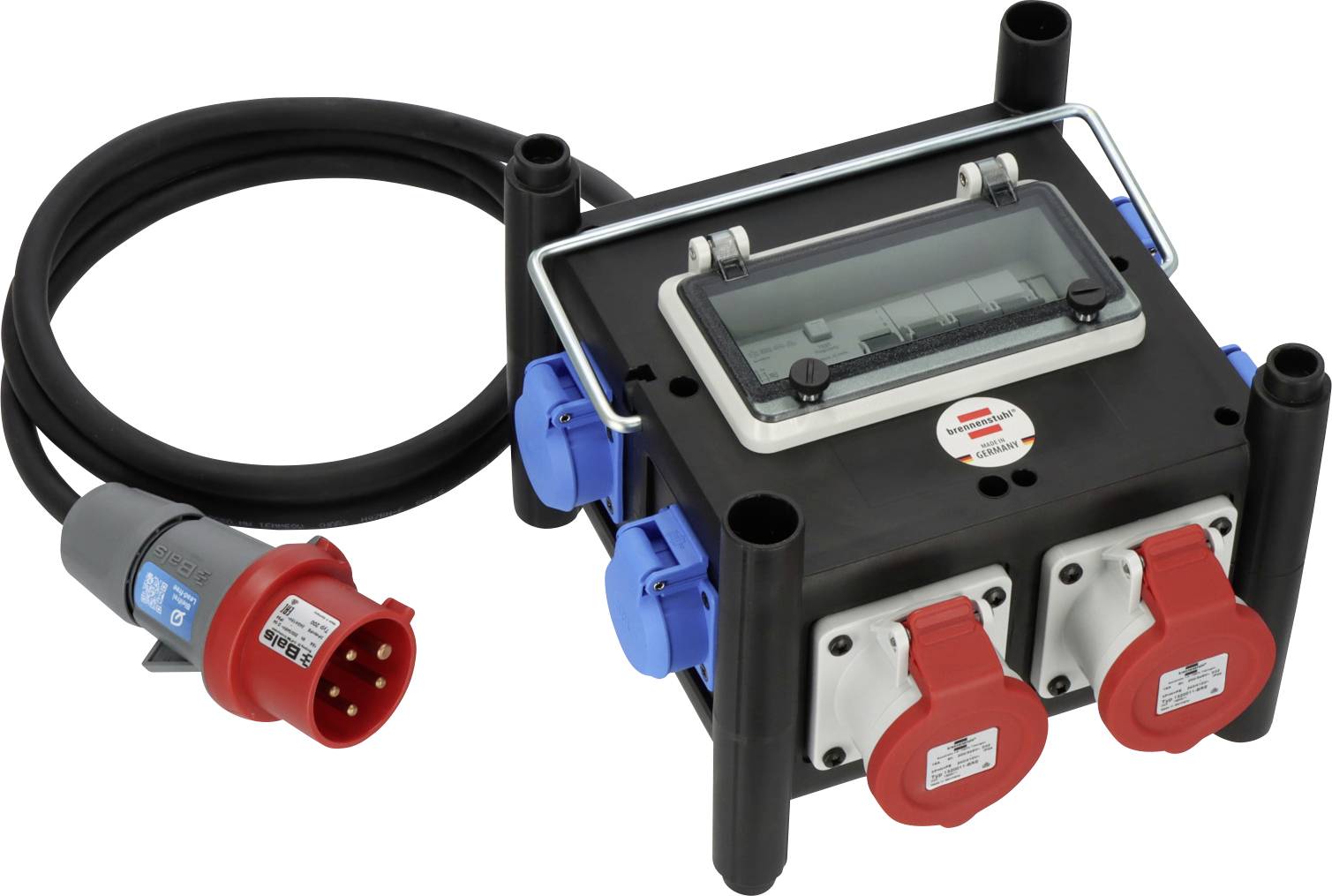

- Brennenstuhl Compact rubber power distribution BSV 3 IP44 with certified circuit breaker and FI-protection switch Type B (2m RN-cable, sockets: 2x CEE 400V/16A, 5x 230V/16A, Made in Germany)
