Buy Brennenstuhl Industrial power distributor BSV 4 1154900021 400 V

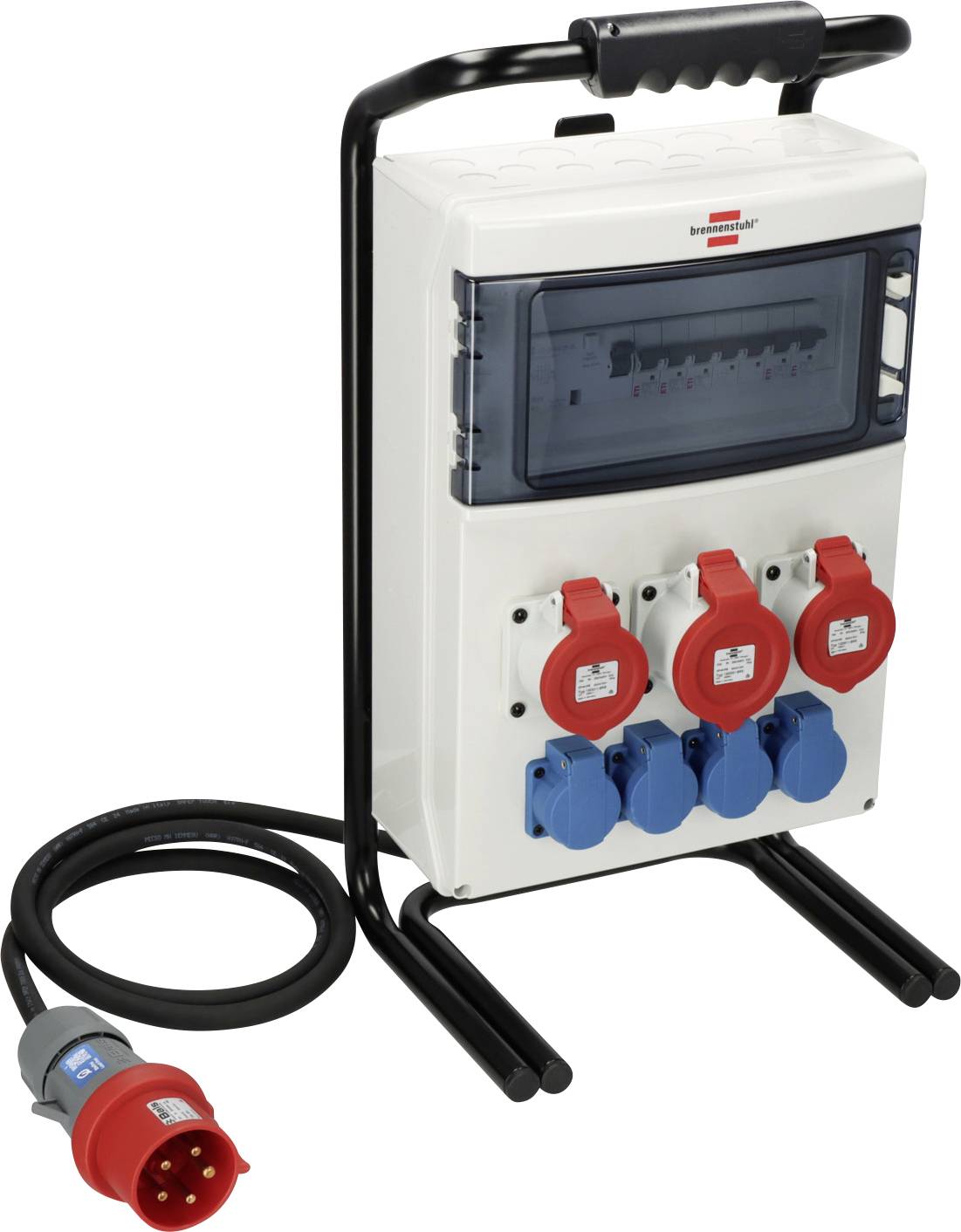

Portable electrical distribution box with handle and stand, showing multiple red and blue industrial power outlets and a connected cable plug.

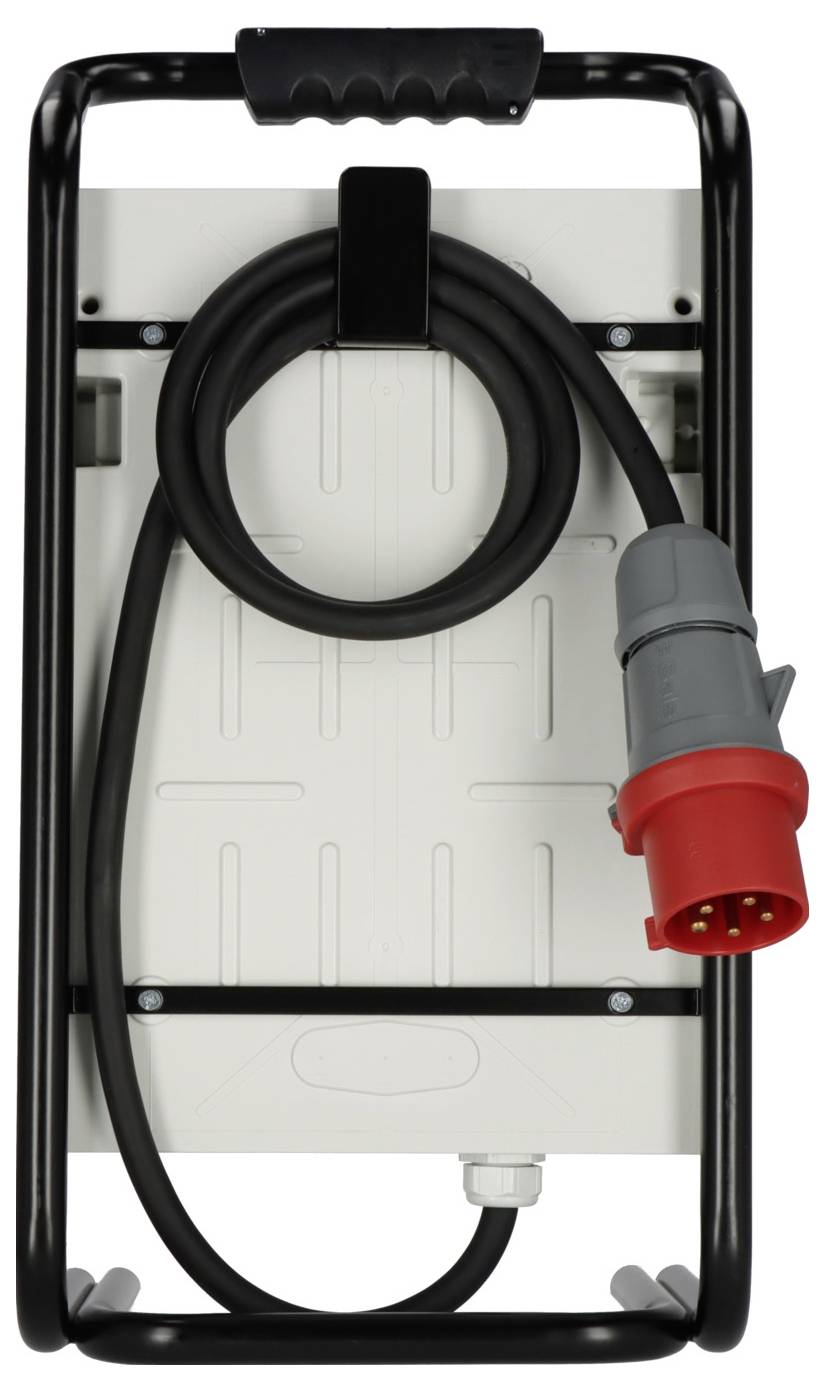

Portable electrical power box with a coiled heavy-duty cable and red industrial plug attached to a black-framed case.

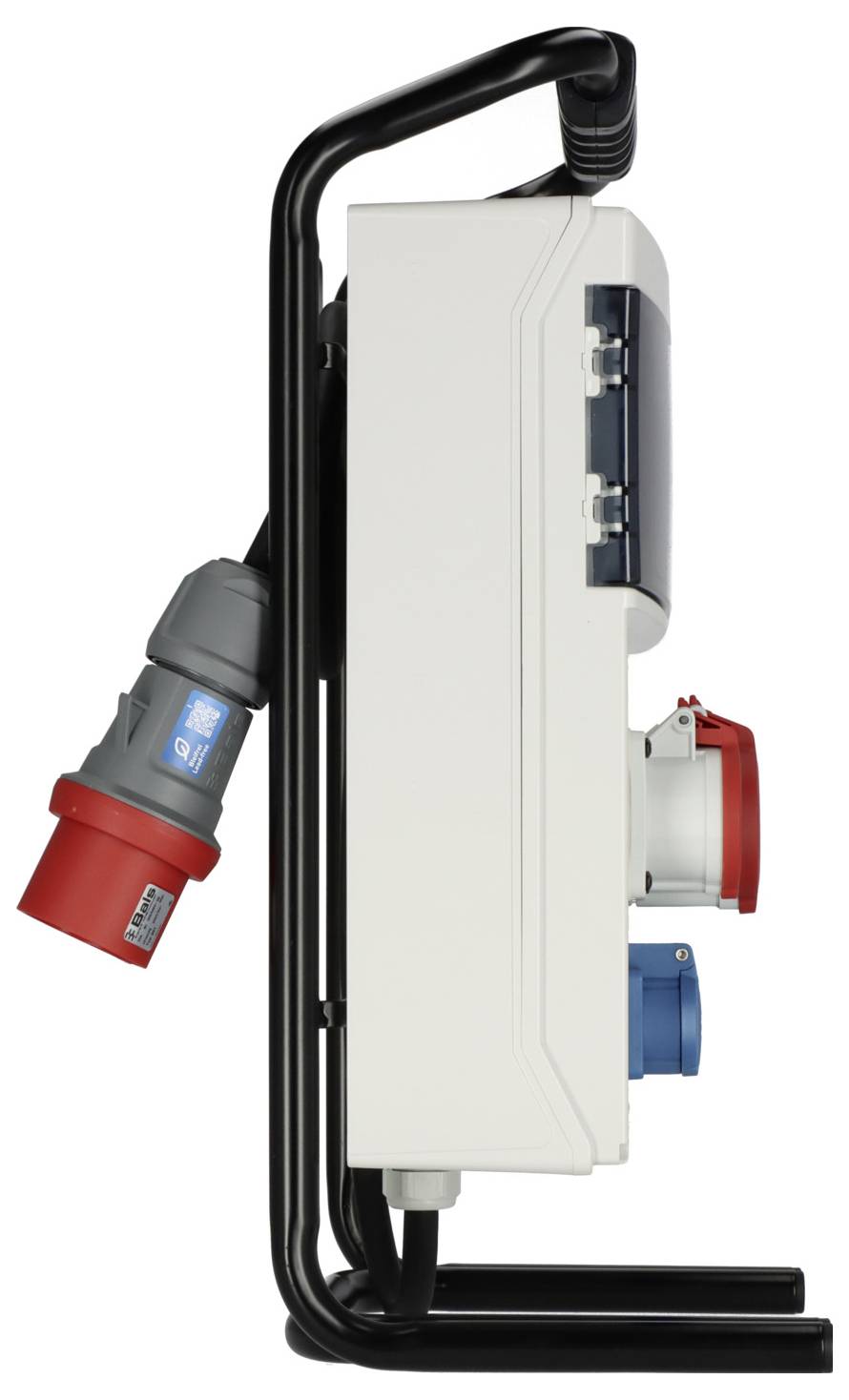

Portable industrial power distribution box with handle, carrying frame, and red, white, and blue electrical outlets on the side.

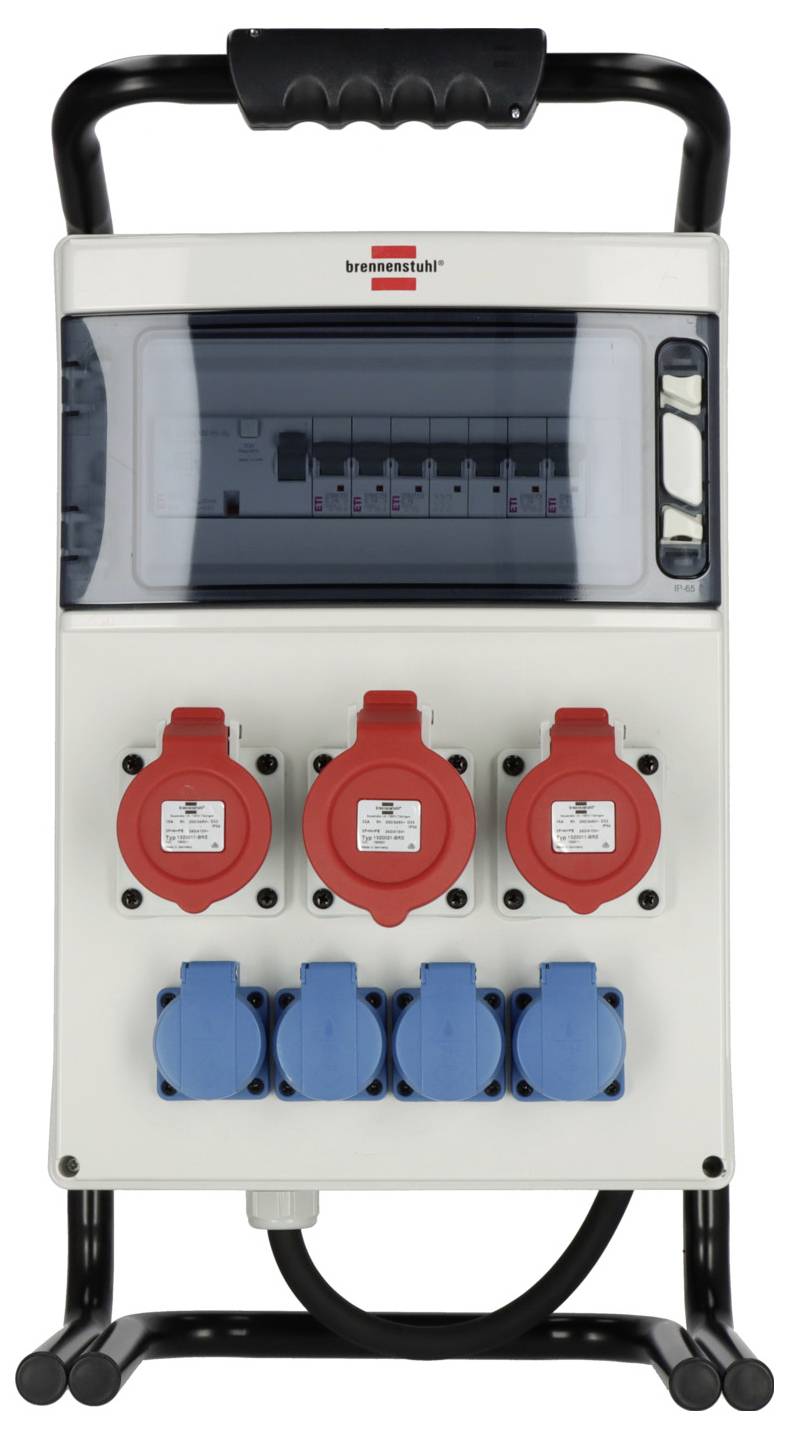

Portable electrical distribution box with handle, breaker window, and six red and blue power sockets.

Chart-like layout with top labels FI, 1, 2, 3, 4, 5; lower rows show red boxes marked 3 and blue boxes marked 1, 2, 4, 5.

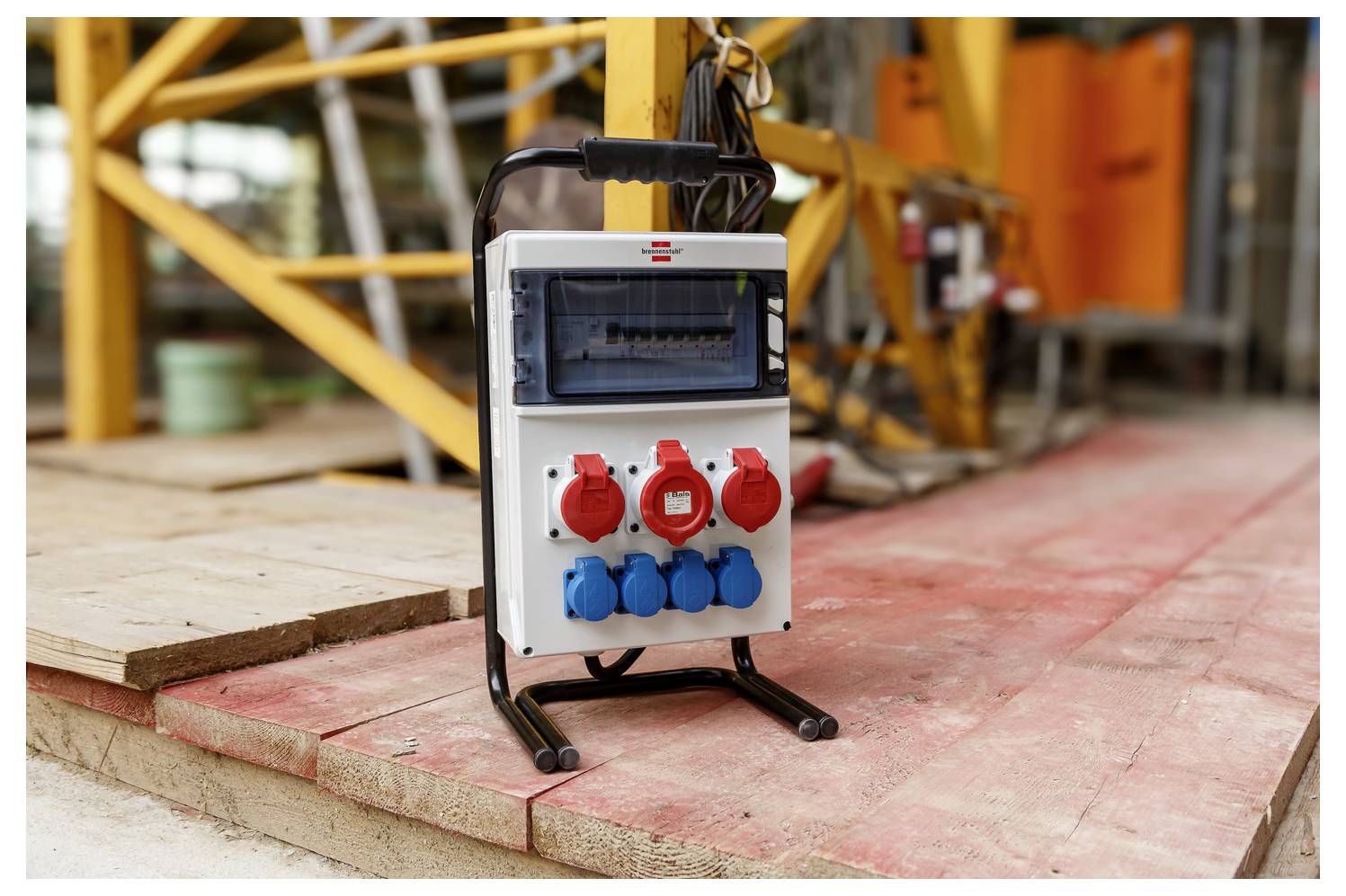

Portable electrical distribution box with red and blue outlets and a display, standing on a construction site floor.

1/6

Datasheet (PDF)

Unavailable

13 Piece(s)

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Brennenstuhl portable power distributor BSV 4

Robust and plastic-coated steel tube frame
Ergonomically shaped carrying handle for comfortable transport
Practical winding device on the back for the connection cable
With RCD-Personal protection

Technical specifications

Max. Electrical load capacity 22000 W
Max. power rating 32 A
With FI-Personal protective switch 30mA / 40A / Type A.
Number of circuit breakers: 5 (4x LS 230V/16A 1-pin;1x LS 400V/16A 3-pin)
CEE-socket - 16 A: 2x 16A 3P+N+PE (5P) 400V
CEE-socket - 32 A: 1x 32A 3P+N+PE (5P) 400V
Plug system plug: CEE 32A 3P+N+PE (5P) 400V
Rubber neoprene cable
Protection class: II

Product type: Industrial power distributor

No. of CEE connectors: 3

Type A: CEE 32 A

Type B: CEE 16 A
CEE 32 A
PG socket

No. of PG sockets: 4

Outputs: 2x 16A, 1x 32A

Nominal input voltage: 400 V

Nominal output voltage: 400 V

: IP44

Cable length: 2.00 m

Cable standard: H07RN-F 5G 4 mm²

Factory colour: Multicolour

Weight: 0 kg

Dim: (W x H x D) 250 x 620 x 320 mm

Width: 250 mm

Height: 620 mm

Inputs (CEE power distributor): CEE plug (5-pin, 32 A)

Outputs (CEE power distributors): CEE connector (5-pin, 16 A)

Content: 1 pc(s)

Number of pins: 5

Depth: 320 mm

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2452198 Brennenstuhl Industrial power distributor BSV 4 1154900021 400 V

User & Safety Instructions

User & Safety Instructions 2452198 Brennenstuhl Industrial power distributor BSV 4 1154900021 400 V

Description

The portable power distribution unit from Brennenstuhl with a 2m rubber cable impresses with its quality and safety in all areas. The practical and extremely robust power distributor is ideal for use on construction sites or for continuous use outdoors.

This text is machine translated.
