Brennenstuhl Multiple battery 12050 MH Cordless industrial light EEC E (A - G) 100 W 12000 lm Daylight white 1173700003
EAN:
Part number:
Item no:
Brennenstuhl professional multi-battery LED 360° hybrid industrial light 12050 MH
Highlights & Details
- Hybrid technology: Mains and battery operation possibleWith permanently installed 5 m cable (H07RN-F2X1.0)Power consumption: 100 WLuminous flux: 12000 lm
Technical specifications
- Protection class III
- Dim

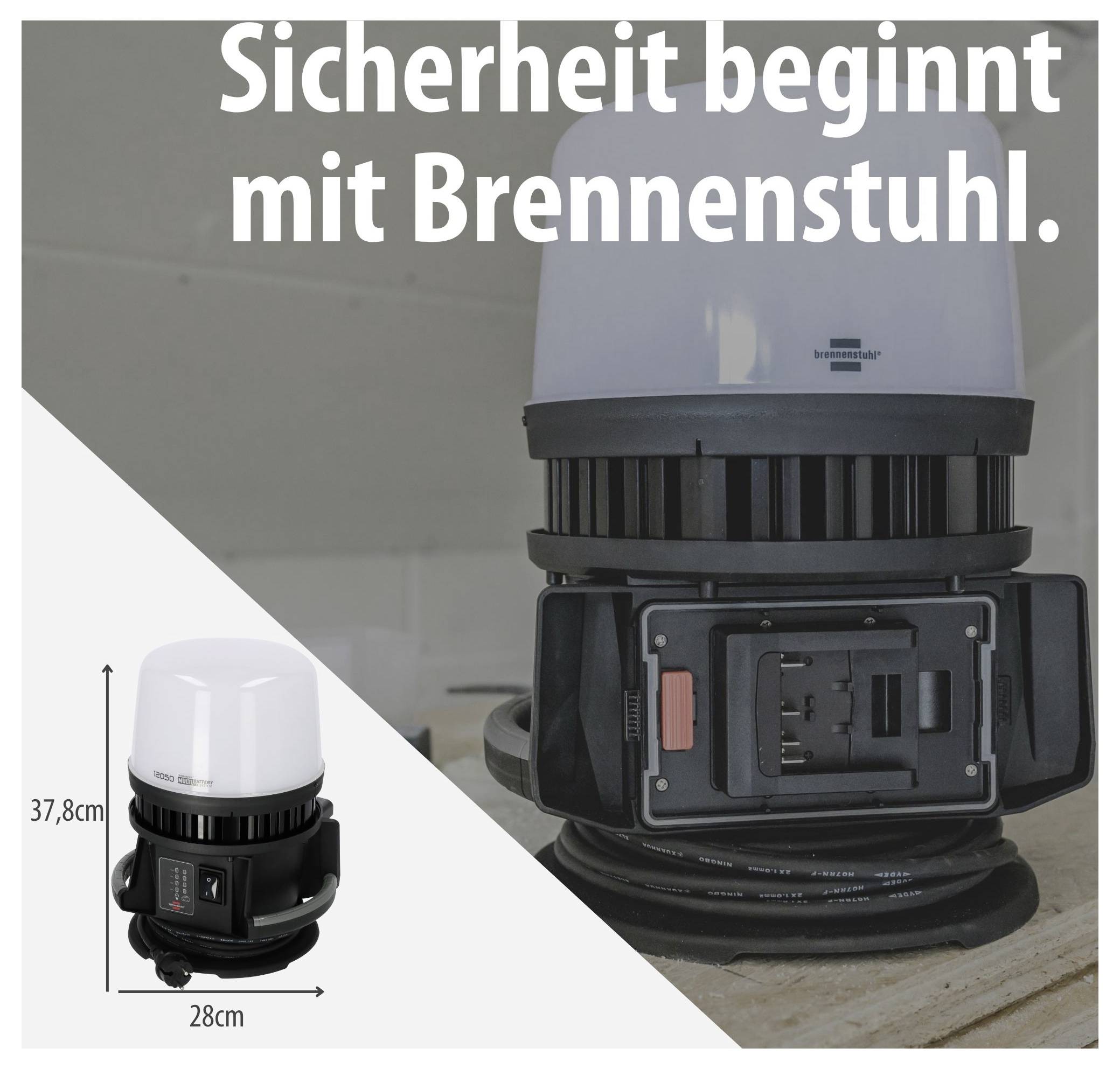

(L x W x H) 286 x 280 x 378 mm
- Product type
Cordless industrial light
- Factory colour
Black
Grey
- Bulb type
LED (monochrome)
100 W
- Total luminous flux
12000 lm
- Operating voltage
18 V
230 V
E (A - G)
- No. of bulbs
1
- Features
Switch
Yes
- Weight
4.9800 kg
- Colour
Daylight white
6500 K
- Material
Plastic
Metal
- Width
280 mm
- Height
378 mm
- Length
286 mm
- Depth
286.0000 mm
IP54
IK08
- Series
Multiple battery
- Feed length
5 m
30000 h
- Power supply (LOV)
mains-powered
- Colour temperature type
6500 K
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2624229 Brennenstuhl Multiple battery 12050 MH Cordless industrial light EEC E (A - G) 100 W 12000 lm Daylight white 1173700003
User & Safety Instructions
User & Safety Instructions 2624229 Brennenstuhl Multiple battery 12050 MH Cordless industrial light EEC E (A - G) 100 W 12000 lm Daylight white 1173700003
Description
The luminous multi-battery LED 360° hybrid industrial lamp from Brennenstuhl is suitable Ideal for the demanding and robust use in indoor and outdoor areas. By the protection class IP54, the work lamp with all-round illumination is protected in the best way from dust and water spray. Thanks to the multi-battery 18V system it is possible to access the battery system of your choice - and in the high-performance range. The powerful work spotlight provides even more efficiency through compatibility with eleven 18V battery systems of the power tool manufacturer Bosch Professional, Dewalt, Einhell, Fine, Festool, Flex, Hikoki, Makita, Metabo CAS, Milwaukee and Würth. No matter which battery system the professional has selected, the Brennenstuhl multi-battery 18V system enables full compatibility with the leading battery technologies. Brennenstuhl is part of AMPShare - powered by Bosch Professional. The AMPShare battery alliance enables the use of the Brennenstuhl spotlight with the 18V batteries of Bosch Professional. The 360 degree industrial light with innovative interface technology also impresses with the following features:

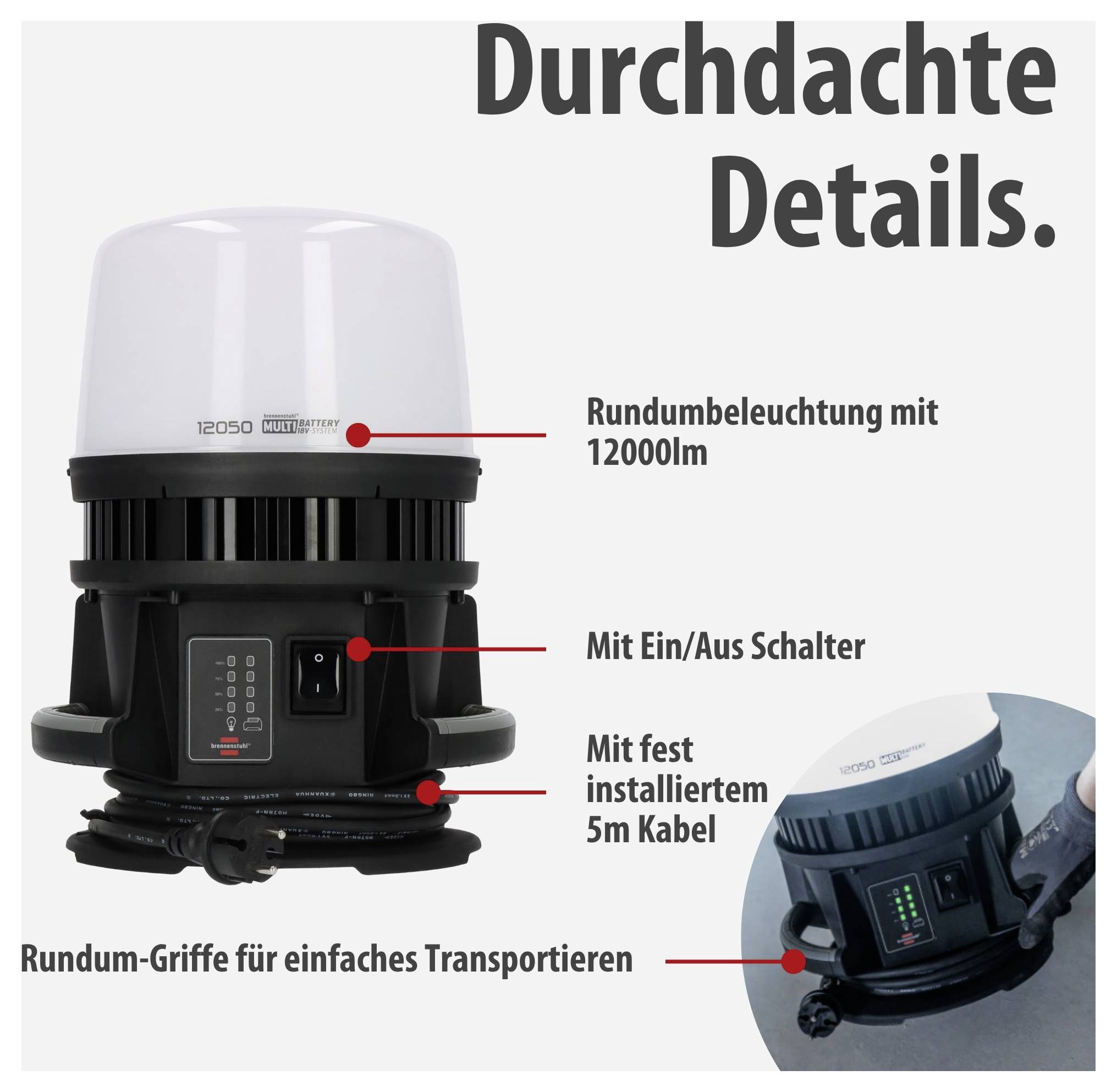

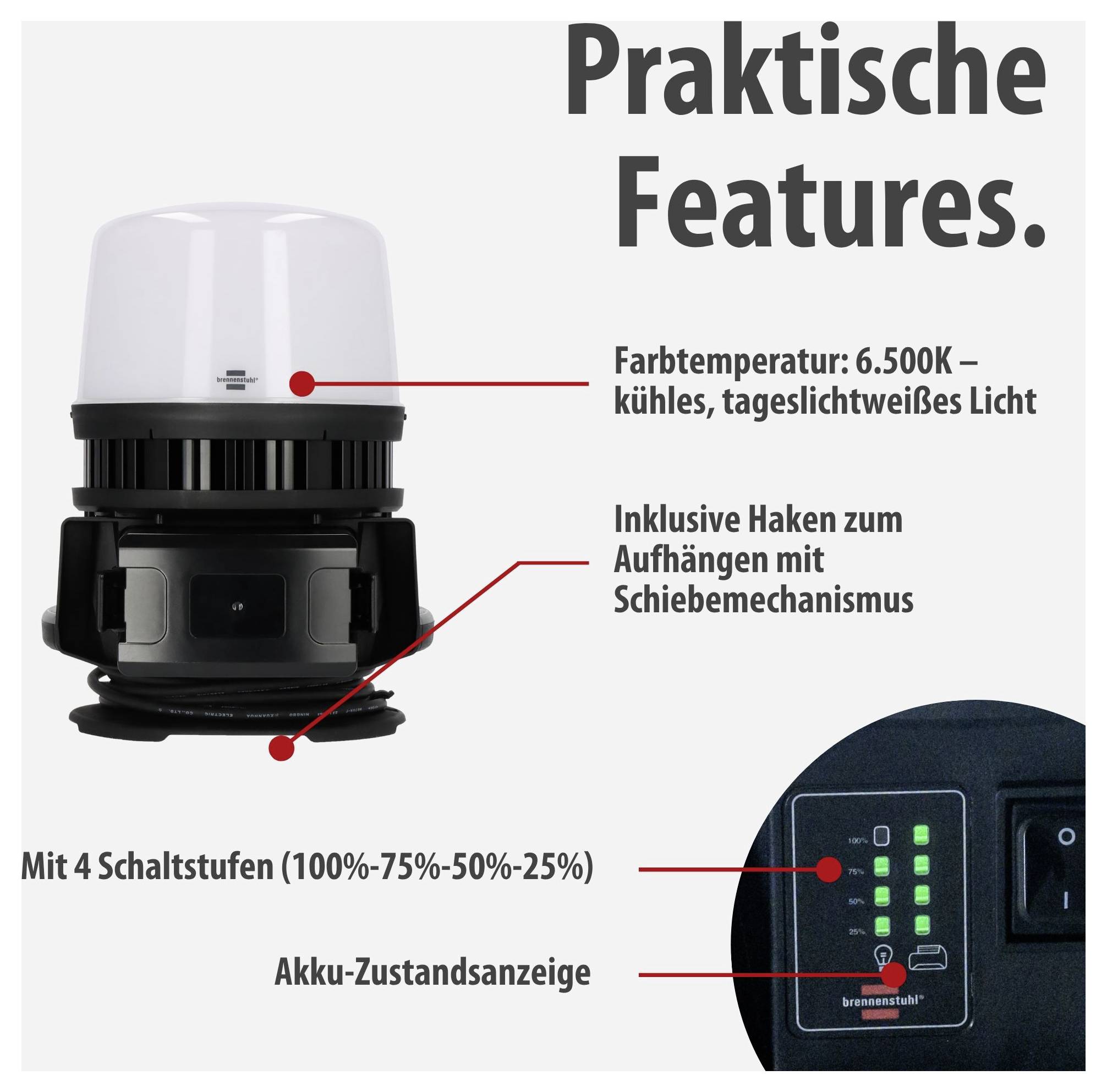

* With on/off switch, which also controls the 4 switching settings (100% - 75% - 50% - 25% light)
* Hybrid technology: Mains and battery operation possible
* With fixed 5m cable (H07RN-F2X1.0)
* With battery status indicator
* Convenient cable winding possible and clip for mounting
* All-round handles for easy transport
* Includes hook for hanging with sliding mechanism to compensate for imbalance of the battery inserted

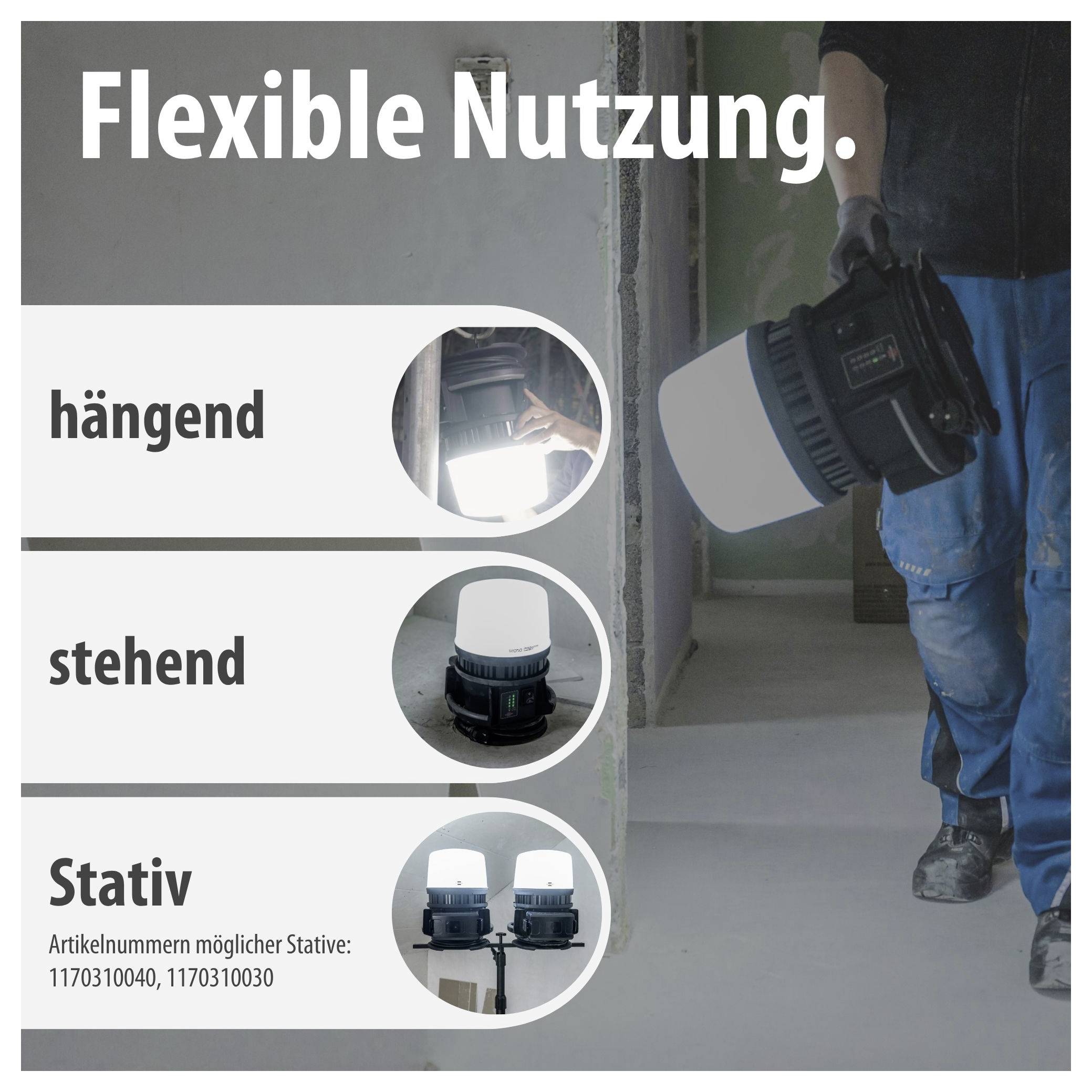

* Flexible use: Standing, hanging, mounted on a stand
* Lighting duration depending on the battery used:
Ca. 12 min/1Ah with 100% light output
Ca. 16 min/1Ah with 75% light output
Ca. 24 min/1Ah with 50% light output
Ca. 48 min/1Ah with 25% light output
* Power consumption: 100W
* Luminous flux: 12000lm
* Colour temperature: 6500K
* Type of LED: SMD
* Protection class: IP54
* When using 18V batteries of higher Ah classes without battery protection cover IP20
* Protection class: III.
* Impact strength: IK08
This text is machine translated.
* With on/off switch, which also controls the 4 switching settings (100% - 75% - 50% - 25% light)
* Hybrid technology: Mains and battery operation possible
* With fixed 5m cable (H07RN-F2X1.0)
* With battery status indicator
* Convenient cable winding possible and clip for mounting
* All-round handles for easy transport
* Includes hook for hanging with sliding mechanism to compensate for imbalance of the battery inserted
* Flexible use: Standing, hanging, mounted on a stand
* Lighting duration depending on the battery used:
Ca. 12 min/1Ah with 100% light output
Ca. 16 min/1Ah with 75% light output
Ca. 24 min/1Ah with 50% light output
Ca. 48 min/1Ah with 25% light output
* Power consumption: 100W
* Luminous flux: 12000lm
* Colour temperature: 6500K
* Type of LED: SMD
* Protection class: IP54
* When using 18V batteries of higher Ah classes without battery protection cover IP20
* Protection class: III.
* Impact strength: IK08
This text is machine translated.
Features
- Hybrid LED industrial light 12000lm compatible with various 18V batteries (different Ah classes) of the 11 power tool manufacturers: Bosch Professional, Dewalt, Einhell, Fine, Festool, Flex, Hikoki, Makita, Metabo CAS, Milwaukee and Würth
- At 50% light output, the 360° spotlight provides illumination for approx. 1.6h/4Ah (approx. 0.8h/4Ah at 100% light output) - the light duration depends on the battery used (delivery without rechargeable battery)
- 360° industrial light with 4 switching stages (100%-75%-50%-25%) and protection system for Powertool batteries: Protected against deep discharge, overheating (caused by high load currents) and battery error

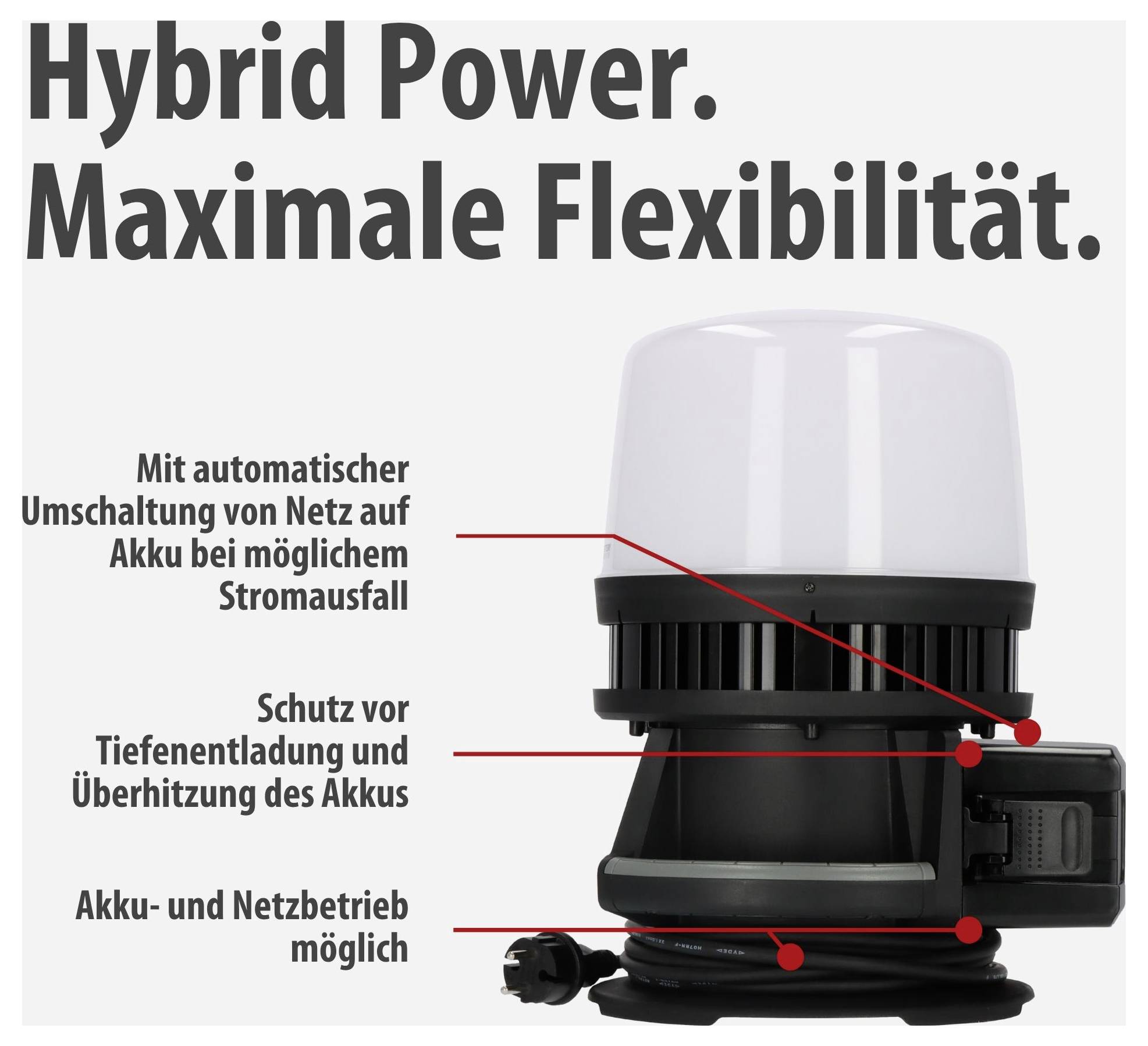

- All-round work light with 5m oil-resistant cable (H07RN-F2X1.0) with hybrid technology: Battery and mains operation possible, as well as automatic switching from mains to battery in the event of a power failure

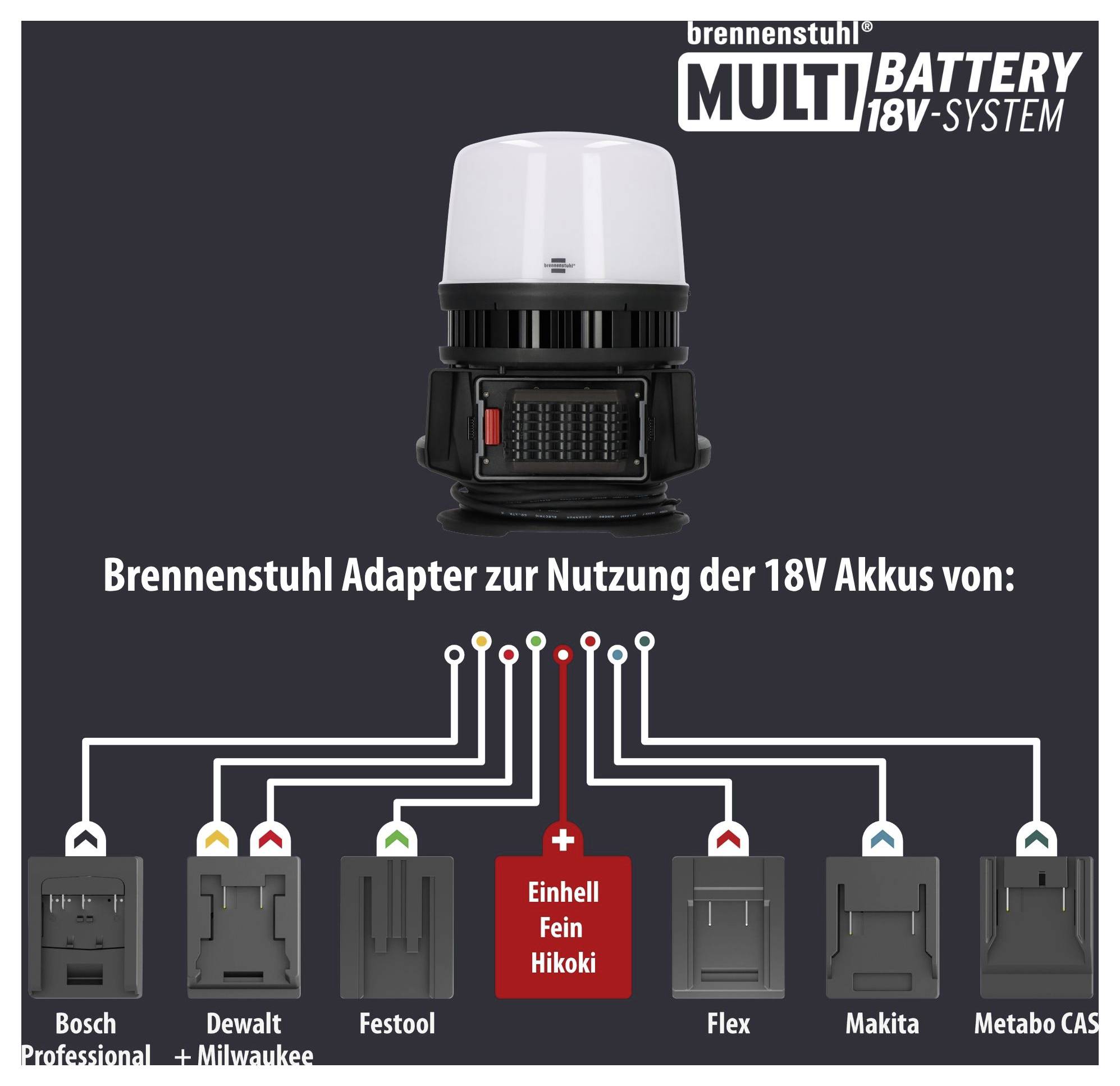

- 360° hybrid spotlight incl. 4 interface adapter for the 5 brands Bosch Professional, Dewalt, Makita, Metabo CAS and Milwaukee - adapter for the other brands available separately - Brennenstuhl is part of AMPShare - powered by Bosch Professional
Scope of delivery
- Multi Battery LED 360° hybrid industrial light 12050 MH
- 4 interface adapter
- Bag for adapter
- 5m RN-cable
Hints
Supplied without Battery.
