Bresser Optik 1x variabel 5914001 Telecompressor
EAN:
Part number:
Item no:
Highlights & Details
Reducing lens 1x variable
- For cameras with 1'' C-mount threadEspecially for cameras with 1'' CMOS sensorTo adjust the focus positionFor 23.2 mm plug-in socketsScope of delivery: 1x reduction optics
Technical specifications
- Product type
Telecompressor
- Dim
(L x W) 58 mm x 35 mm
- Weight
67 g
- Width
35 mm
- Length
58 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2160623 Bresser Optik 1x variabel 5914001 Telecompressor
Description

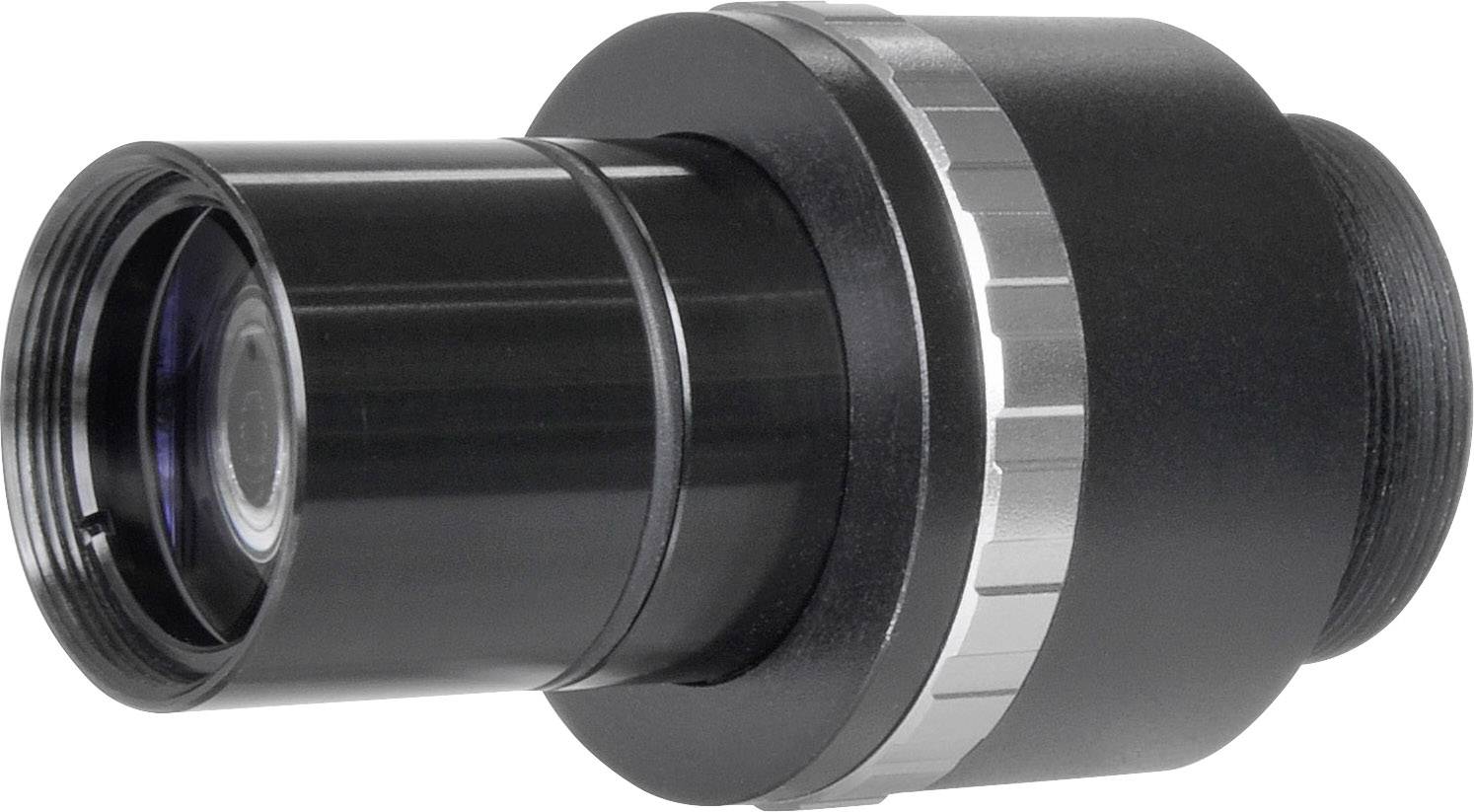

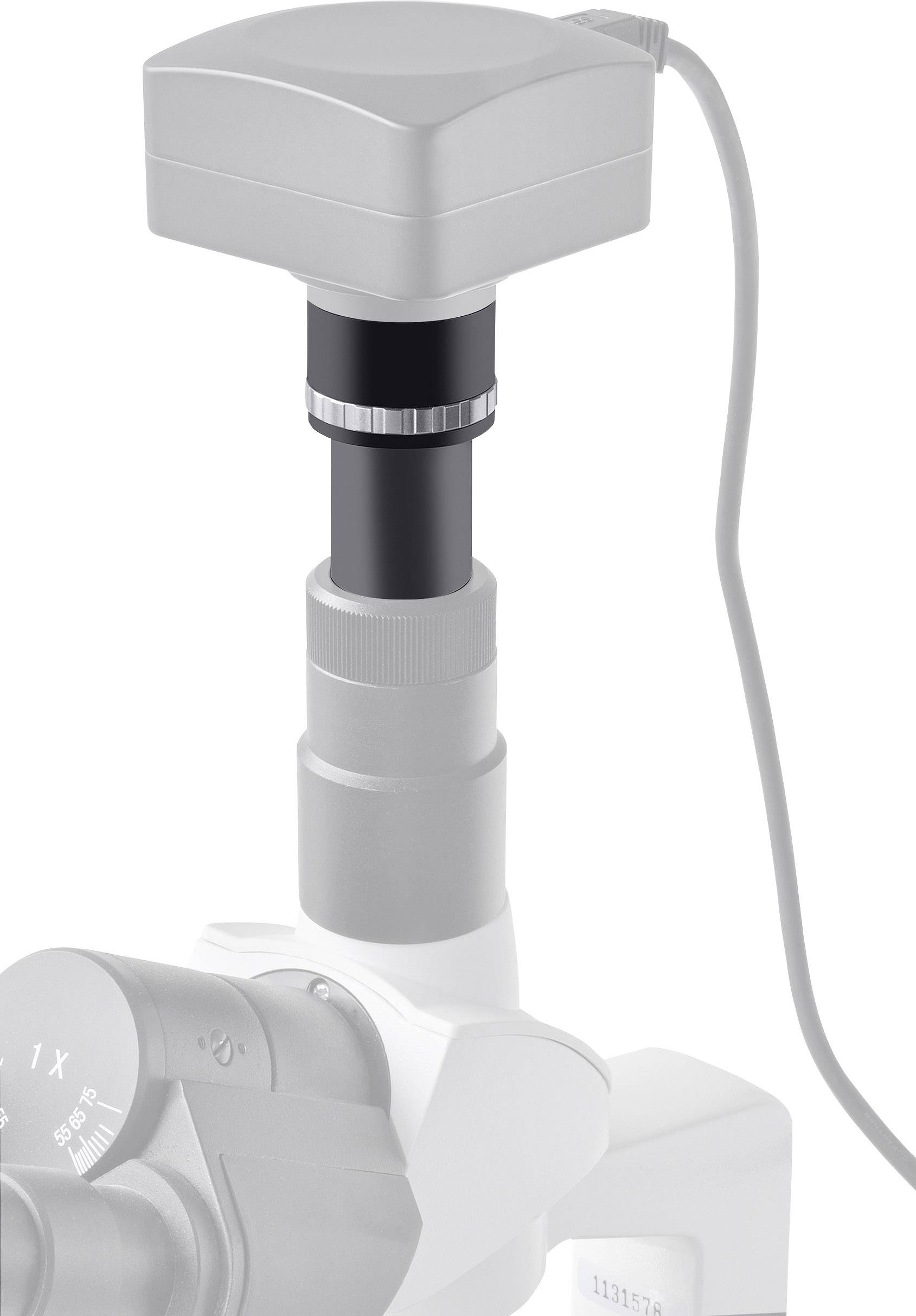

The BRESSER reduction lens 1x variable is used to shift the focal point of the camera. The image section of the camera can also be varied slightly. Especially for trinocular microscopes, the adapter enables the camera focus to be adapted to the eyepiece focus. It is compatible with eyepiece pull-outs with 23.2 mm plug-in socket. This adapter is specially designed for cameras with sensor sizes of 1''. The connection is made via a 1'' C-Mount thread. This adapter is especially recommended for the MikroCamII 20 MP (Art.-No. 5914200).
Scope of delivery
- 1x reduction optics
