Buy Bresser Optik 4964140 MH-100 Pol-Wiege Tripod adapter

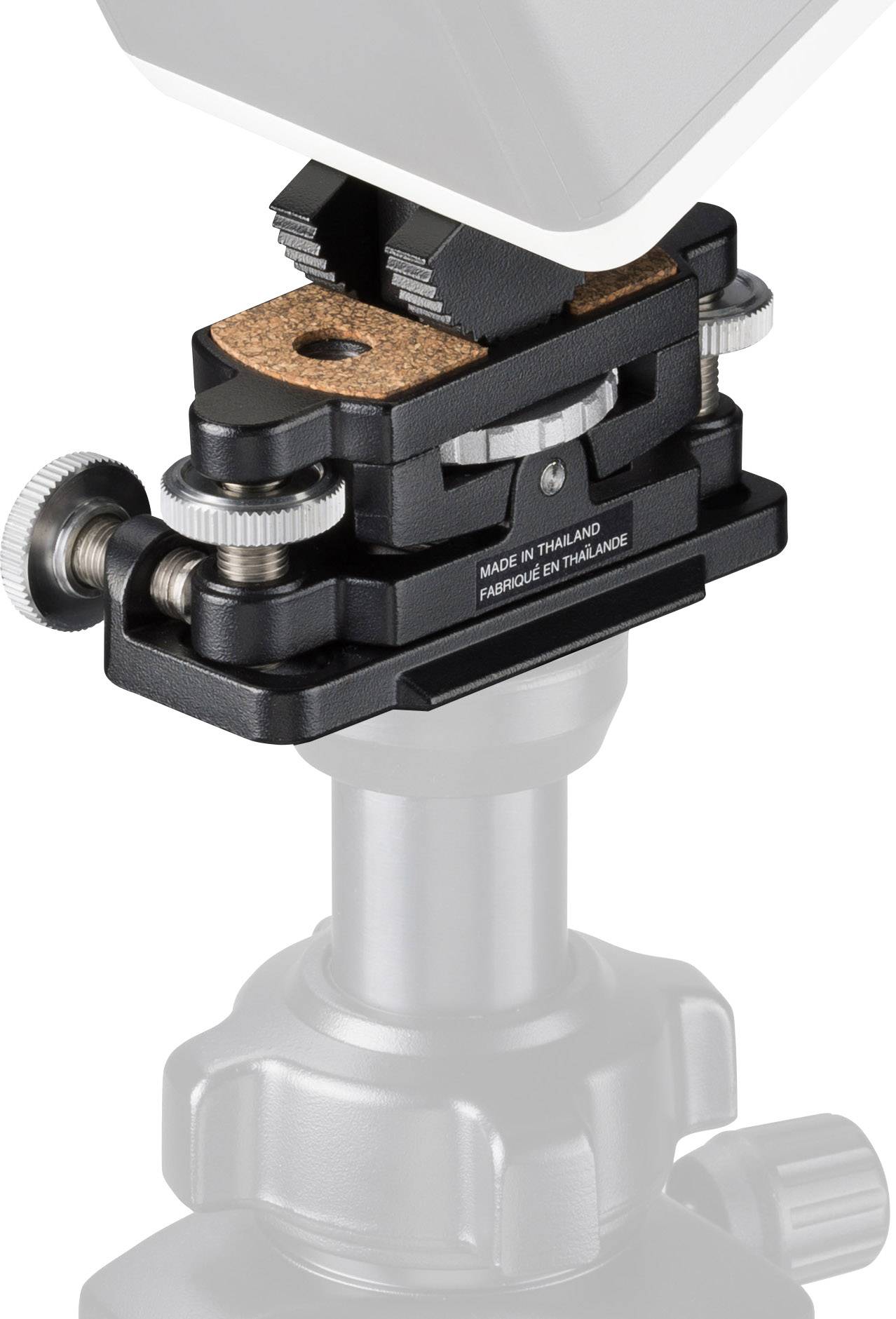

A black tripod head with knurled screws and a cork pad for mounting a camera. It provides stable and precise adjustment options.

Tripod with mounted rotation device for camera, showing a precise adjustment option for panoramic photography.

'Telescope Accessories: Fine-adjustable Mount with Rotation and Tilting Mechanism, Ideal for Precise Astronomical Alignment.'

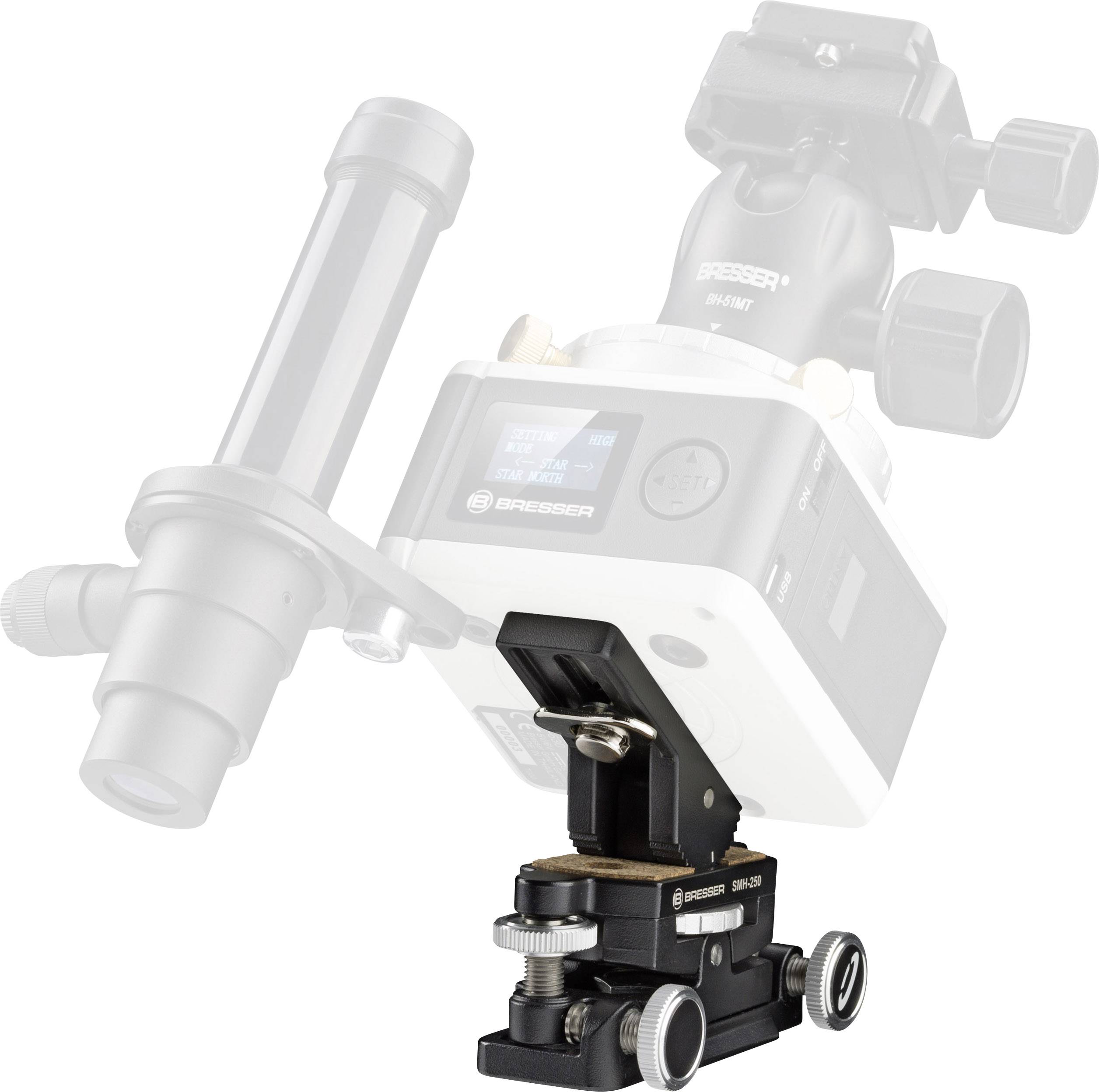

This image shows a close-up of a Bresser microscope camera system with a mount on a white background.

A telescope with a mounted camera. Clearly visible control module with display and controls. Device used for astronomy.

A tripod head with a clamp in close-up. The clamp has knurled screws and a cork lining to provide better grip for devices.

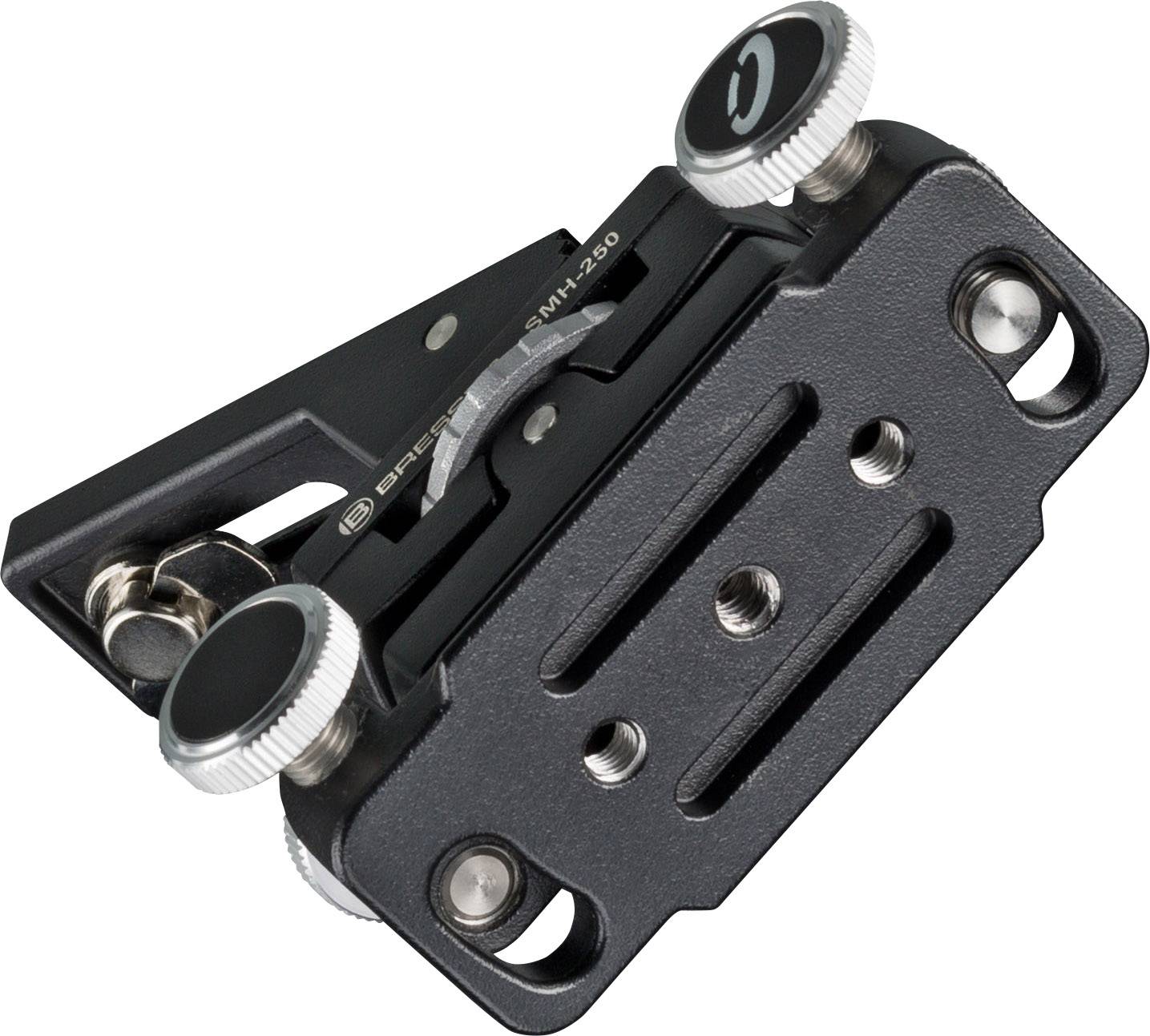

A black camera rail with metal screws and a quick-release plate.

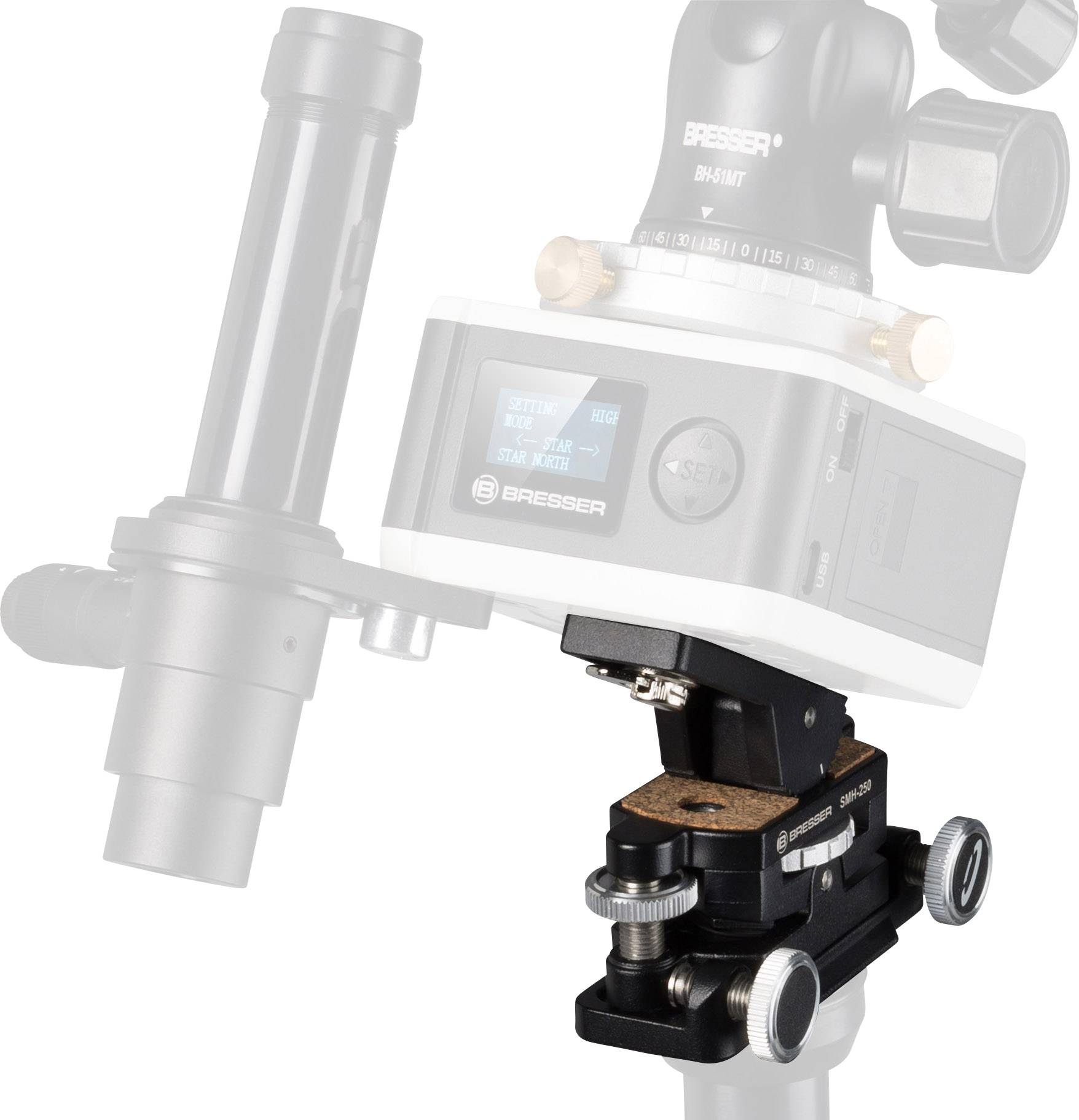

Metal microscope adapter with adjustable mounting bracket. Suitable for fine-tuning and stable attachment of cameras.

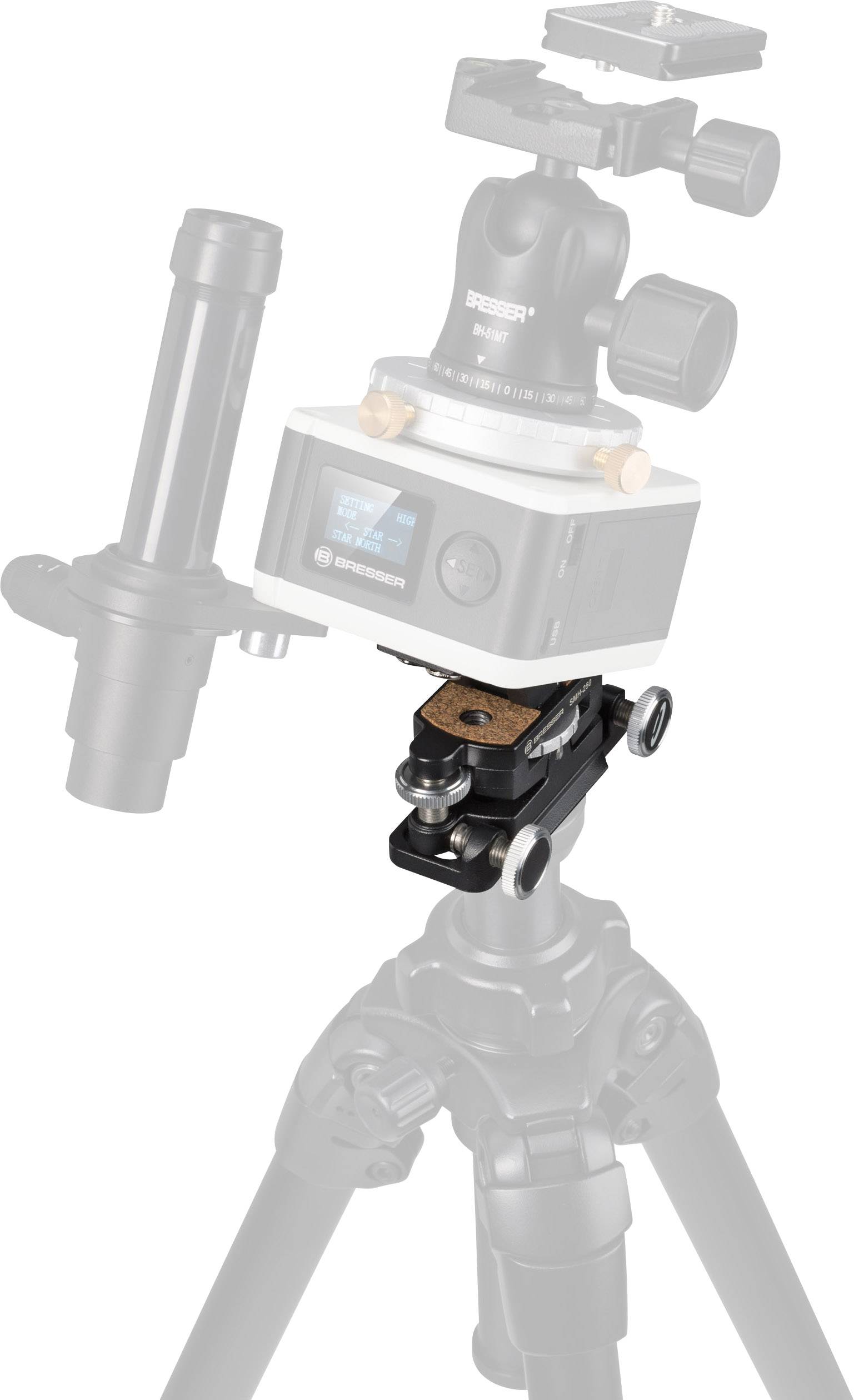

Tripod with tilting head and mounted camera, which can be rotated and angled, suitable for precise photographic shots.

1/10

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

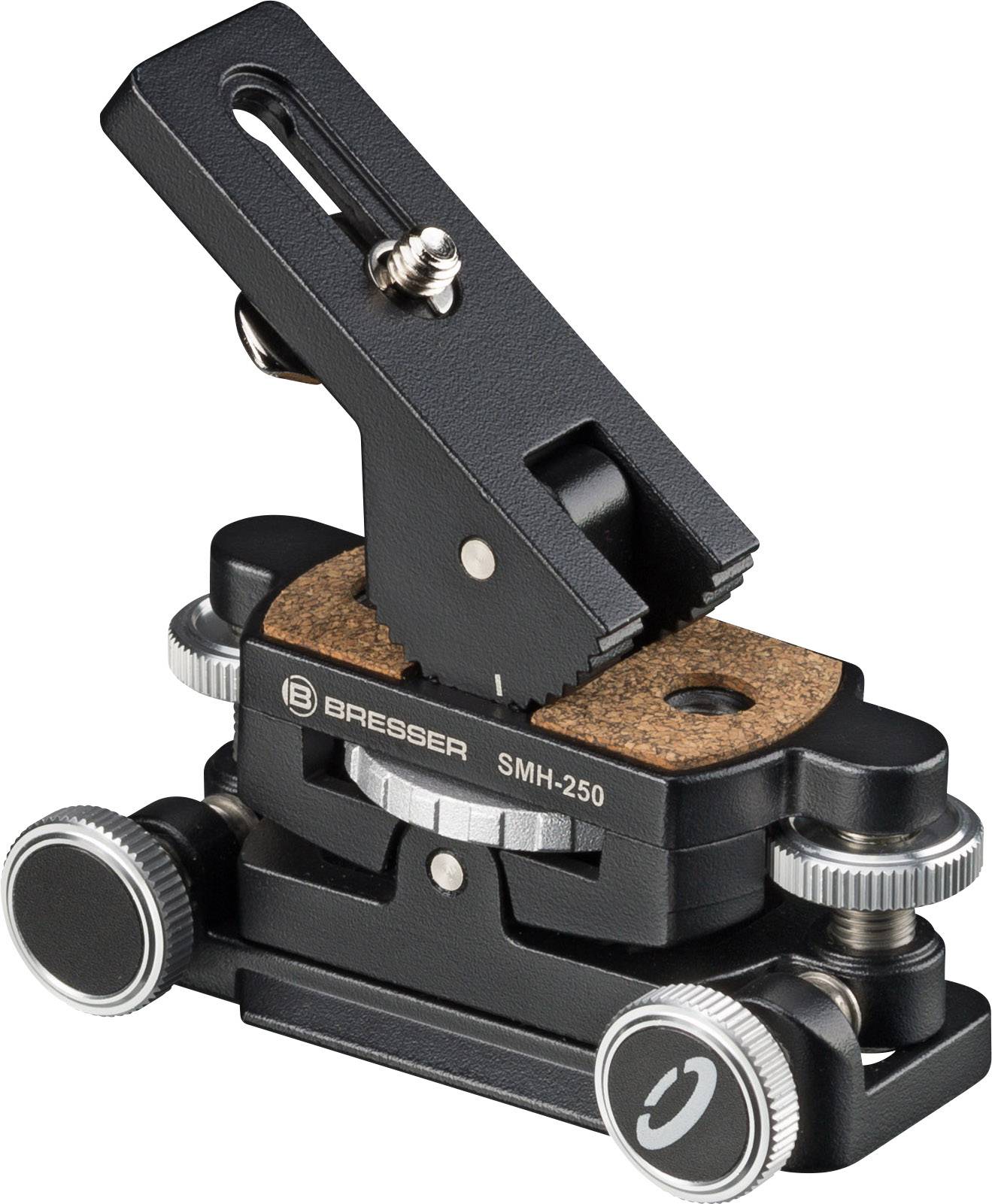

Tripod head with fine adjustment. MH 100

Compact micro motion head with fine adjustmentFor precise adjustment of polar alignment (EQ mode)Can be used with any photo tripod and 1/4inch thread adapterMade of black anodised aluminium and stainless steelSuitable for BRESSER StarTracker Astrophoto Mount PM-100Suitable for BRESSER tripod TP-100 DXAlso ideal as an adjustment element of an auto-guiding scopeFor parallel alignment of main telescope and guiding telescopeBase plate connection: 3 x 1/4 inch photo thread; hole spacing 35.0mmConnection mounting plate: 2 x M8x1.25mm thread; hole spacing 35,0mm

Technical specifications

Product type: Tripod adapter

Dim: (L x W x H) 100 x 50 x 100 mm

Weight: 250 g

Compatible with: Telescopes

Width: 50 mm

Height: 100 mm

Length: 100 mm

Material: Aluminium
Steel

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2160619 Bresser Optik 4964140 MH-100 Pol-Wiege Tripod adapter

Description

Tripod head with fine adjustment for fast and precise pole height adjustment of the BRESSER StarTracker Astrophoto Mount PM-100 art. no. 4964120. The BRESSER Micro Motion Head MH-100 allows a very precise adjustment by using large dimensioned knurled screws. In order to keep the adjustment distances by using the knurled screws as small as possible, the mounting plate has a quick-release clamping device with toothing in order to be able to select a rough presetting of the pole height (latitude at the location). The Micro Motion Head MH-100 can be mounted on any photo tripod with 1/4 inch photo thread closure. The BRESSER StarTracker astrophoto mount can then be mounted on the MH-100 tripod head without the use of tools using a 1/4" photo thread screw. The complete motion head is made of black anodized aluminum and guarantees highest stability by the use of solid material. The knurled screws with fine pitch thread are even made of stainless steel and guarantee a long durability and corrosion resistance. Ideal for optimizing tracking accuracy in astrophotography. IMPORTANT NOTE: Can also be used as a stable adjustment element of a telescopic sight in astrophotography. Parallel alignment of the main telescope and the guide telescope is thus also possible quickly and precisely. Base plate connection: 3 x 1/4 inch photo thread with 35.0 mm hole spacing. Mounting plate connection: 2 x M8x1.25 thread with 35.0mm hole spacing.
