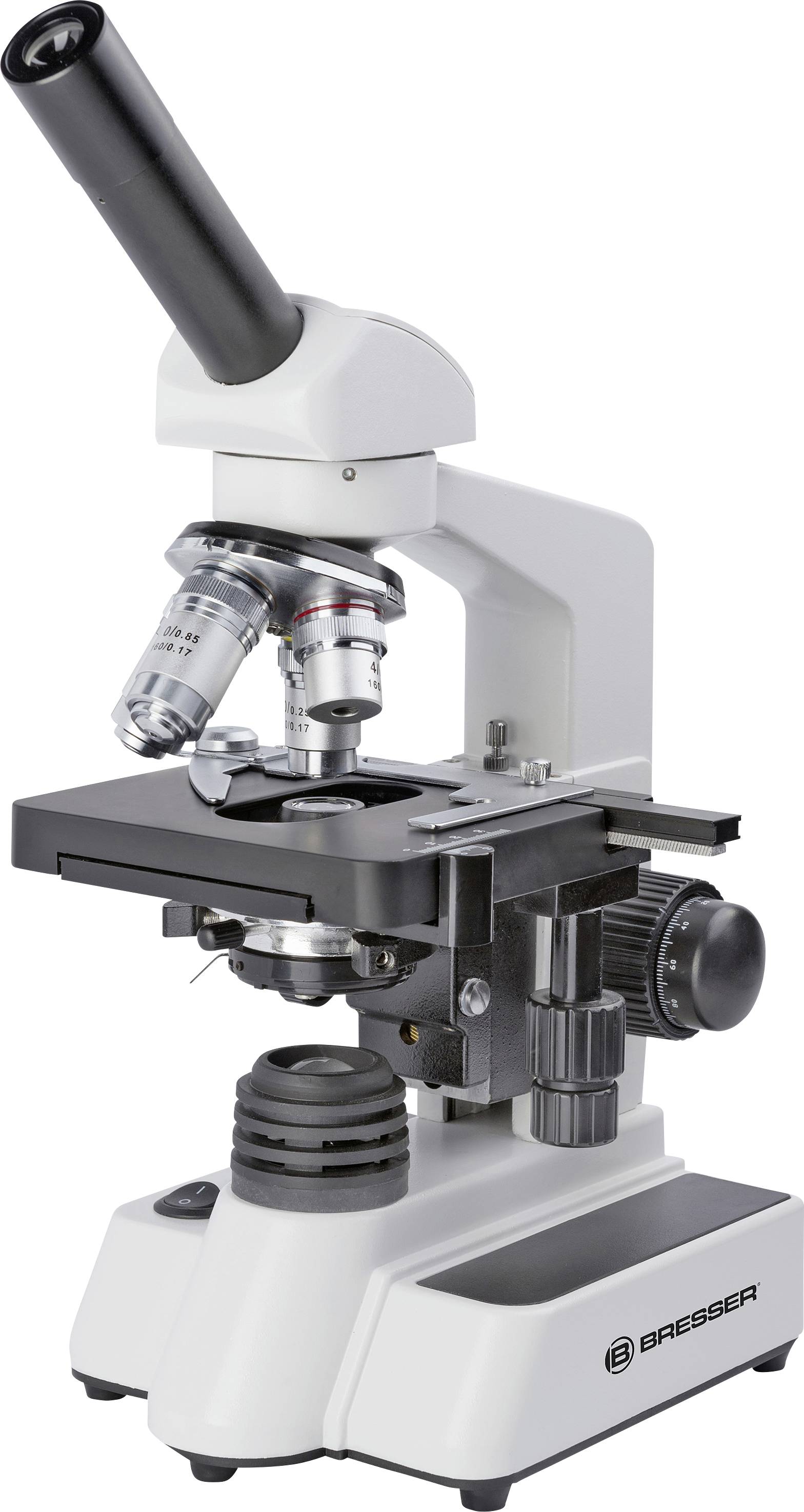

Bresser Optik 5102000 Erudit DLX 40-1000x Transmission microscope Monocular 1000 x Transmitted light
EAN:
Part number:
Item no:
Highlights & Details
Bresser Optik 5102000 Erudit DLX 40-1000x Transmission microscope Monocular 1000 x Transmitted light
- Type: Biological microscope
- Insight: Monocular
- Comfortable view, 360° rotating head
- Areas of application: Biology, botany, education
- Lighting: LED, adjustable condenser
- Target group: Beginners, advanced users
- Extras: Built-in rechargeable battery
- Coaxial cross-table
- Integrated dimmer
- Eyepiece: 10x with pointer
- Lenses: 4x, 10x, 40x, 100x
- Magnification: 40x, 100x, 400x, 1000x
Technical specifications
- Product type
Transmission microscope
- Type
Monocular
- Optical magnification (min.)
40 x
- Optical magnification (max.)
1000 x
- Lighting type
Transmitted light
- Bulb type
LED (monochrome)
- Factory colour
White
Black
- Dim
(L x W x H) 22.5 x 17.5 x 34.5 cm
- Length
22.5 cm
- Width
17.5 cm
- Height
34.5 cm
- Weight
2.7 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2266746 Bresser Optik 5102000 Erudit DLX 40-1000x Transmission microscope Monocular 1000 x Transmitted light
User & Safety Instructions 2266746 Bresser Optik 5102000 Erudit DLX 40-1000x Transmission microscope Monocular 1000 x Transmitted light
Description
The BRESSER Erudit DLX is a high-quality study microscope for a variety of applications, e.g. in school, in studies or for hobbies. Due to the built-in rechargeable battery, it is also suitable for mobile use! The dimmable LED lighting of the Erudit DLX and a centrally adjustable and height-adjustable condenser (with iris diaphragm and filter holder) enable optimum illumination. The achromatic DIN-lenses provide for a very good illustration. The 40x and 100x lenses are spring-loaded to prevent damage to the specimen. The microscope possesses a 360° rotating monocular insight, a coarse and fine focusing, as well as a coaxial cross table with vernier.
This text is machine translated.
This text is machine translated.
Scope of delivery
- Microscope
- Eyepiece 10x
- 4 lenses (4x, 10x, 40x, 100x(oil))
- Abbe condenser with iris diaphragm and filter holder
- Blue filter
- Immersion oil
- Dust cover
- Power supply unit
