Buy Bresser Optik 5102060 Erudit DLX Transmission microscope Monocular 600 x Transmitted light

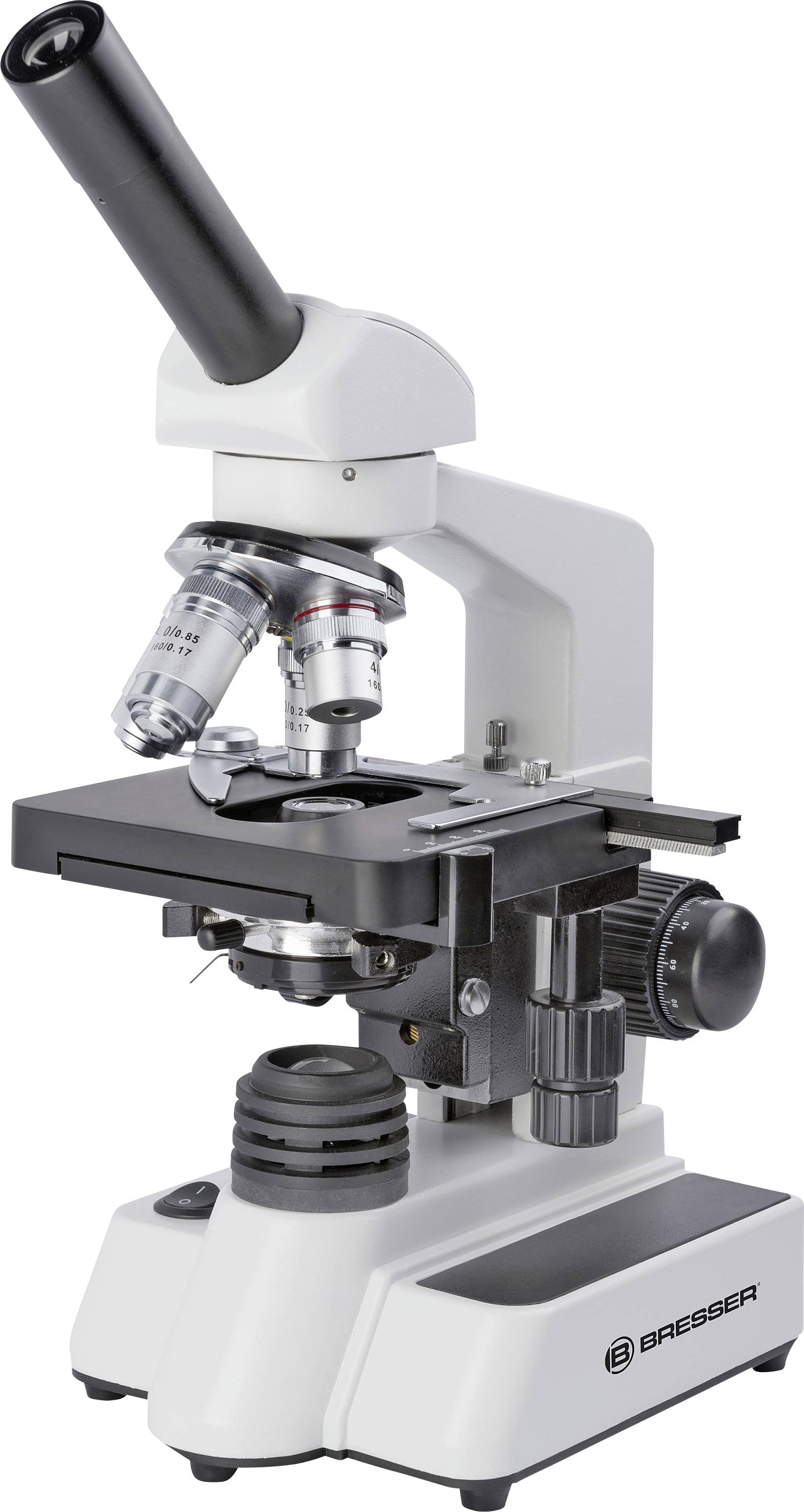

Microscope with white casing, multiple objectives and light source, suitable for laboratory investigations.

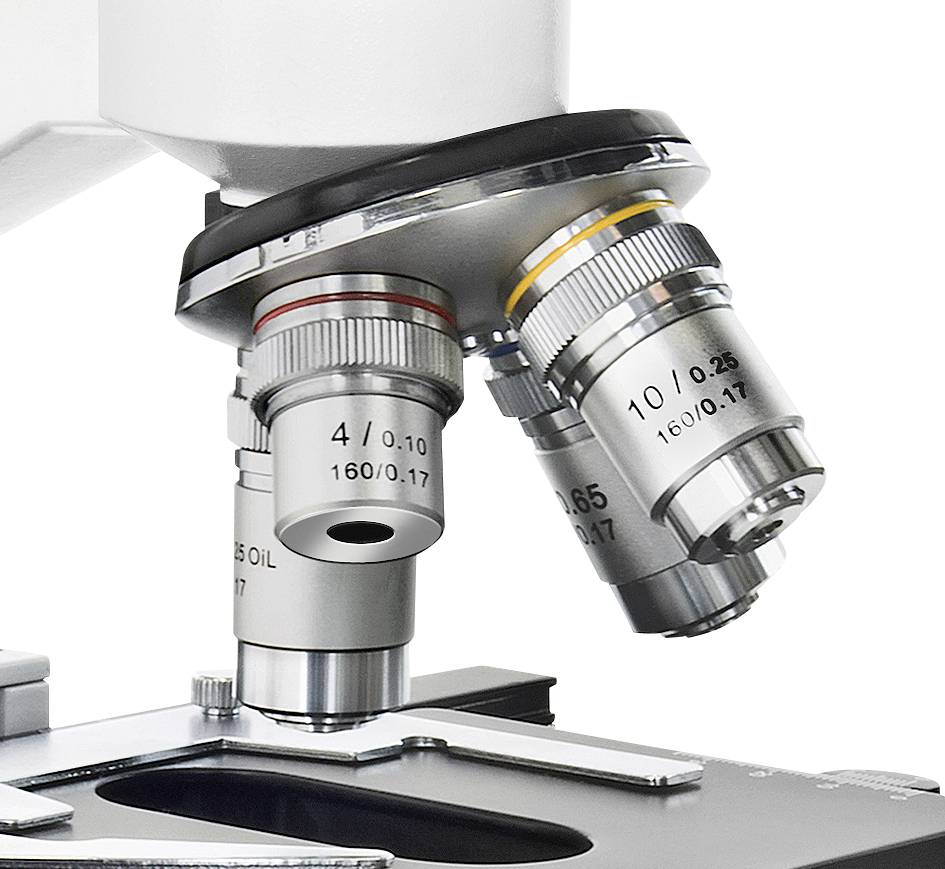

A microscope with three objectives, including one with a magnification of 160/0.17.

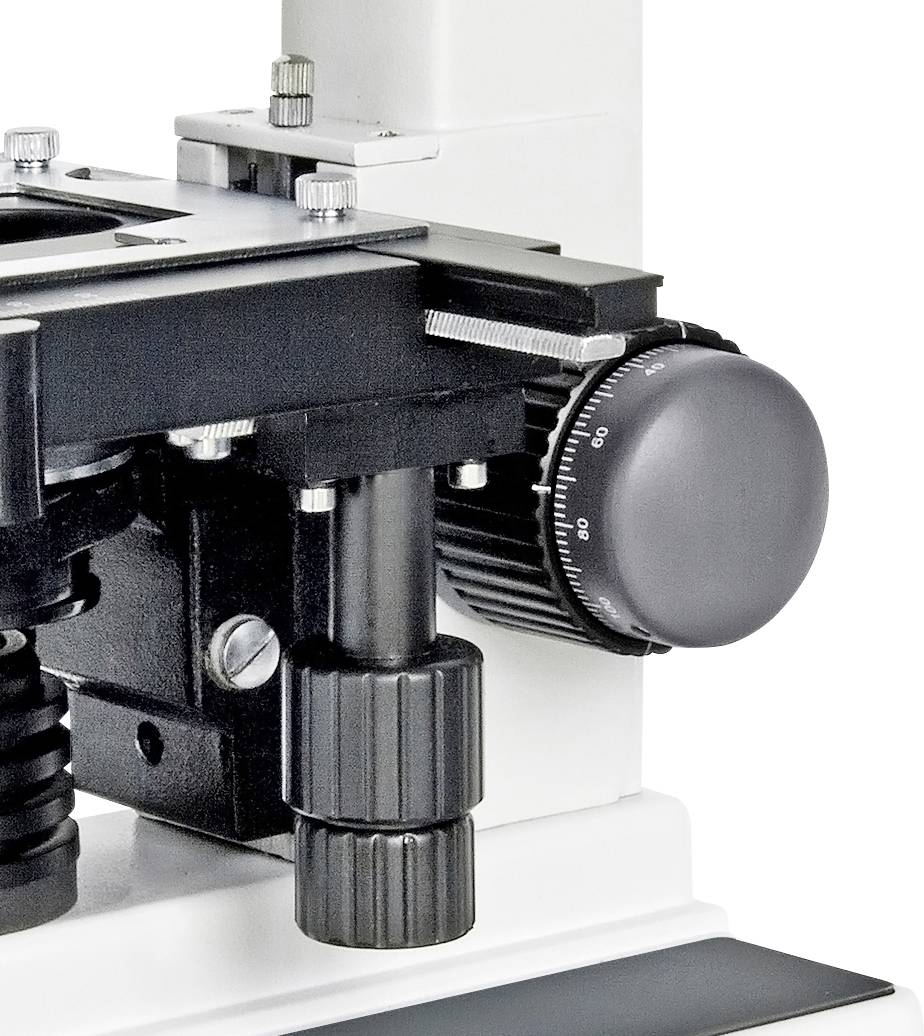

Close-up of a microscope stage mechanism with adjustment wheel. Construction details visible, used for focusing specimens.

1/3

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Bresser Optik 5102060 Erudit DLX Transmission microscope Monocular 600 x Transmitted light

Transmitted light microscope with DIN lenses
Battery and mains operation, thus flexible use
Dim. LED lighting/Abbe condenser with iris diaphragm
Magnification: 40x-600x / total weight: 2.7 kg
Scope of delivery: Microscope, accessories

Technical specifications

Product type: Transmission microscope

Type: Monocular

Optical magnification (min.): 40 x

Optical magnification (max.): 600 x

Lighting type: Transmitted light

Bulb type: LED (monochrome)

Factory colour: White
Black

Weight: 2.6 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2266753 Bresser Optik 5102060 Erudit DLX Transmission microscope Monocular 600 x Transmitted light

Description

The BRESSER Erudit DLX is a high-quality study microscope for a variety of applications, e.g. in school, in studies or for hobbies. Due to the built-in rechargeable battery, it is also suitable for mobile use! The dimmable LED lighting of the Erudit DLX and a centrally adjustable and height-adjustable condenser (with iris diaphragm and filter holder) enable optimum illumination. The achromatic DIN-lenses provide for a very good illustration. The 40x and 60x lenses are spring-loaded to prevent damage to the specimen. The microscope possesses a 360° rotating monocular insight, a coarse and fine focusing, as well as a coaxial cross table with vernier.

This text is machine translated.
