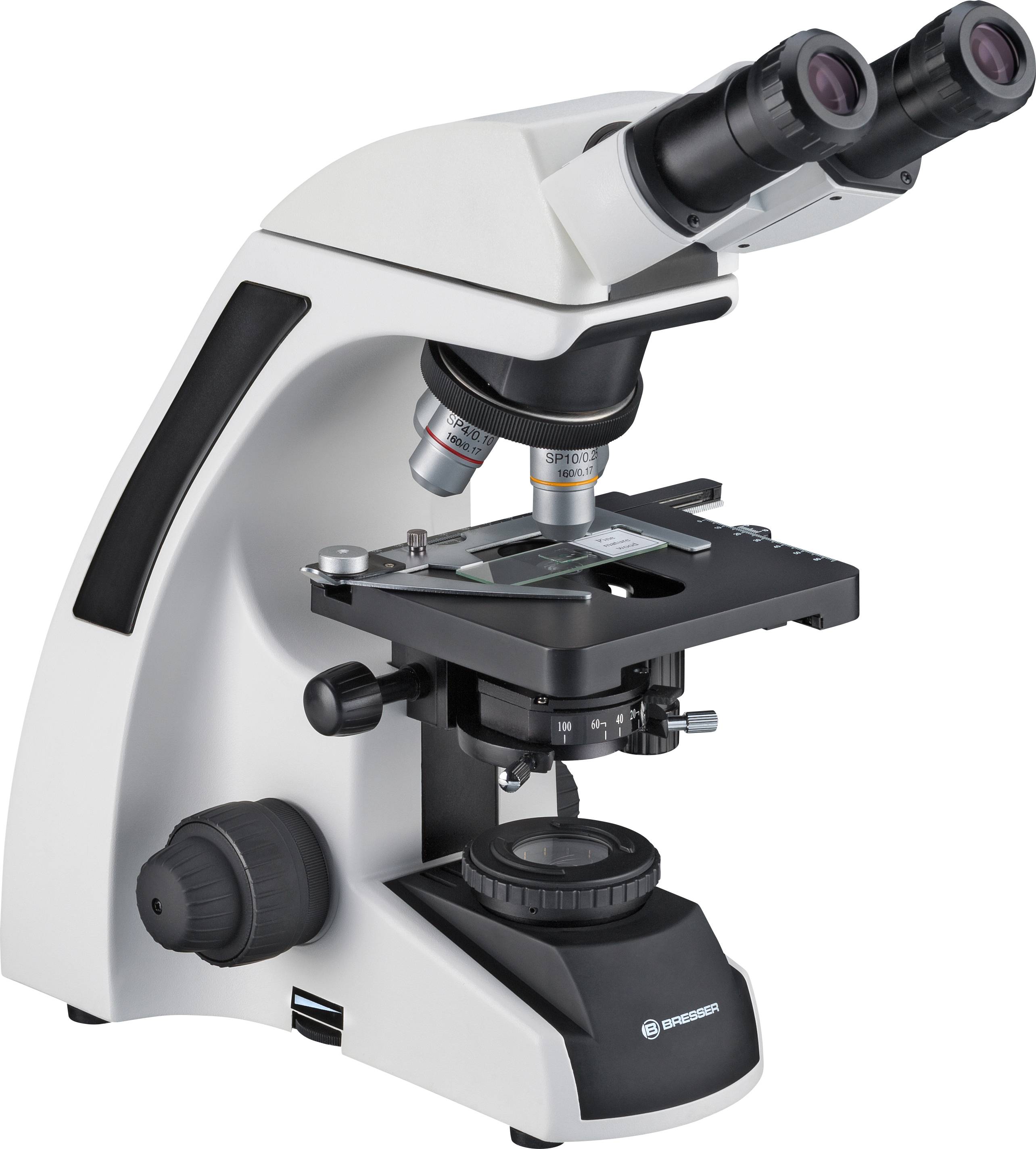

Bresser Optik 5750800 Science TFM-201 Bino Transmission microscope Binocular 1000 x Transmitted light

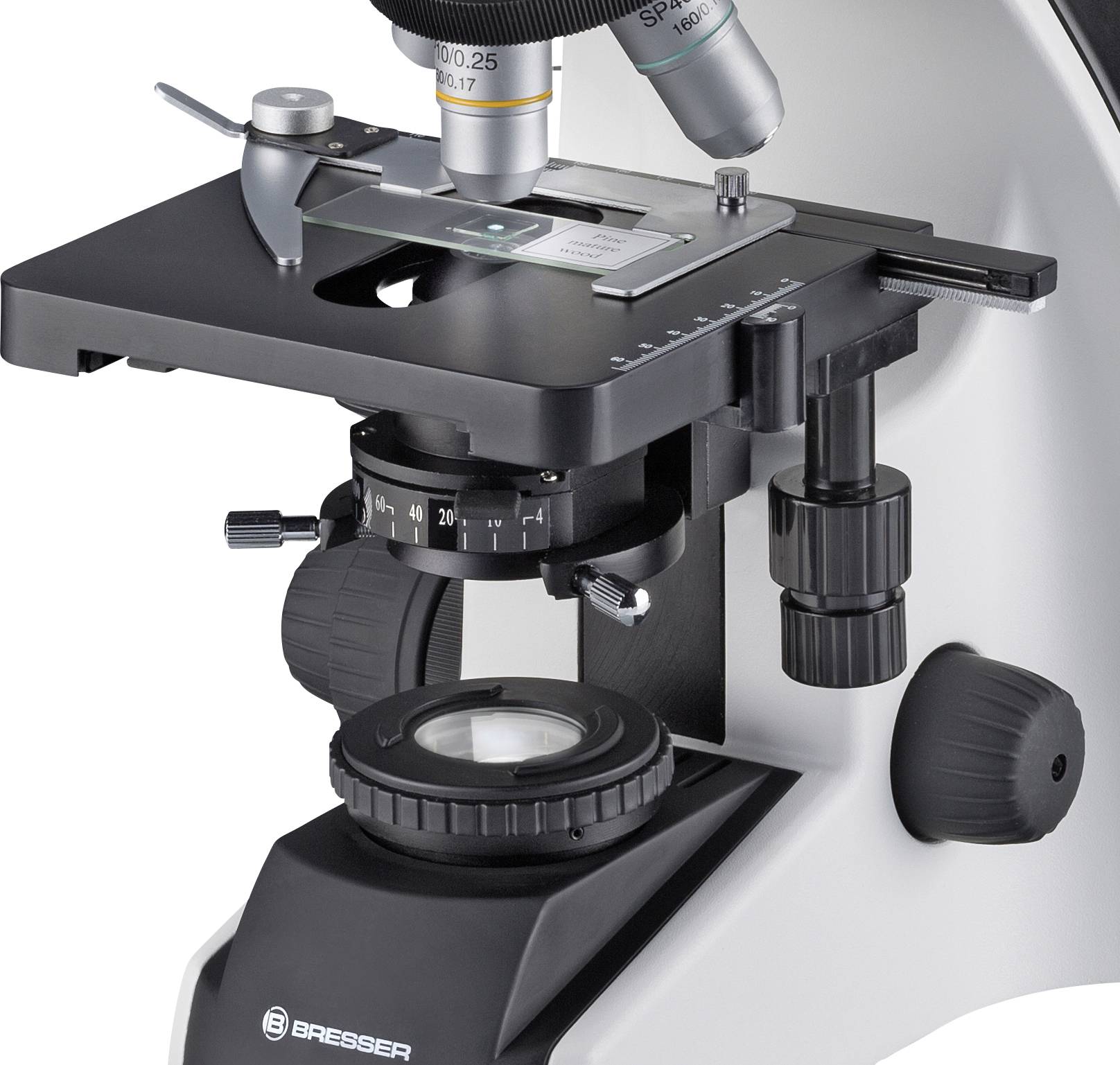

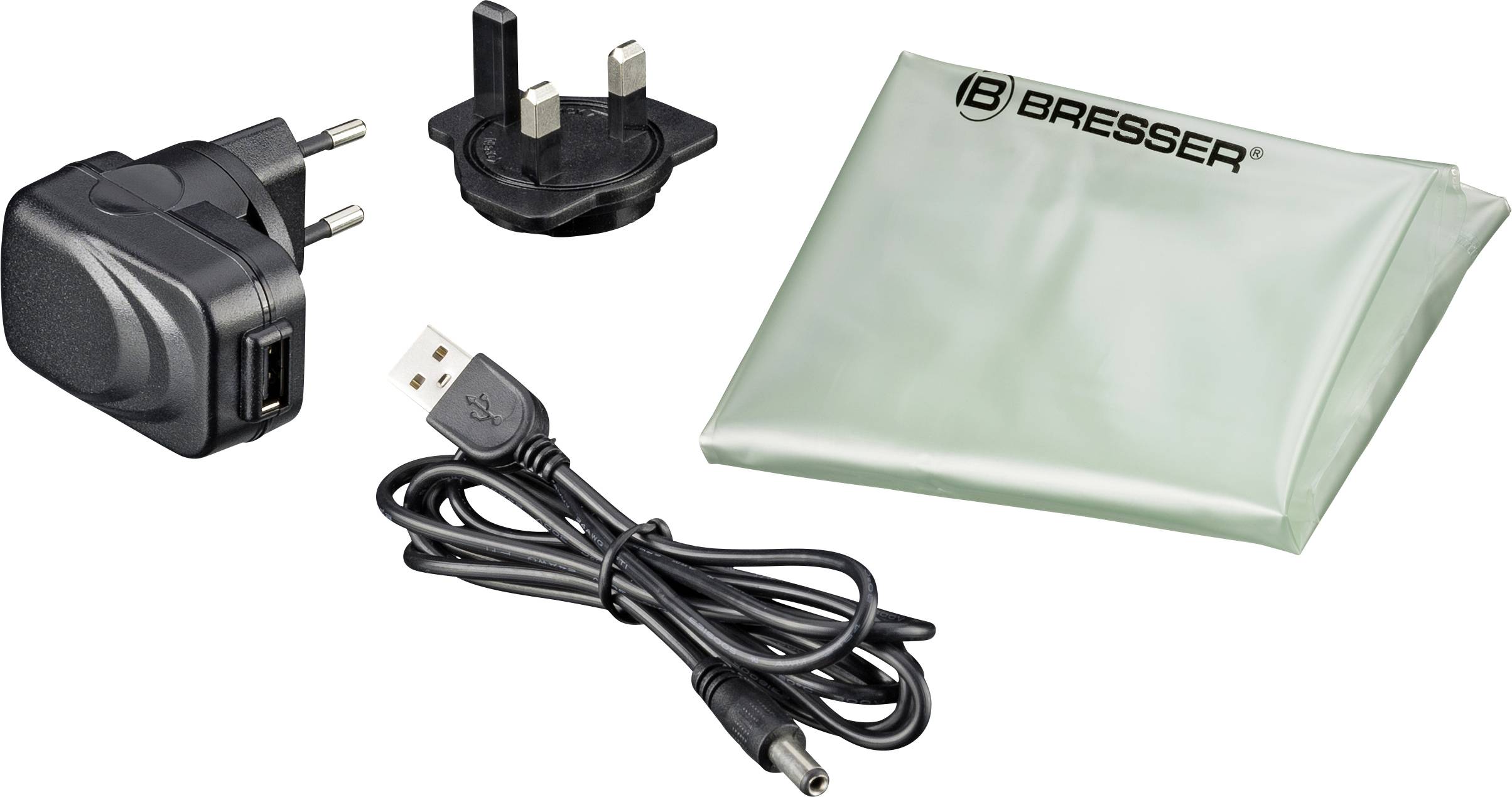

as NEW BRESSER Science TFM-201 microscope is a binocular microscope equipped with semi-plan lenses. The WF 10x eyepieces have a field of vision of 20 mm and therefore offer a large field of view. The eye distance can be adjusted from approx. 55 mm to approx. 75 mm. Diopter compensation is possible with both eyepieces. The strong and long-lasting LED lighting can be controlled and is also very well suited for dark field microscopy*, among other things. The voltage supply can be used flexibly: It can also be made via an existing USB connection using the power supply included in the delivery or with the enclosed cable. The Köhler illumination can be adjusted with the permanently installed light field diaphragm and the height-adjustable and centered Abbe condenser (numerical aperture 1.25; with iris diaphragm). The condenser also has a print of the various magnifications, so the iris diaphragm can be adjusted quickly and precisely. The coaxial shoots of the object table adjustment and the coarse and fine focusing enable an ergonomic working.

This text is machine translated.
