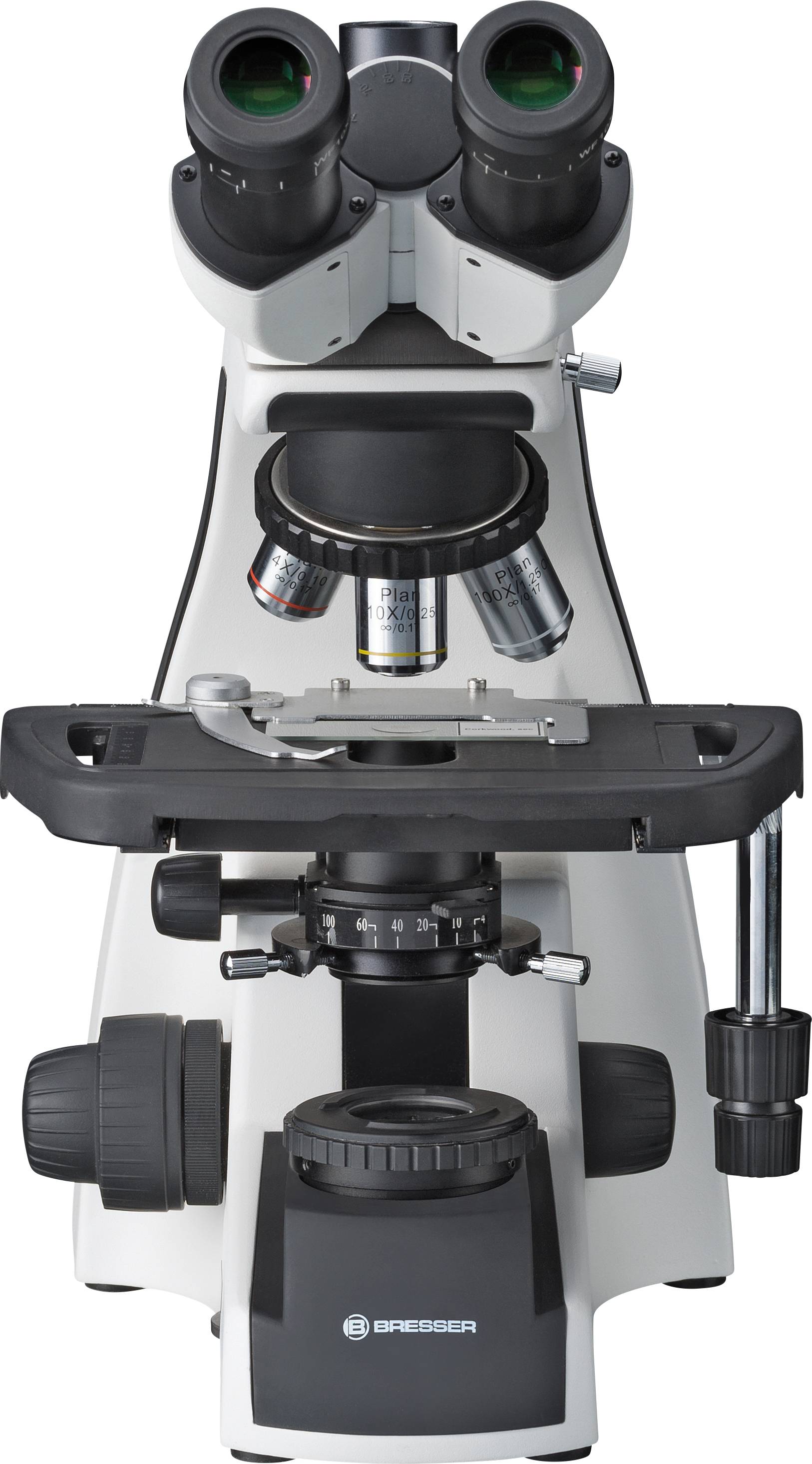

Bresser Optik 5760700 Science Infinity Transmission microscope Trinocular 1000 x Transmitted light

The NEW BRESSER Science Infinity microscope forms the new top-of-the-range model of the biological microscope series from Bresser. It has infinitely corrected planachromatic lenses with excellent image quality. Due to the modern optical design, one is particularly flexible when connecting accessories such as cameras etc. The WF 10x eyepieces have a large field of vision of 22 mm and are also optimally suitable for spectacle wearers. For protection, the eyepieces are provided with a rubberized bearing surface. The eye distance can be adjusted from approx. 55 mm to approx. 75 mm. Diopter compensation is possible with both eyepieces. The strong and long-lasting LED lighting can be controlled and is also very well suited for dark field microscopy*, among other things. The voltage supply is flexible: It can also be made via an existing USB connection using the power supply included in the delivery or with the enclosed cable. The Köhler illumination can be adjusted with the fixed integrated light field diaphragm and the height-adjustable and centered Abbe condenser (numerical aperture 1.25; with iris diaphragm).The condenser also has an imprint of the various magnifications, so the iris diaphragm can be adjusted quickly and precisely. The coaxial shoots of the object table adjustment and the coarse and fine focusing enable an ergonomic working.
The trinocular extension allows the direct connection of a C-mount camera or MikroCam.
*with optional accessories
