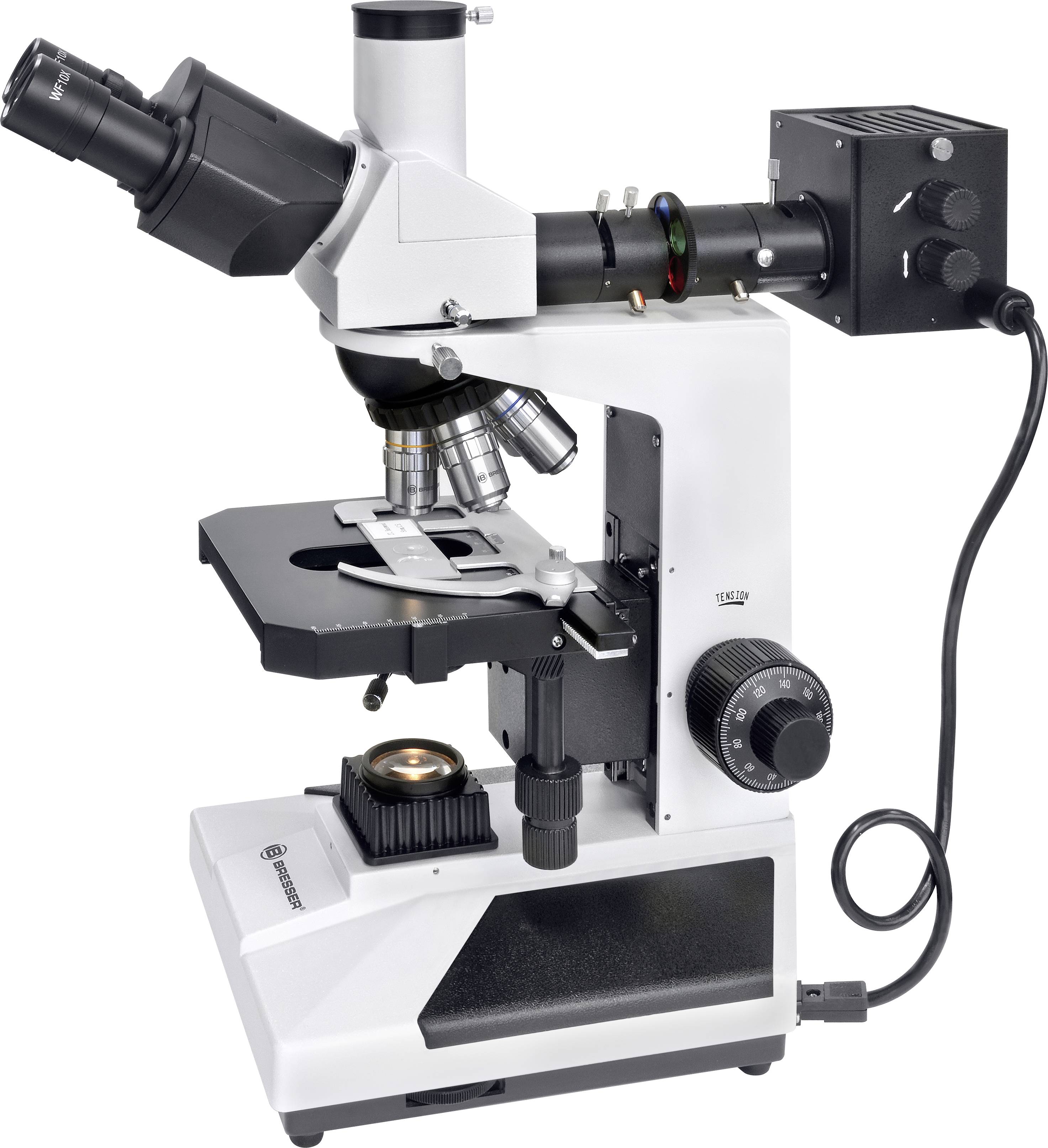

Microscope on a white background. It has objectives, a light source, and focusing wheels. Primarily used for biological investigations.

Close-up of a butterfly's wing scales in luminous orange with horizontal lines. Label shows magnification and camera settings.

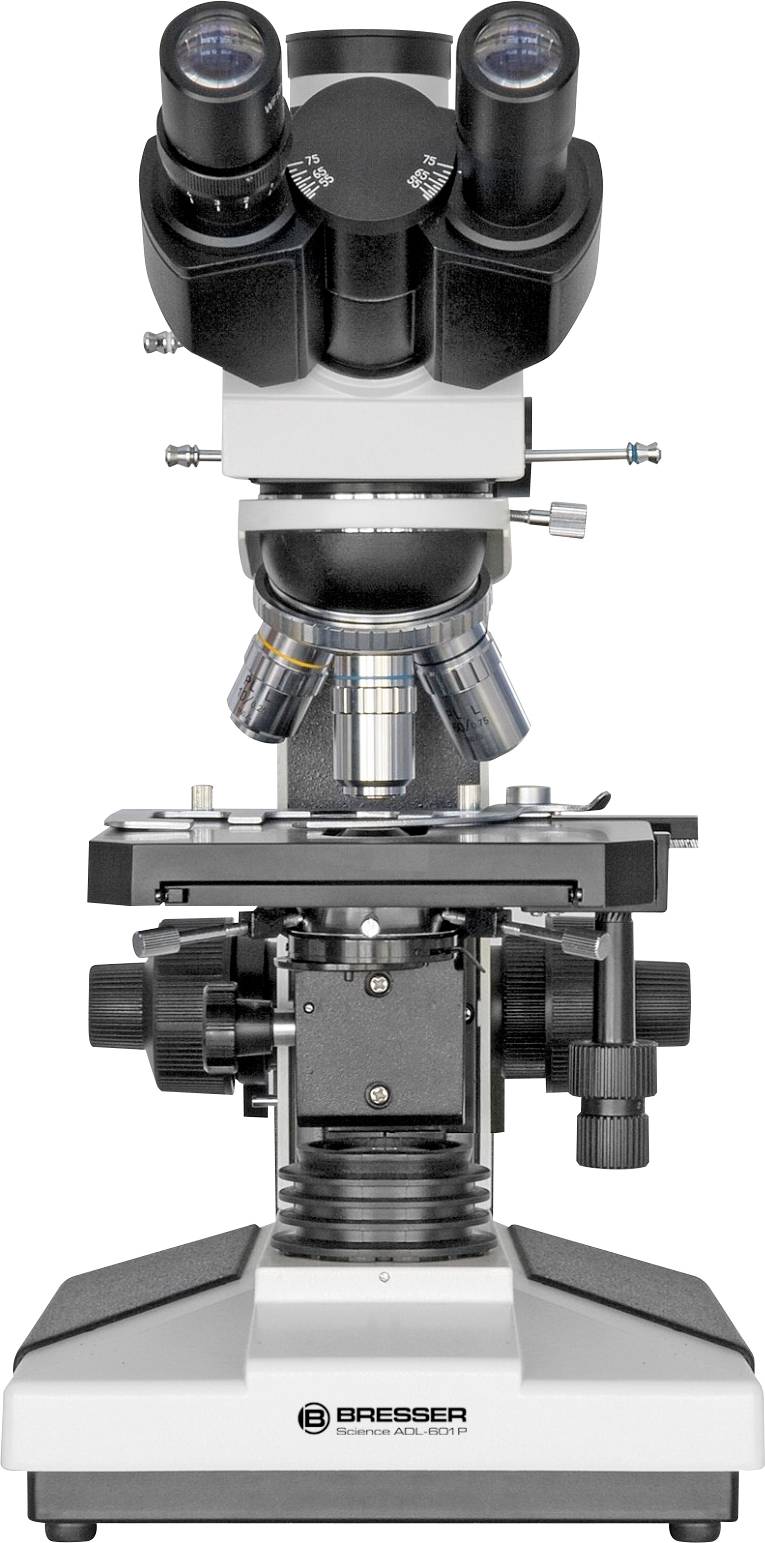

A Bresser microscope, shown frontally, displays the eyepieces, the tube, the objective turret, and the stage.

A white and black microscope with multiple objective lenses, an eyepiece on top, and a rotating knob on the side for focusing.

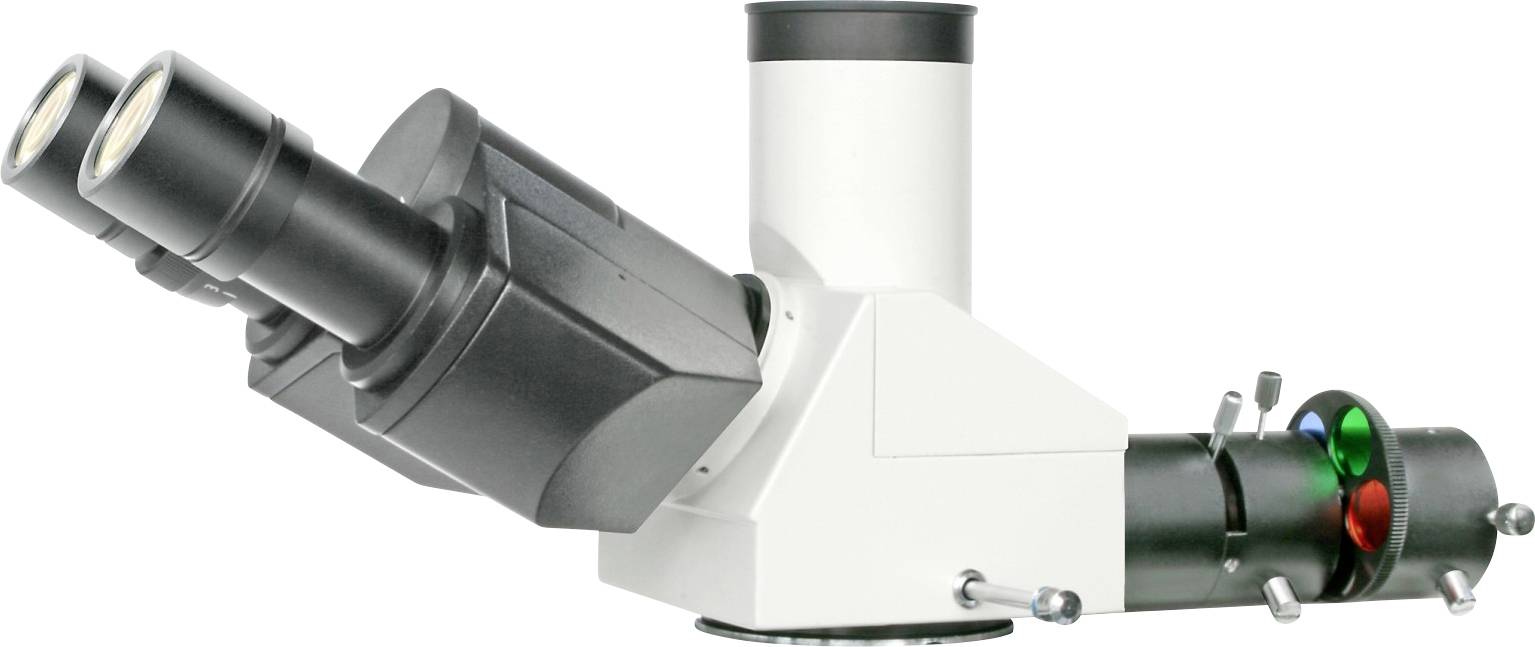

Electron microscope with two eyepieces for precise scientific analyses.

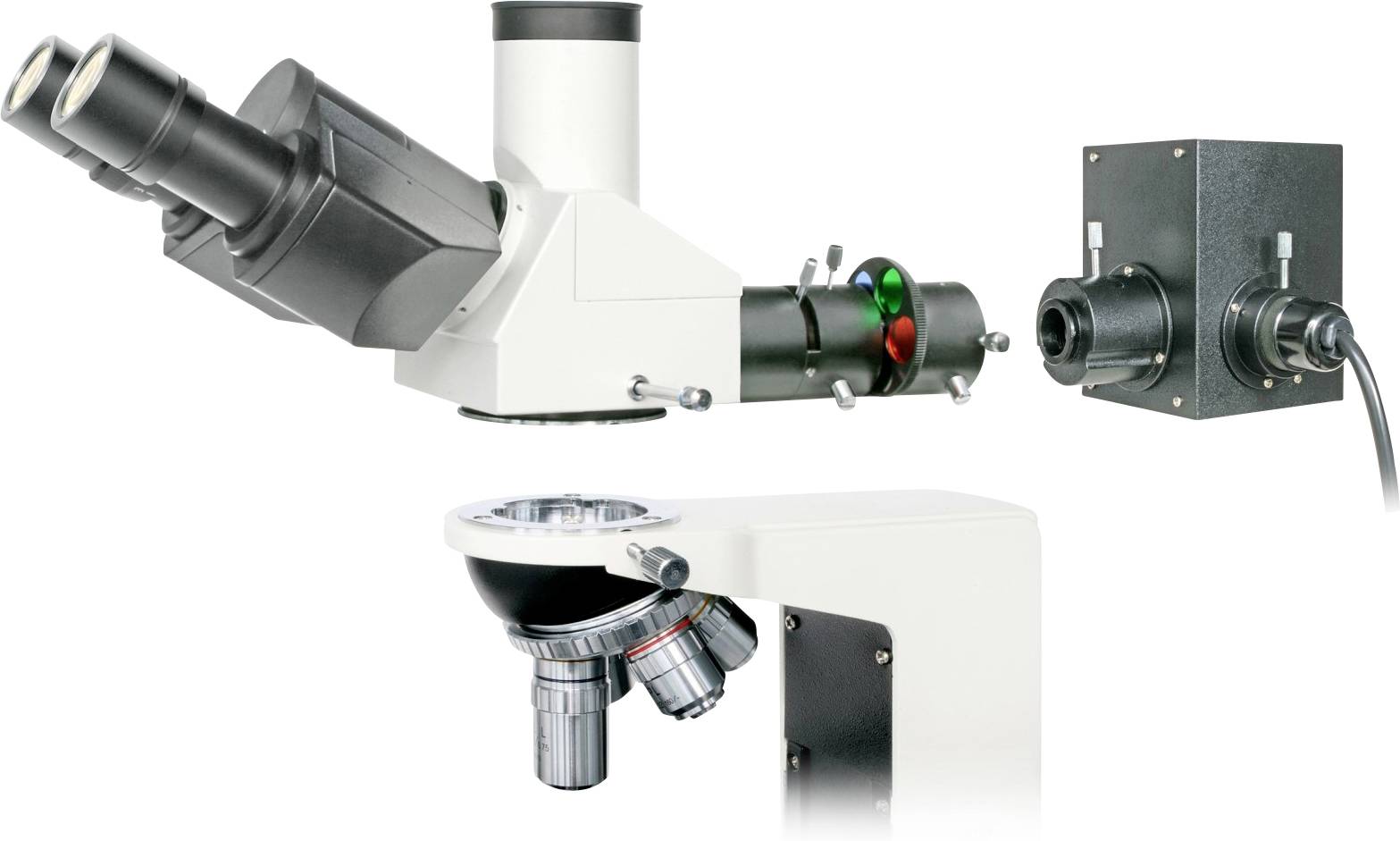

A modern microscope with multiple lenses and a digital camera system, suitable for scientific and medical applications.

1/6

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Bresser Optik 5770200 ADL 601 P Transmission microscope Trinocular 600 x Reflected light, Transmitted light

Trinocular reflected-light/ducchlight microscope
20 W halogen 230 V mains operation
Köhler's lighting with illuminated panel
1.25 Abbe condenser w.. Iris diaphragm
Adjustable eye distance
Height-adjustable object table
Polarizer/analyzer attachment
Planachromatic objectives with high hohem
Separate incident light unit with filter disc

Technical specifications

Eyepiece insert diameter (mm): 23.2

Product type: Transmission microscope

Type: Trinocular

Optical magnification (min.): 50 x

Optical magnification (max.): 600 x

Lighting type: Reflected light
Transmitted light

Bulb type: HV halogen

Bulb rating: 20 W

Operating voltage: 230 V / AC

Factory colour: White

Dim: (L x W x H) 43 x 20.5 x 42.2 cm

Length: 43 cm

Width: 20.5 cm

Height: 42.2 cm

Weight: 8.5 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2188086 Bresser Optik 5770200 ADL 601 P Transmission microscope Trinocular 600 x Reflected light, Transmitted light

Description

The BRESSER Science ADL 601 P is a professional translucent and reflected light microscope. The microscope base contains halogen transmitted light illumination (20 W) as well as the power supply and the two continuously adjustable dimmers for reflected light and transmitted light. The two trinocular microscope attachments combine both lighting functions, the possibilities of photography and binocular observation; the inclination of the eyepiece tube is 30°. With the polarization attachment, research, teaching and production can be carried out, for example, in material or apparatus studies. The halogen reflected-light illumination (20 W), which passes through the lens onto the object, can be modified by a color filter wheel and a polarizer/analyzer combination for special purposes. The BRESSER Microscope Science ADL 601P is a unique instrument in terms of her price-performance ratio, which also has the other features typical of high-quality microscopes: Four-way lens revolver, with transverse and longitudinal movable cross-table drive, coaxial focusing drives (fine: 200 µm/revolution), eye-distance and diopter adjustment as well as photo bus. Optional general accessories are the wide field eyepieces (WF10x, WF16x), the measuring eyepiece (WF10x), various planachromatic DIN lenses (e.g. Modify 4x, 5x, 10x, 20x, 40x spring-loaded, 60x spring-loaded, 100x oil spring-loaded), Abbe condenser (numeric aperture 1.25; with iris diaphragm and additional lens), darkfield condensers (dry and oil), Immersion oil, a phase contrast device, a light field diaphragm (for tubular illumination) and filters (blue, green, yellow, matt, polarization) for special applications.

The Science ADL-601P combines a biological transmitted light microscope with a reflected light microscope. This also makes it possible to examine surfaces in the highest resolution!

This text is machine translated.
