Bresser Optik 5802530 Biorit ICD-CS 5x-20x Auflicht-LED (30.5) Stereo microscope Binocular 20 x Reflected light
EAN:
Part number:
Item no:
Highlights & Details

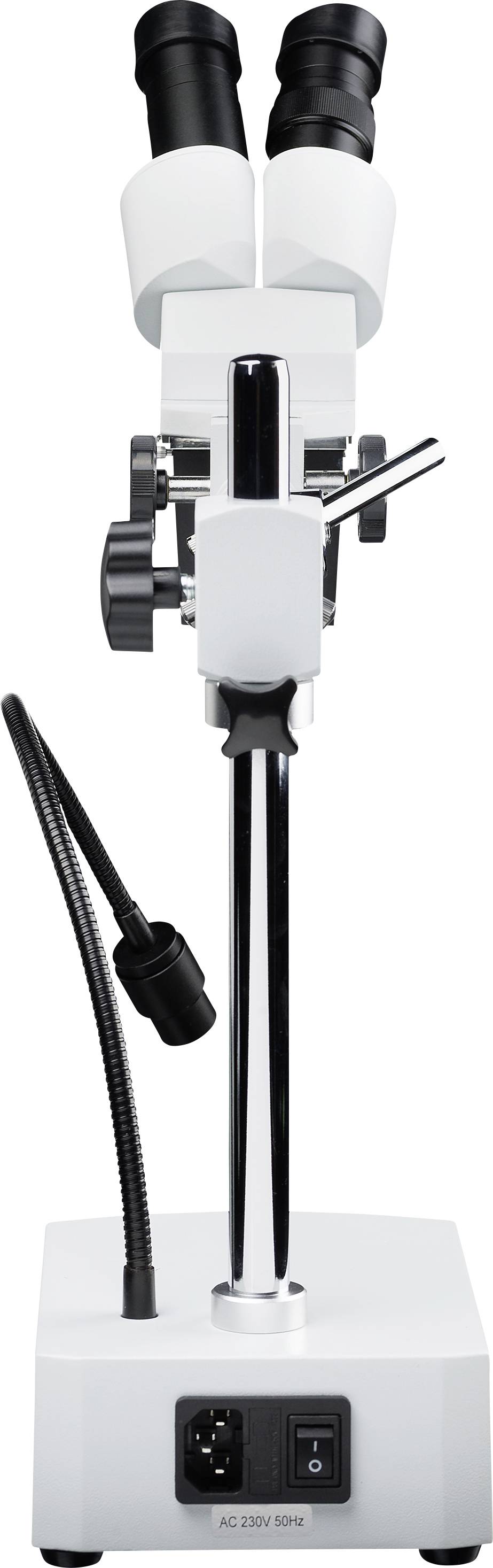

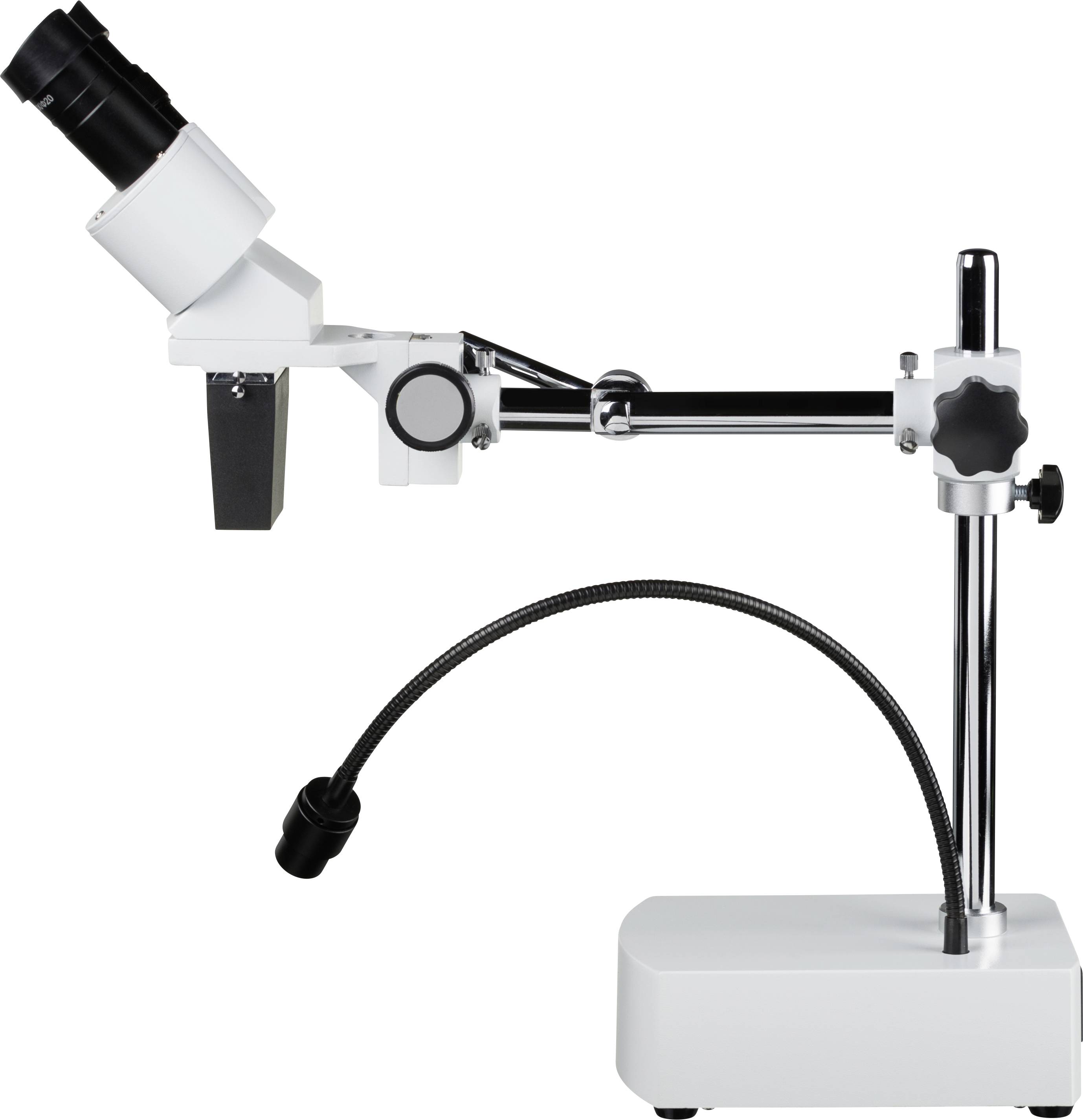

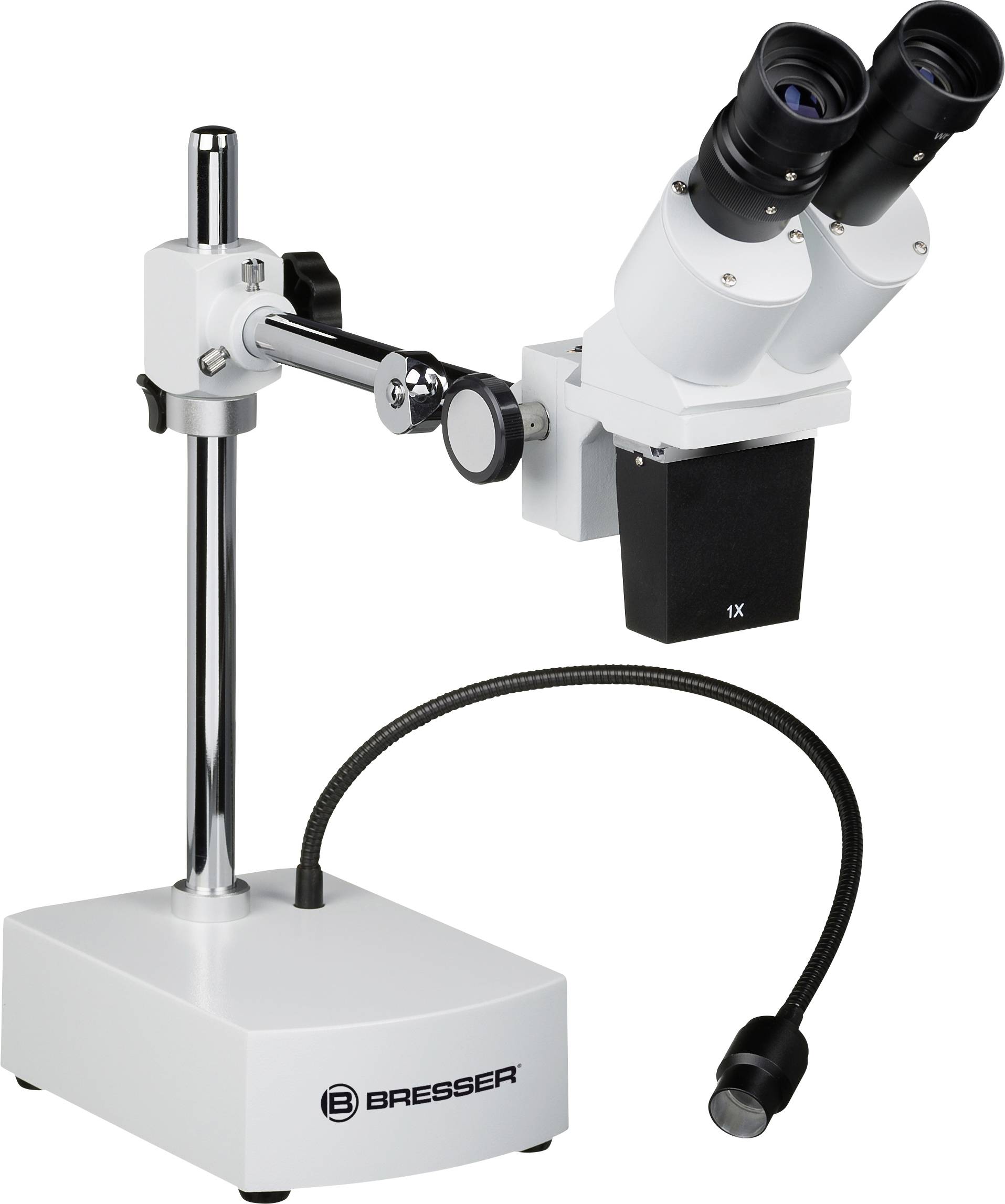

BRESSER Biorit ICD-CS 5x-20x Reflected light microscope LED (30.5)
- Micro head with hohem and swivel arm
- Microscope head can also be tilted and swiveled
- 3 pairs of lenses for changing, 0.5x / 1.0x / 2.0x
- Flexible, bright LED lighting with goose neck
- Free working surface, ideal for fine manual work
Technical specifications
- Product type
Stereo microscope
- Type
Binocular
- Optical magnification (min.)
5 x
- Optical magnification (max.)
20 x
- Clearance (max.)
23 mm
- Lighting type
Reflected light
- Bulb type
LED (monochrome)
- Factory colour
White
- Dim
(L x W x H) 45 x 13 x 49 cm
- Length
45 cm
- Width
13 cm
- Height
49 cm
- Weight
6.6 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2188033 Bresser Optik 5802530 Biorit ICD-CS 5x-20x Auflicht-LED (30.5) Stereo microscope Binocular 20 x Reflected light
Description
The BRESSER Biorit ICD CS offers an excellent basis for the most varied work, but also for quality control thanks to its large swivel range and very high working distance of 230 mm. It is used by many users e.g. for soldering, especially SMD components. The swivel arm allows the working area under the microscope head to be freely occupied, so that even larger components can be handled.
This model has two additional interchangeable lenses 0.5x and 2.0x, allowing for a wide magnification range with a large field of view.
The 0.5x lens achieves a working distance of 250 mm. For the 2.0x lens, the working distance is 80 mm.
The gooseneck LED lighting ensures optimum illumination of the object.
This text is machine translated.
This model has two additional interchangeable lenses 0.5x and 2.0x, allowing for a wide magnification range with a large field of view.
The 0.5x lens achieves a working distance of 250 mm. For the 2.0x lens, the working distance is 80 mm.
The gooseneck LED lighting ensures optimum illumination of the object.
This text is machine translated.
Scope of delivery
- Stereomicroscope
- Changeable lenses 0.5x / 1.0x / 2.0x
- Dust cover
- 1 pair of rubber eye cups
- Power cable;
