Bresser Optik 5806200 Science ETD-201 Trino Zoom Stereo microscope Trinocular 50 x Reflected light, Transmitted light
EAN:
Part number:
Item no:
Highlights & Details
Bresser Optik 5806200 Science ETD-201 Trino Zoom Stereo microscope Trinocular 50 x Reflected light, Transmitted light
- Stereo zoom lens: 0.8x-5x; magnification 8x-50x
- 6.25x zoom with hohem (105mm)
- Diopter adjustment on both sides
- Power supply via mains adapter or USB
- Scope of delivery: Microscope, accessories
Technical specifications
- Eyepiece insert diameter (mm): 30
- Interpupillary distance min. (mm) 55
- Interpupillary distance max. (mm): 75
- Product type
Stereo microscope
- Type
Trinocular
- Optical magnification (min.)
8 x
- Optical magnification (max.)
50 x
- Clearance (max.)
10.5 mm
- Lighting type
Reflected light
Transmitted light
- Bulb type
LED (monochrome)
- Operating voltage
PSU, included
- Factory colour
White
Black
- Dim
(L x W x H) 30 x 29.5 x 38 cm
- Length
30 cm
- Width
29.5 cm
- Height
38 cm
- Weight
5.2 kg
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2188073 Bresser Optik 5806200 Science ETD-201 Trino Zoom Stereo microscope Trinocular 50 x Reflected light, Transmitted light
Description

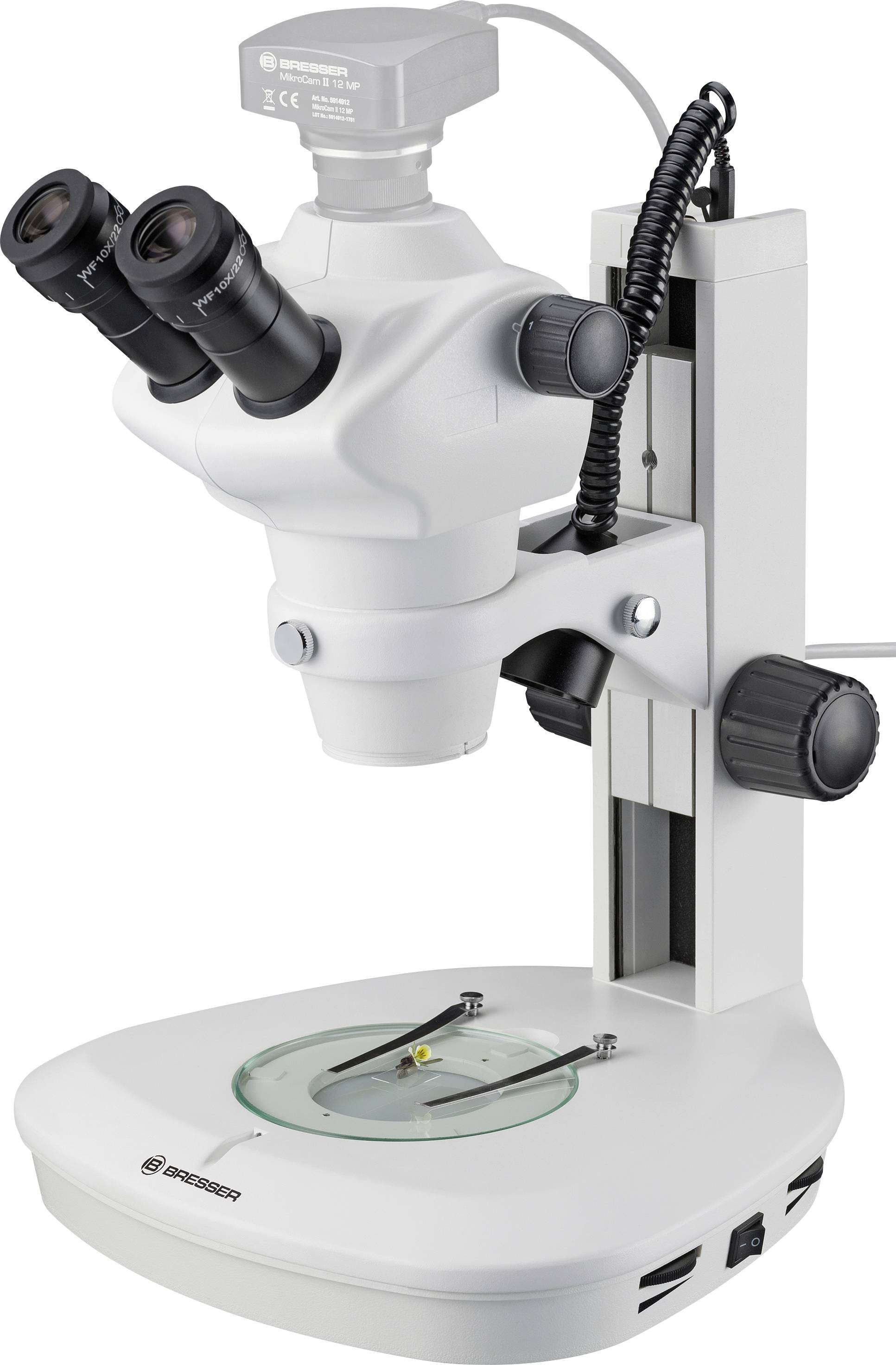

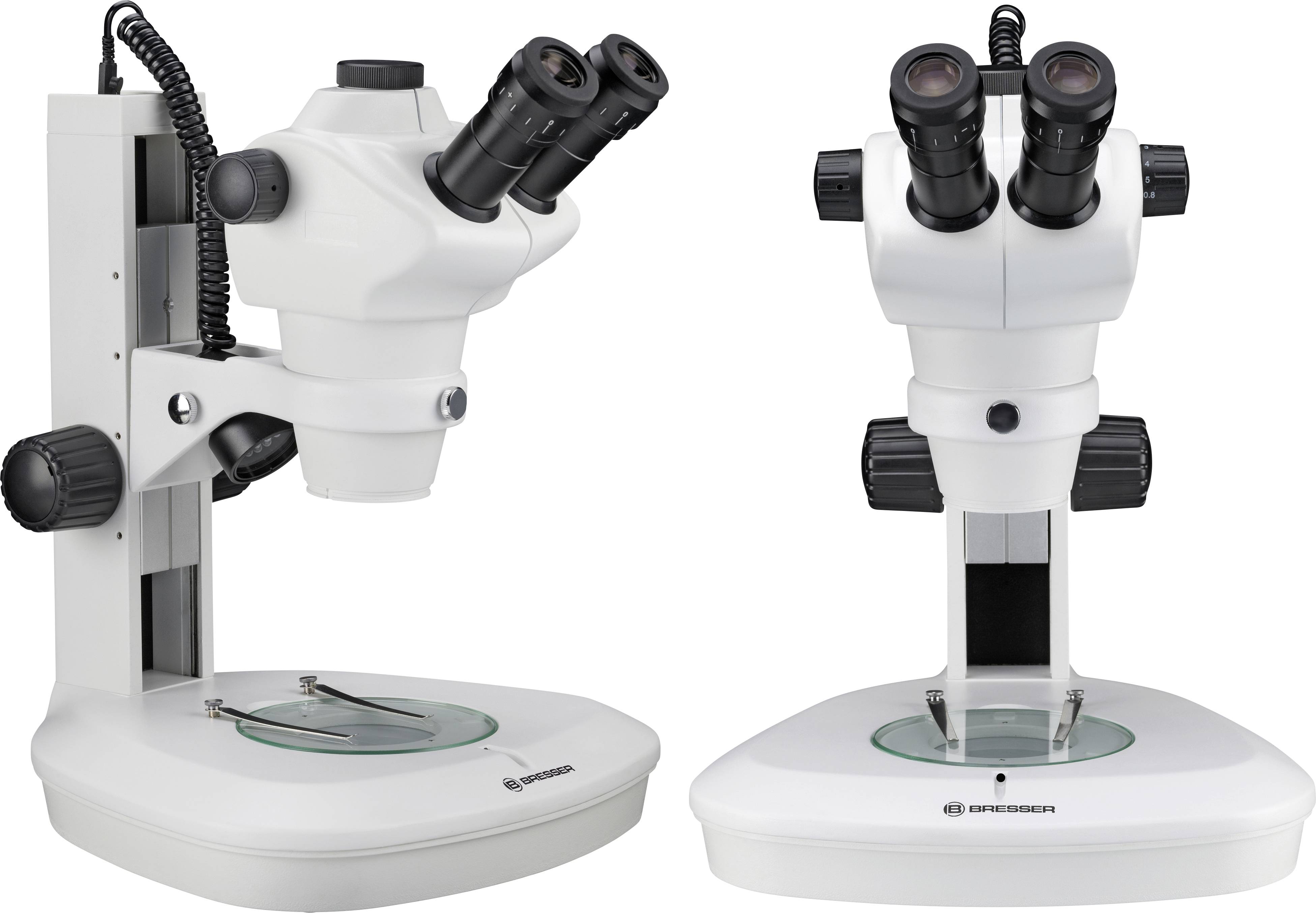

The BRESSER Science ETD-201 is an optically high quality stereo reflected light and transmitted light microscope.
It is suitable for use in medicine, agriculture and forestry, in forensic science, in scientific research institutes and schools, as well as for the assembly and control of small components in precision mechanics and electronics.
The extra wide base with object table and the extraordinarily wide height adjustment range allow the viewing of larger objects. The instrument has an LED reflected light and transmitted light illumination, which can be used individually or combined and can be adjusted continuously. The incident light angle is particularly user-friendly adjustable and lockable. With changeable wide-field eyepieces (WF10x) and a 6.25x stereo zoom lens (0.8x-5x) a continuous magnification range of 8x to 50x is realized.

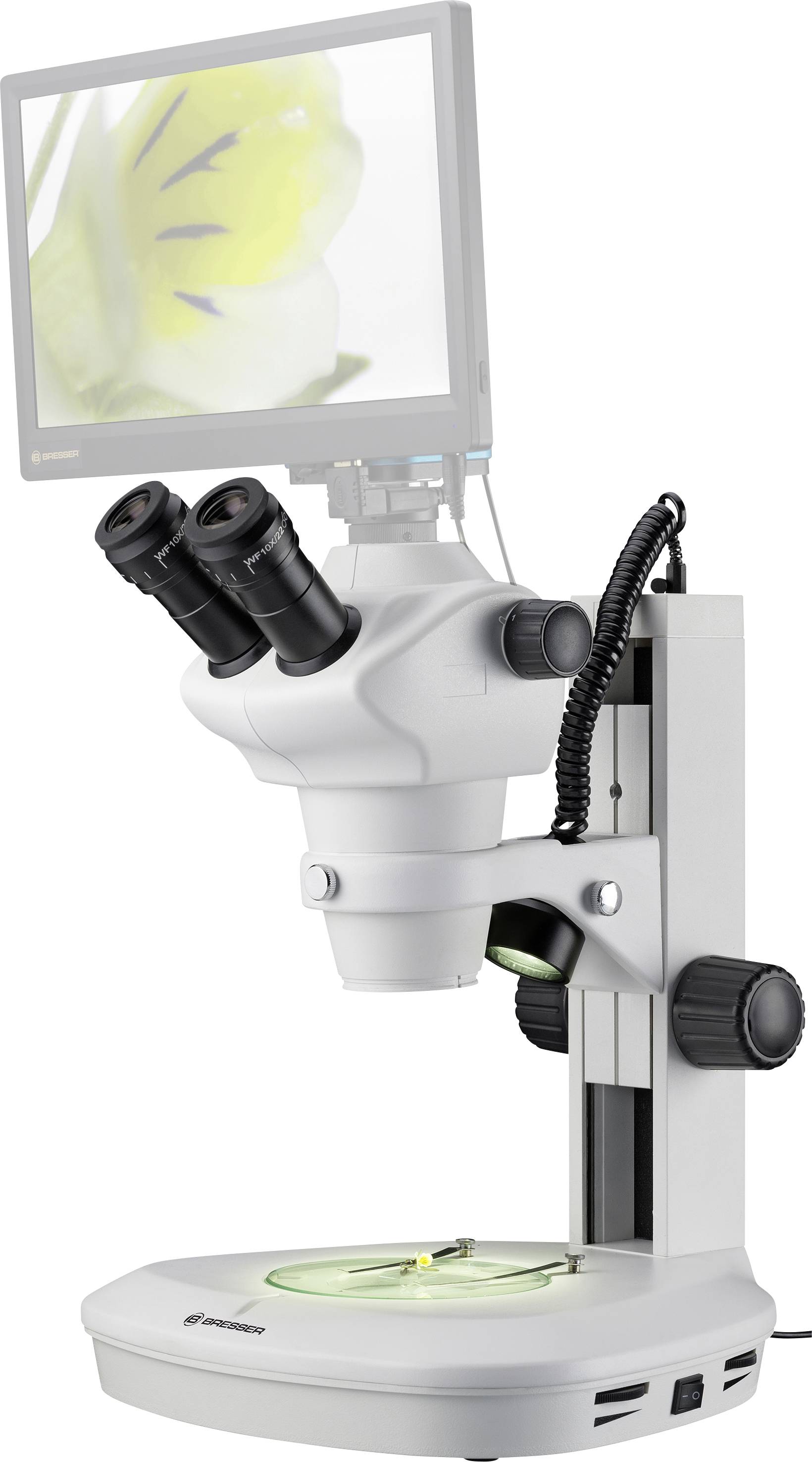

The eye distance and diopter adjustment are individually adjustable. The trinocular microscope head can be rotated by 360° and has two eyepiece sockets inclined by 45° as well as a separate camera bus for the connection of a C-Mount camera or MikroCam.
In addition to the power supply, the microscope can also be supplied with power with the enclosed USB cable.
This text is machine translated.
It is suitable for use in medicine, agriculture and forestry, in forensic science, in scientific research institutes and schools, as well as for the assembly and control of small components in precision mechanics and electronics.
The extra wide base with object table and the extraordinarily wide height adjustment range allow the viewing of larger objects. The instrument has an LED reflected light and transmitted light illumination, which can be used individually or combined and can be adjusted continuously. The incident light angle is particularly user-friendly adjustable and lockable. With changeable wide-field eyepieces (WF10x) and a 6.25x stereo zoom lens (0.8x-5x) a continuous magnification range of 8x to 50x is realized.
The eye distance and diopter adjustment are individually adjustable. The trinocular microscope head can be rotated by 360° and has two eyepiece sockets inclined by 45° as well as a separate camera bus for the connection of a C-Mount camera or MikroCam.
In addition to the power supply, the microscope can also be supplied with power with the enclosed USB cable.
This text is machine translated.
Scope of delivery
- Microscope zoom head
- Microscope stand
- WF 10x eyepieces (2 pieces)
- USB power supply cable
- 2 USB mains plugs (Euro and UK)
- Glass object plate
- Plastic object plate (black/white)
- Dust cover
- User manual
