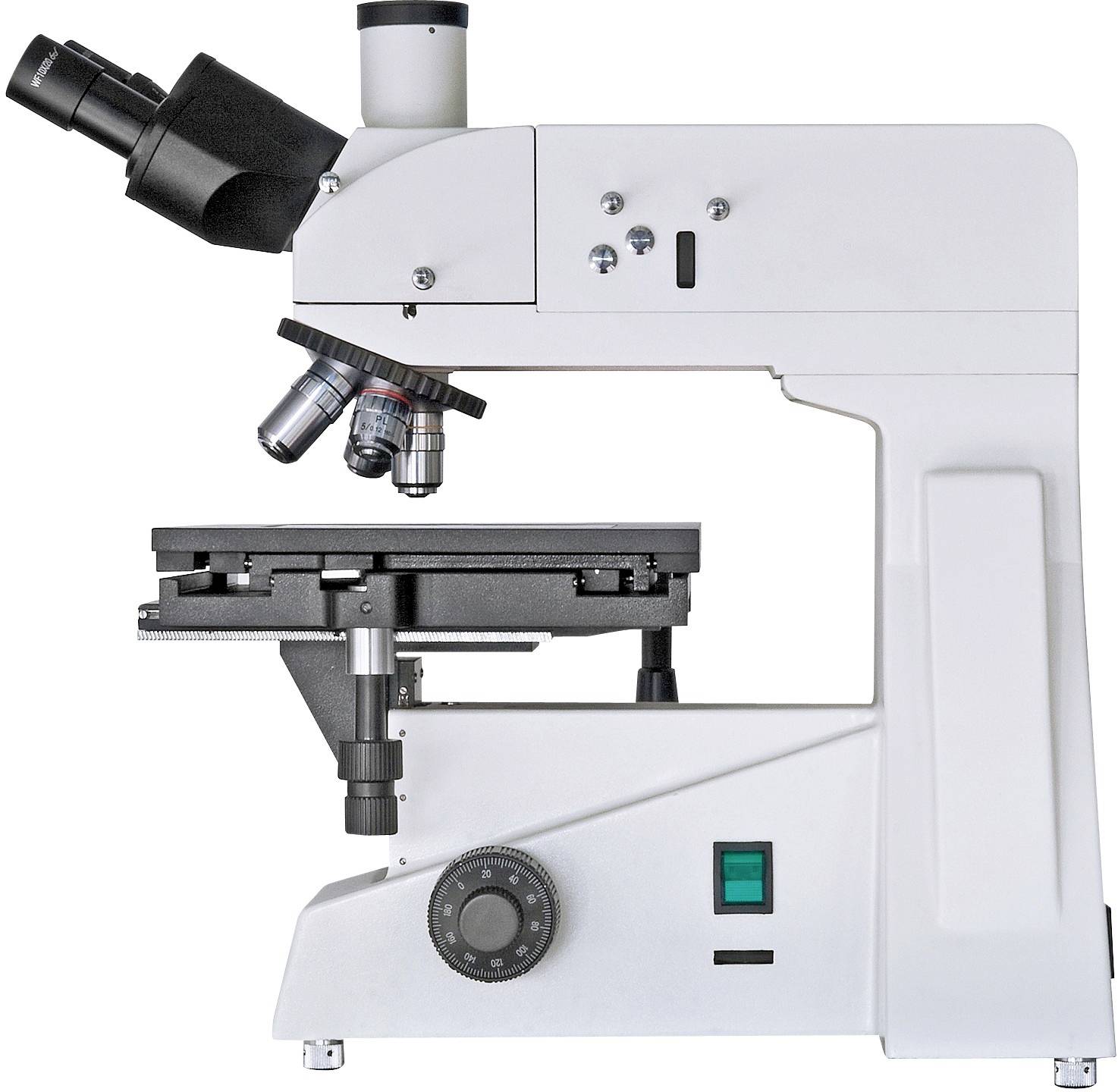

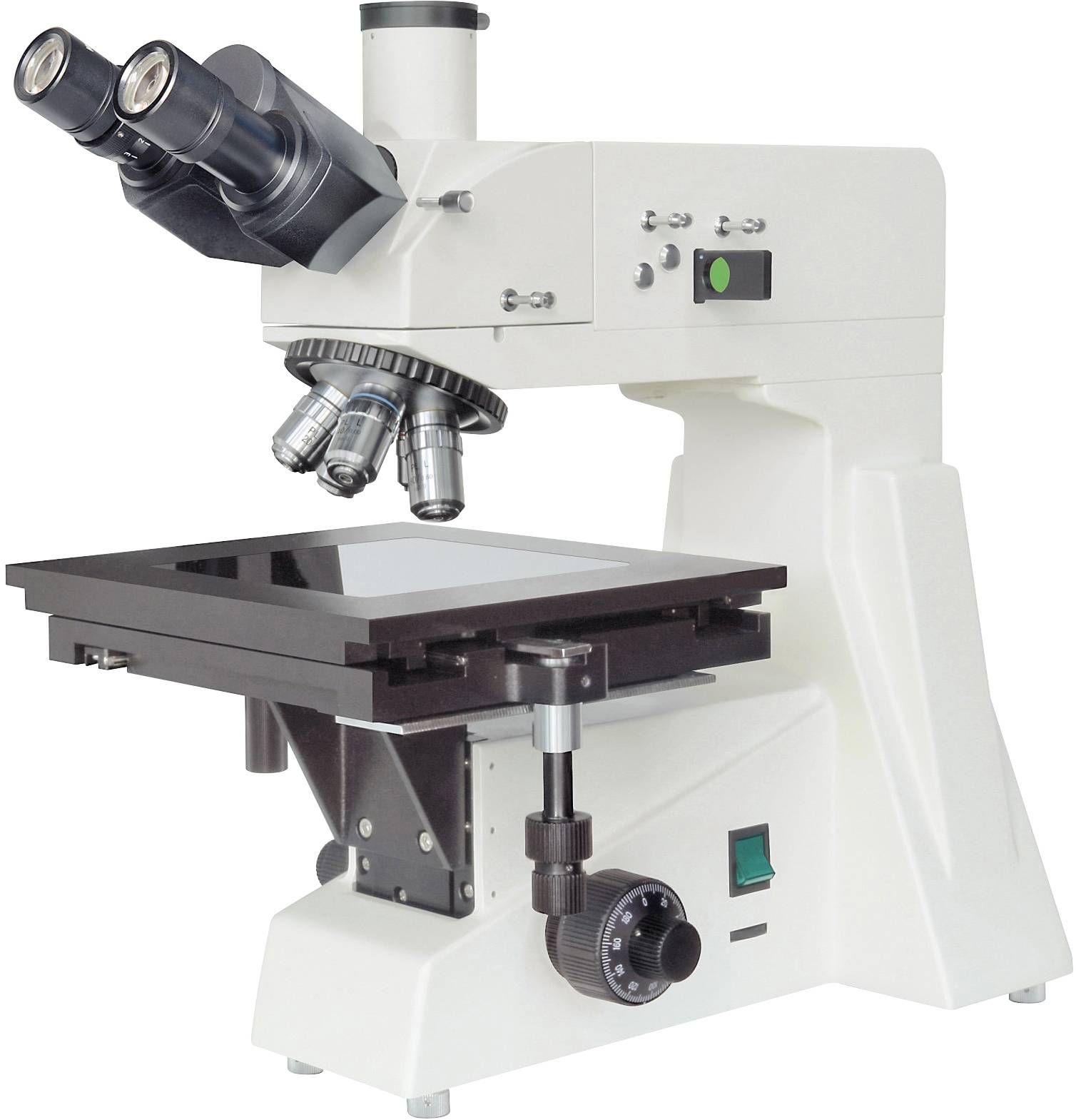

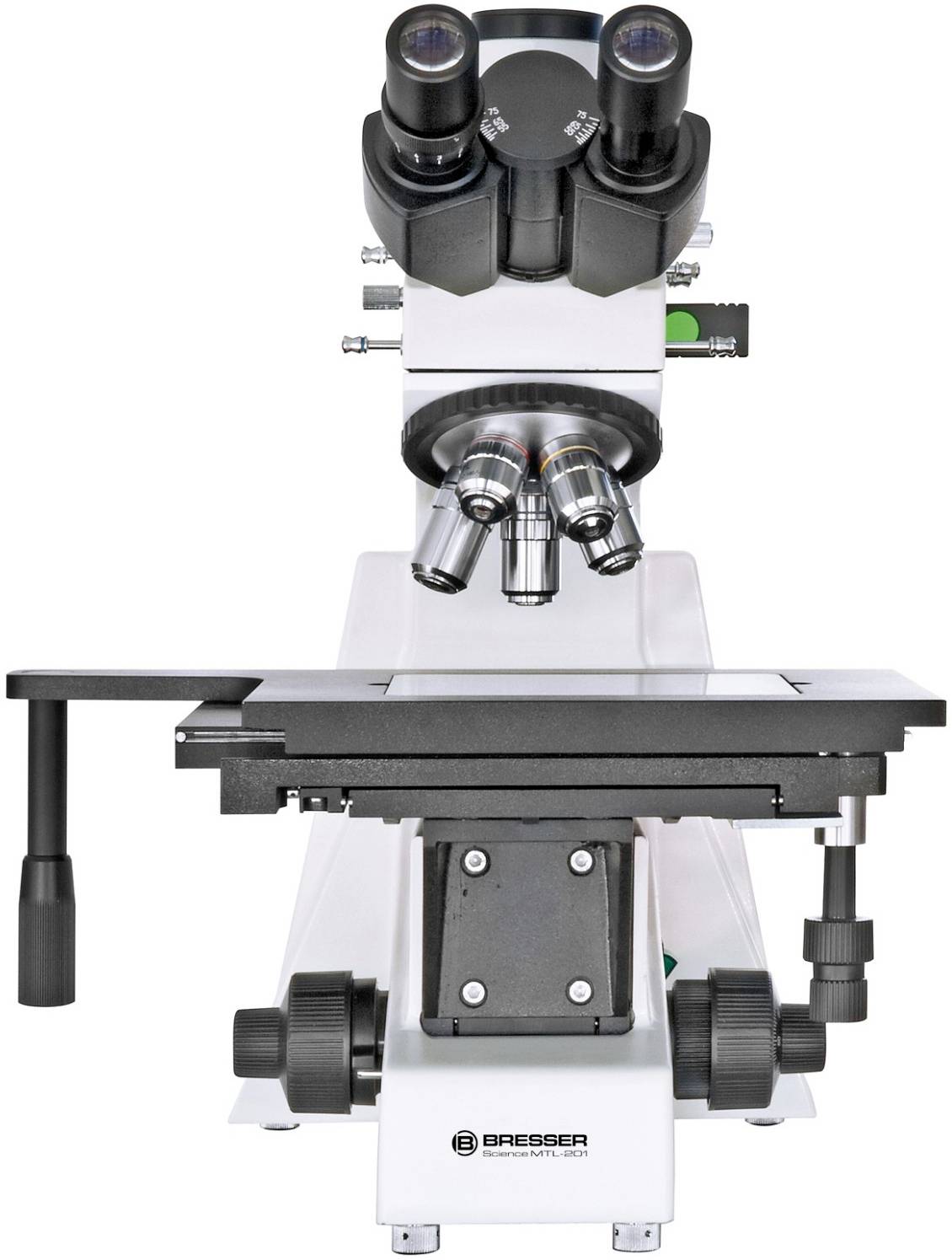

Bresser Optik 5807000 Science MTL 201 Metallurgical microscope Trinocular 800 x Reflected light

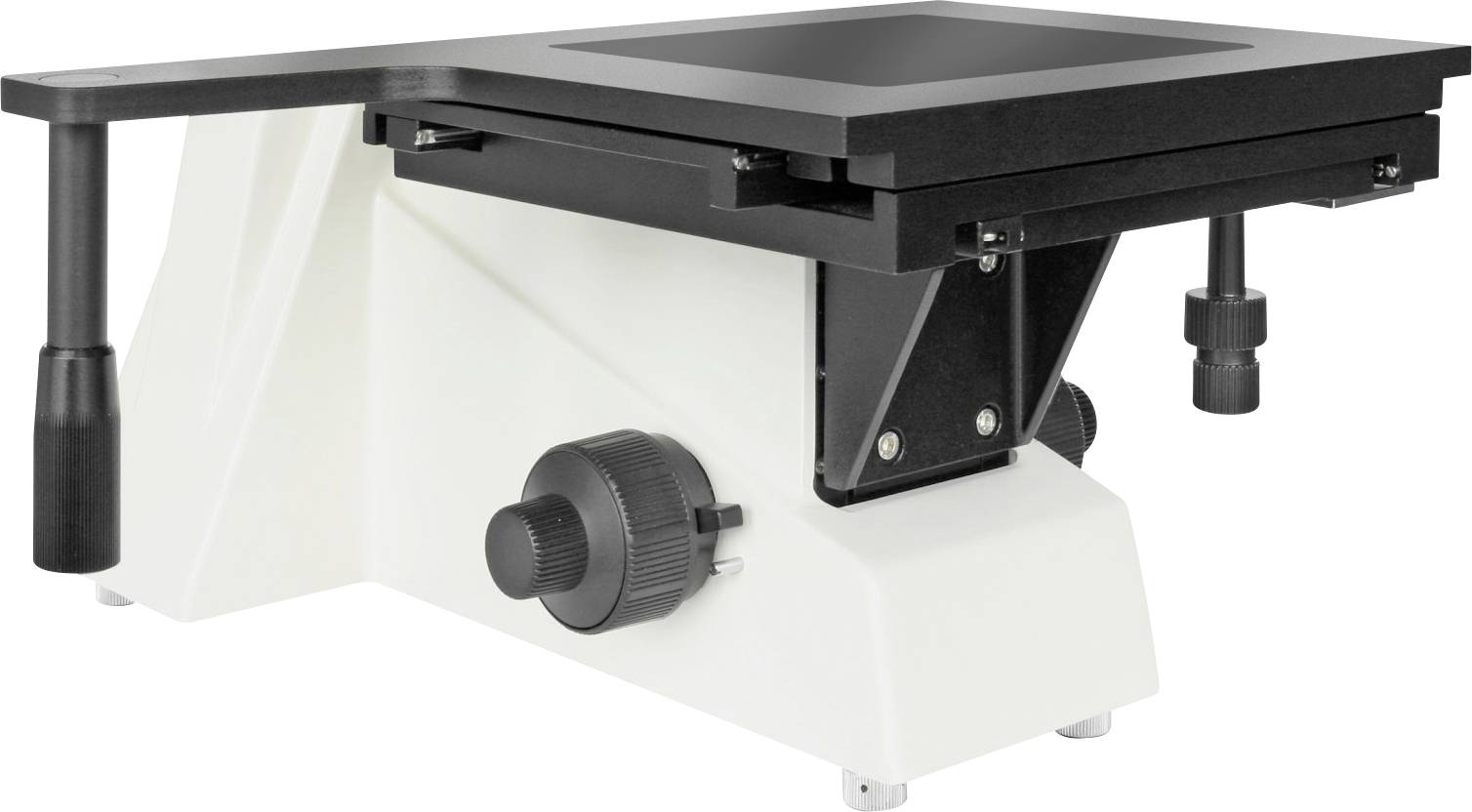

The BRESSER Science MTL 201 is a special reflected-light microscope that allows the viewing of non-translucent surfaces at higher magnifications (50x-800x). The ideal application areas for this very solid manufactured instrument are the metallography (e. g. Grinding images of metals and alloys), mineralogy, precision mechanics, electronics and semiconductor industry; it is suitable for the fields of scientific research and teaching as well as industrial production (e.g. Quality control). According to its purpose, the MTL 201 has a very large object table (250 mm x 230 mm), which can be roughly moved with a handle bar and fine with cross and longitudinal drive. Coarse and fine drive (coaxial; approx. 70 µm/revolution) are available for perfect focusing. The reflected light is illuminated by means of a halogen bulb (20 W) with adjustable light intensity through the lens. A centrally located lens hood, a selection of filters (yellow, green, blue, matt) and a polarizer/analyzer combination are available to the observer. The five-fold revolver is equipped with planachromatic DIN-lenses (5x, 10x, 20x, 40x, 80x). The trinocular microscope head carries the eyepiece tube tilted by 30° and the photo tube. The wide field eyepieces (WF10x) can be adjusted with respect to eye distance and diopter difference. The photo bus enables the digital image recording e.g. via an optionally available PC eyepiece. Other optional accessories: Eyepiece (WF16x), eyepiece (WF10x), planachromatic lens (50x).

This text is machine translated.
