Bresser Optik MikroCam PRO HDMI Autofocus 5914190 Microscope camera
EAN:
Part number:
Item no:
Highlights & Details

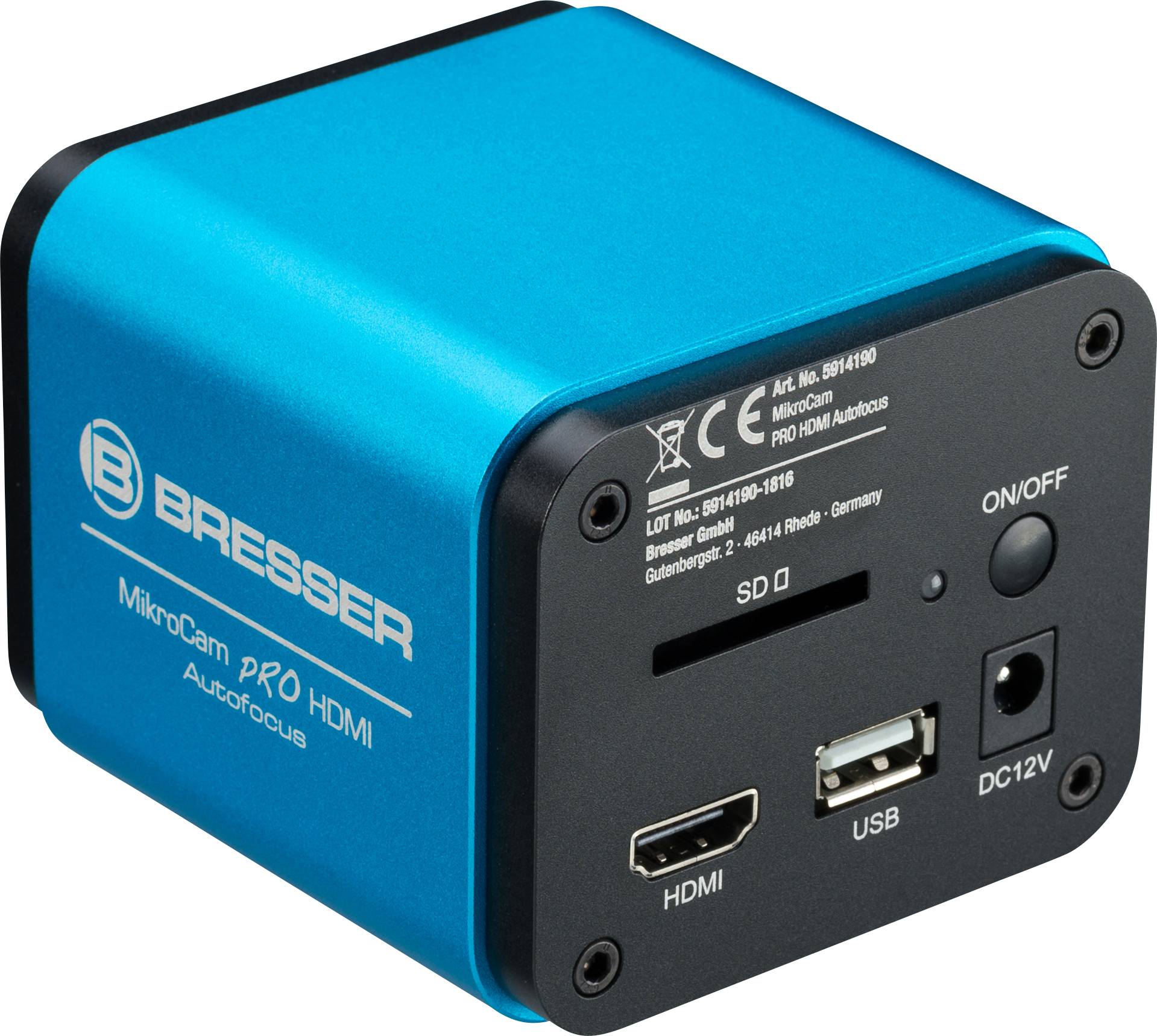

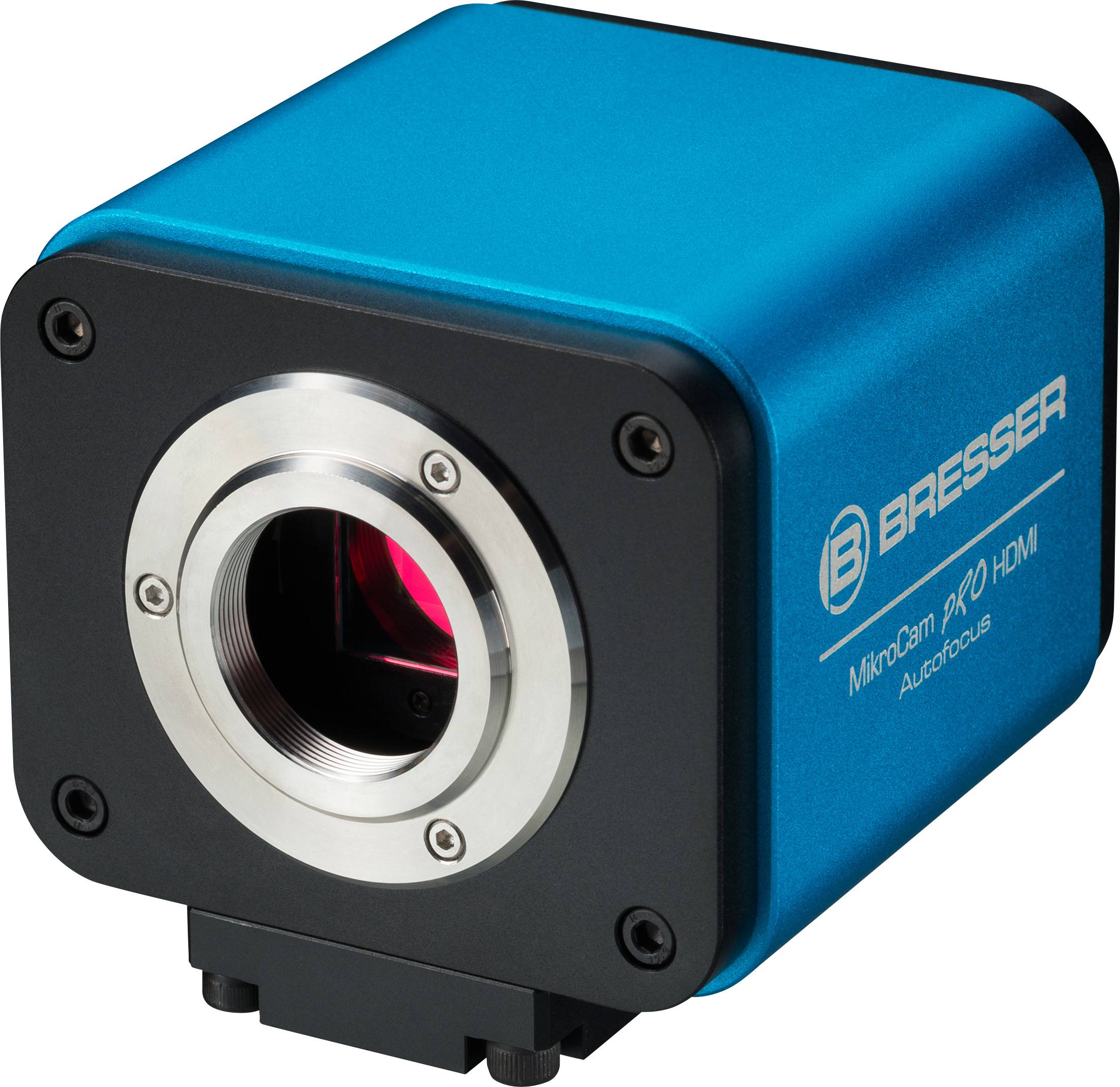

Bresser Optik MikroCam PRO HDMI Autofocus 5914190 Microscope camera
- Auto focus function for optimum sharpness setting
- 16 mm focus distance (by moving the camera sensor)
- High-sensitivity Sony® IMX185 CMOS sensor
- HDMI resolution: 1920x1080 px(Full HD) at 60fps
- Integrated measurement function* + WDR via on-screen menu
- Save images and videos directly to SD card (optional)
- 1/1.9" sensor, pixel size 3.75 x 3,75µm
- C-mount thread for easy adaptation , also suitable for C-mount lenses
Technical specifications
- Power supply: 12V power supply
- Data transfer: Wireless via WIFI
- Resolution: 1 920 x 1 080
- Sensor type: CMOS color
- Pixel size (µm): 3.75 x 3.75 µm
- Active area 7.2 x 4.05 mm
- Aluminium casing material
- Product type
Microscope camera
- Dim
(L x W x H) 78 x 70 x 92 mm
- Weight
470 g
- Width
70 mm
- Height
92 mm
- Length
78 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2188088 Bresser Optik MikroCam PRO HDMI Autofocus 5914190 Microscope camera
Description
The BRESSER MikroCam PRO HDMI autofocus impresses with its excellent picture quality and user-friendly operation at the same time. It delivers the microscope image Live and without delay as HDMI signal with full HD resolution to a monitor or television. An optional 11'' HDMI monitor (Art. No. 5914110) can be mounted directly on the camera and delivers brilliant pictures and high-contrast pictures. The very high light sensitivity ensures good image quality even in low light. This model is especially recommended for dark field or phase contrast.
The autofocus allows optimum focusing of the camera without using the focusing wheels of the microscope. This provides for a parfocal on various trinocular microscopes. The focusable range extends from the 0 position, which corresponds to the C-mount distance by a focusing of max. 5.4 mm forward, whereby the CS-mount distance is also reached and additionally up to 10.6 mm inward, in order to cover an even larger area.
In addition to autofocus, the camera can also be focused manually using the mouse.
It is also possible to adjust the focus to a specific area.
The camera functions are operated via the mouse directly on the screen menu. Measurements can be made via the on-screen menu, so that your microscope with the MikroCam Pro HDMI autofocus becomes a full-fledged digital measuring microscope.
The MikroCam PRO HDMI autofocus offers a wide range of applications, including:
Documentation
Evaluation
Analysis
Presentation
Quality check
Automation
Machine vision
This makes the MikroCam PRO Autofocus ideal as an industrial camera with a very good price-performance ratio.
In addition, the camera can also provide the microscope view in a wireless network via the WiFi module. If the camera is connected via HDMI, images and videos can be recorded directly on an SD card (not included). However, a connection to the PC via USB is no longer provided for in this model. We recommend the model MikroCam Pro HDMI 5914180.
This text is machine translated.
The autofocus allows optimum focusing of the camera without using the focusing wheels of the microscope. This provides for a parfocal on various trinocular microscopes. The focusable range extends from the 0 position, which corresponds to the C-mount distance by a focusing of max. 5.4 mm forward, whereby the CS-mount distance is also reached and additionally up to 10.6 mm inward, in order to cover an even larger area.
In addition to autofocus, the camera can also be focused manually using the mouse.
It is also possible to adjust the focus to a specific area.
The camera functions are operated via the mouse directly on the screen menu. Measurements can be made via the on-screen menu, so that your microscope with the MikroCam Pro HDMI autofocus becomes a full-fledged digital measuring microscope.
The MikroCam PRO HDMI autofocus offers a wide range of applications, including:
Documentation
Evaluation
Analysis
Presentation
Quality check
Automation
Machine vision
This makes the MikroCam PRO Autofocus ideal as an industrial camera with a very good price-performance ratio.
In addition, the camera can also provide the microscope view in a wireless network via the WiFi module. If the camera is connected via HDMI, images and videos can be recorded directly on an SD card (not included). However, a connection to the PC via USB is no longer provided for in this model. We recommend the model MikroCam Pro HDMI 5914180.
This text is machine translated.

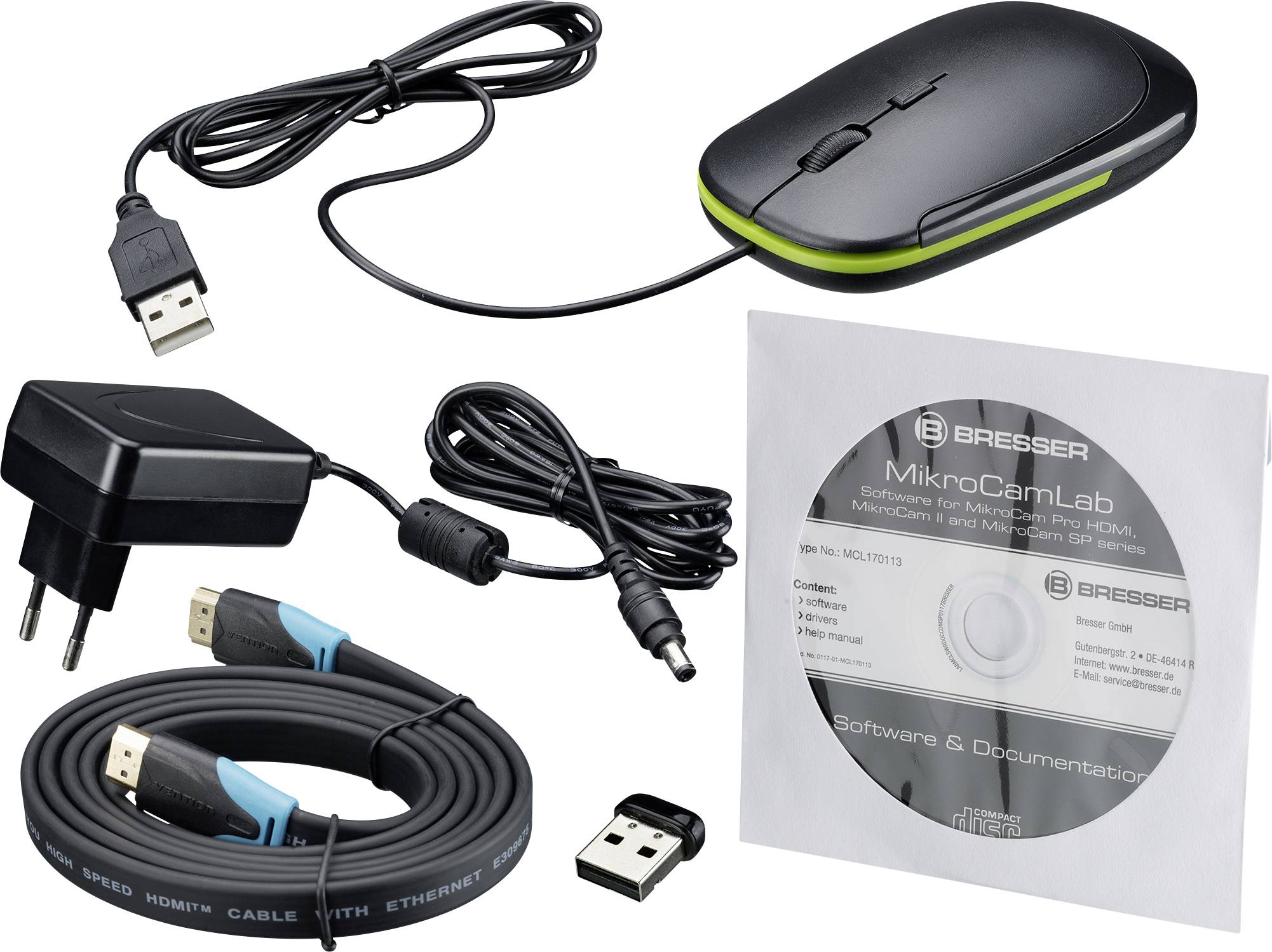

Scope of delivery
- K´Camera head
- HDMI cable
- USB mouse
- Power supply unit
- Wi-Fi antenna
- Recording and image editing software (for Windows)
