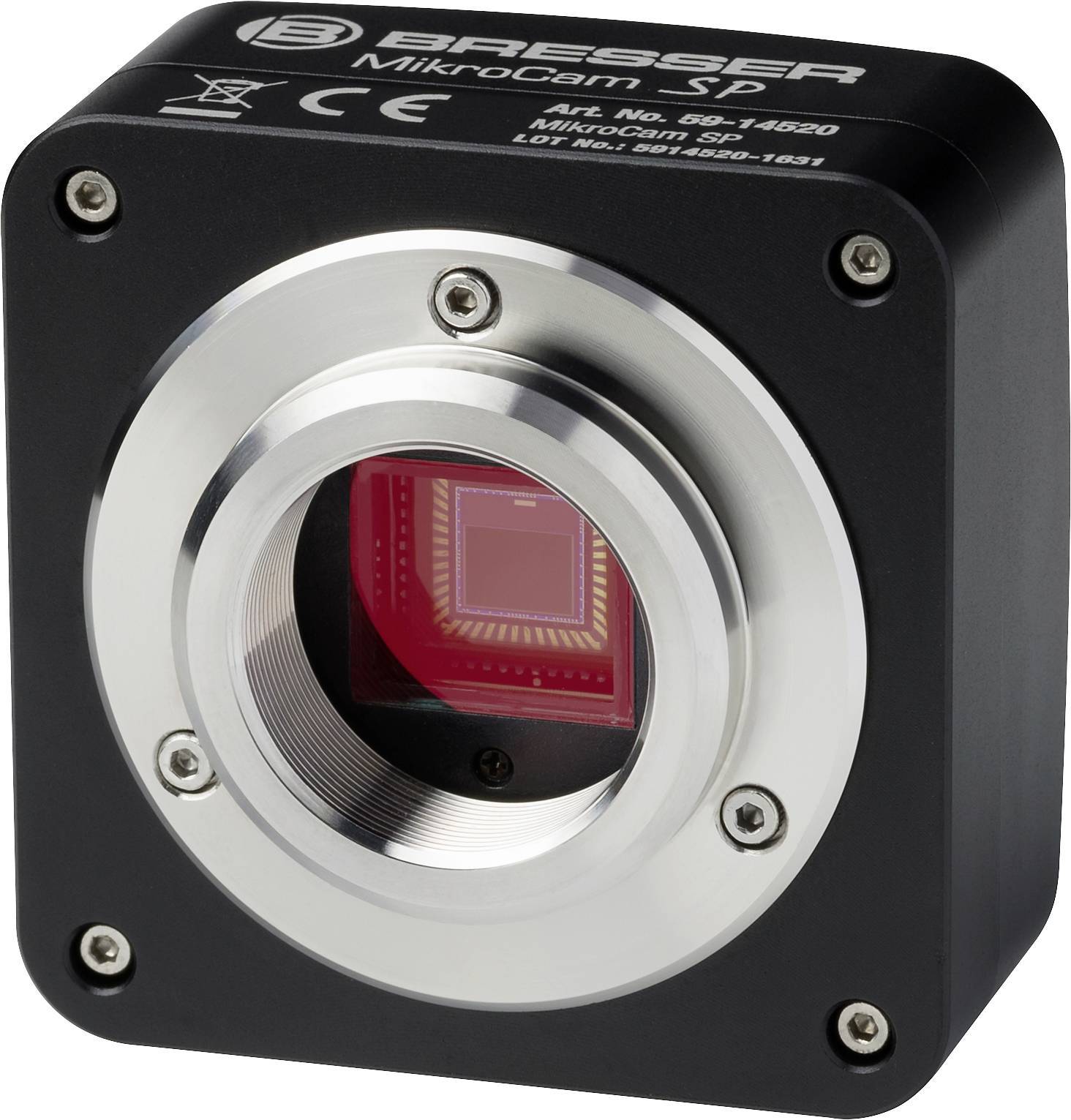

Bresser Optik MikroCam SP 5.0 5914520 Microscope camera
EAN:
Part number:
Item no:
Highlights & Details
BRESSER MikroCam SP 5.0 Microscope camera
- Resolution: 2592 x 1944 pixels
- C-mount thread for easy adaptation
- Adaper for 23.2mm, 30mm and 30.5mm eyepiece shots
- Extensive professional software (for Windows)
- Delivery includes: MikroCam, cable, adapter, software
Technical specifications
- Resolution 2592 x 1944 pixels (5.0 MP)
- Sensor type: CMOS Colour
- Pixel size (µm): 2.2 x 2.2
- Active surface 5.7 x 4.3
- Image file formats: Bmp, jpg, tif
- Video formats: AVI and MP4
- Operating system: Microsoft Windows 10 and Windows 11
- Data transfer: Via USB cable
- Product type
Microscope camera
- Dim
(L x W x H) 58 x 58 x 37 mm
- Weight
175 g
- Width
58 mm
- Height
37 mm
- Length
58 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2188024 Bresser Optik MikroCam SP 5.0 5914520 Microscope camera
Description
The BRESSER MikroCam SP cameras enable an easy recording of photos and videos with a microscope.
The modern CMOS sensors deliver brilliant colors with a very low overall noise and is thus the perfect solution for applications where natural color reproduction is important. The accompanying recording software enables numerous setting options for recording individual pictures and videos. An integrated measuring function* enables a measurement already in the live image. The included software supports the following languages: German, English, French, Polish, Russian, Turkish, Chinese. The housing has a C-mount connection thread. For use on devices with 23.2mm recording, an optional, variable reduction optics 0.5x (Art. No. 5914005). For special applications, the camera can also be mounted on the integrated 1/4" tripod socket.
*only in conjunction with an optional calibration preparation (Article No. 5916710 or 5916720)
This text is machine translated.
The modern CMOS sensors deliver brilliant colors with a very low overall noise and is thus the perfect solution for applications where natural color reproduction is important. The accompanying recording software enables numerous setting options for recording individual pictures and videos. An integrated measuring function* enables a measurement already in the live image. The included software supports the following languages: German, English, French, Polish, Russian, Turkish, Chinese. The housing has a C-mount connection thread. For use on devices with 23.2mm recording, an optional, variable reduction optics 0.5x (Art. No. 5914005). For special applications, the camera can also be mounted on the integrated 1/4" tripod socket.
*only in conjunction with an optional calibration preparation (Article No. 5916710 or 5916720)
This text is machine translated.
Features
- 2592 x 1944 pixel sensor 5.70 mm x 4.28 mm (1/2.5"")
- High-quality processed metal housing
- Many software functions, such as measurement, focus stacking (for overlapping multiple images, for increased depth of field), mosaic (for displaying larger image fields)
- Image and video recording, including time lapse function
- Good compatibility with different microscopes.
Scope of delivery
- K´Camera head
- USB 2.0 cable (approx. 1.8 m)
- Plug adapter for 23.2 mm, 30 mm and 30.5 mm eyepiece hoods
- Recording and image editing software (for Windows)
System requirements
- Windows 10 or 11
- Intel i3, i5, i7 or i9 processor from 6. Generation or
- AMD Ryzen processor
- Optical drive or Internet connection for software download
- USB 2.0
