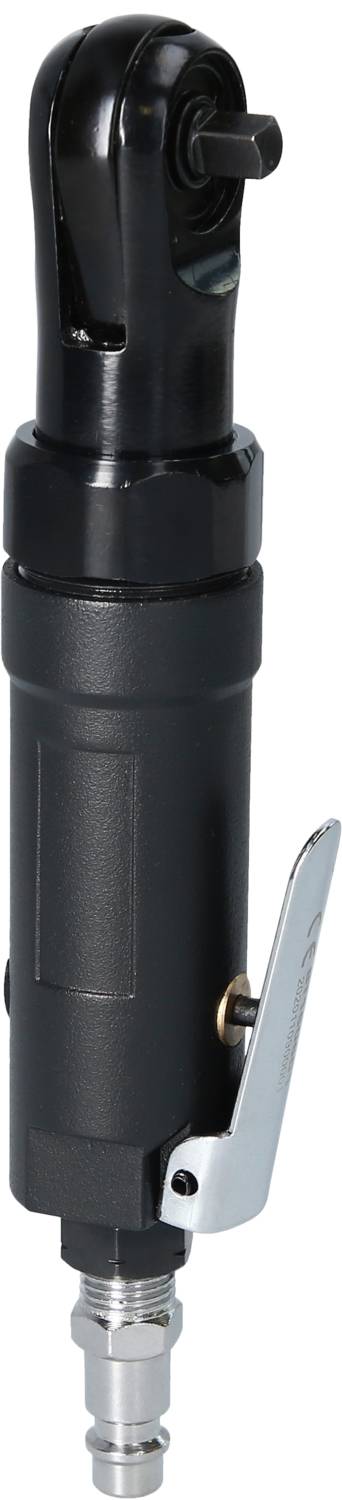

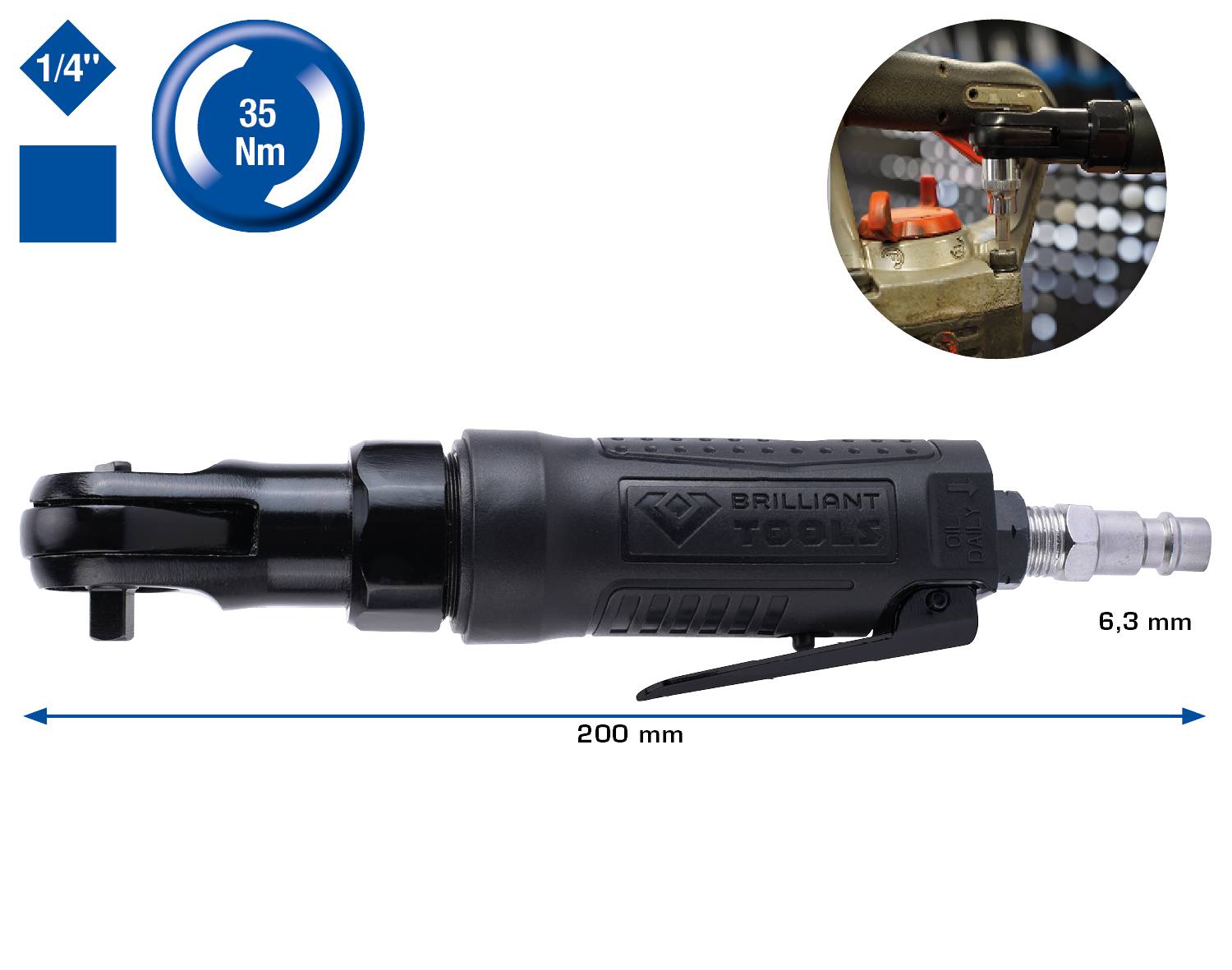

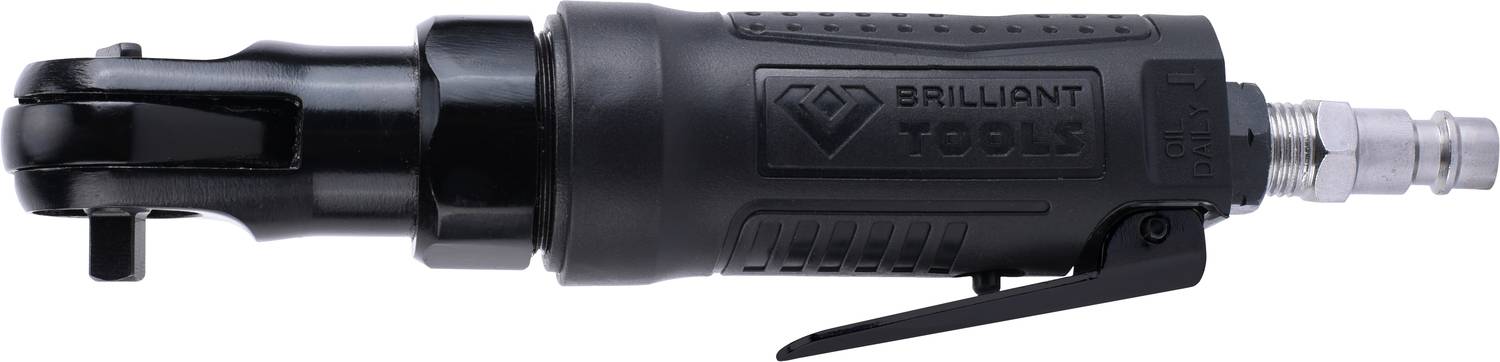

Brilliant Tools BT160601 Pneumatic ratchet 1/4" (6.3 mm) male square 6.3 bar
EAN:
Part number:
Item no:
Number
Total (€ 42.01 / piece)
€ 42.01
plus VAT.
Only 3 Piece(s) available
Technical specifications
- Product type
Pneumatic ratchet
- Tool holder
1/4" (6.3 mm) male square
- Air consumption
77 l/min
- Max. operating pressure
6.3 bar
- Rotational speed (max.)
240 U/min
- Weight
500 g
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2745612 Brilliant Tools BT160601 Pneumatic ratchet 1/4" (6.3 mm) male square 6.3 bar
Conformity certificate
Conformity certificate 2745612 Brilliant Tools BT160601 Pneumatic ratchet 1/4" (6.3 mm) male square 6.3 bar
Description

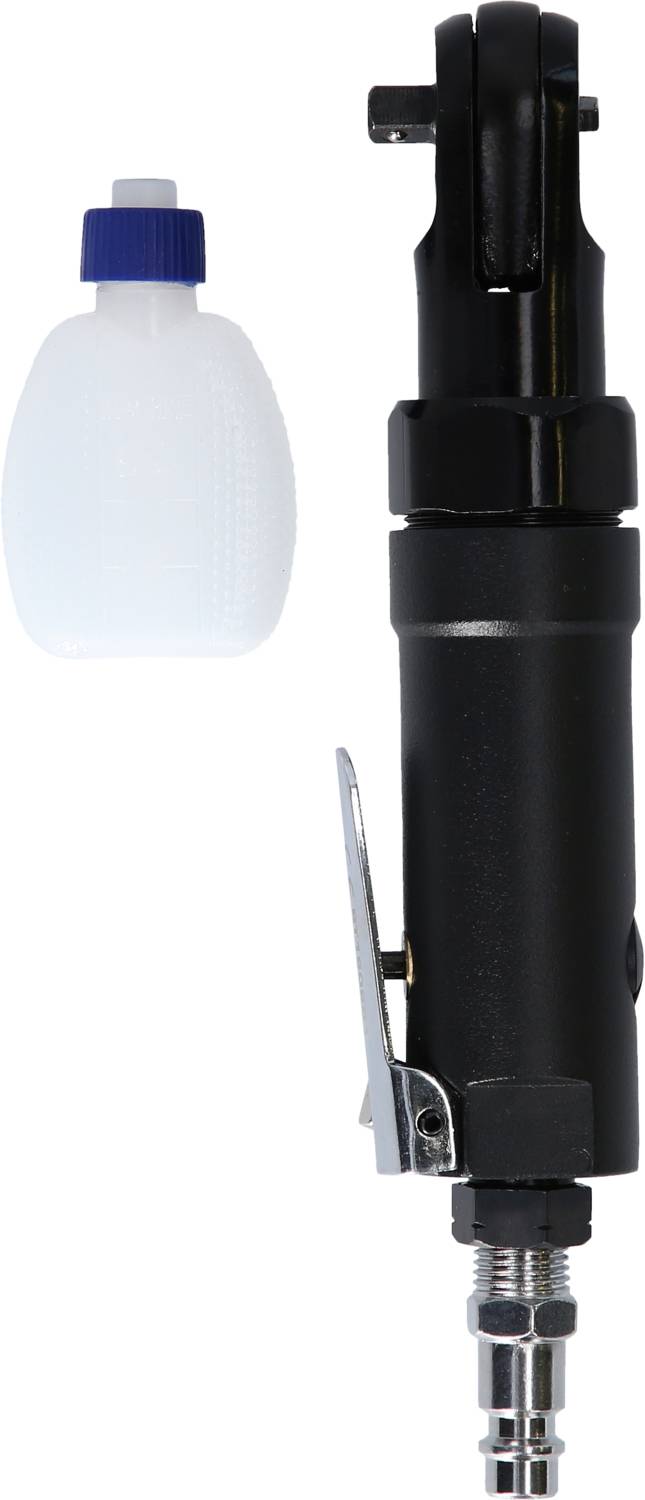

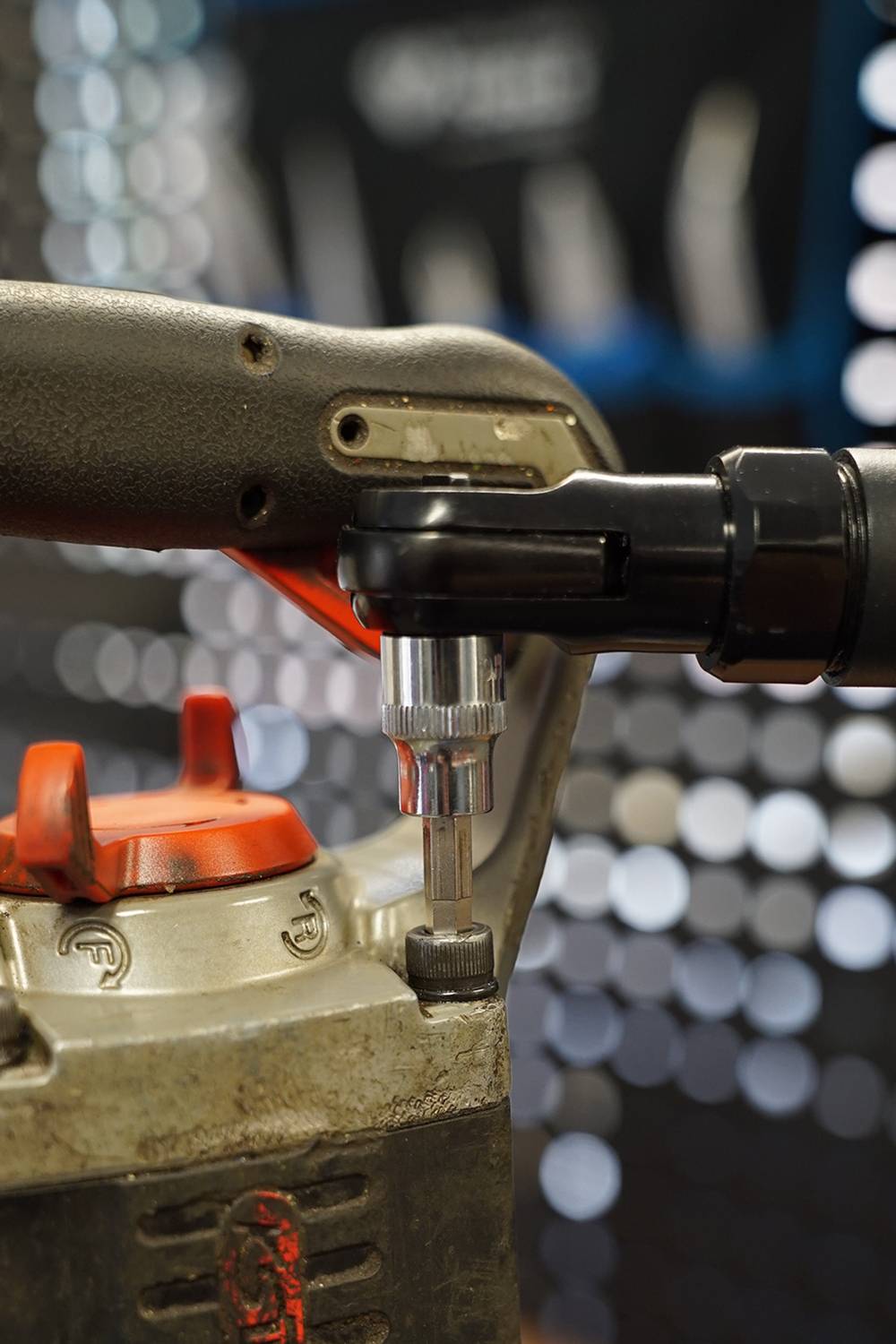

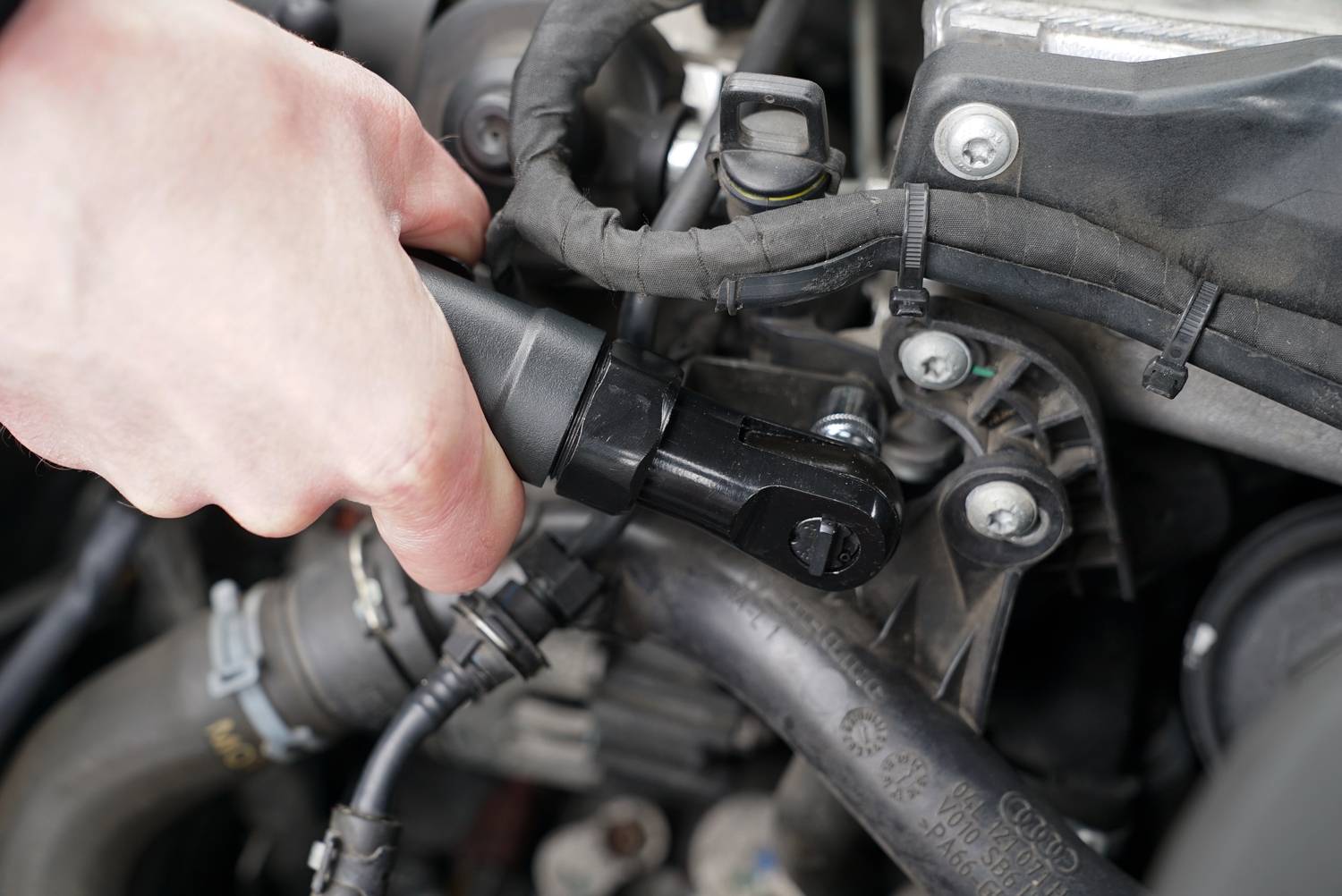

For screwing in confined spacesSquare drive according to DIN 3120 / ISO 1174 with ball lockingExhaust air flow through the handle backwardsWith ratchet head reversing lever (left / right)The Brilliant TOOLS 1/4" BT160601 compressed air ratchet is a practical tool for tightening or loosening screws in confined spaces. With its comfortable hand grip it enables a fatigue-free working. The ratchet is made of robust aluminum, steel and plastic. For the air inlet, the compressed air ratchet is provided with a connection size of 12.91 mm (1/4"). The connecting nipple as well as a small bottle of compressed air oil are included in the delivery.Technical dataSquare drive 1/4" (6.3 mm)Max. Breakaway torque 35 NmIdle rotational speed 240 rpmVibration 3.47 m/s2Sound power level 98.5 dbASound pressure level 87.5 dBAAir conosumption 77 l/minOperating pressure: Max. 6.3 barMin Hose diameter 10 mmConnection thread 1/4" PT
