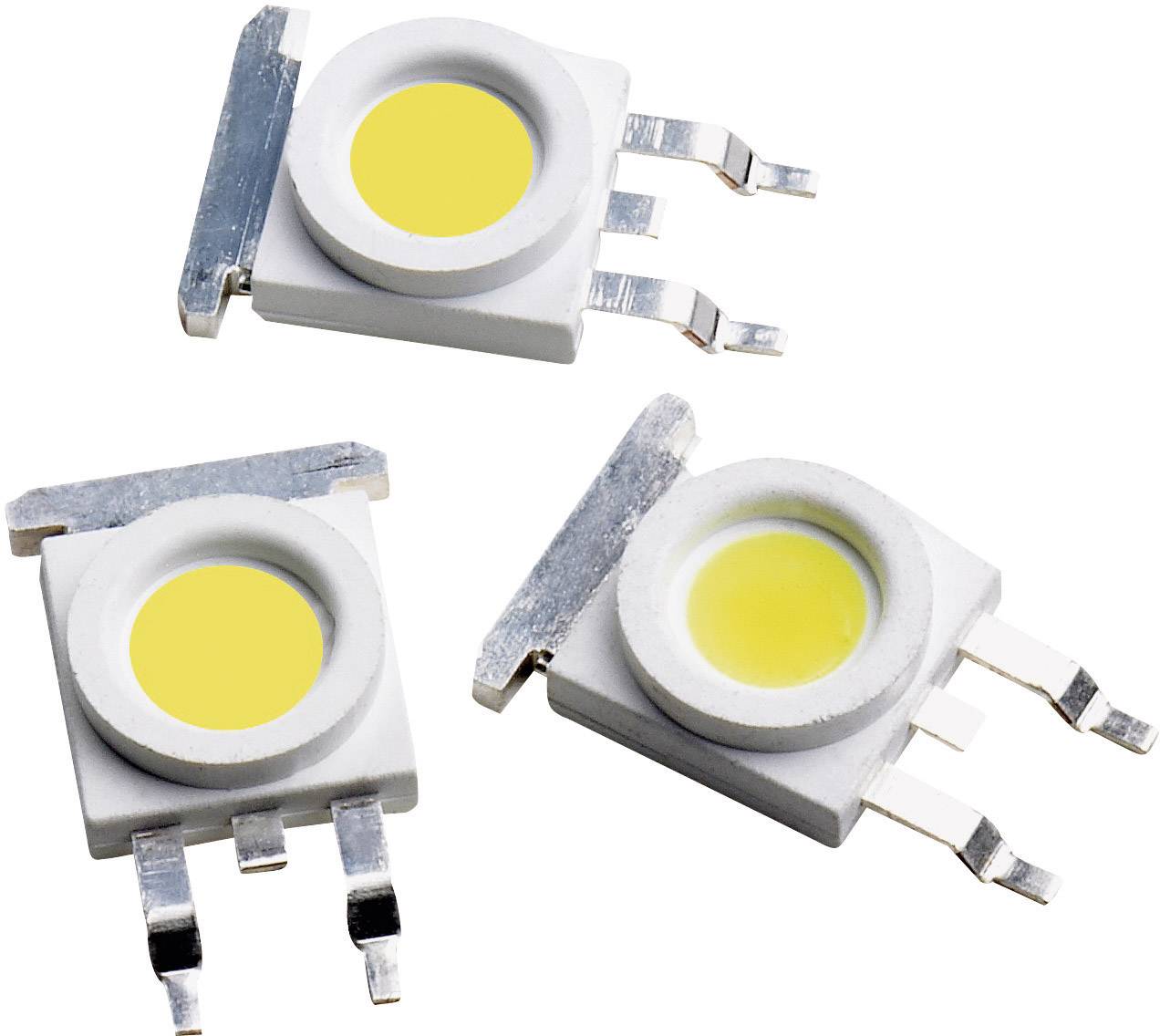

Broadcom HighPower LED Cold white 1 W 105 lm 110 ° 3.2 V 350 mA ASMT-MW01-NFH00
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.03
5
7% = € 0.27
€ 3.76
10
9% = € 0.37
€ 3.66
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 4.03 / piece)
€ 4.03
plus VAT.
1 watt Moonstone™ SMD LED, white
Highlights & Details
Technical specifications
- Type
ASMT-MW01-NFH00
- Factory colour
Cold white
- Forward voltage U(F)
3.2 V
- Forward current I(F)
350 mA
- Type
SMD
- Type
Non-standard
- Luminous flux (Φ)
105 lm
- Colour coordinates
X = 0.33/y = 0.33
- Colour temperature (max.)
10000 K
- Min. colour temperature
4000 K
1 W
- Radiation angle
110°
- Type (LEDs)
Water clear
- Max. temperature
110 °C
- Min. temperature
-40 °C
- Dim
(L x W x H) 15.85 x 10 x 3.3 mm
- Height
3.3 mm
- Length
15.85 mm
- Width
10 mm
n.rel.
- Type
Clear
1 W
- Temperature range
-40 - +85 °C
- Product type
HighPower LED
Documents & Downloads
Datasheet
Datasheet 177034 Broadcom HighPower LED Cold white 1 W 105 lm 110 ° 3.2 V 350 mA ASMT-MW01-NFH00
User & Safety Instructions
User & Safety Instructions 177034 Broadcom HighPower LED Cold white 1 W 105 lm 110 ° 3.2 V 350 mA ASMT-MW01-NFH00
Description
Powerful SMD LED for high currents. It is energy efficient and can handle high temperatures. The housing ensures excellent heat dissipation from the LED housing to the board. The flat housing design makes it ideal for
a variety of applications, which require a low format.
a variety of applications, which require a low format.
Hints
The housing is suitable for Reflow-soldering. Always follow the manufacturer's heat management instructions. Incorrect heat management will damage or destroy the high-quality LED! Do not look directly into the beam! Risk of retinal damage!
