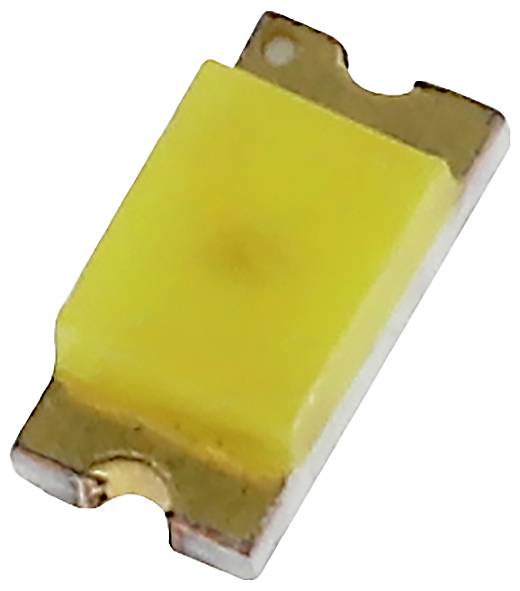

A yellow-glowing SMD LED chip on a white background, used in electronic circuits.

Image similar

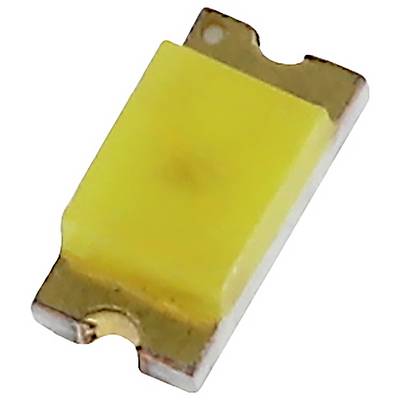

A yellow-glowing SMD LED chip on a white background, used in electronic circuits.

Image similar

Product type

SMD LED

Forward voltage U(F)

2.6 V

Forward current I(F)

20 mA

Type

SMD

Type

0603

Datasheet (PDF)

English

Broadcom

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Report legal concerns

Highlights & Details

Broadcom SMD-LED diffuse 0603

Our service for you

Technical specifications

Diffuse
Lens shape: Rectangular

Product type: SMD LED

Factory colour: Red

Forward voltage U(F): 2.6 V

Forward current I(F): 20 mA

Type: SMD

Type: 0603

Light intensity I(V): 7.2 mcd

Wavelength: 639 nm

Radiation angle: 170°

Min. temperature: -40 °C

Max. temperature: 85 °C

RoHS-compliant: Yes

Content: 1 pc(s)

Documents & Downloads

Datasheet

English

Datasheet 3359565 Broadcom HSMH-H190 SMD LED 0603 Red 7.2 mcd 170 ° 20 mA 2.6 V

User & Safety Instructions

User & Safety Instructions 3359565 Broadcom HSMH-H190 SMD LED 0603 Red 7.2 mcd 170 ° 20 mA 2.6 V

Description

Hints

All standard LED chips require a current-limiting resistor/constant current power source.
