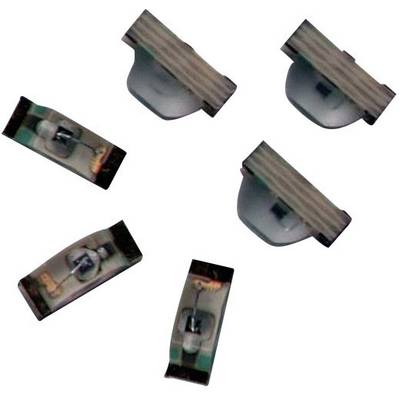

Broadcom HSML-C120 SMD LED 0603 Orange 90 mcd 155 ° 20 mA 1.9 V Tape cut
EAN:
Part number:
Item no:
Packaging type
Tape cut
Product type
SMD LED
Forward voltage U(F)
1.9 V
Forward current I(F)
20 mA
Type
SMD
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
30
-
€ 0.13
90
8% = € 0.01
€ 0.12
150
15% = € 0.02
€ 0.11
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 0.13 / piece)
€ 3.90
plus VAT.
"Side-Firing" Chip-LED 0.6 mm in height in 0603 cas
Technical specifications
- Packaging type
Tape cut
- Product type
SMD LED
- Type
HSML-C120
- Factory colour
Orange
- Forward voltage U(F)
1.9 V
- Forward current I(F)
20 mA
- Type
SMD
- Type
0603
- Light intensity I(V)
90 mcd
- Wavelength
605 nm
- Radiation angle
155°
- Type
laterally radiating
- Min. temperature
-30 °C
- Height
0.6 mm
- Max. temperature
85 °C
- Content
1 pc(s)
60 mW
- Operating temperature
-30 - +85 °C
- Casing
0603
Documents & Downloads
Datasheet
Datasheet 180472 Broadcom HSML-C120 SMD LED 0603 Orange 90 mcd 155 ° 20 mA 1.9 V Tape cut
User & Safety Instructions
User & Safety Instructions 180472 Broadcom HSML-C120 SMD LED 0603 Orange 90 mcd 155 ° 20 mA 1.9 V Tape cut
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
