Brother Dokumentenscanner Document scanner A4 30 pages/min Wi-Fi 4 (IEEE 802.11)
EAN:
Part number:
Item no:

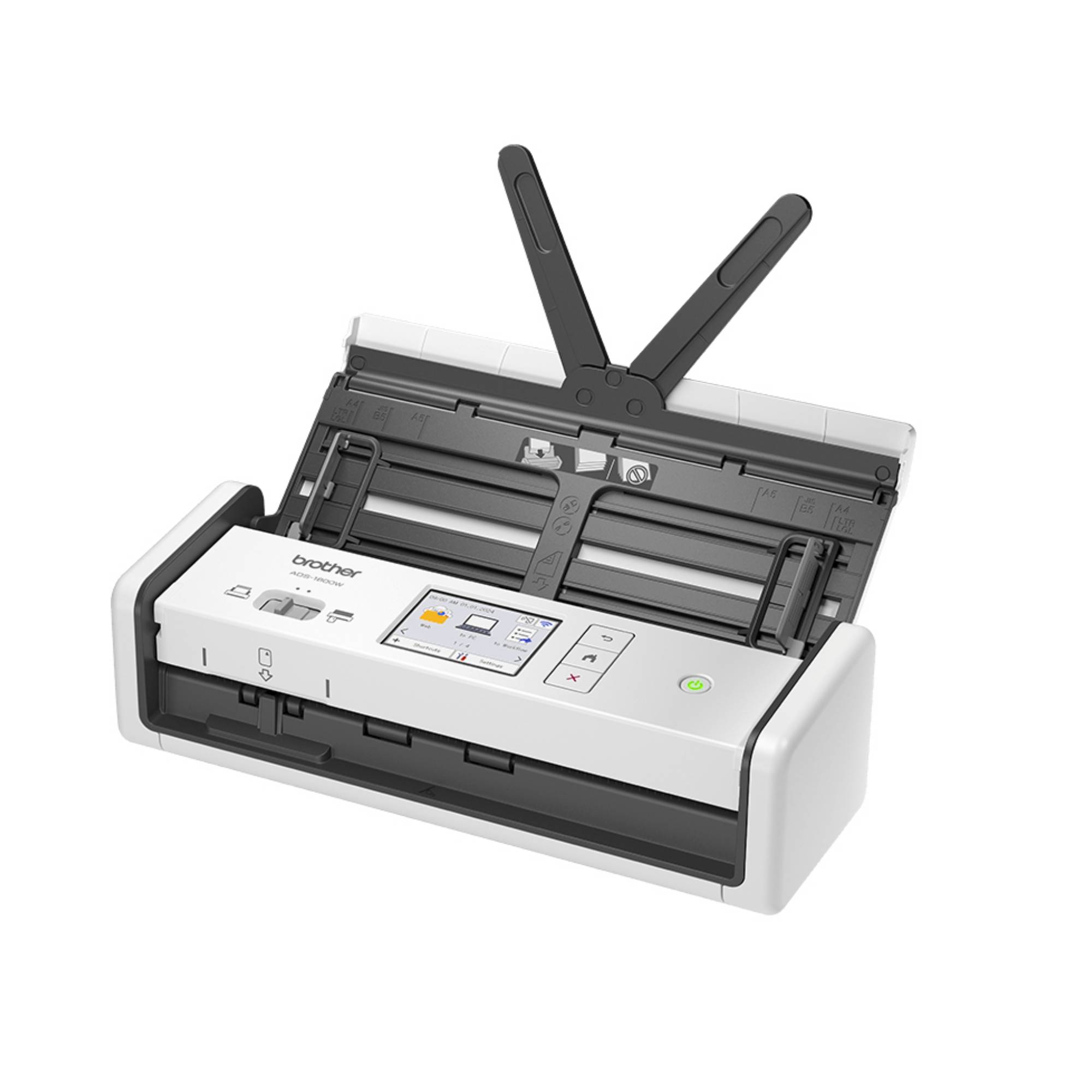

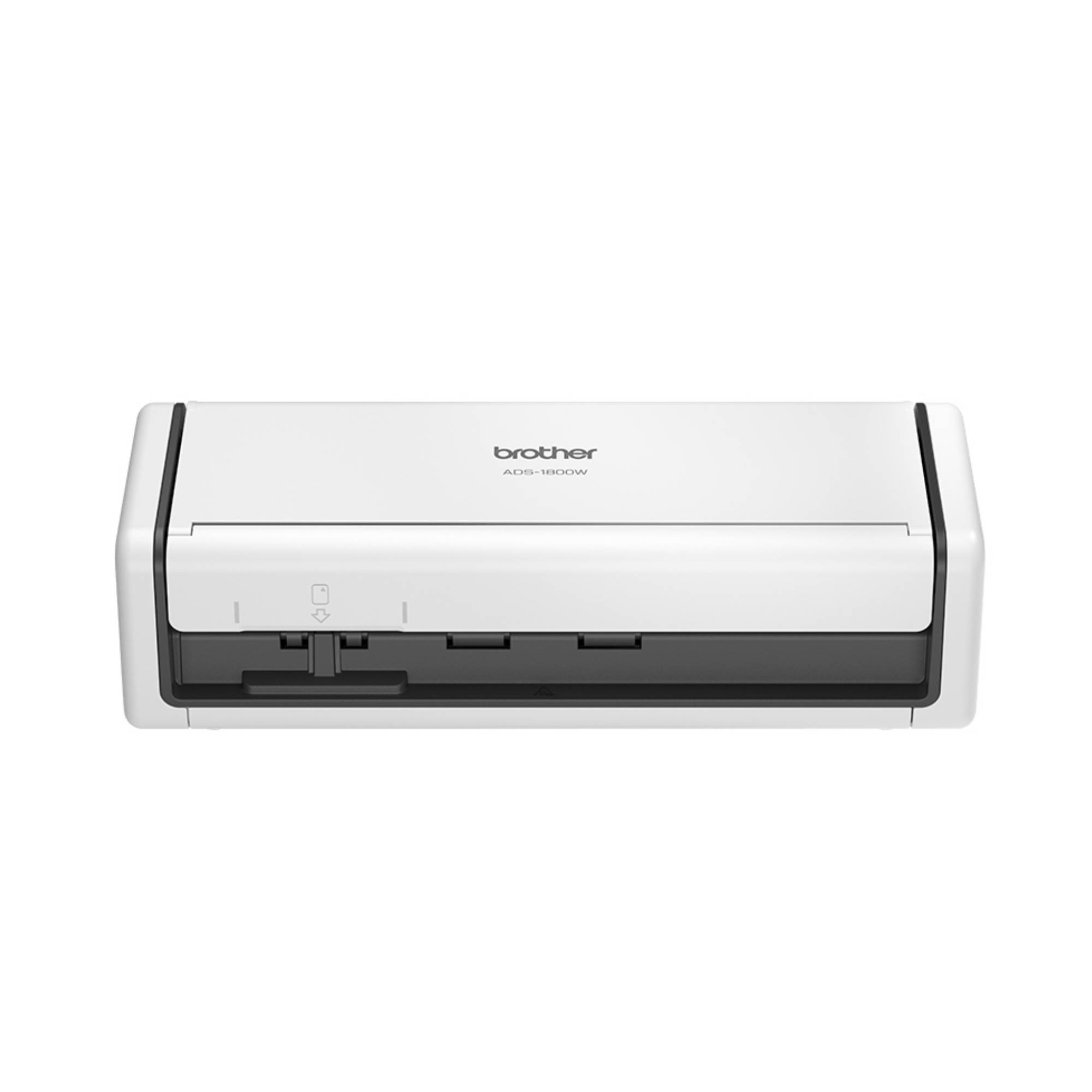

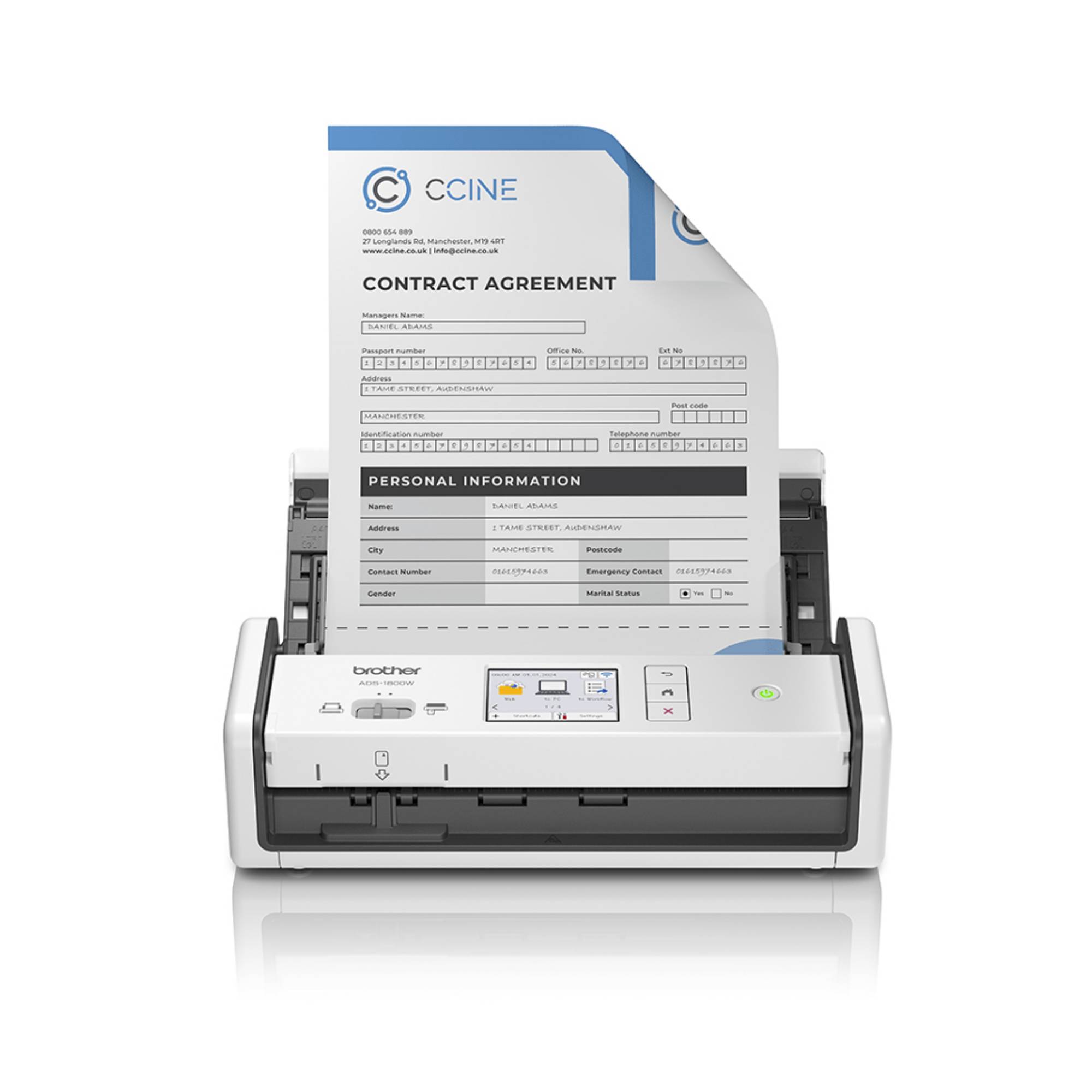

Brother ADS-1800W - Document scanner - Dual CIS - Duplex - A4 - 600 dpi x 600 dpi - up to 30 page
Highlights & Details
- Dimensions: 28.8 x 8.5 x 10.1 cm (W x H x D)
- USB-C 3.2 Gen 1 ports, USB host 2.0, WLAN, WiFi direct
- Type of display: Touch-screen
- Delivery package: Inclusive of USB-C cable
- 2.8" (7.1 cm) display screen size
- Display (color) available: Yes
- Duplex process possible: Yes
- For paper sizes 50-8-215.9 x 70-355.6 mm (W x L)
- Weight: 1.42 kg
- Weight of paper: 51,8-128 g/m²
- Automatic document feeder capacity: 20 sheets
- Network frequency: 50~60 Hz
- Mains voltage 100-240 V
- Product type designation ADS-1800W
- Scan depth: Internal: 48 bit, external: 24 bit
- Scanner 600 x 600 dpi resolution
- Software included: Yes
- Power supply USB
Technical specifications
- Display : LCD
- Operating temperature 5 °C - 35 °C.
- Product Colour : White
- Cable supplied : USB
- Touch-screen : Yes
- Wi-Fi : Yes
- Width 288 mm
- WLAN standards : 802.11b, 802.11g, Wi-Fi 4 (802.11n)
- Screen size : 7.11 cm (2.8")
- Depth: 101 mm
- Height: 85 mm
- Weighs 1.42 kg
- Product type
Document scanner
- Scan function
Documents
- Scanning speed
30 pages/min
- Scan area width (min.)
215.9 mm
- Scan area (max.)
5000 mm
- Paper size (max.)
A4
- Max. grammage
128 g/m²
- Document feed
20 Sheet
- Sensor type
CIS
- Features
Colour touchscreen
- Interfaces
Wi-Fi 4 (IEEE 802.11)
- Duplex unit
Yes
- Feeder
Yes
- Width
158 mm
- Height
369 mm
- Depth
200 mm
- Dim
(W x H x D) 158 x 369 x 200 mm
- Weight
1.500
- Factory colour
Multicolour
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3734499 Brother Dokumentenscanner Document scanner A4 30 pages/min Wi-Fi 4 (IEEE 802.11)
Description
The Brother ADS-1800W is a compact document scanner with touch-screen color display for use in home offices or offices where you can easily manage and share your documents. Operation via USB-C requires USB type C connection with 15 W power source (not included). Register your device on www.brother.de/registrierung immediately after purchase, but no later than three months after the date of purchase.
This text is machine translated.
This text is machine translated.
Features
- Brother ADS-1800W - Document scanner - portable - Wi-Fi(n), USB 2.0 (host), USB-C 3.2 Gen 1
- Device type : Document scanner - portable
- Interface type : Wi-Fi(s), USB 2.0 (host), USB-C 3.2 Gen 1
- Scan sensor type: Dual CIS
- Additional functions : Scan to PC, Scan to network file, scan to e-mail, Scan to SharePoint
- Max. Document size supported : 215.9 x 5000 mm
- Input type : color
- Grayscale / Color Depth : 8-bit (256 colors) / 48-bit color
- Grayscale/Color Depth (External) : 24 bit (16.7 million colors)
- Optical resolution : 600 dpi x 600 dpi
- Interpolated resolution : 1200 dpi x 1200 dpi
- Maximum document scan speed : 30 pages/min. (Single-color) / 30 pages/min. (Colour)
- Max. Document size : 215.9 mm x 5000 mm
- Automatic Duplex : Yes
- Supported document type : plain paper, plastic card, business card, receipts
- Document Feeder Type : Automatic
- Document storage capacity : 20 sheets
- Flash memory : 512 MB
- Power supply : AC 100-240 V (50/60 Hz)
- System Requirements : Apple MacOS 11, Apple MacOS 12, Apple MacOS 13, Microsoft Windows 10 / 11
- Dimensions (width x depth x height): 28.8 cm x 10.1 cm x 8.5 cm
- Weight: 1.42 kg
Hints
Scan speed (if stated) refers to A4-sized documents.
