Brumberg 01-70010 01-70010 Low-voltage recessed light White
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Protection class (IP) IP20
- Protection class III
- Nominal voltage: 12 V
- Voltage type AC/DC
- LED bulb, replaceable
- Operating device: Electronic transformer
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 3.5 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With bulb: No.
- Suitable for the number of bulbs: 1
- Housing color: White
- Surface brushed: No.
- With operating device: No.
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Suitable for lamp output 13 W
- Max. System power 13 W

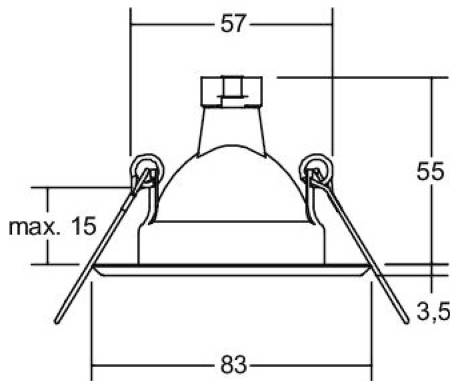

- Installation height/depth 55 mm
- Installation diameter 57 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Outer diameter: 82 mm
- Suitable for rail mounting: No.
- Version: GX5.3
- Product type
Low-voltage recessed light
- Factory colour
White
n.rel.
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3543444 Brumberg 01-70010 01-70010 Low-voltage recessed light White
User & Safety Instructions
User & Safety Instructions 3543444 Brumberg 01-70010 01-70010 Low-voltage recessed light White
Description

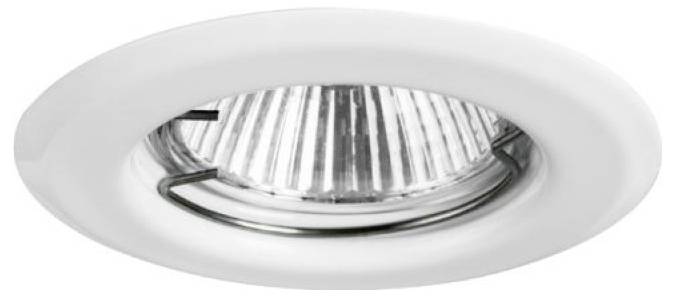

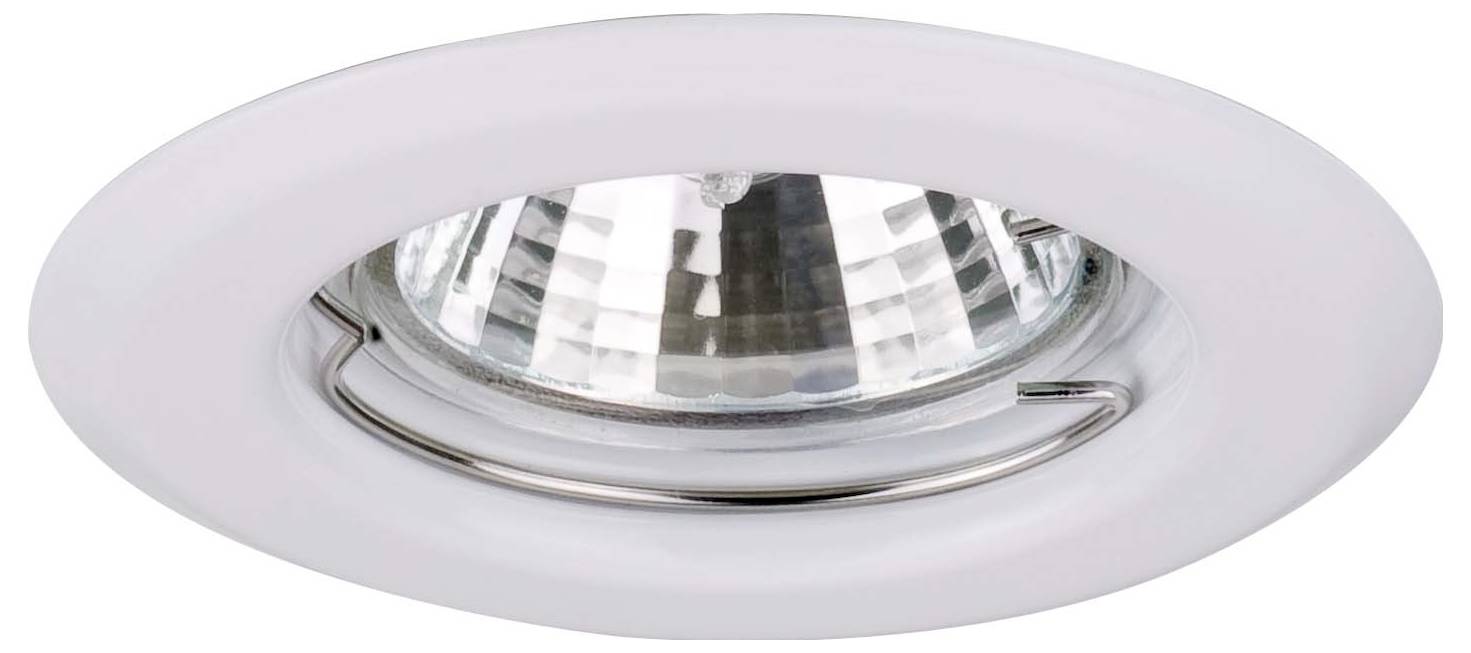

Downlight, GX5.3, white. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: GX5.3, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Iron, protection class: According to DIN EN 60529, protection class: (EN 61140) III, voltage: 12V, output: 13 W, number of bulbs / sockets: 1 pieces, without operating device, type of dimming: Dependent on the operating device.
