Brumberg 10036183MC 10036183MC LED surface-mount light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details

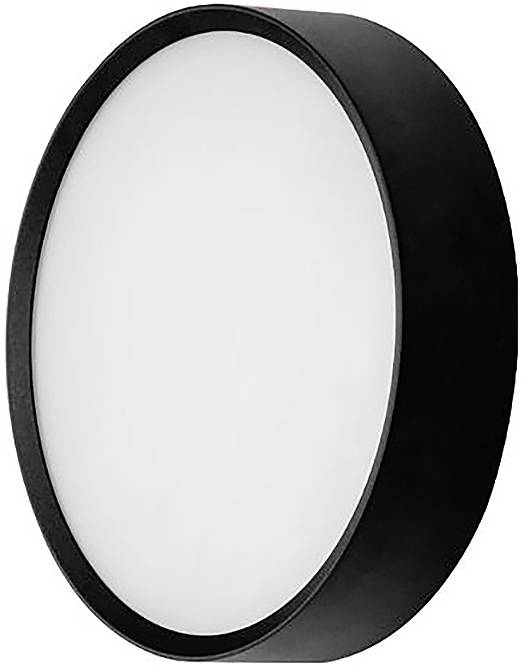

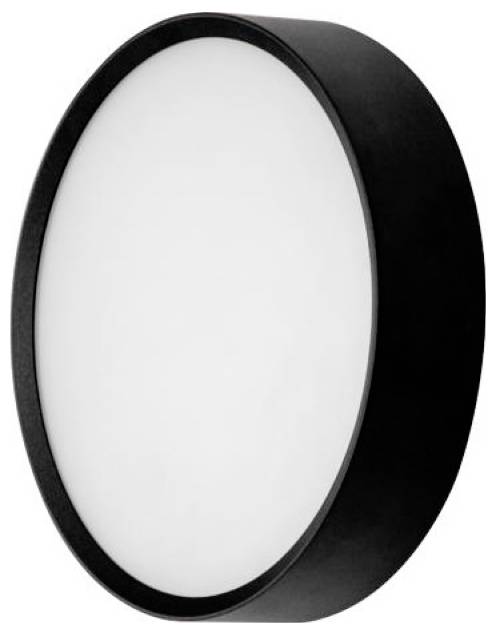

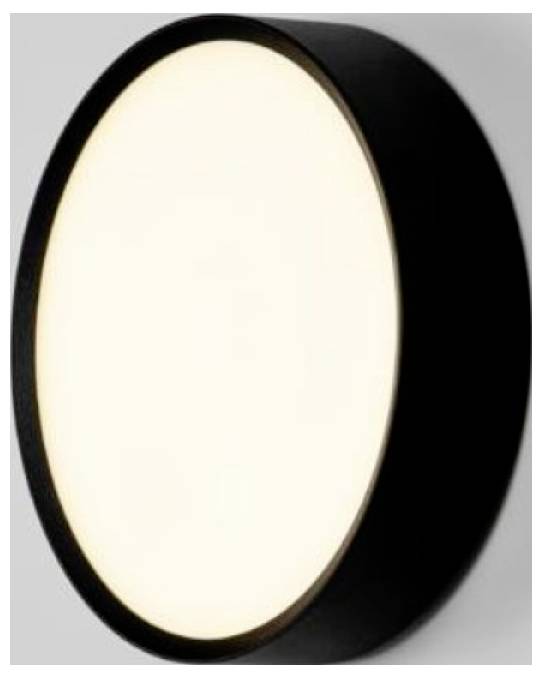

Brumberg LED wall lamp 230 V 3000/4000/5700K 10036183MC
Technical specifications
- Protection class (IP) IP65
- Protection class: I
- Impact strength: IK10
- Material of housing: Aluminium
- Nominal voltage: 230 V
- Voltage type AC
- Bulb: LED not replaceable
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature 3000..5700 K
- Color Rendering Index CRI: 80-89
- Colour temperature adjustable: Levels
- Luminous flux can be set: Stages
- Adjustable radiation angle: No.

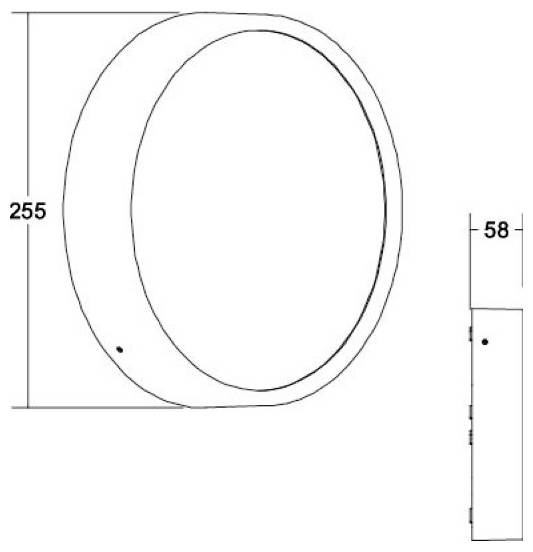

- Height/depth 60 mm
- Type of wiring: Suitable for through-wiring
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on the panel: Yes
- Suitable for panel mounting: No.
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Black enclosure
- With operating device: Yes
- Removable operating device: Yes
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes

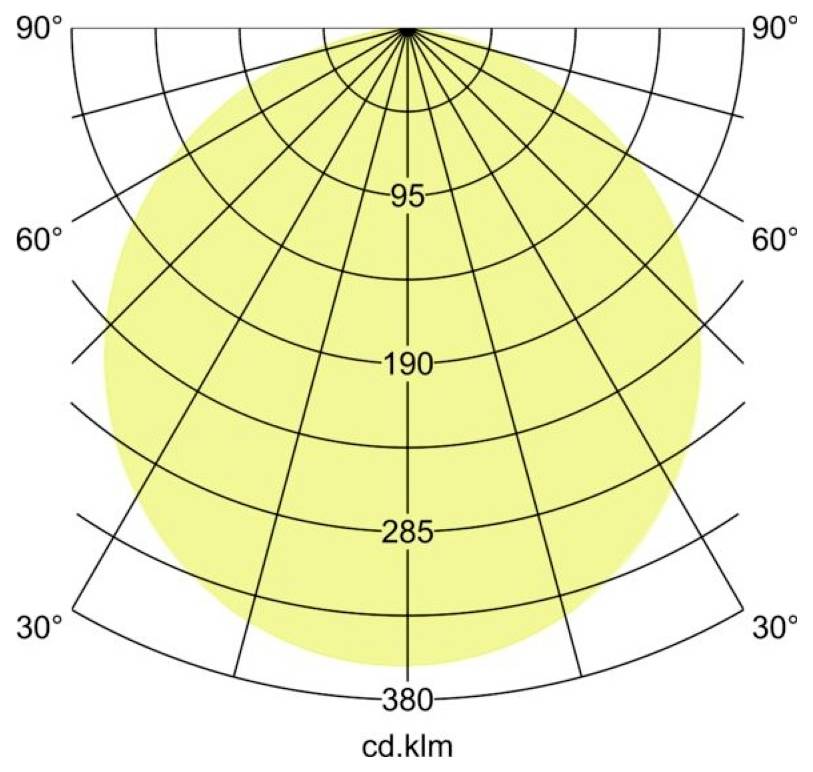

- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 12 W
- Max. System power 12 W
- Rated light current according to IEC 62722-2-1: 1000 lm
- Operation via Bluetooth: No.
- Outer diameter: 250 mm
- Suitable for light band configuration: No.
- Suitable for screen workstations according to EN 12464-1: No.
- Surface protection housing: Powder-coated
- Cover material: Plastic opal
- Suitable for emergency light: No.
- With air vents: No.
- Compatible with Casambi: No.
- Rated life L70/B50 at 25 °C: 50000 h
- Product type
LED surface-mount light
n.rel.
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3552774 Brumberg 10036183MC 10036183MC LED surface-mount light
User & Safety Instructions
User & Safety Instructions 3552774 Brumberg 10036183MC 10036183MC LED surface-mount light
Description
LED wall-mounted luminaire, IP65, switchable, sea-water protected, structure black, round. Design in a compact design for the harmonious implementation in an architectural space concept. The light color can be set from 3000 K to 4000 K or 5700 K. Design: Without socket, mounting type: Mounting installation mounting, mounting location: Wall mounting, material: Aluminium / plastic, protection class: According to DIN EN 60529: IP65, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 12 W, number of lights / sockets: 1 pieces, luminous flux: 1,000 lm, color temperature: from 3,000 K to 5,700 K, light color: white, radiation angle: 110°, adjustable: not adjustable, with operating device: yes, Dimmable: No, type of dimming: switchable.
