Brumberg 10158073 10158073 LED recessed wall light LED 2 W LED (monochrome) White
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg Luminaires LED Wall Mount Lamp for device sockets 10158073
- Power= 2 W
- Total luminous flux= 35 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Operating device: LED operating device current-controlled
- Installation diameter 68 mm
- Installation height/depth 65 mm
- Color rendering index CRI: 90-100
- Suitable for panel mounting: Yes
- LED nominal current at constant current 500 mA
- With operating device: Yes
- Product type
LED recessed wall light
- Operating voltage
230 V AC
- Operating current
500 mA
- No. of bulbs
1
- Bulb type
LED (monochrome)
LED
- Rating per bulb
2 W
2 W
- Light features
Suitable for wall mounting
- Protection class
I
IP20
- Factory colour
White
- Material
Aluminium
Glass
- Dim
(Ø x H) 68 mm x 8 mm
n.rel.
- Type
Circular
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
35 lm
35 lm
- Width
78 mm
- Height
8 mm
- Length
78 mm
- Depth
8 mm
- (Ø)
68 mm
Documents & Downloads
Datasheet
Datasheet 2292554 Brumberg 10158073 10158073 LED recessed wall light LED 2 W LED (monochrome) White
User & Safety Instructions
User & Safety Instructions 2292554 Brumberg 10158073 10158073 LED recessed wall light LED 2 W LED (monochrome) White
Description

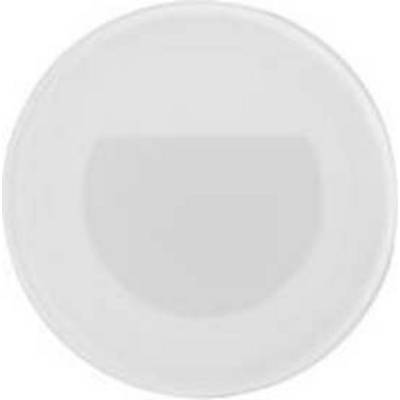

LED wall mounted light fixture for device sockets, white, round. Installation mounting, wall mounting. For installation in hollow wall or concrete device boxes with a installation depth of min. 62 mm (screw distance 60 mm). Compatible with Kaiser-device boxes for hollow wall installation Art.-Nr. 9064-02 or concrete installation Art.-Nr. 1556-04. Attention: The delivery takes place WITHOUT device socket. Mounting type: Installation, mounting location: Wall mounting, material: Aluminum / steel / glass / plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) I, voltage: 230V AC 50Hz, power: 1.5W, number of bulbs / sockets: 1.0 pcs, luminous flux: 35lm, color temperature: 3000K, light color: White, with operating device, type of dimming:, switchable,
