Brumberg 12053183 12053183 LED dot light
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg lights LED-Light point round IP65 700mA, www black 12053183
Technical specifications
- Protection class (IP) IP65
- Surface protection: Powder-coated
- Protection class III
- Material of housing: Aluminium
- Nominal current: 700 mA
- Voltage type DC
- Bulb: LED not replaceable
- Radiation angle: Medium radiation 21-40°
- Operating device: LED operating device current-controlled
- Energy efficiency class of light source according to EU directive 2019/2015: Not required
- Light color: White
- Colour temperature: 3000 K
- Color Rendering Index CRI: 80-89
- Adjustable color temperature: No.
- Luminous flux can be set: No
- Adjustable radiation angle: No.
- Height/depth 3 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Suitable for mounting on a panel: No.
- Suitable for panel mounting: Yes
- Suitable for wall mounting: No.
- Suitable for suspended engine mounting: No.
- Suitable for ceiling mounting: No.
- Suitable for traverse installation: No.
- Suitable for cable system: No.
- Adjustable: Not adjustable
- With motion detector: No.
- With light sensor: No.
- With bulb: Yes
- Suitable for the number of bulbs: 1
- Black enclosure
- Surface brushed: No.
- With operating device: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- Dimming DALI-2: No.
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Reflector: Without
- Light distribution: Symmetric
- Light emission: Direct
- Suitable for lamp output 3 W
- Max. System power 3 W
- Light current: 120 lm
- Rated light current according to IEC 62722-2-1: 120 lm

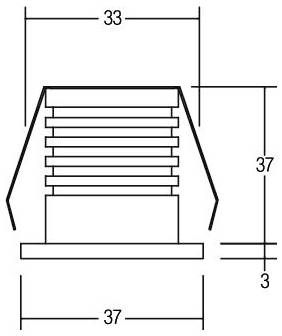

- Installation height/depth 37 mm
- Installation diameter 33 mm
- Covering of the lamp with thermal insulation material is possible: No.
- Operation via Bluetooth: No.
- Outer diameter: 37 mm
- Cover material: Transparent glass
- Socket: Without
- Product type
LED dot light
n.rel.
Documents & Downloads
Datasheet
Datasheet 3547098 Brumberg 12053183 12053183 LED dot light
Datasheet 3547098 Brumberg 12053183 12053183 LED dot light
User & Safety Instructions
User & Safety Instructions 3547098 Brumberg 12053183 12053183 LED dot light
Description

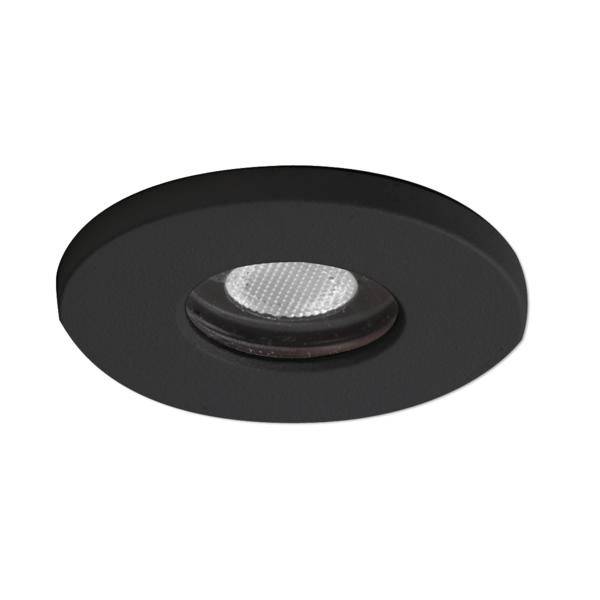

LED-light point, IP65, structure black, round. Designed in a compact design for tool-free rapid assembly for ceiling mounting. Design: Plug & Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: Room-side: According to DIN EN 60529: IP65, protection class: (EN 61140) III, power: 3,000 W, number of bulbs / sockets: 45 piece, light current: 120 lm, color temperature: 3 K, angle of radiation: 1°, adjustable: Not, Without operating device, Dimmable: Depending on the operating device, type of dimming: Depends on the operating device.
