Brumberg 12071253 12071253 LED recessed light LED (monochrome) Built-in LED 1 W Aluminium
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Brumberg Luminaires LED-BLD-IN LIGHT POINT 350mA alu LF:ww 12071253
- Power= 1 W Total luminous flux= 70 lm Colour temperature= 3000 K White
Technical specifications
- Rated luminous flux according to IEC 62722-2-1: 70 lm
- Operating device: LED operating device current-controlled
- With bulb: Yes
- Colour temperature: 3000 K
- Color rendering index CRI: 80-89
- Suitable for installation: no.
- Suitable for ceiling mounting: Yes
- Suitable for panel mounting: Yes
- Suitable for wall mounting: no.
- LED nominal current at constant current 350 mA
- Lamp: LED not replaceable
- Light emission: Direct
- Light distribution: Symmetrical
- With operating device: no.
- With bulb: Yes
- Reflector: None
- Voltage type: DC
- Material of the cover: Plastic structured
- Product type
LED recessed light
- No. of bulbs
1
Built-in LED
- Bulb type
LED (monochrome)
- Rating per bulb
1 W
1 W
70 lm
- Total luminous flux
70 lm
3000 K
- Colour
White
- Type
Circular
- Protection screen
Textured
- Radiation angle
40°
- Light features
Recess mount option
- Recess diameter
27 mm
- Recess depth
17 mm
- Outside Ø
32 mm
IP44
- Protection class
III
- Factory colour
Aluminium
- Material
Aluminium
n.rel.
- Light bulb included
Yes
- Colour temperature range
3000 K
- Height
4 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2294329 Brumberg 12071253 12071253 LED recessed light LED (monochrome) Built-in LED 1 W Aluminium
User & Safety Instructions
User & Safety Instructions 2294329 Brumberg 12071253 12071253 LED recessed light LED (monochrome) Built-in LED 1 W Aluminium
Description

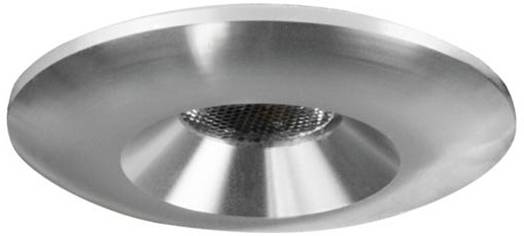

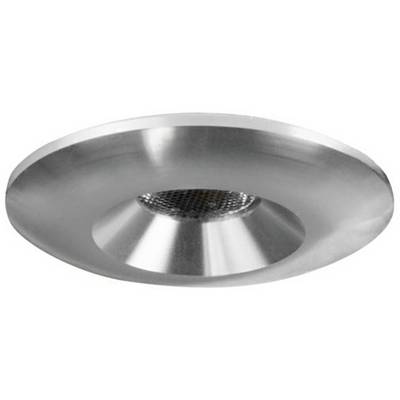

LED light point IP44, aluminum, round. Designed in a compact design for quick mounting without tools for ceiling installation. Socket: Plug&Play, mounting type: Installation mounting, mounting location: Ceiling mounting, material: Aluminum / plastic, protection class: According to DIN EN 60529: IP44*, protection class: (EN 61140) III, current: 350 mA, power: 1.2W, number of bulbs / sockets: 1.0 pcs, luminous flux: 70lm, color temperature: 3000K, light color: White, angle of radiation: 30°, adjustability: Not adjustable, without operating device
