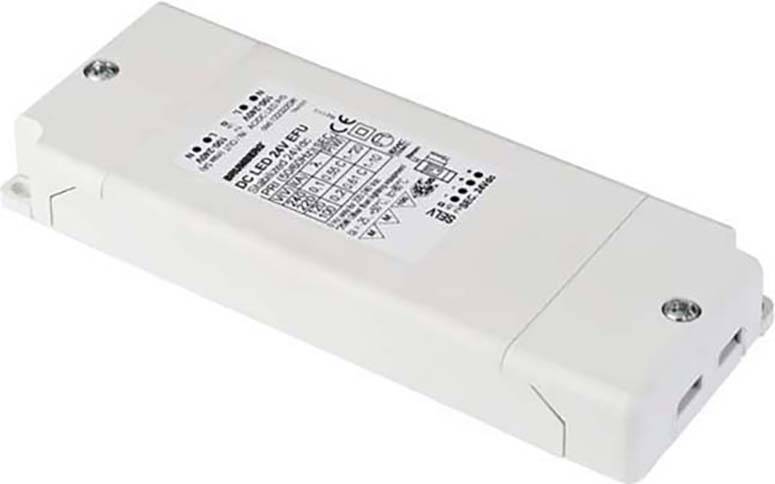

Brumberg 17206000 PSU 20 W 24 V dimmable
EAN:
Part number:
Item no:
Product type
PSU
Power
20 W
Output voltage (max.)
24 V
Type
dynamic
LED features
dimmable
Datasheet (PDF)
Technical specifications
- Output power 1..20 W.
- Dimming 1-10 V: Yes
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for direct voltage (primary side): Yes
- Suitable for constant voltage: Yes
- Suitable for constant current: no.
- Protection class: II
- Type
dynamic
- Product type
PSU
20 W
- LED features
dimmable
IP20
- Dim
(L x W x H) 145 x 55 x 19 mm
- Height
19 mm
- Length
145 mm
- Width
55 mm
- Material (details)
Plastic housing
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V DC
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291265 Brumberg 17206000 PSU 20 W 24 V dimmable
User & Safety Instructions
User & Safety Instructions 2291265 Brumberg 17206000 PSU 20 W 24 V dimmable
Description
LED power supply 24 V DC, 1-10 V dimmable (analogueue). This device fulfills the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload.
