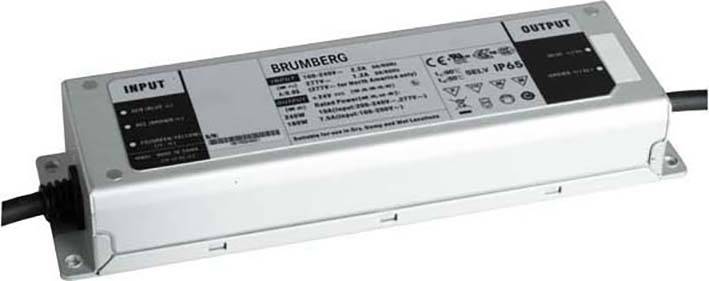

Brumberg 17224000 PSU 100 W 24 V not dimmable
EAN:
Part number:
Item no:
Product type
PSU
Power
100 W
Output voltage (max.)
24 V
Type
static
Operating voltage
24 V DC
Datasheet (PDF)
Technical specifications
- Output power 50..100 W.
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for direct voltage (primary side): Yes
- Suitable for constant voltage: Yes
- Suitable for constant current: no.
- Protection class: I
- Type
static
- Product type
PSU
- Operating voltage
24 V DC
100 W
- LED features
not dimmable
IP65
- Dim
(L x W x H) 199 x 63 x 36 mm
- Height
36 mm
- Length
199 mm
- Width
63 mm
- Material (details)
Metal housing
- Output voltage (max.)
24 V
- Output voltage (min.)
21.6 V
- Factory colour
Multicolour
- Protection class
I
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291271 Brumberg 17224000 PSU 100 W 24 V not dimmable
User & Safety Instructions
User & Safety Instructions 2291271 Brumberg 17224000 PSU 100 W 24 V not dimmable
Description
LED power supply 24 V DC, switchable. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. Material: Aluminium
