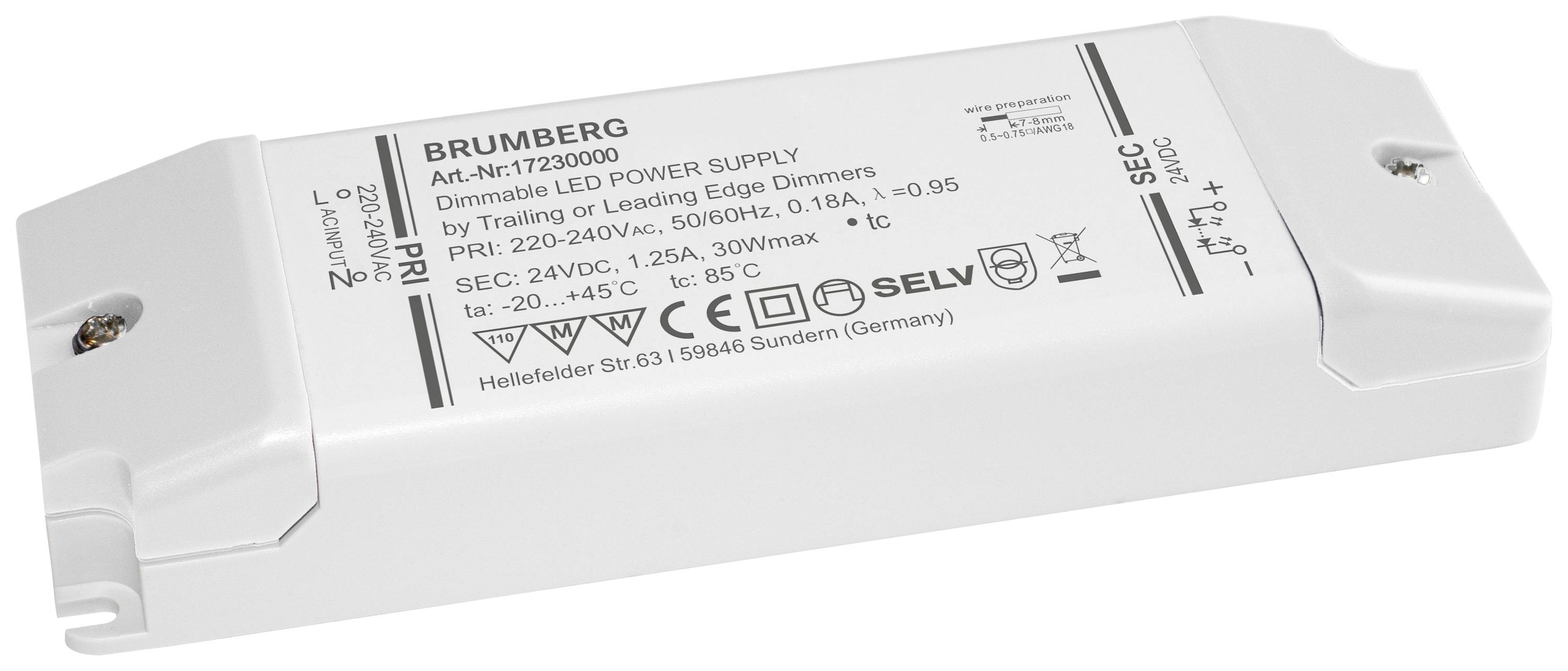

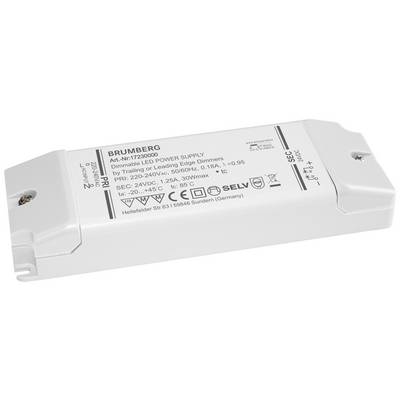

Brumberg 17230000 LED transformer EEC G (A - G) Constant voltage 30 W 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17230000
- Constant voltage
- 24 V
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 145 x 50 x 22 mm
- Factory colour
White
- Output voltage (max.)
24 V
- Output voltage (min.)
24 V
- Protection class
II
- LED driver features
dimmable
IP20
- Max. power
30 W
- Weight
207.00
- Power (min.)
5 W
- Power range
5 up to 30 W
- Width
50 mm
- Height
22 mm
- Length
145 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2605037 Brumberg 17230000 LED transformer EEC G (A - G) Constant voltage 30 W 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2605037 Brumberg 17230000 LED transformer EEC G (A - G) Constant voltage 30 W 24 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
