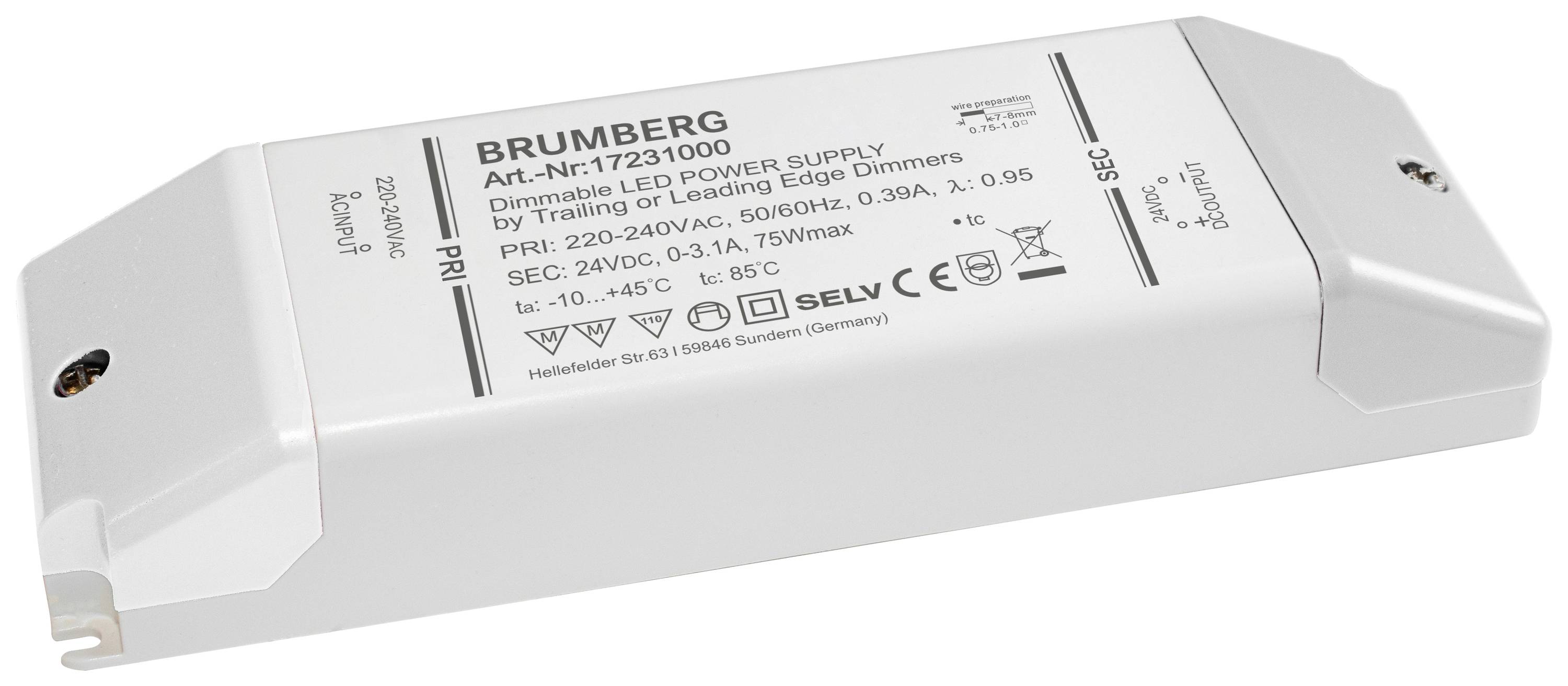

Brumberg 17231000 LED transformer Constant voltage 75 W 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17231000
- Constant voltage
- 24 V
Technical specifications
- Suitable for outdoor use: no.Suitable for constant current: no.Suitable for constant voltage: YesSuitable for DC voltage (primary side): no.Protection class: II
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 185 x 60 x 31 mm
- Output voltage (max.)
24 V
- Operating voltage
24 V
- Protection class
II
- LED driver features
dimmable
IP20
- Max. power
75 W
- Type
dynamic
- Weight
500.00
- Power (min.)
12 W
- Power range
12 up to 75 W
- Width
60 mm
- Height
31 mm
- Length
185 mm
- Material (details)
Plastic housing
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2606758 Brumberg 17231000 LED transformer Constant voltage 75 W 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2606758 Brumberg 17231000 LED transformer Constant voltage 75 W 24 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
