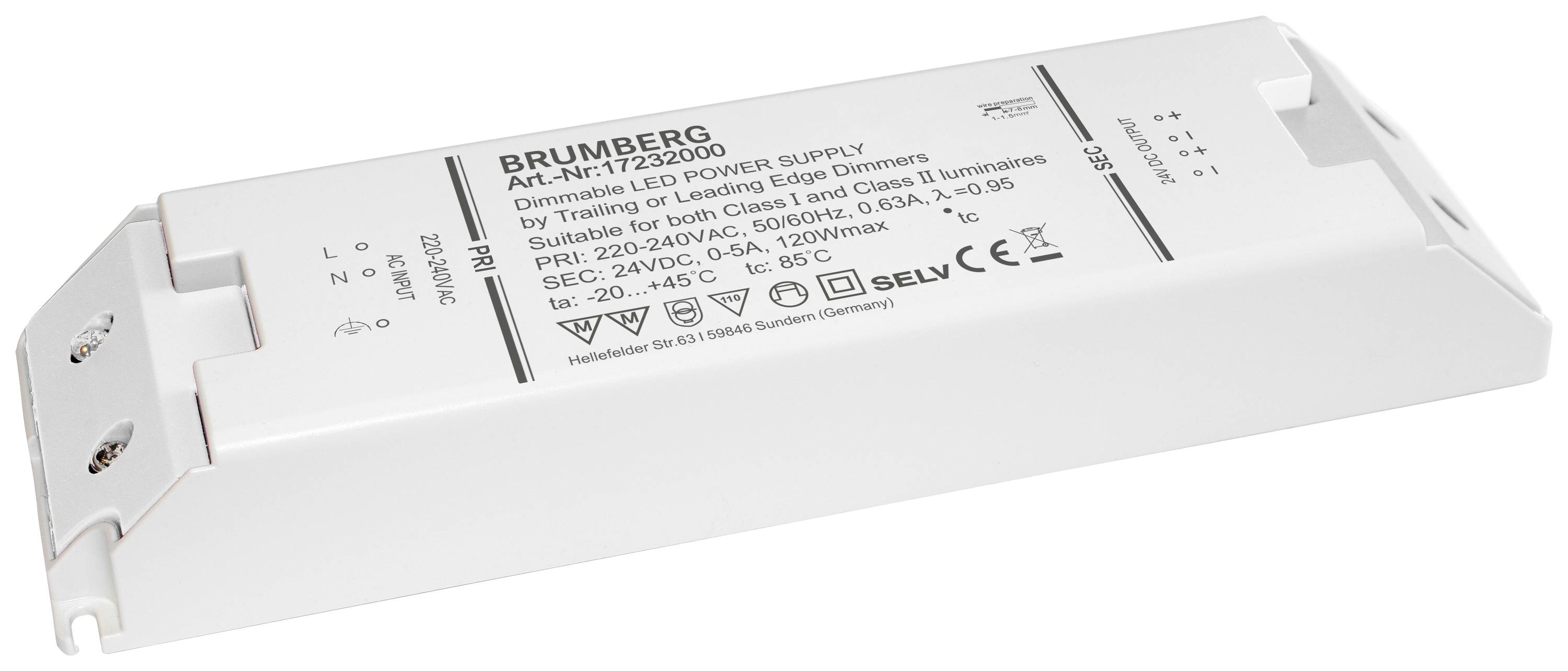

Brumberg 17232000 LED transformer EEC G (A - G) Constant voltage 120 W 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17232000
- Constant voltage
- 24 V
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 223 x 64 x 32 mm
- Factory colour
Multicolour
- Output voltage (max.)
24 V
- Protection class
II
- LED driver features
dimmable
IP20
- Max. power
120 W
- Weight
666.00
- Power (min.)
12 W
- Power range
12 up to 120 W
- Width
64 mm
- Height
32 mm
- Length
223 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2608475 Brumberg 17232000 LED transformer EEC G (A - G) Constant voltage 120 W 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2608475 Brumberg 17232000 LED transformer EEC G (A - G) Constant voltage 120 W 24 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
