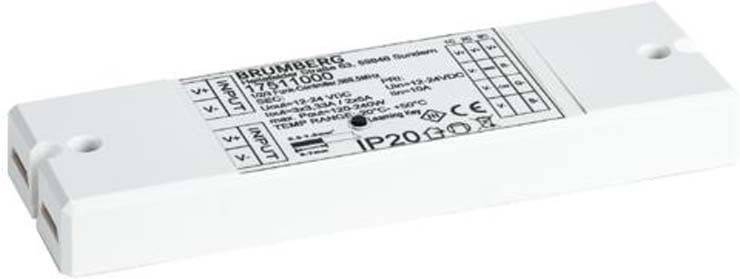

Brumberg 17511000 LED transformer 240 W 12 - 24 V dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
17511000
- 12 - 24 V
Technical specifications
- Suitable for outdoor use: no.Suitable for constant current: no.Suitable for constant voltage: YesSuitable for direct voltage (primary side): YesProtection class III
- Product type
LED transformer
- Dim
(L x W x H) 178 x 46 x 18 mm
- Output voltage (max.)
24 V
- Output voltage (min.)
12 V
- Protection class
III
- LED driver features
dimmable
IP20
- Max. power
240 W
- Type
dynamic
- Power range
240 W (max)
- Width
46 mm
- Height
18 mm
- Length
178 mm
- Material (details)
Plastic housing
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2610207 Brumberg 17511000 LED transformer 240 W 12 - 24 V dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2610207 Brumberg 17511000 LED transformer 240 W 12 - 24 V dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
