Brumberg 17518000 Controller 240 W 5 A 24 V dimmable
EAN:
Part number:
Item no:
Product type
Controller
Power
240 W
Connection
Screw terminal
Output current (max.) - rounded
5 A
Output voltage (max.)
24 V
Datasheet (PDF)
Technical specifications
- Output power 0..240 W.
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for direct voltage (primary side): Yes
- Suitable for constant voltage: Yes
- Suitable for constant current: no.
- Protection class III
- Type
dynamic
- Product type
Controller
240 W
- LED features
dimmable
- Connection
Screw terminal
IP20
- Min. temperature
0 °C
- Max. temperature
40 °C
- Dim
(L x W x H) 178 x 46 x 18 mm
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Height
18 mm
- Length
178 mm
- Width
46 mm
- Material (details)
Plastic housing
- Output voltage (max.)
24 V
- Output voltage (min.)
12 V
- Protection class
III
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2294301 Brumberg 17518000 Controller 240 W 5 A 24 V dimmable
User & Safety Instructions
User & Safety Instructions 2294301 Brumberg 17518000 Controller 240 W 5 A 24 V dimmable
Description

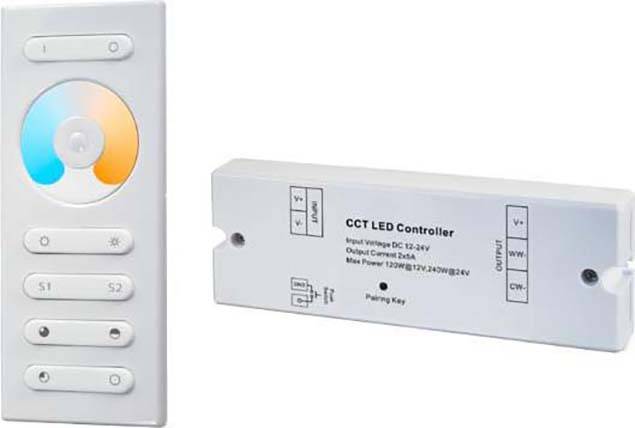

TunableWhite wireless control. TunableWhite radio control for controlling two-color LED modules in the white light range. Controller: Voltage: 12-24 V DC, current: Max. 2 x 5 A, power: Max. 120 W / 240 W (12 V DC / 24 V DC), control: Negative (common anode), control signal: PWM, radio frequency: 869.5 MHz, range (visual contact): Up to 20 m, ambient temperature (ta): 0° C to +40° C, controller connection via screw terminals, dimensions: L 178 x W 46 x H 18 mm, material: Plastic, delivery: Incl. strain relief, controller per remote control: Max. 4 (with optimum wireless connection) Remote control: Voltage (battery): 4.5 V DC / 3 x AAA (not included in delivery), radio frequency: 869.5 MHz, transmission power (PS) < 0 dBm, range (visual contact): Up to 20 m, ambient temperature (ta): 0° C to +40° C, dimensions: L 120 x W 48 x H 18 mm, material: Plastic Functions: - on/off - change of light color via touch wheel - dimming of the set light color - memory keys S1 / S2 - selection keys 25 % / 50 % / 75 % / 100 % brightness. Protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) III, voltage: 12V 24V,
