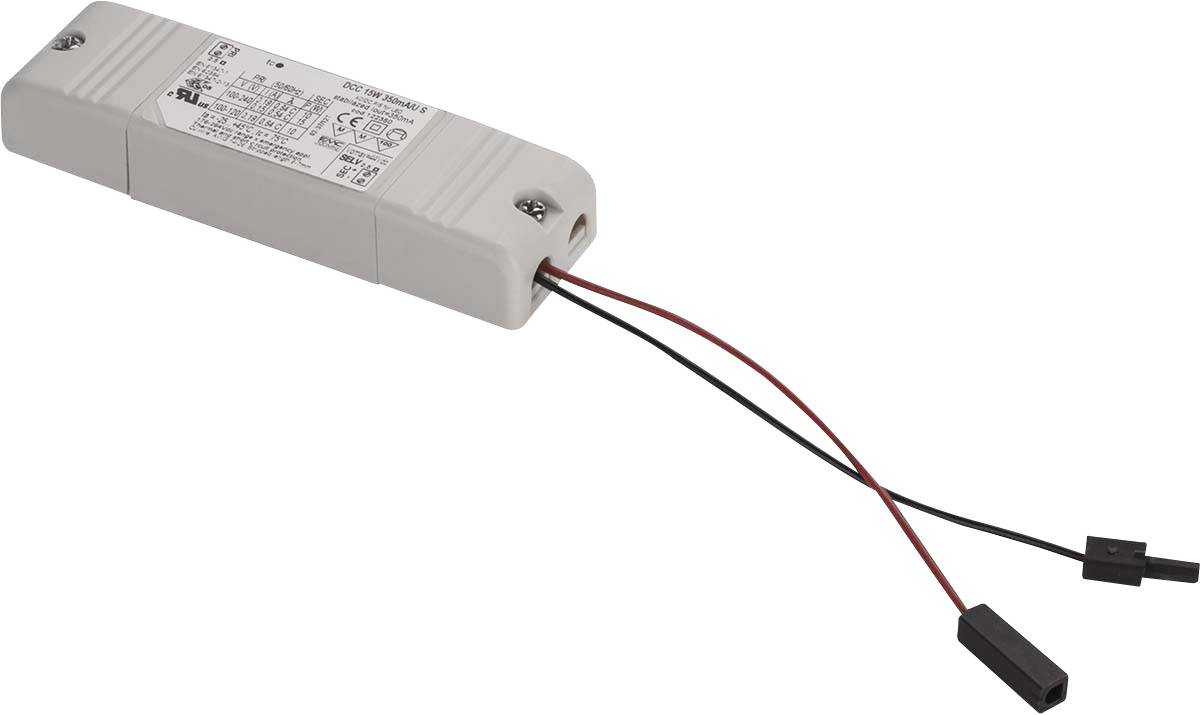

Image similar
Brumberg 17613000 PSU 15 W 350 mA 43 V not dimmable
EAN:
Part number:
Item no:
Product type
PSU
Power
15 W
Connection
Clamp
Output current (max.) - rounded
350 mA
Output voltage (max.)
43 V
Datasheet (PDF)
Technical specifications
- Output power 0..15 W.
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for DC voltage (primary side): no.
- Suitable for constant voltage: no.
- Suitable for constant current: Yes
- Protection class: II
- Type
static
- Product type
PSU
- Operating voltage
230 V AC
15 W
- LED features
not dimmable
- Connection
Clamp
IP20
- Min. temperature
-25 °C
- Max. temperature
45 °C
- Dim
(L x W x H) 115 x 34 x 19 mm
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Height
19 mm
- Length
115 mm
- Width
34 mm
- Material (details)
Plastic housing
- Output current (min.)
0.35 A
- Output voltage (max.)
43 V
- Output voltage (min.)
3 V
- Factory colour
Multicolour
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2295366 Brumberg 17613000 PSU 15 W 350 mA 43 V not dimmable
User & Safety Instructions
User & Safety Instructions 2295366 Brumberg 17613000 PSU 15 W 350 mA 43 V not dimmable
Description
LED converter 350 mA, switchable. This device fulfills the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 2.5 mm². Material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 350 mA, voltage: 230V AC 50Hz, power: 0-15W, type of dimming: Switchable,
