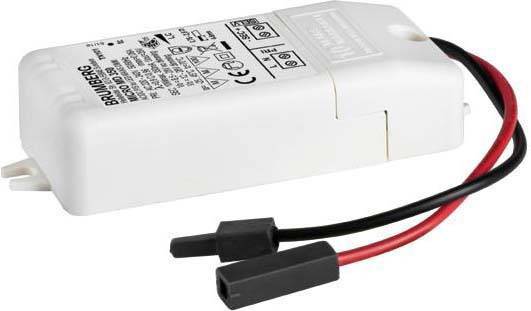

Brumberg 17640000 LED converter 10 W 350 mA 28 V dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
10 W
Connection
Clamp
Output current (max.) - rounded
350 mA
Output voltage (max.)
28 V
Datasheet (PDF)
Technical specifications
- Output power 4..10 W
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Dimming Phase section: Yes
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for constant voltage: no.
- Suitable for constant current: Yes
- Protection class: II
- Type
dynamic
- Product type
LED converter
- Operating voltage
230 V AC
10 W
- LED features
dimmable
- Connection
Clamp
IP20
- Dim
(L x W x H) 102 x 38 x 21 mm
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Height
21 mm
- Length
102 mm
- Width
38 mm
- Material (details)
Plastic housing
- Output current (min.)
350 mA
- Output voltage (max.)
28 V
- Output voltage (min.)
12 V
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2293748 Brumberg 17640000 LED converter 10 W 350 mA 28 V dimmable
User & Safety Instructions
User & Safety Instructions 2293748 Brumberg 17640000 LED converter 10 W 350 mA 28 V dimmable
Description
LED converter 350 mA, phase section dimmable. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 2.5 mm². Material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 350 mA, voltage: 230V AC 50Hz, power: 4.2-10W, type of dimming: Phase section,
