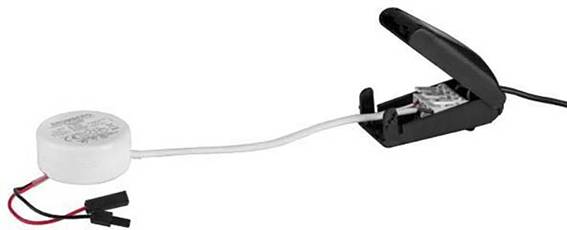

Brumberg 17652020 LED converter 7 W 350 mA 20 V dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
7 W
Output current (max.) - rounded
350 mA
Output voltage (max.)
20 V
Type
dynamic
Datasheet (PDF)
Technical specifications
- Output power 5..7 W.
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Dimming Phase section: Yes
- Dimming RF: no.
- Dimming Zigbee: no.
- Diameter 51 mm
- Suitable for outdoor use: no.
- Suitable for constant voltage: no.
- Suitable for constant current: Yes
- Protection class: II
- Type
dynamic
- Product type
LED converter
- Operating voltage
230 V AC
7 W
- LED features
dimmable
IP20
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Height
24 mm
- Material (details)
Plastic housing
- Output current (min.)
350 mA
- Output voltage (max.)
20 V
- Output voltage (min.)
14 V
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2293744 Brumberg 17652020 LED converter 7 W 350 mA 20 V dimmable
User & Safety Instructions
User & Safety Instructions 2293744 Brumberg 17652020 LED converter 7 W 350 mA 20 V dimmable
Description
LED round converter 350 mA, phase section dimmable, material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 350 mA, voltage: 230V AC 50Hz, power: 4.9-7W, dimmable: Yes, type of dimming: Phase section,
