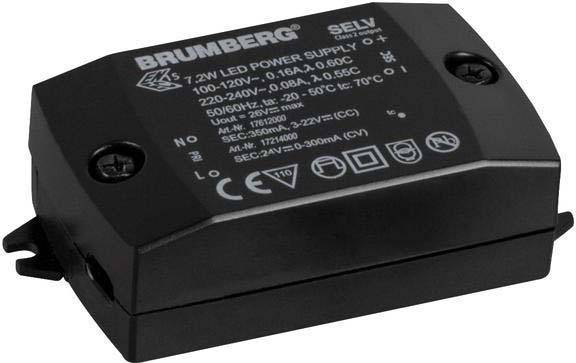

Brumberg 17662010 LED converter 7 W 350 mA 22 V not dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
7 W
Connection
Clamp
Output current (max.) - rounded
350 mA
Output voltage (max.)
22 V
Datasheet (PDF)
Technical specifications
- Output power 1..7 W.
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: no.
- Suitable for outdoor use: no.
- Suitable for constant voltage: no.
- Suitable for constant current: Yes
- Protection class: II
- Type
static
- Product type
LED converter
- Operating voltage
230 V AC
7 W
- LED features
not dimmable
- Connection
Clamp
IP20
- Dim
(L x W x H) 68 x 35 x 21 mm
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Height
21 mm
- Length
68 mm
- Width
35 mm
- Material (details)
Plastic housing
- Output current (min.)
350 mA
- Output voltage (max.)
22 V
- Output voltage (min.)
3 V
- Protection class
II
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2291275 Brumberg 17662010 LED converter 7 W 350 mA 22 V not dimmable
User & Safety Instructions
User & Safety Instructions 2291275 Brumberg 17662010 LED converter 7 W 350 mA 22 V not dimmable
Description
LED converter 350 mA, switchable. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm². Material: Plastic, Protection class: According to DIN EN 60529: IP20, Protection class: (EN 61140) II, Current: 350 mA, Voltage: 230V AC 50Hz, Power: 1-7.2W, Dimmable: No, Type of dimming: Switchable,
