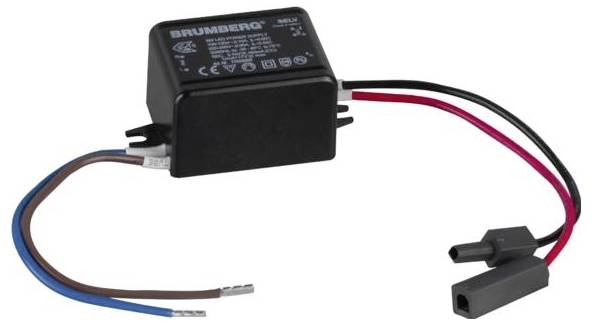

Brumberg 17665000 LED converter 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 23 mm
- Width 30 mm
- Protection class (IP) IP20
- Suitable for outside use: No.
- Protection class: II
- Length: 52 mm
- Output power 1..3.2 W
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: No.
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimming function: Yes
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Output current: 350 mA
- Output voltage 2 - .9 V
- Housing: Plastic housing
- Suitable for constant current: Yes
- Suitable for constant voltage: No.
- Suitable for DC voltage (primary side): Yes
- Product type
LED converter
- Factory colour
Black
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3549753 Brumberg 17665000 LED converter 1 pc(s)
Description
LED-converter 350 mA, switchable, black, rectangular. This converter is protected against overvoltage and short circuit as well as thermal and electrical overload by fuse devices. Maximum cable length secondary side 2,000 mm. Material: Plastic, protection class: From room side: According to DIN EN 60529: IP20, protection class (EN 61140) II, voltage: 230V AC 50Hz, power: 3.2 W, dimmable: No, type of dimming: Switchable.
This text is machine translated.
This text is machine translated.
