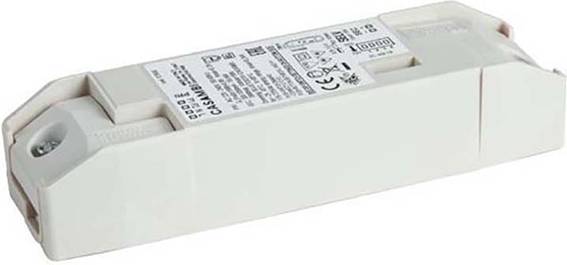

Brumberg 17671010 LED converter 18 W 350 mA 54 V dimmable
EAN:
Part number:
Item no:
Product type
LED converter
Power
18 W
Connection
Clamp
Output current (max.) - rounded
350 mA
Output voltage (max.)
54 V
Datasheet (PDF)
Technical specifications
- Output power 4..18 W
- Dimming 1-10 V: no.
- Dimming DALI: no.
- DMX dimming: no.
- Phase section dimming: no.
- Dimming RF: no.
- Dimming Zigbee: Yes
- Suitable for outdoor use: no.
- Protection class: II
- Type
dynamic
- Product type
LED converter
- Operating voltage
230 V AC
18 W
- LED features
dimmable
- Connection
Clamp
IP20
- Dim
(L x W x H) 97 x 44 x 30 mm
- Max. output current
350 mA
- Output current (max.) - rounded
350 mA
- Height
30 mm
- Length
97 mm
- Width
44 mm
- Material (details)
Plastic housing
- Output current (min.)
350 mA
- Output voltage (max.)
54 V
- Output voltage (min.)
10 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2294308 Brumberg 17671010 LED converter 18 W 350 mA 54 V dimmable
User & Safety Instructions
User & Safety Instructions 2294308 Brumberg 17671010 LED converter 18 W 350 mA 54 V dimmable
Description
LED converter 350mA, Zigbee dimmable. This device fulfills the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short-circuit by safety devices as well as thermal and electrical overload. The input and output terminals are suitable for cables with a cross-section of up to 1.5 mm². Material: Plastic, protection class: According to DIN EN 60529: IP20, protection class: (EN 61140) II, current: 350 mA, voltage: 230V AC 50Hz, power: 3.5-18.5W, dimmable: Yes, type of dimming: ZigBee,
