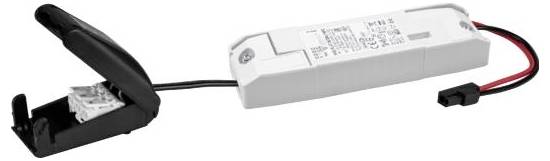

Brumberg 17682020 LED converter 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Height: 22 mm
- Width 43.5 mm
- Execution: Dynamic
- Protection class (IP) IP20
- Suitable for outside use: No.
- Protection class: II
- Length: 146.5 mm.
- Output power 1.75..18.5 W
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Dimmer 0-10 V: No
- Dimmer 1-10 V: No
- DALI dimming: Yes
- Dimmer DMX: No
- Dimmer DSI: No.
- Dimmer potentiometer (built-in): No.
- Dimming LineSwitch: No.
- Dimmer manufacturer-specific: No.
- Mains voltage modulation dimming: No.
- Dimming Phase section: No.
- Dimming leading edge: No.
- Dimming programmable: No.
- Dim. RF: No.
- Dimming Sine Wave Reduction: No.
- Dimming Touch and Dim: No.
- Zigbee dimming: No.
- Dimming with push-button: No.
- Without dimmer function: No.
- Operation via Bluetooth: No.
- Compatible with Casambi: No.
- Output current: 350 mA
- Output voltage 10 - .54 V
- Housing: Plastic housing
- Suitable for constant current: No.
- Suitable for constant voltage: No.
- Suitable for DC voltage (primary side): Yes
- Product type
LED converter
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551261 Brumberg 17682020 LED converter 1 pc(s)
Description
LED-converter 350 mA, DALI dimmable (digital), white, rectangular. This operating device meets the requirements for safety lighting systems according to DIN EN 50172 VDE 0108-100:2005-01. This converter is protected against overvoltage and short circuit as well as thermal and electrical overload by fuse devices. The input and output terminals are suitable for cables with a cross-section of 0.75 to 1.5 mm². Material: Plastic, protection class on the road side: According to DIN EN 60529: IP20, protection class: (EN 61140) II, voltage: 230V AC 50Hz, power: 18.5 W, dimmable: Yes, type of dimming: DALI-2.
